Tie Rod Fits Case/International Harvester Replaces 5109553

Tie Rod Fits Case/International Harvester Replaces 5109553

£48.00 GBP
£48.00 GBP
Sale Sold out
Shipping calculated at checkout.

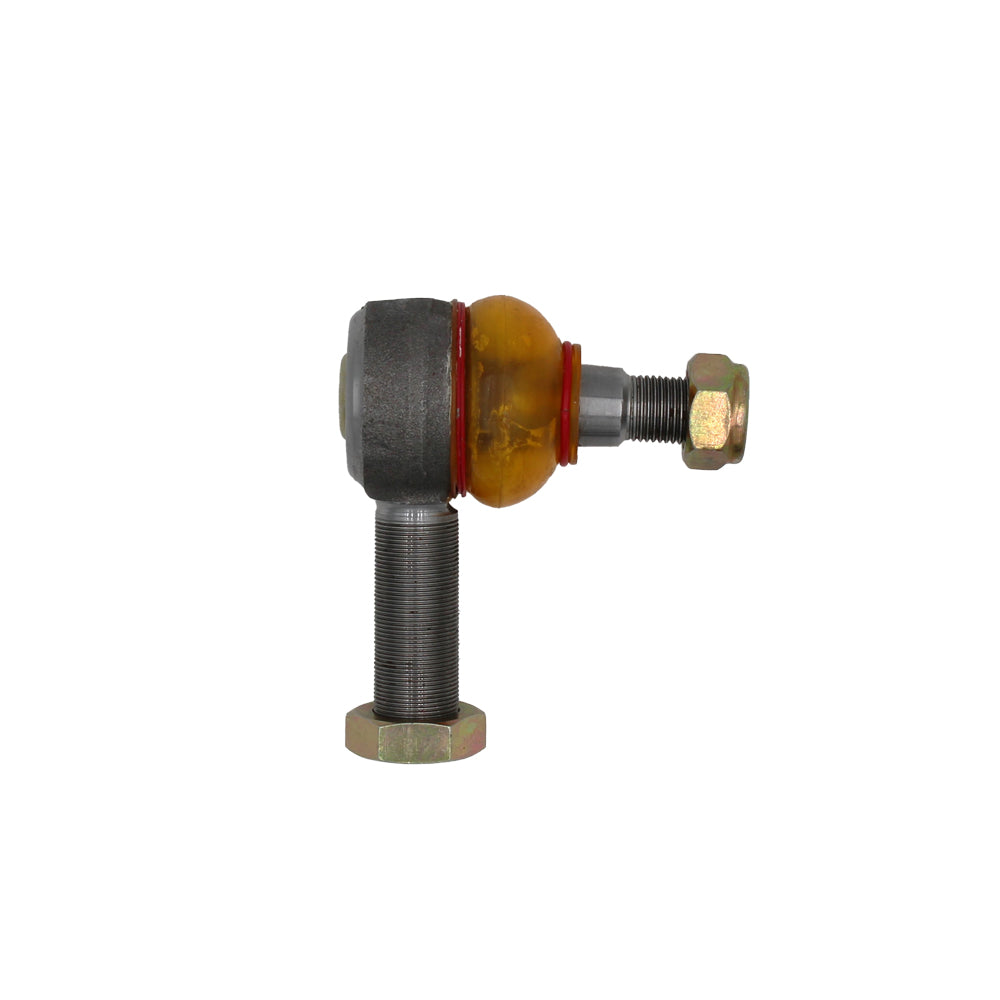

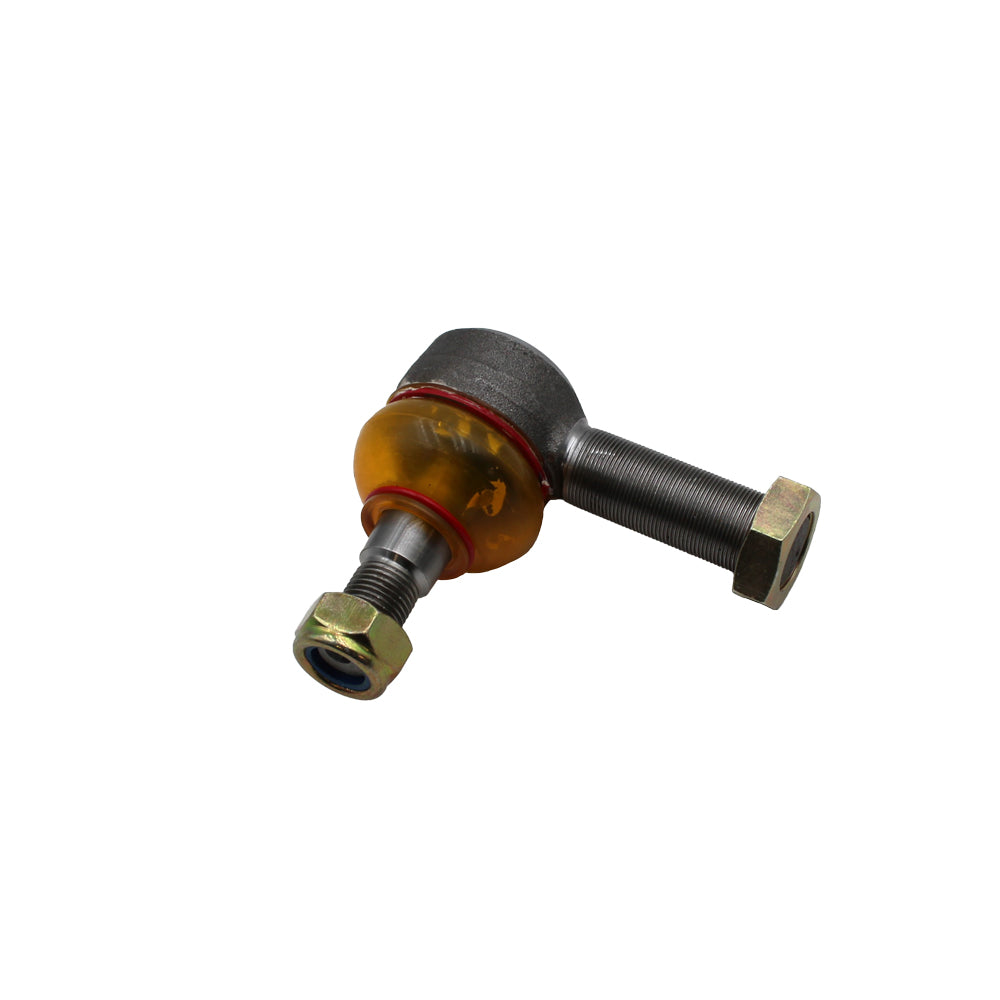

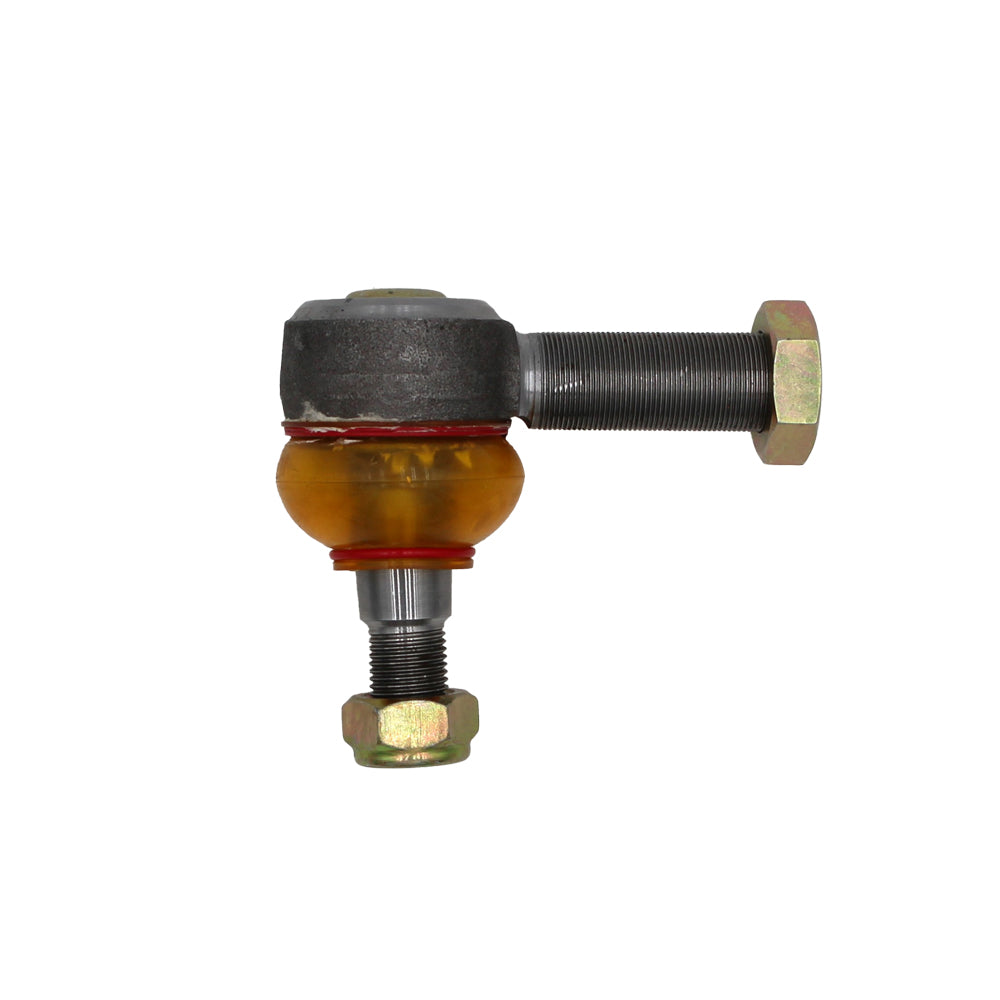

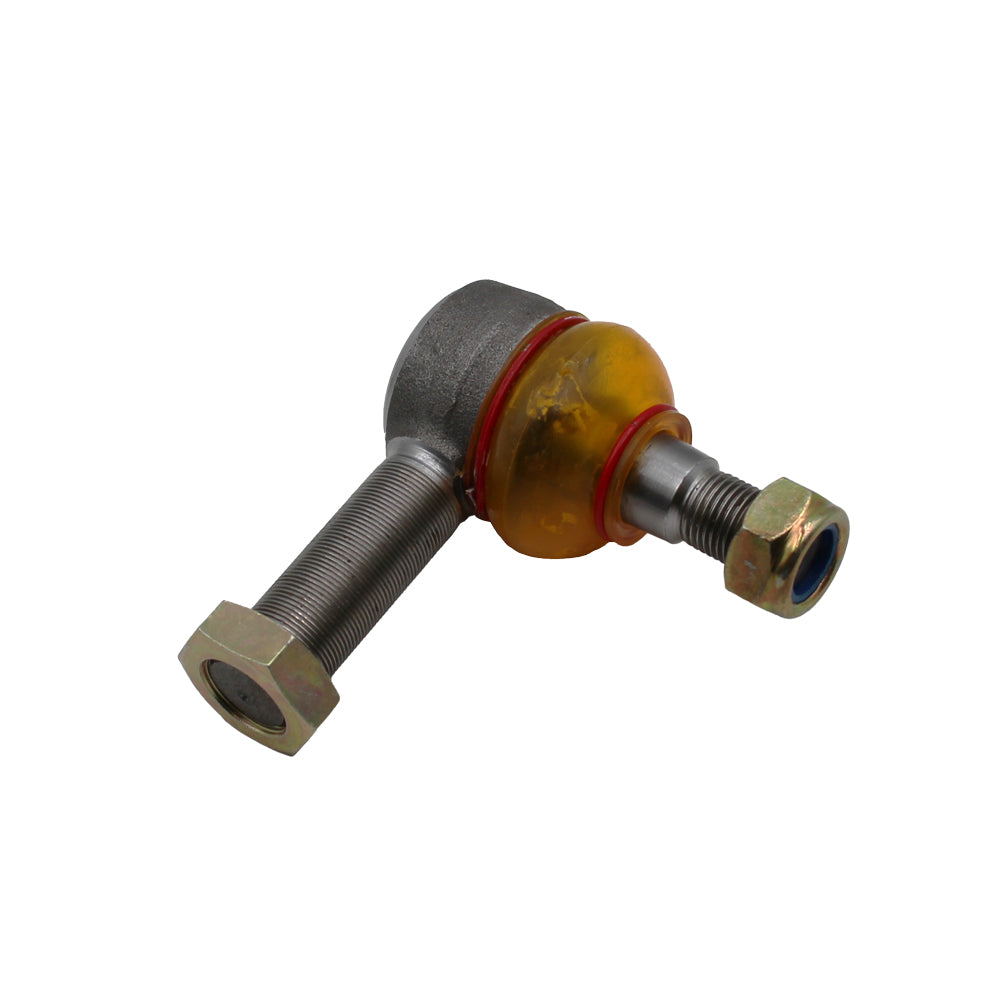

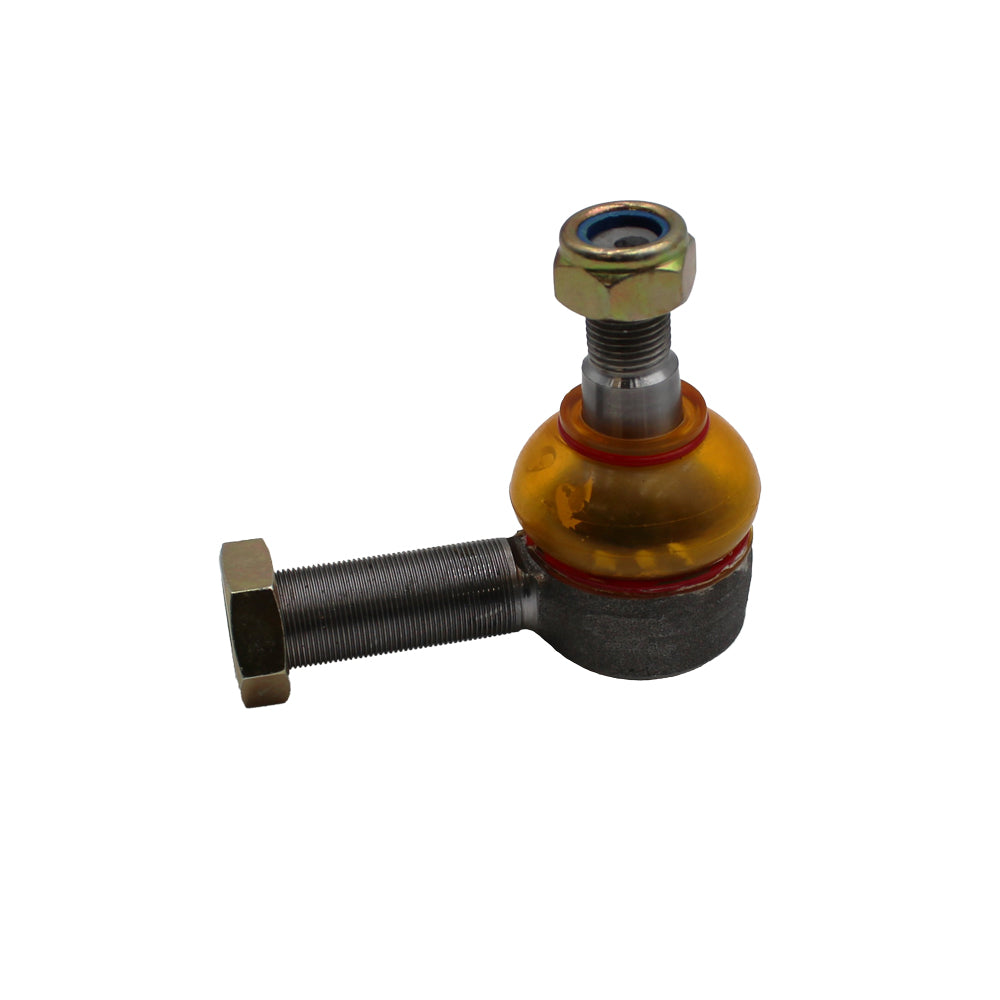

One New Aftermarket Tie Rod

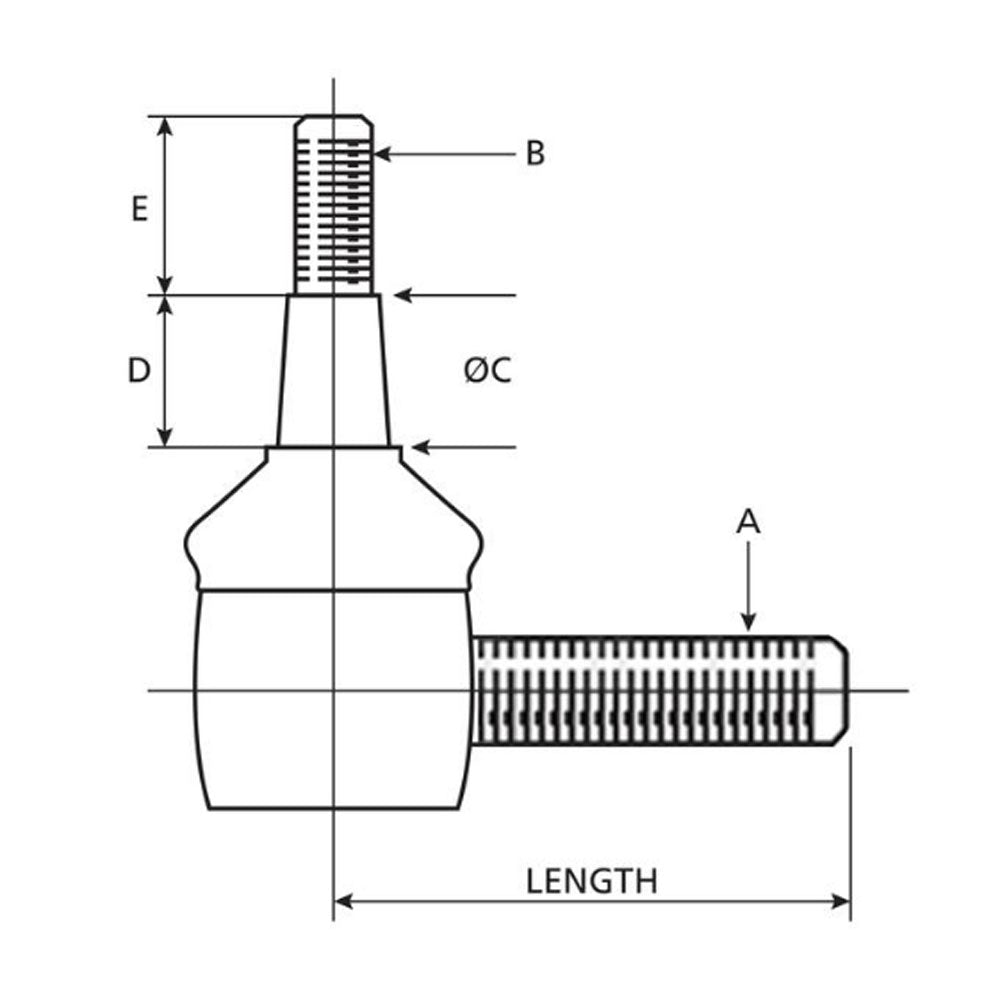

Tech Info:
 -Inner side thread Ø A (mm) M20 x 1
 -Length (mm) 80
 -Outer side thread Ø B (mm) M16 x 1.5
 -Taper C (mm) 20.1 - 18.2
 -Taper length D (mm) 20
 -Thread length E (mm) 21
 -Type Male Thread - Straight

Made to Fits Case/International Harvester:
 Models: 60, 70, 80, 90, 95, JX100U, JX1080U, JX1090U, JX1100U, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95 (MFWD) 65C, 75C, 85C, JX1070C, JX1075C, JX1085C (2WD)

Models This Part Fits:

JX55, JX70, 75C, 65C, 60, JX80U, JX1100U, 85C, JX75, JX95 (MFWD), JX85, JX1090U, 70, JX1075C, JX1085C (2WD), 95, JX60, JX70U, JX80, 80, JX1070C, 90, JX100U, JX90U, JX90, JX1080U, JX65

Additional Information:

Inner Side Thread Diameter: A M20 x 1mm Length: 80mm Outer Side Thread Diameter: B M16 x 1.5mm Taper C 20.1 - 18.2mm Taper length: D 20mm Thread length: E 21mm Type Male Thread: Straight

Reference Numbers:

tractors, agricultural, tillage equipment, planting equipment
