Deck Rebuild Kit Fits Cub Cadet Replaces 490-110-C109

Deck Rebuild Kit Fits Cub Cadet Replaces 490-110-C109

£148.00 GBP
£148.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Deck Rebuild Kit

Tech Info:

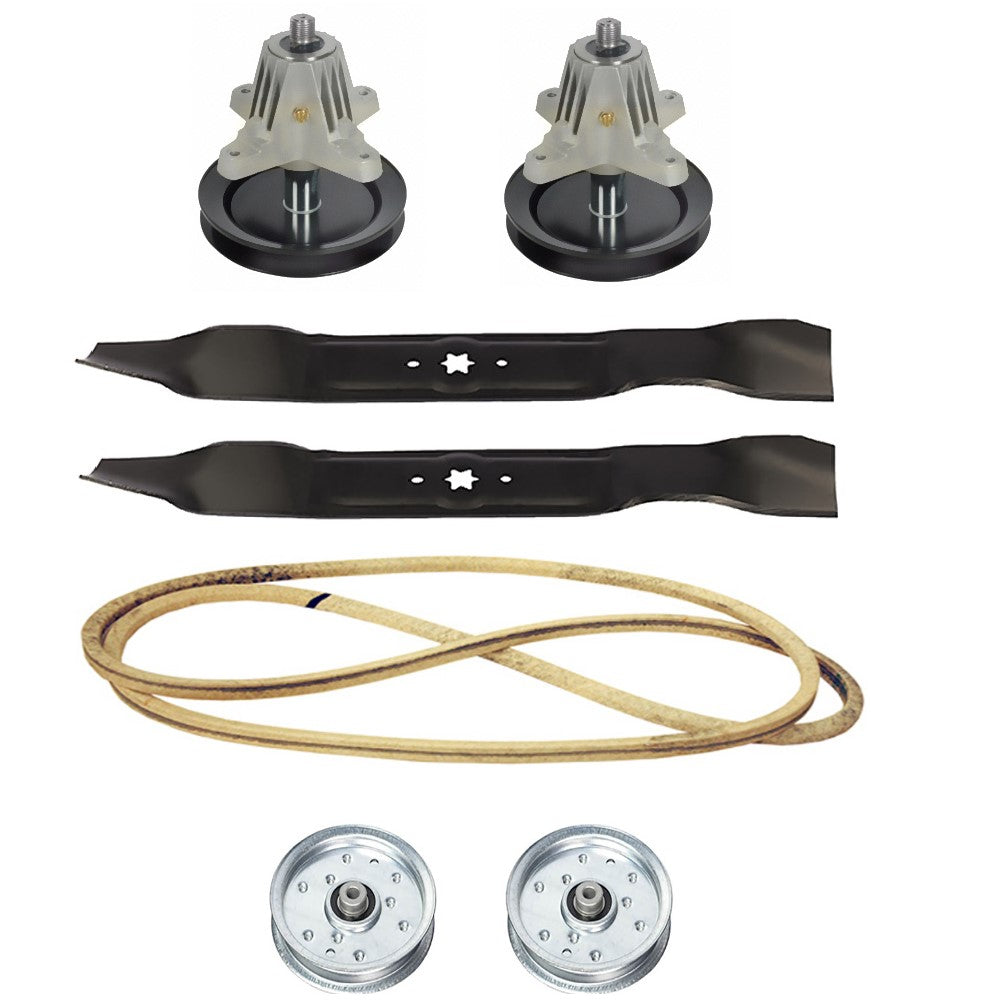

 -Kit Contains:
 -(2) Spindle Assembly
 -OD of Pulley: 6"
 -Specially designed: to replace 6 pt. star spindle shaft
 -Pulley included
 -No threads in housing, use Thread Cutting Bolts
 -
 -Replaces Part Numbers:
 -618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950
 -
 -(2) Flat Idler Pulley (Zinc)
 -Inside Diameter: 3/8"
 -Outside Diameter: 4-7/8"
 -Height: 1"
 -Material: Metal (Zinc Coated)
 -Type: Heavy Duty
 -
 -Replaces Part Numbers:
 -756-04129B, 756-04129C, 956-04129, 956-04129C, 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C
 -
 -(3) Mulching Blades
 -2 Blades required per machine for 42" Cut
 -C to C: 2-1/2"
 -Center Hole: 6-Point Star
 -Length: 21-3/16"
 -Outer Hole Dia.: 5/16"
 -Thickness: 0.156"
 -Type: High Lift - Notched
 -Width: 3"
 -
 -Replaces Part Numbers:
 -742-04126, 742-0616, 742-0616A, 742-616A, 942-04126, 942-0616, 942-0616A, 942-616, 112-0315, 98022
 -
 -(1) 96.50" Deck Drive Belt
 -Belt Type: Covered
 -Width: 1/2"
 -Length: 96-1/2"
 -
 -Replaces Part Numbers:
 -SPM201671081, 754-04060, 754-04060A, 754-04060B, 954-04060, 954-04060A, 954-04060B, GX10851, 954-04060C, GX10851

Made to Fit Cub Cadet:
 Models: LT1040, LT1042, LTX1040, LTX1042, LTX1045 RZT42, 13AX90AS010, 13RX90AS056, 13AX90AS009, 13WX90AS010
 Replaces Part Number(s): 754-04060, 754-04060B, 754-04060C, 954-04060, 954-04060B, 954-04060C, 490-110-C109, 490-110-C122, 490-110-M115, 742-04087, 742-04126, 7420616, 742-0616, 742-0616A, 942-04087, 942-04126, 942-0616, 942-0616A, GW-7420616, OCC-742-0616, OEM-742-0616

Models This Part Fits:

13WX90AS010, LTX1040, LT1042, LT1040, 13AX90AS009, 13AX90AS010, 13RX90AS056, LTX1045 RZT42, LTX1042

Additional Information:

(2) Spindle Assemblies OD of Pulley: 6" Specially designed: to replace 6 pt. star spindle shaft Pulley included No threads in housing, use Thread Cutting Bolts Replaces Part Numbers: 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950 (2) Flat Idler Pulleys (Zinc) Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" Material: Metal (Zinc Coated) Type: Heavy Duty Replaces Part Numbers: 756-04129B, 756-04129C, 956-04129, 956-04129C, 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C (3) Mulching Blades 2 Blades required per machine for 42" Cut C to C: 2-1/2" Center Hole: 6-Point Star Length: 21-3/16" Outer Hole Dia.: 5/16" Thickness: 0.156" Type: High Lift - Notched Width: 3" Replaces Part Numbers: 742-04126, 742-0616, 742-0616A, 742-616A, 942-04126, 942-0616, 942-0616A, 942-616, 112-0315, 98022 (1) 96.50" Deck Drive Belt Belt Type: Covered Width: 1/2" Length: 96-1/2" Replaces Part Numbers: SPM201671081, 754-04060, 754-04060A, 754-04060B, 954-04060, 954-04060A, 954-04060B, GX10851, 954-04060C, GX10851

Reference Numbers:

754-04060, 754-04060B, 754-04060C, 954-04060, 954-04060B, 954-04060C, 490-110-C109, 490-110-C122, 490-110-M115, 742-04087, 742-04126, 7420616, 742-0616, 742-0616A, 942-04087, 942-04126, 942-0616, 942-0616A, GW-7420616, OCC-742-0616, OEM-742-0616
