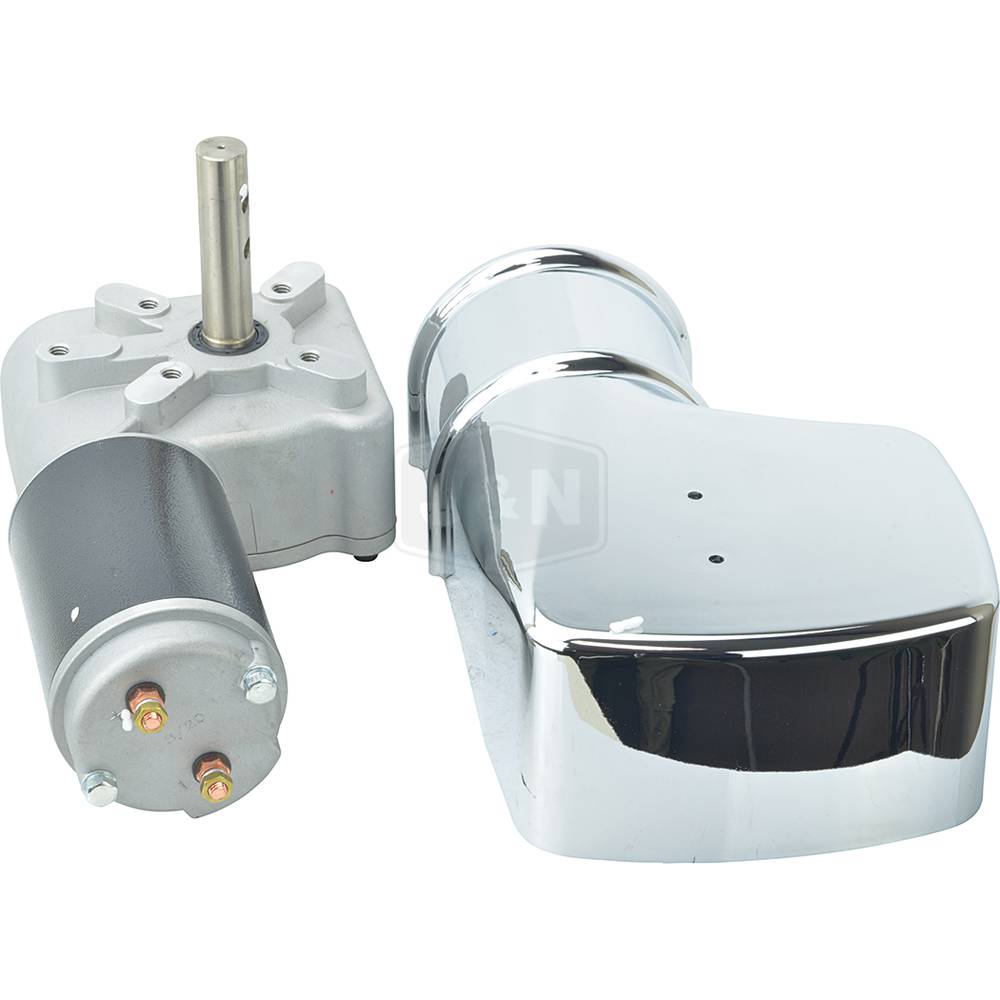

430-22169-JN J&N Electrical Products Tarp Motor

430-22169-JN J&N Electrical Products Tarp Motor

£332.00 GBP
£332.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Tarp Motor

Tech Info:
-Arrowhead: 43022169, 430-22169, LTM0001; CCM: ZJD8025C; J&N Electrical Products: 430-22133, 430-22156; Lester: 16009
-LESTER: 16009, VOLT: 12, POWER: 0.596 kw, HP: 0.800, CONDITION: New, ROTATION DIRECTION: Reversible, OD: 3.161", OD: 80.300 mm, SHAFT OD: 0.748", SHAFT OD: 19mm, LENGTH: 252.700 mm, LENGTH: 9.949", TERMINAL 2 SIZE: M6-1.0, TERMINAL 3 SIZE: M6-1.0, SHAFT: (2) 8mm Holes, 80mm Long, CURRENT TYPE: DC, WARRANTY: 1 Year, : 90:1 Gear Ratio, : 5-Bolt adjustable bolt pattern, : Fits all 3-Bolt and 4-Bolt configurations

Replaces Part Number(s): 430-22169

Additional Information:

Arrowhead: 43022169, 430-22169, LTM0001; CCM: ZJD8025C; J&N Electrical Products: 430-22133, 430-22156; Lester: 16009, LESTER: 16009, VOLT: 12, POWER: 0.596 kw, HP: 0.800, CONDITION: New, ROTATION DIRECTION: Reversible, OD: 3.161", OD: 80.300 mm, SHAFT OD: 0.748", SHAFT OD: 19mm, LENGTH: 252.700 mm, LENGTH: 9.949", TERMINAL 2 SIZE: M6-1.0, TERMINAL 3 SIZE: M6-1.0, SHAFT: (2) 8mm Holes, 80mm Long, CURRENT TYPE: DC, WARRANTY: 1 Year, : 90:1 Gear Ratio, : 5-Bolt adjustable bolt pattern, : Fits all 3-Bolt and 4-Bolt configurations

Reference Numbers:

430-22169
