42" Deck Rebuild Kit Fits Craftsman DYT4000 Belt Pulleys Blades Spindles

42" Deck Rebuild Kit Fits Craftsman DYT4000 Belt Pulleys Blades Spindles

£74.00 GBP
£74.00 GBP
Sale Sold out
Shipping calculated at checkout.

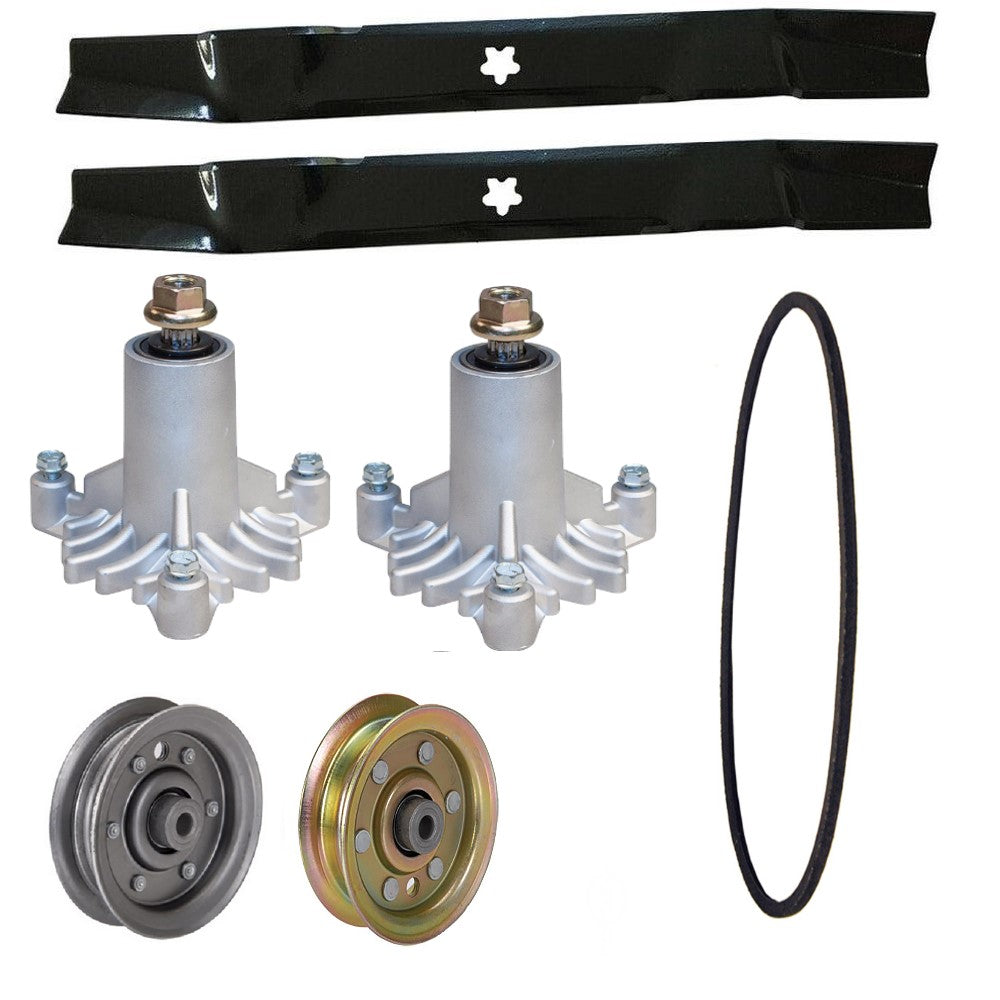

One New Aftermarket Replacement Lawn Tractor 42" Mower Deck Rebuild Kit

This Mower Deck Rebuild Kit Includes:
(1) Idler Pulley - Fits Sears 131494
(1) Idler Pulley - Fits Sears 173437
(2) 21" Blades - Fits Sears 134149
(2) Complete Spindle Assemblies - Fits Sears 130794
(1) 97.4" x 21/32" Deck Belt - Fits Sears 174883

Belt -
5/8 X 97.5 Wrapped Polyester Cord
Color Gray
Length 97.5
Material Polyester Cord
Thickness 0.444
Type Wrapped
Width 5/8

Spindle Assembly -
3-Bolt Long
5 Point Star Center Hole

Mulching Lawn Mower Blade -
Requires 2 Blades for 42" Deck
Length: 21"
Width: 2-1/4"
Center Hole: 5 Point Star
Thickness: .134"
Mulching Blade

Flat Idler Pulley -
Flat Idler w/ Flanges
Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875" (3 7/8'') OD
0.375''

Models This Part Fits:

42" Mower Decks, 42” Mower Decks, 42" Mower Deck

Additional Information:

(1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 104360X, 131494, 131464, 173438, 9585464, 532173438 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888 (1) Belt Length: 97-1/2" Width: 5/8" Made with Polyester Cord Material Replaces Part Numbers: PP13009, 174883, 531300767, 532174883, 531 30 07-67 (2) Spindle Assemblies Overall Height: 7" 5 Point Star Blade Mount Replaces Part Numbers: 130794, 532130794, 128285, 133172, 137641 (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole Diameter: 5-Point Star Replaces Part Numbers: 21546095, 704429, 131323, 133128, CMXGZAM110021

Reference Numbers:

130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 104360X, 131494, 173438, 532173438, 131464, 155191, 532131494, 918131494, 9585464, 131494, 173347, 532173437, 165888, 173437, 594892701, 917539110460, 917532422719, 954636867, 917777134149, 917532424752, 917532139775, 917532138498, 91724676, 917139775P, 917138498MS, 917131323, 917127843, 777134149, 539110460, 532424752, 532422719, 532139775, 532138971, 532138498, 532134149, 532131323, 531307224, 531307223, 531005085, 521981601, 24676, 138791, 127843, 424752, 134149, 138498, 422719, 139775, 133288, 138971, 174883, 532174883, PP13009, 532130794, 130794, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 532131494, 532173438, 532 13 14-94, 532 17 34-38, 532104360, 532155191, 597025001, 532 17 34-37, 532165888, 173437, 954636867, 138791, 532134149, 532138971, 532138498, 531307224, 917532138498, 532 13 41-49, 000000532134149, 41-49, 4149, 53-213-41-49, 532-1341-49, 5321341-49, 594892701, 594893101, 777 13 41-49, 174883, 531300767, 532174883, 531 30 07-67, 532 17 48-83, 532-17-48-83

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
