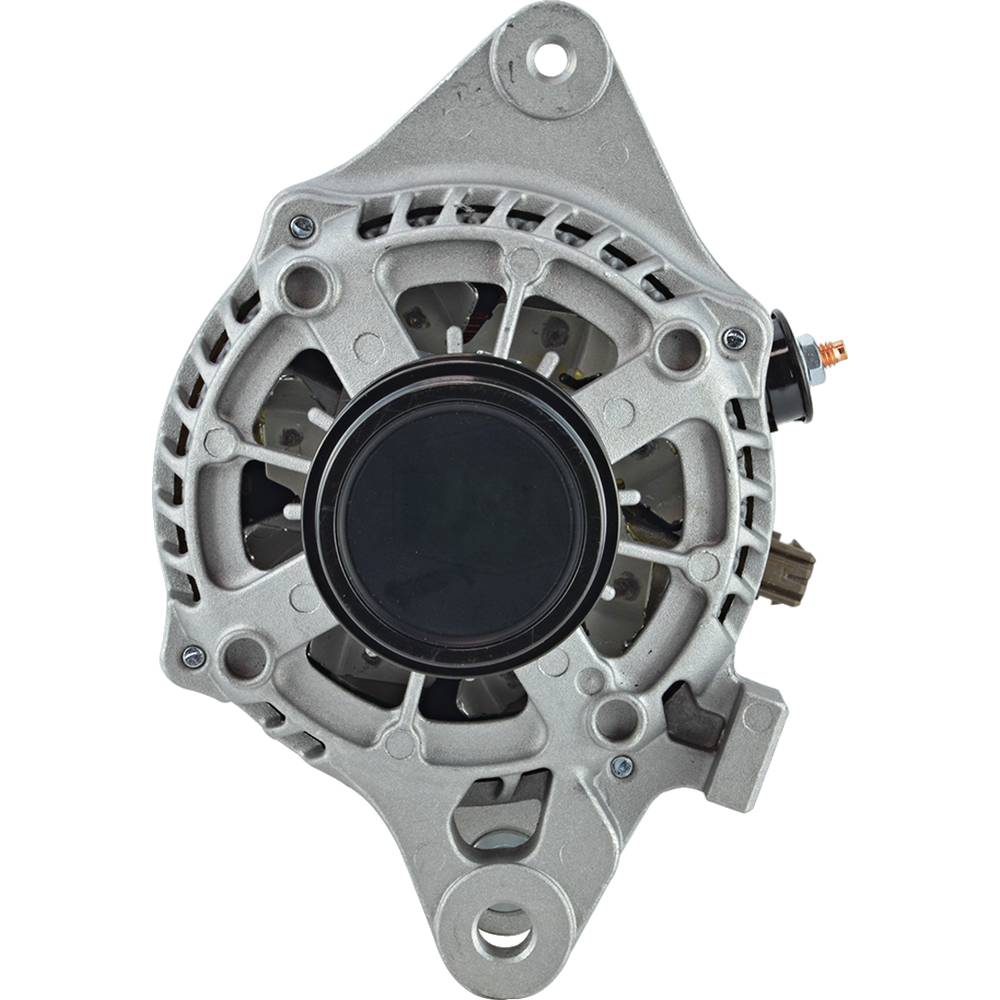

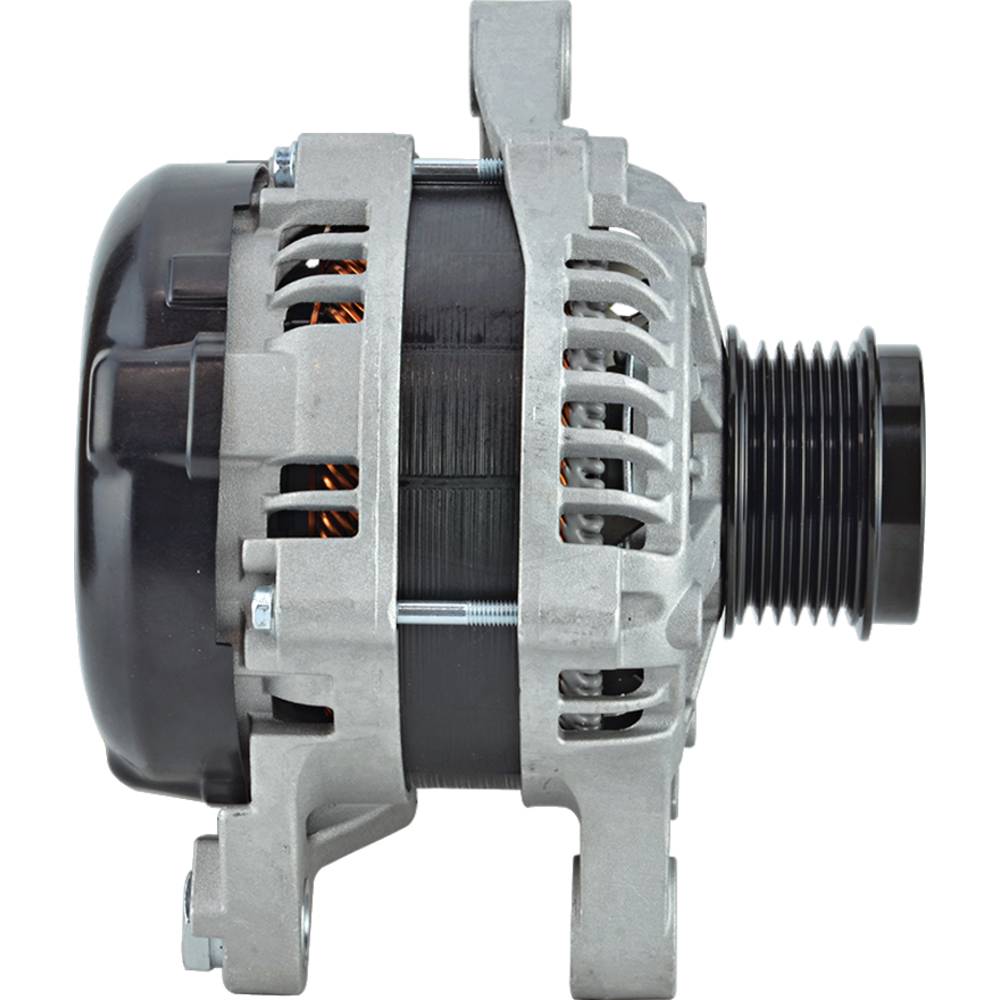

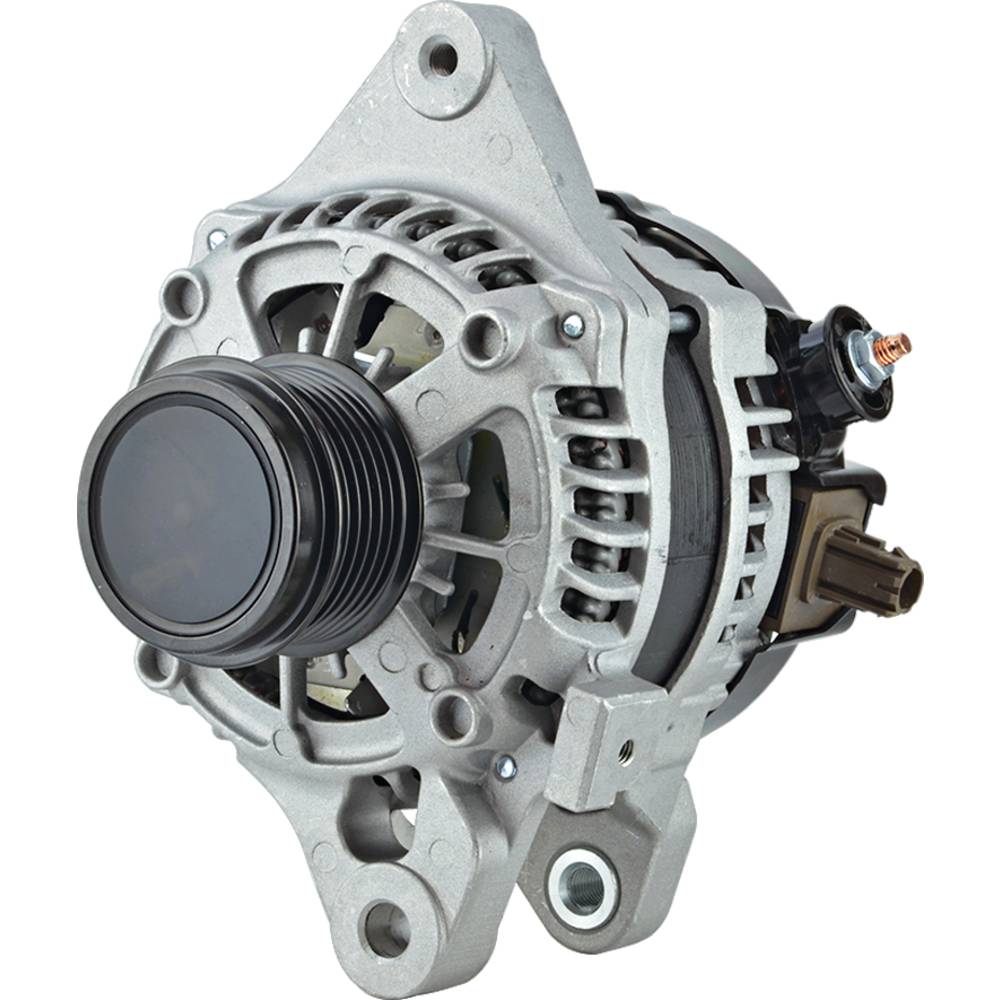

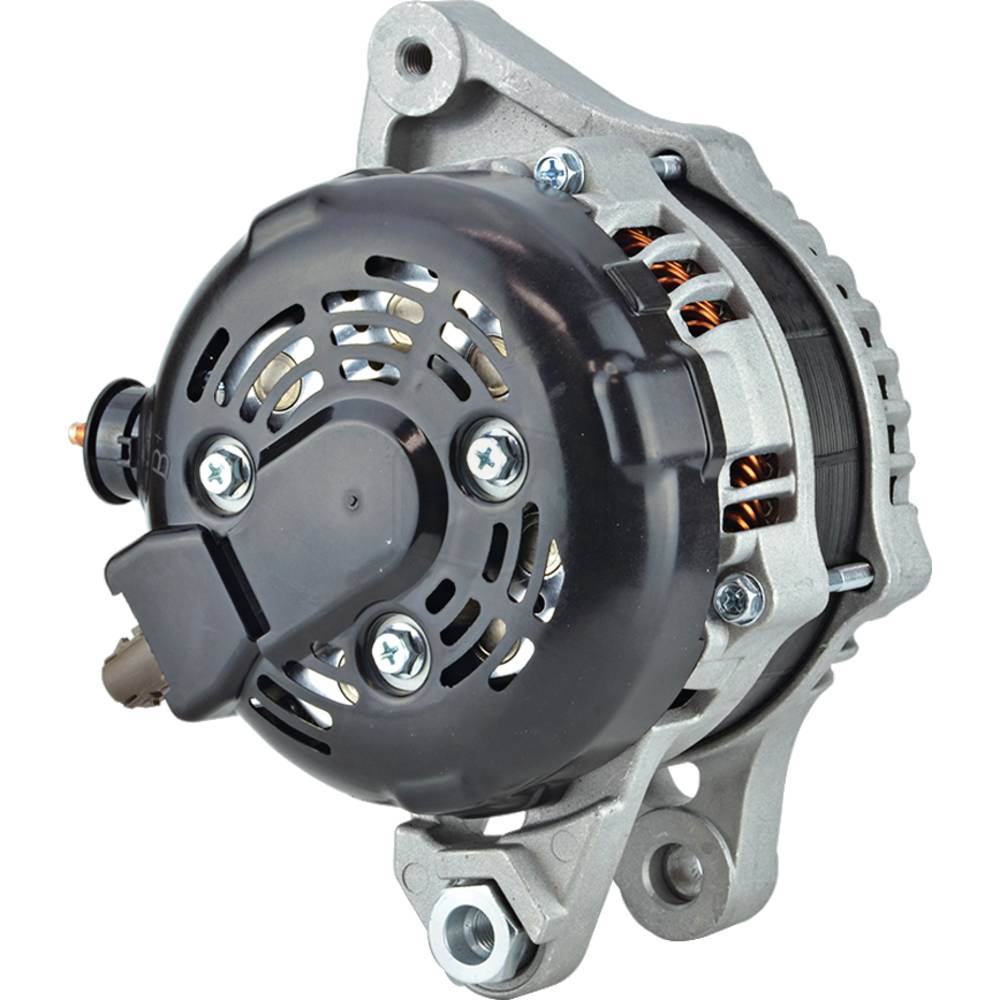

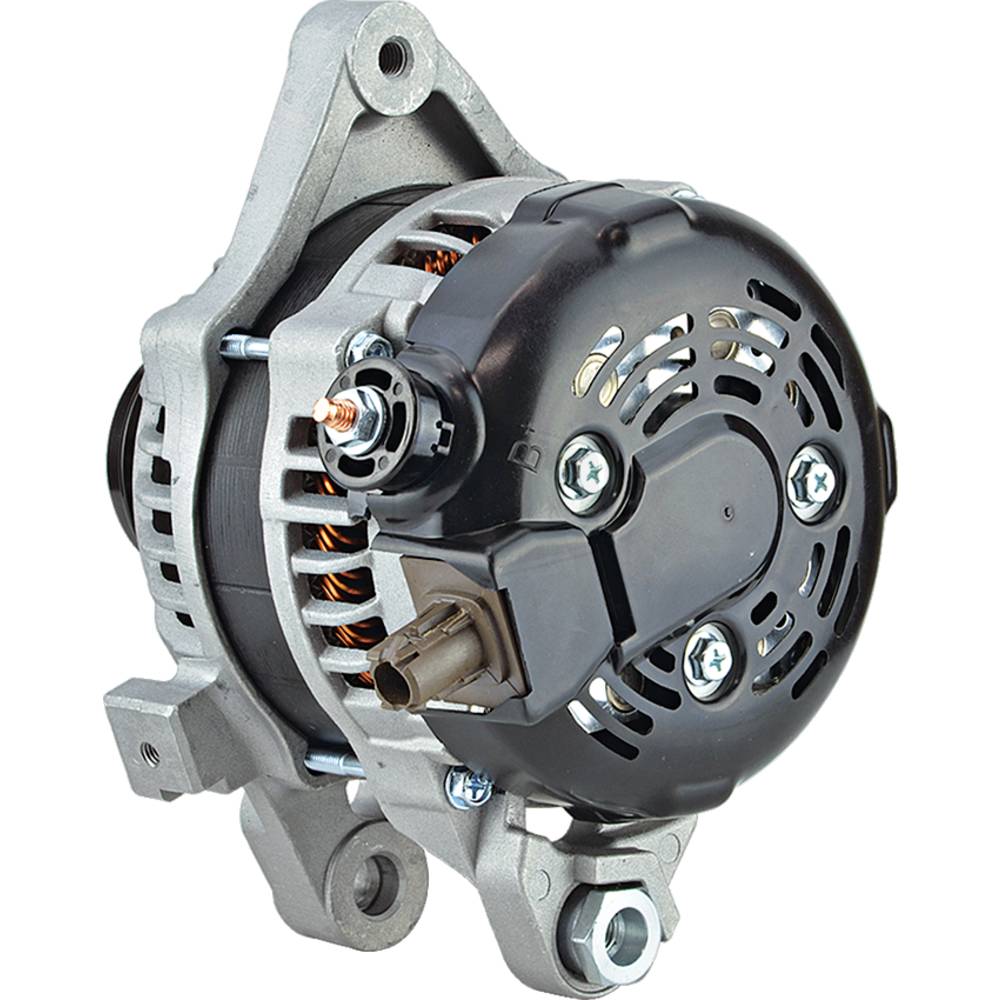

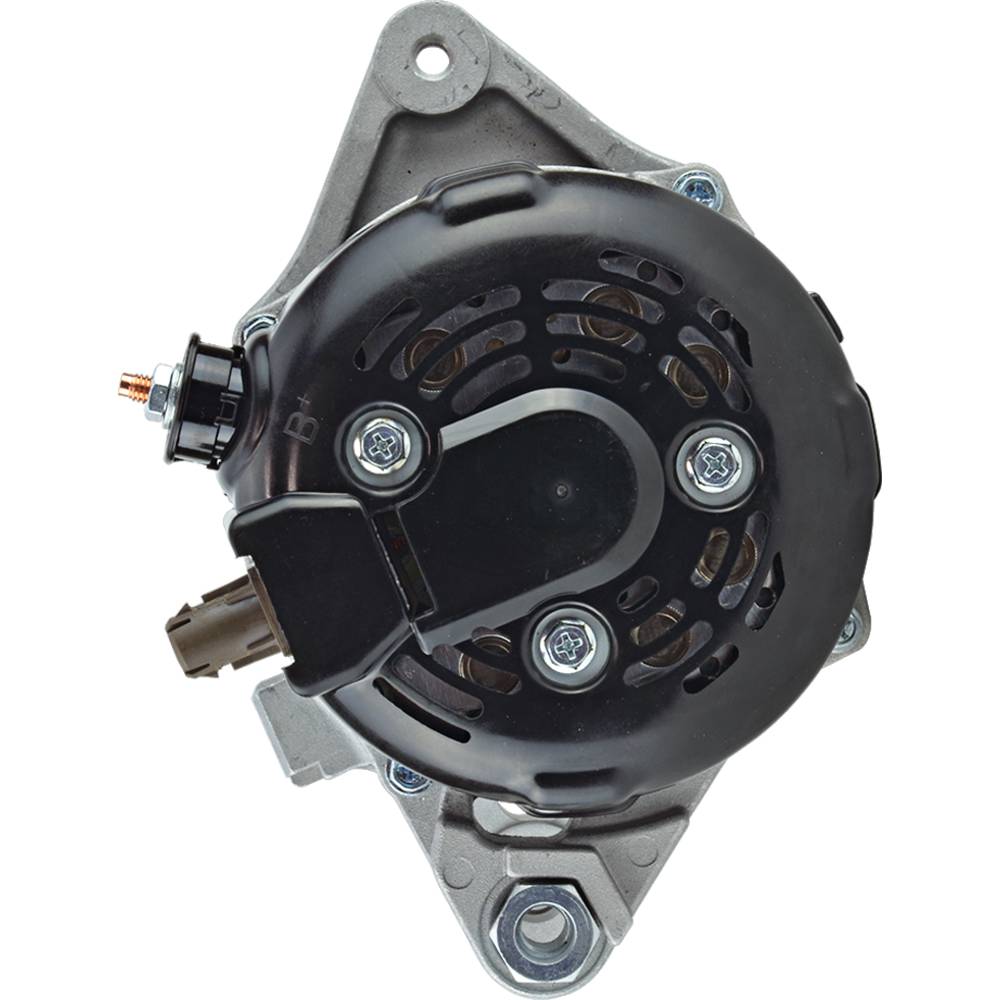

400-52496R-JN J&N Electrical Products Alternator

400-52496R-JN J&N Electrical Products Alternator

£301.00 GBP
£301.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: 400-52496R; Fits Denso: 104211-3311, 104211-3313; Lester: 11777; Fits Toyota: 27060-0T260
-LESTER: 11777, FAMILY: Fits Denso SC (Hairpin), VOLT: 12, AMPS: 125, CONDITION: Remanufactured, REGULATOR CLOCK: 8:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: M10x1.25, MOUNT HOLE 3 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.787", MOUNTING EAR THICKNESS: 20mm, MOUNTING EAR 2 THICKNESS: 0.787", MOUNTING EAR 2 THICKNESS: 20mm, MOUNTING EAR 3 THICKNESS: 0.906", MOUNTING EAR 3 THICKNESS: 23mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: LIN, TERMINAL 3 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.165", GROOVE OD: 55mm, PULLEY TYPE: Decoupler, PULLEY OUTER DIAMETER: 2.382", PULLEY OUTER DIAMETER: 60.500mm

Replaces Part Number(s): 400-52496R

Additional Information:

Arrowhead: 400-52496R; Denso: 104211-3311, 104211-3313; Lester: 11777; Toyota: 27060-0T260, LESTER: 11777, FAMILY: Denso SC (Hairpin), VOLT: 12, AMPS: 125, CONDITION: Remanufactured, REGULATOR CLOCK: 8:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: M10x1.25, MOUNT HOLE 3 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.787", MOUNTING EAR THICKNESS: 20mm, MOUNTING EAR 2 THICKNESS: 0.787", MOUNTING EAR 2 THICKNESS: 20mm, MOUNTING EAR 3 THICKNESS: 0.906", MOUNTING EAR 3 THICKNESS: 23mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: LIN, TERMINAL 3 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.165", GROOVE OD: 55mm, PULLEY TYPE: Decoupler, PULLEY OUTER DIAMETER: 2.382", PULLEY OUTER DIAMETER: 60.500mm

Reference Numbers:

400-52496R
