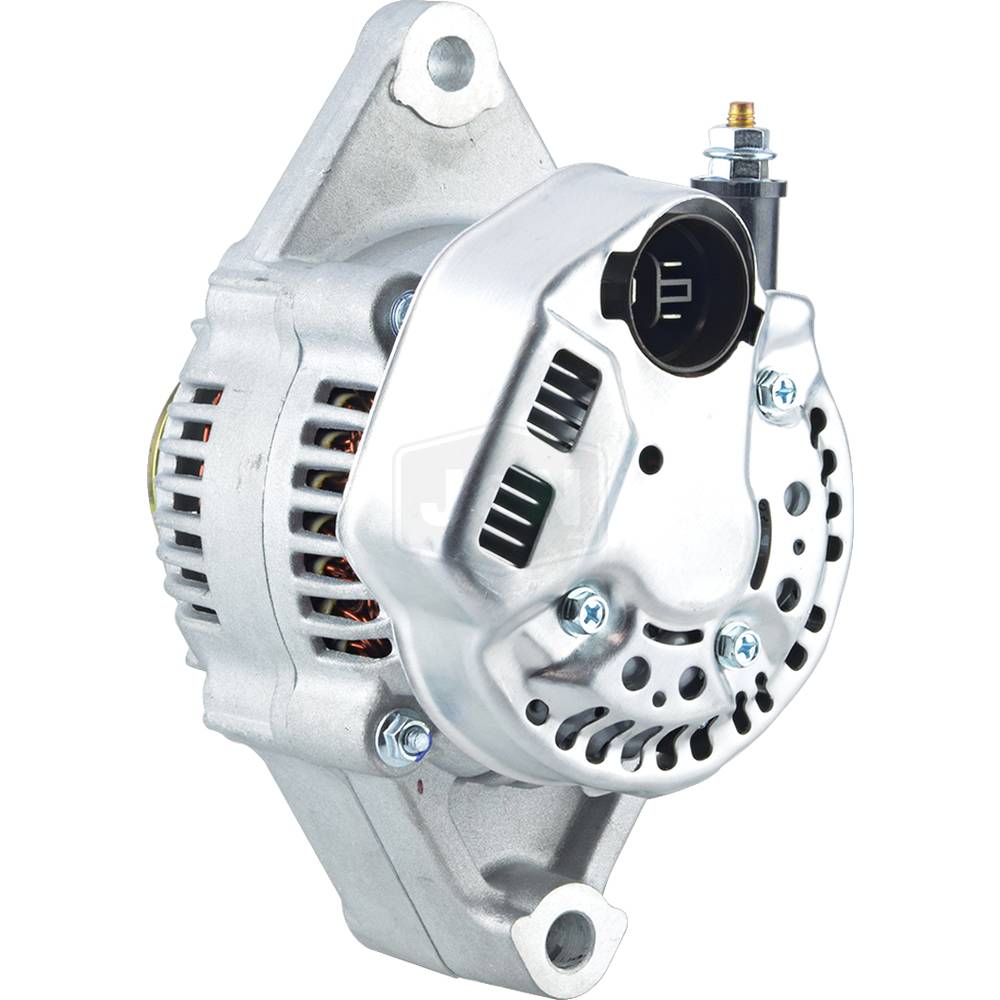

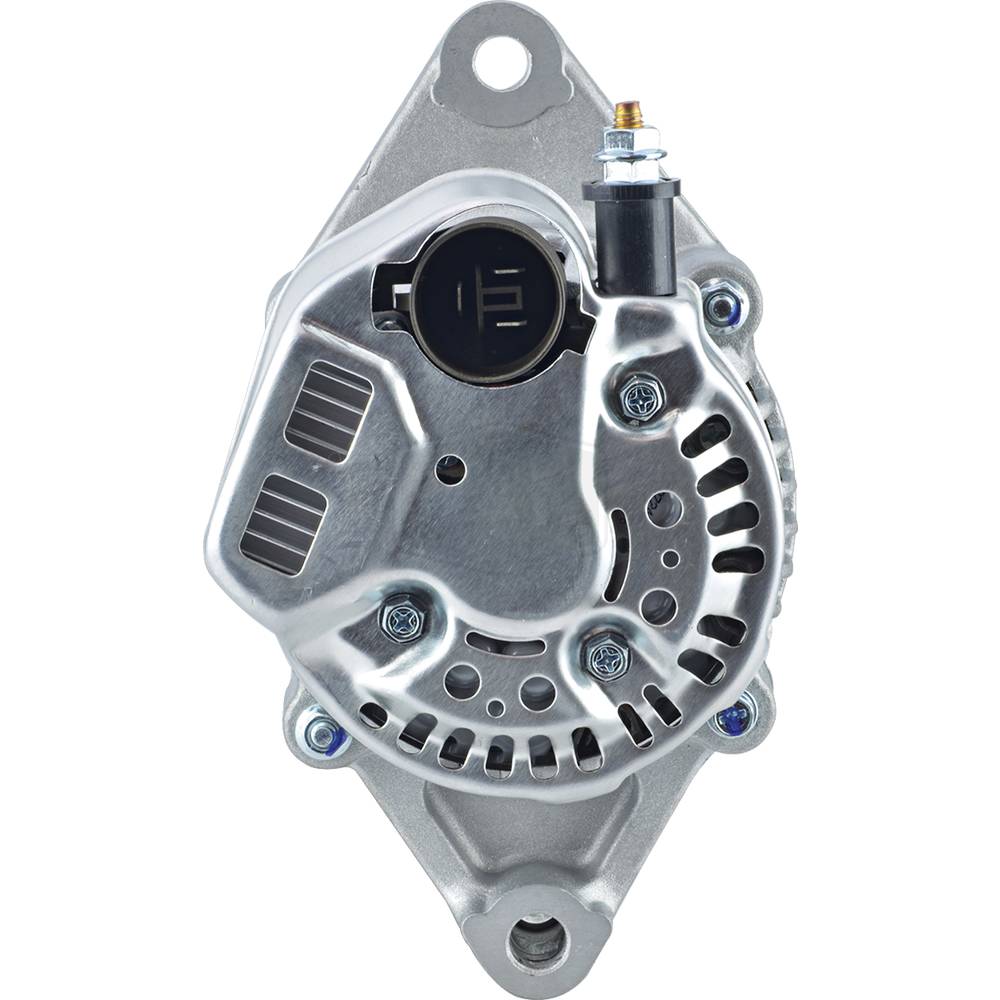

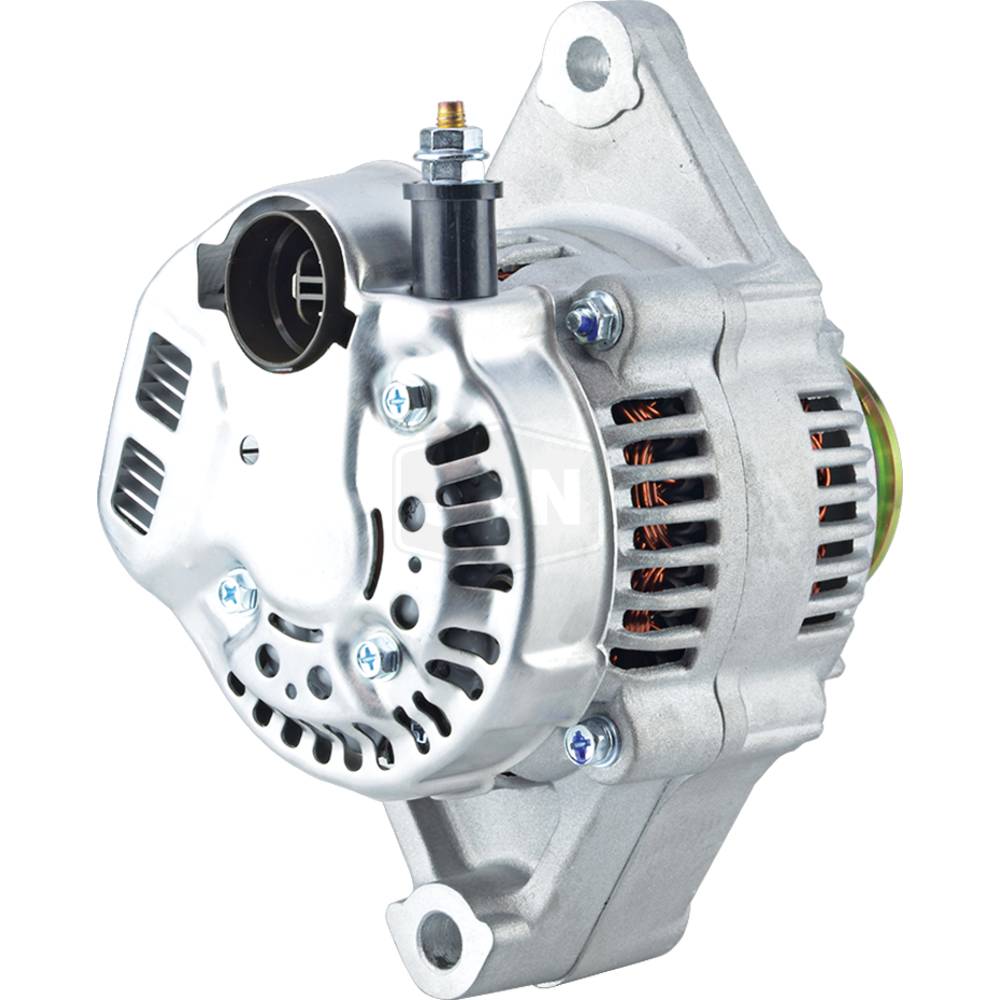

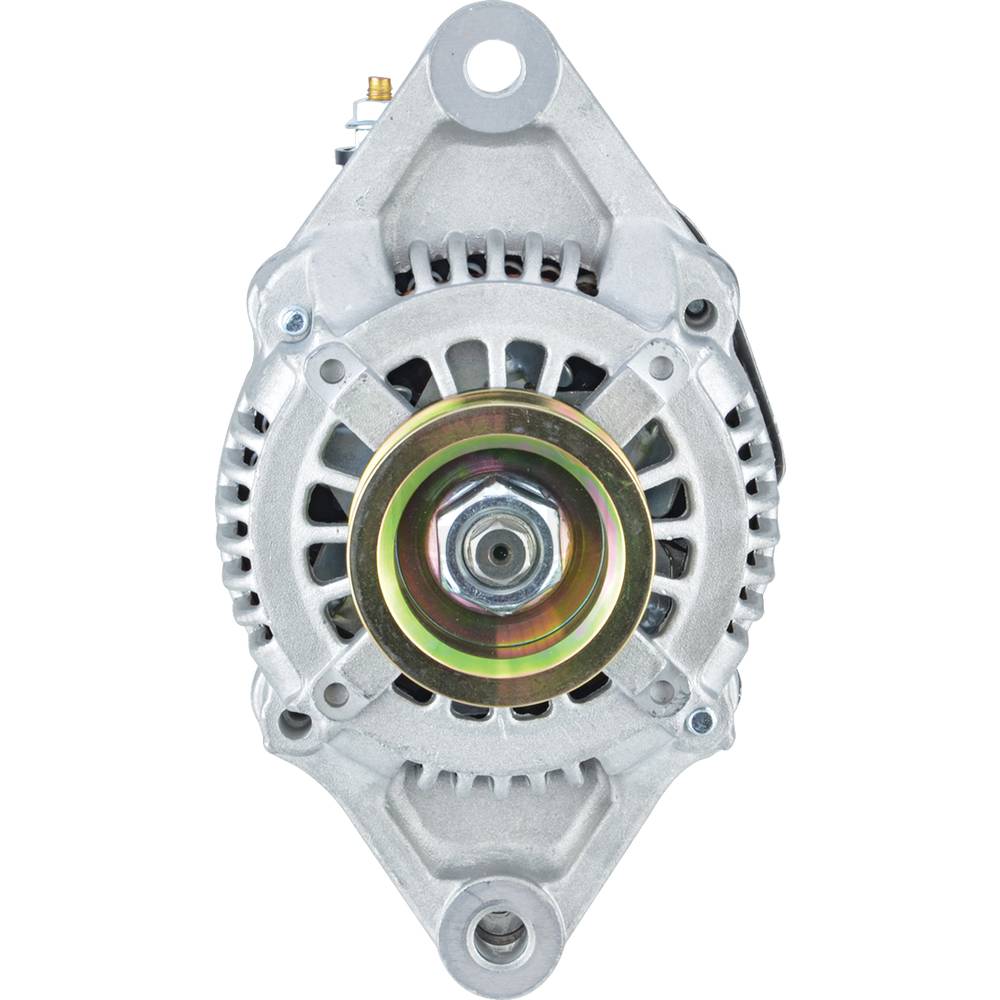

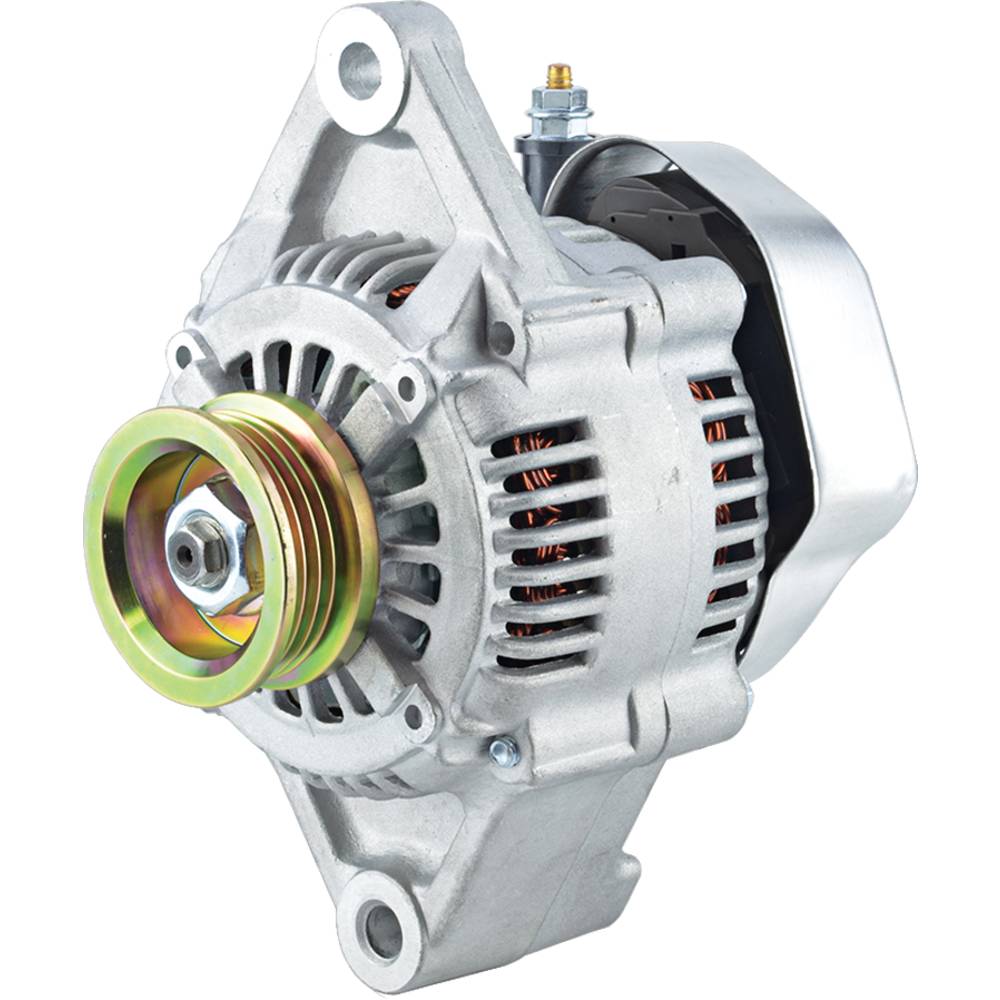

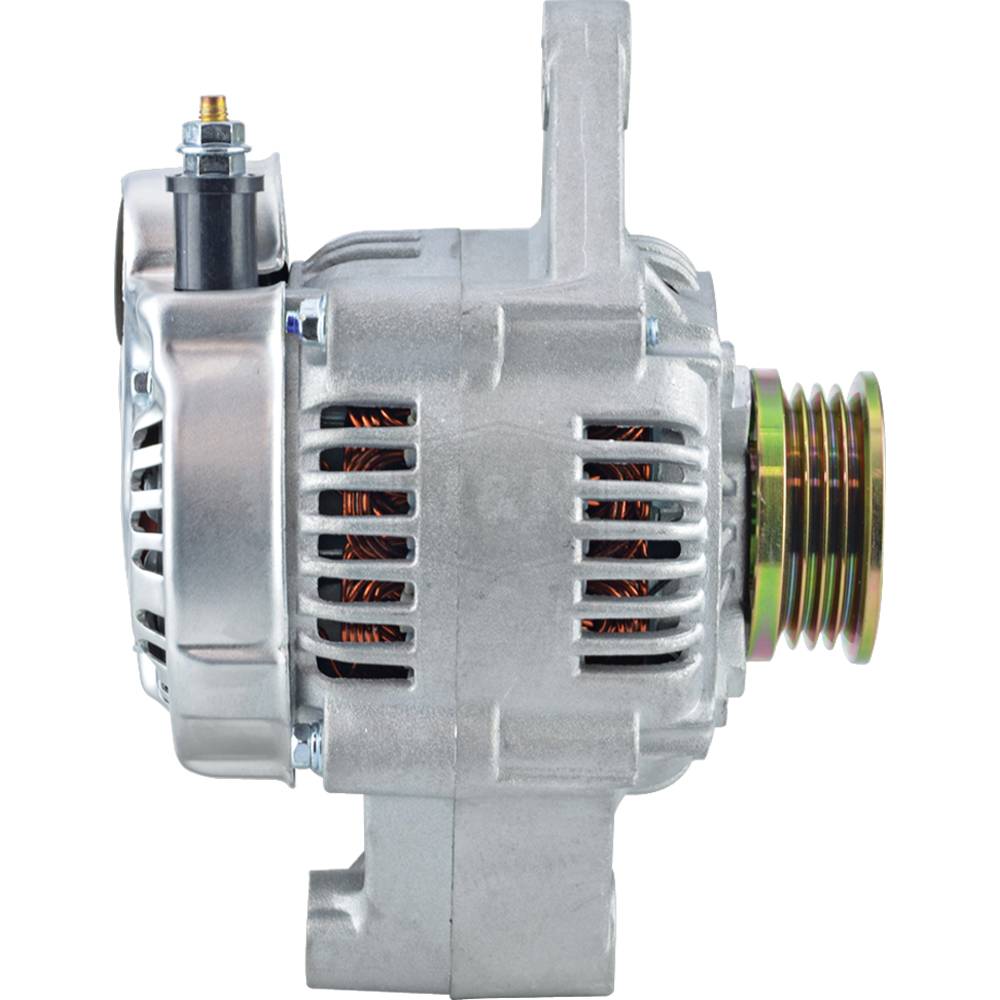

400-52346-JN J&N Electrical Products Alternator

400-52346-JN J&N Electrical Products Alternator

£176.00 GBP
£176.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: AND0253; Fits Denso: 101211-3460; EMP: 4-6844; J&N Electrical Products: 400-52346; Lester: 12347; Mercury Marine: 834832, 834832T2
-LESTER: 12347, VOLT: 12, AMPS: 60, CONDITION: New, REGULATOR CLOCK: 12:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.300mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.614", MOUNTING EAR THICKNESS: 15.600mm, MOUNTING EAR 2 THICKNESS: 2.283", MOUNTING EAR 2 THICKNESS: 58mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: IG, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 4, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.165", PULLEY OUTER DIAMETER: 55mm

Replaces Part Number(s): 400-52346

Additional Information:

Arrowhead: AND0253; Denso: 101211-3460; EMP: 4-6844; J&N Electrical Products: 400-52346; Lester: 12347; Mercury Marine: 834832, 834832T2, LESTER: 12347, VOLT: 12, AMPS: 60, CONDITION: New, REGULATOR CLOCK: 12:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 10.300mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.614", MOUNTING EAR THICKNESS: 15.600mm, MOUNTING EAR 2 THICKNESS: 2.283", MOUNTING EAR 2 THICKNESS: 58mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: IG, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 4, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.165", PULLEY OUTER DIAMETER: 55mm

Reference Numbers:

400-52346
