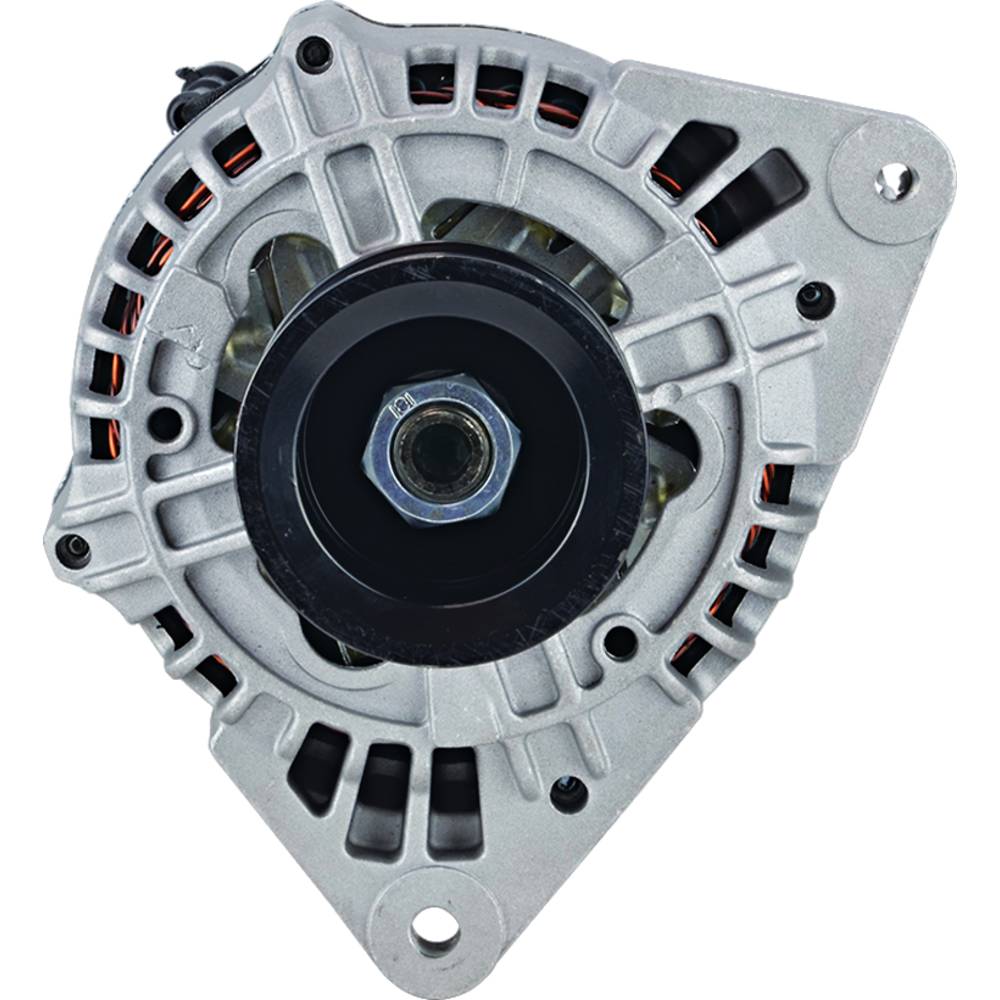

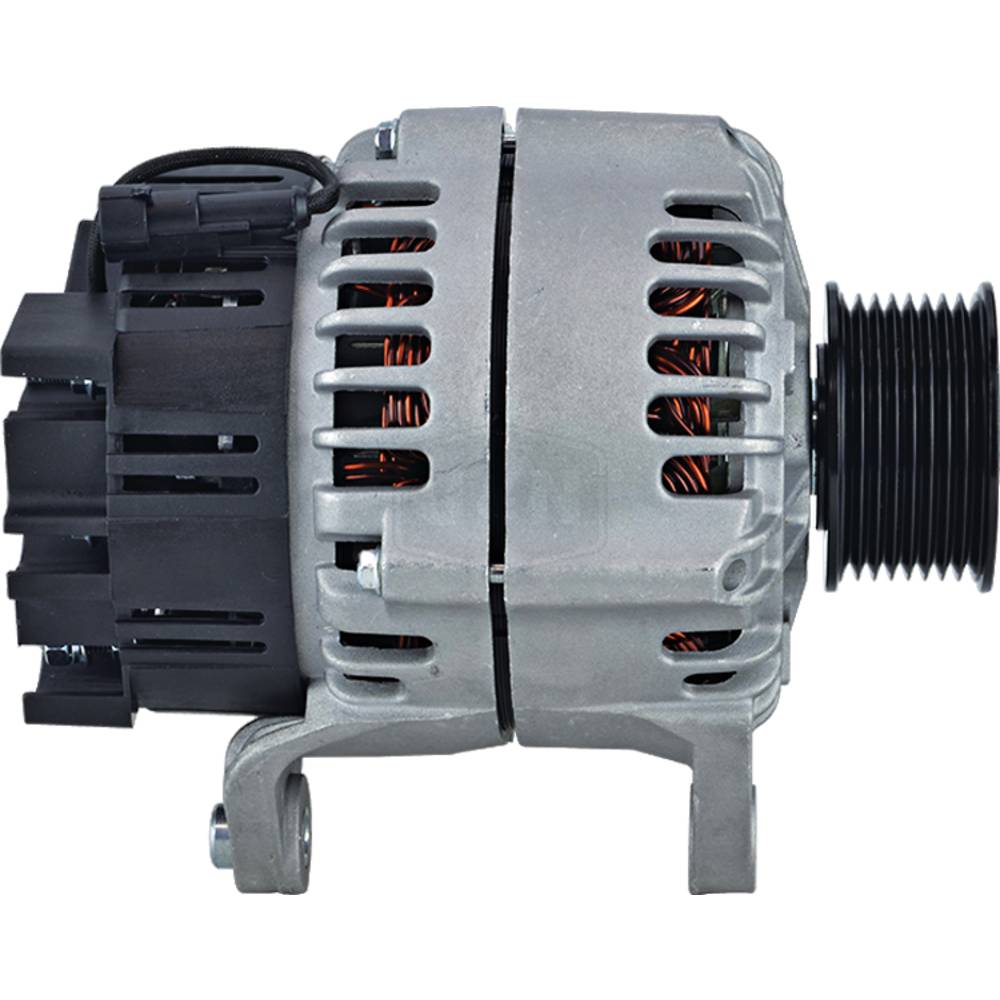

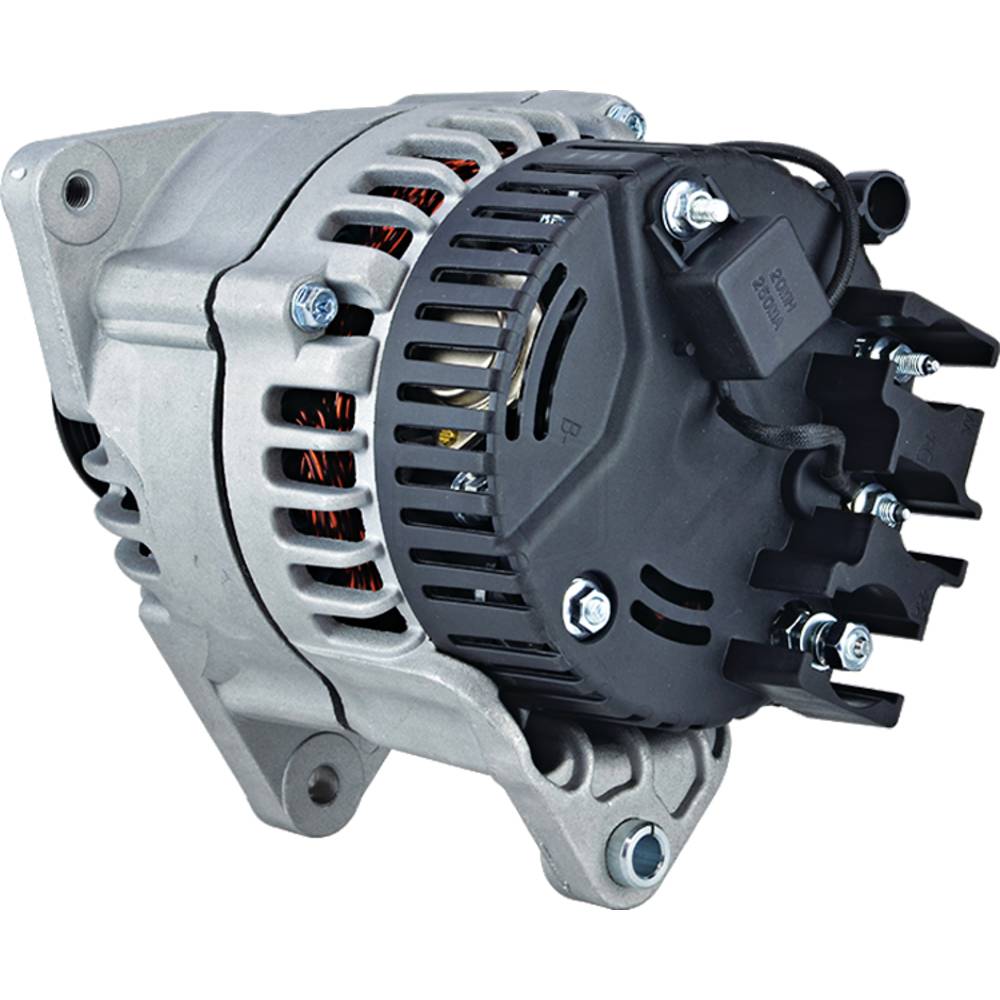

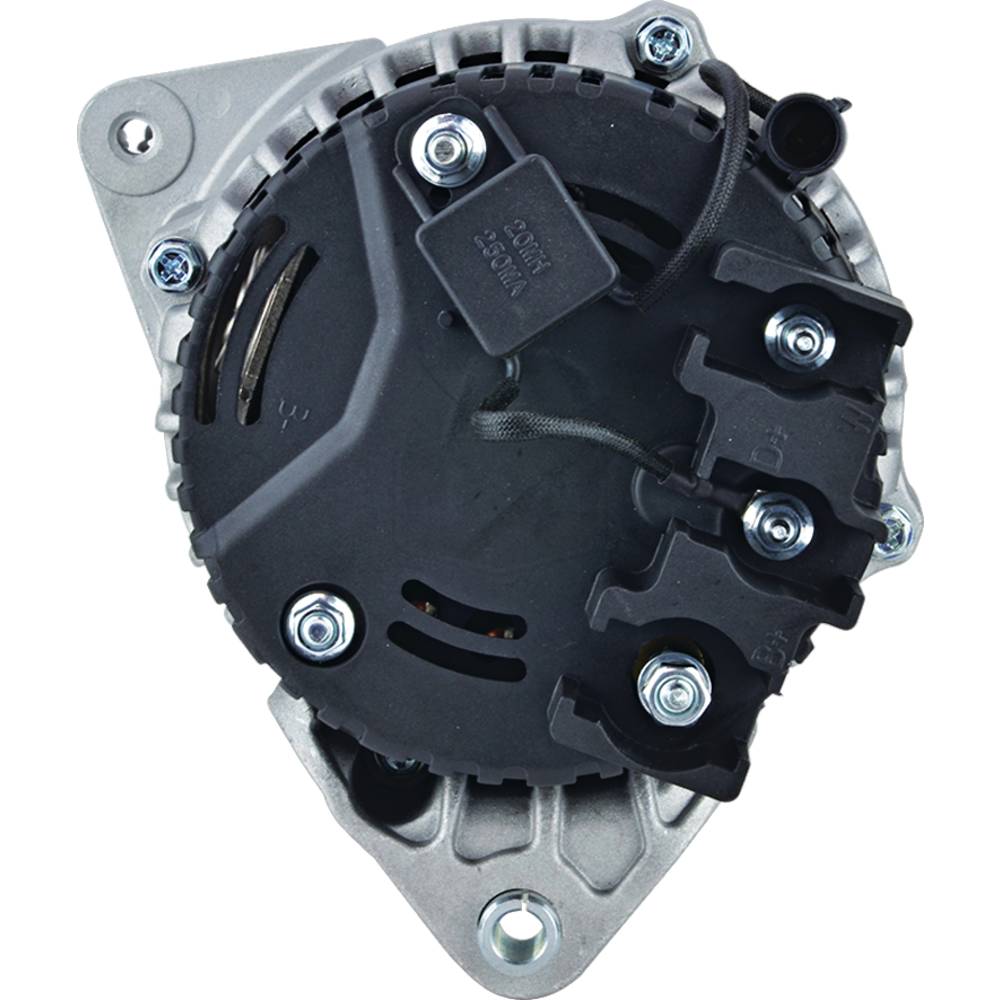

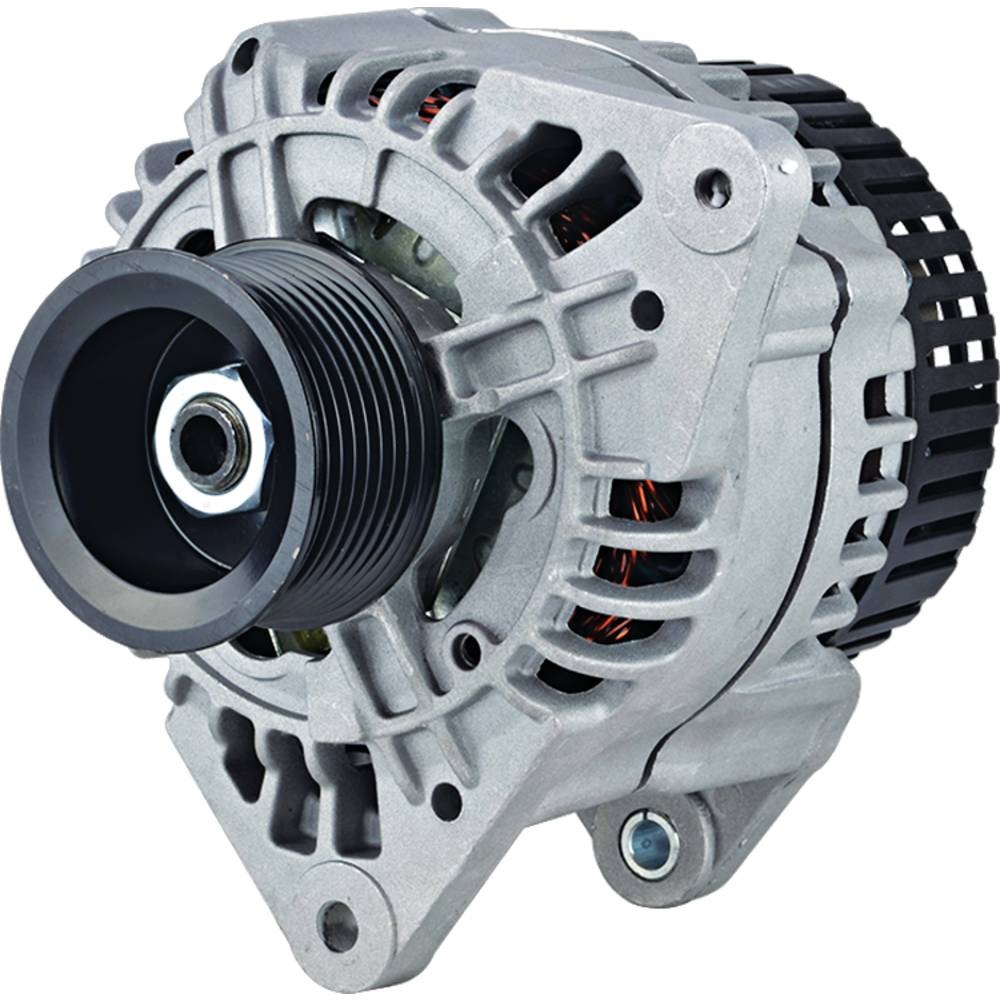

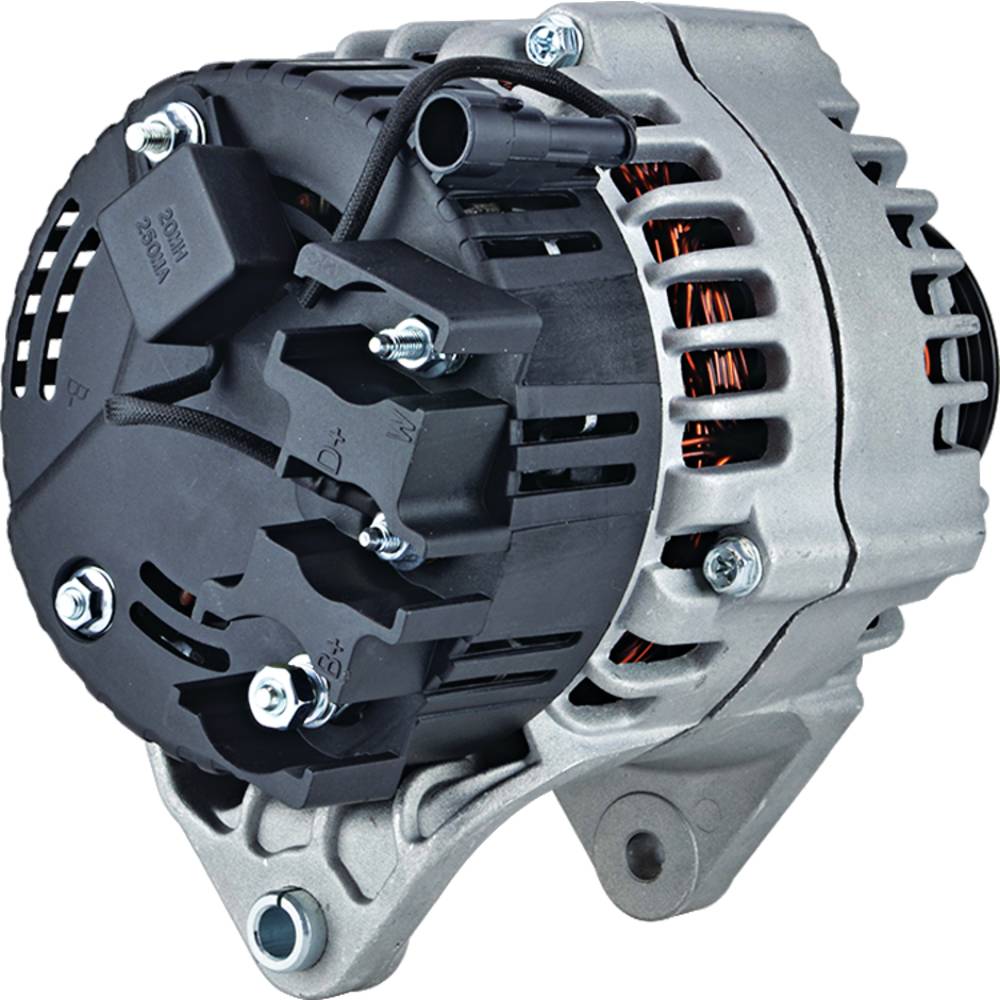

400-29052-JN J&N Electrical Products Alternator

400-29052-JN J&N Electrical Products Alternator

£257.00 GBP
£257.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: 400-29052; CaseIH: 84141452, 87361082, 87652087; Lester: 12787; Fits Mahle: 11.203.494, 11.203.730, 11.203.822, 11.203.853, AAK5592, AAK5746, AAK5759, AAK5763, IA1224, MG286
-LESTER: 12787, FAMILY: Letrika/Fits Mahle AAK, VOLT: 12, AMPS: 120, CONDITION: New, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 8.200mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.555", MOUNTING EAR THICKNESS: 14.100mm, MOUNTING EAR 2 THICKNESS: 0.555", MOUNTING EAR 2 THICKNESS: 14.100mm, MOUNTING EAR 3 THICKNESS: 0.787", MOUNTING EAR 3 THICKNESS: 20mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: D+, TERMINAL 3 SIZE: M5x0.8, TERMINAL ID 4: W, TERMINAL 4 SIZE: M5x0.8, TERMINAL ID 5: R, TERMINAL 5 SIZE: Pigtail Plug, POLARITY: Negative, NUMBER OF GROOVES: 8, GROOVE OD: 2.409", GROOVE OD: 61.200mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.598", PULLEY OUTER DIAMETER: 66mm

Replaces Part Number(s): 400-29052

Additional Information:

Arrowhead: 400-29052; CaseIH: 84141452, 87361082, 87652087; Lester: 12787; Mahle: 11.203.494, 11.203.730, 11.203.822, 11.203.853, AAK5592, AAK5746, AAK5759, AAK5763, IA1224, MG286, LESTER: 12787, FAMILY: Letrika/MAHLE AAK, VOLT: 12, AMPS: 120, CONDITION: New, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 8.200mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.555", MOUNTING EAR THICKNESS: 14.100mm, MOUNTING EAR 2 THICKNESS: 0.555", MOUNTING EAR 2 THICKNESS: 14.100mm, MOUNTING EAR 3 THICKNESS: 0.787", MOUNTING EAR 3 THICKNESS: 20mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: D+, TERMINAL 3 SIZE: M5x0.8, TERMINAL ID 4: W, TERMINAL 4 SIZE: M5x0.8, TERMINAL ID 5: R, TERMINAL 5 SIZE: Pigtail Plug, POLARITY: Negative, NUMBER OF GROOVES: 8, GROOVE OD: 2.409", GROOVE OD: 61.200mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.598

Reference Numbers:

400-29052
