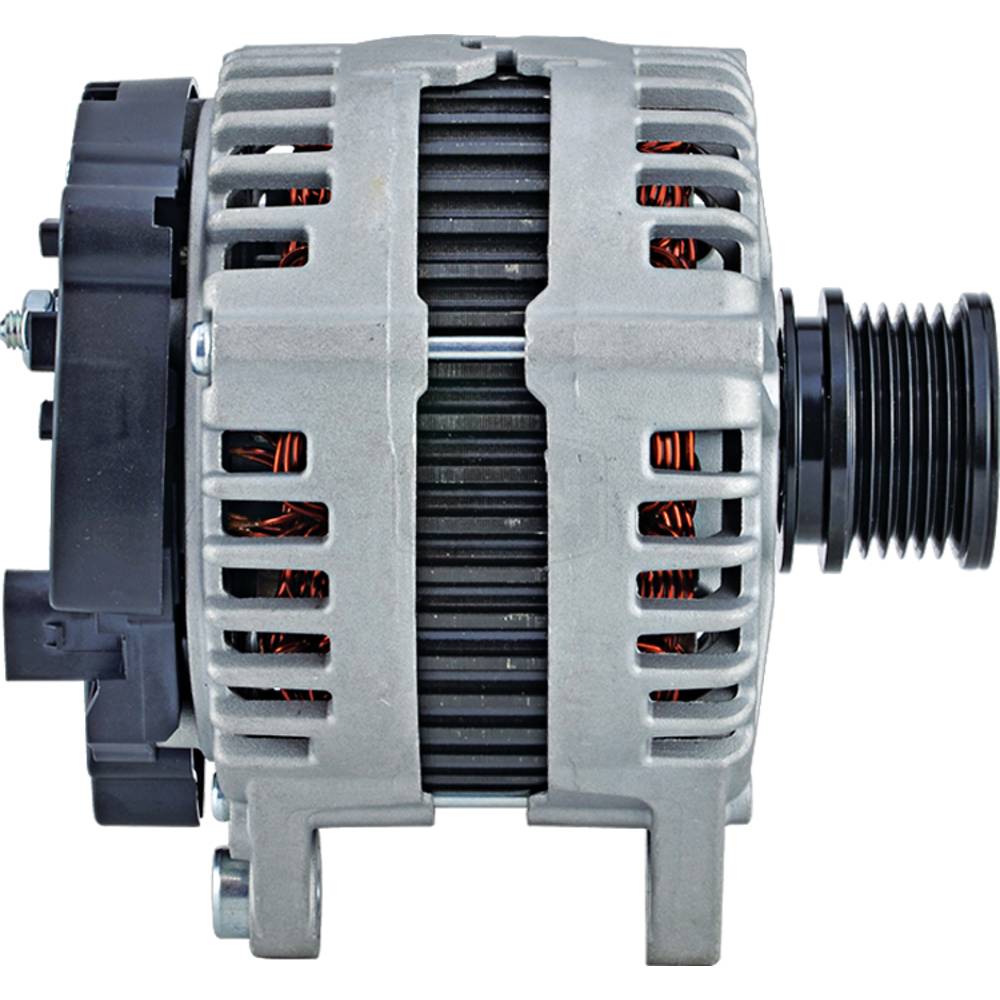

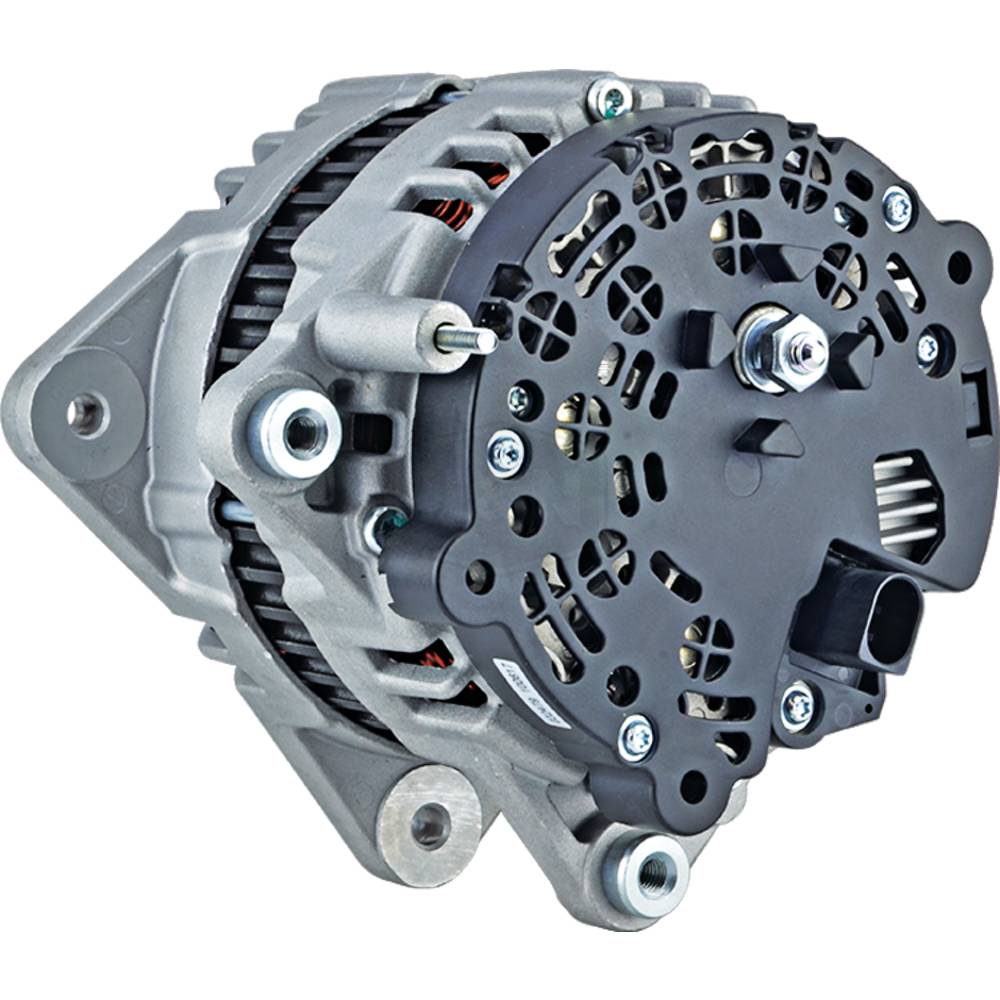

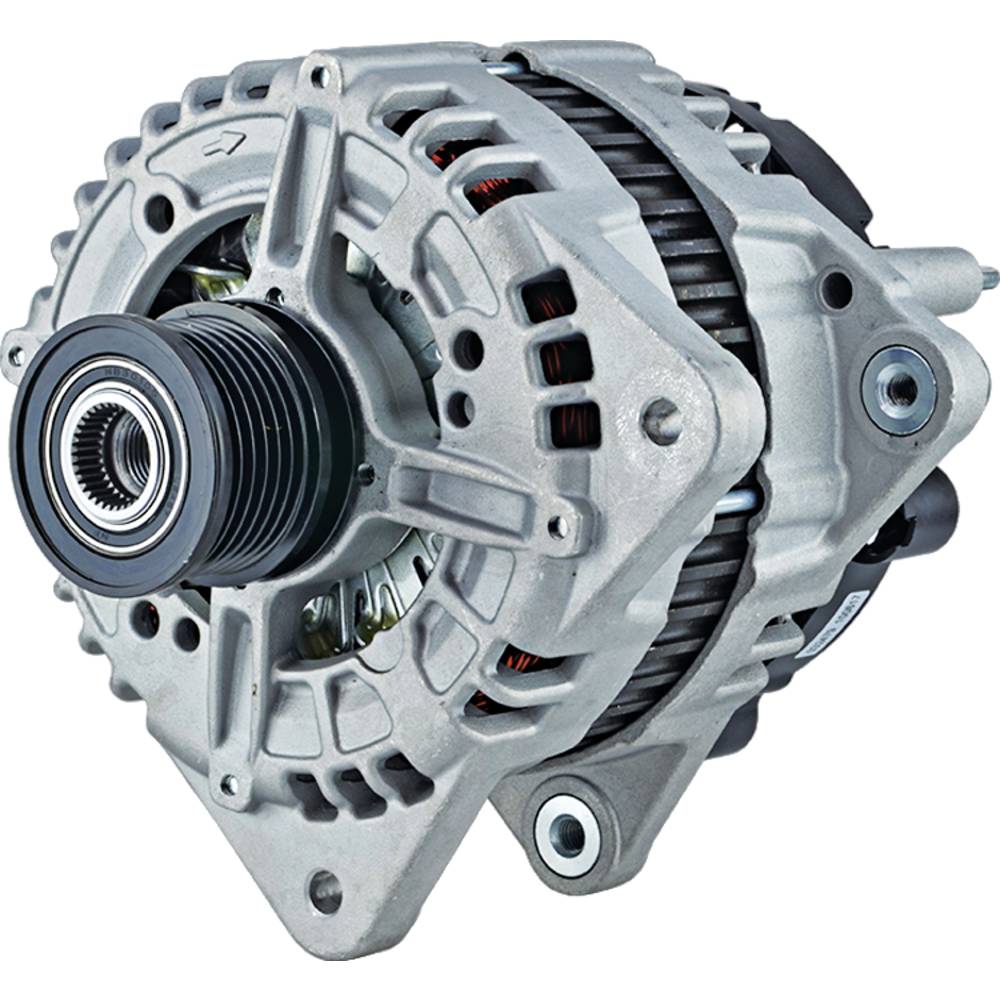

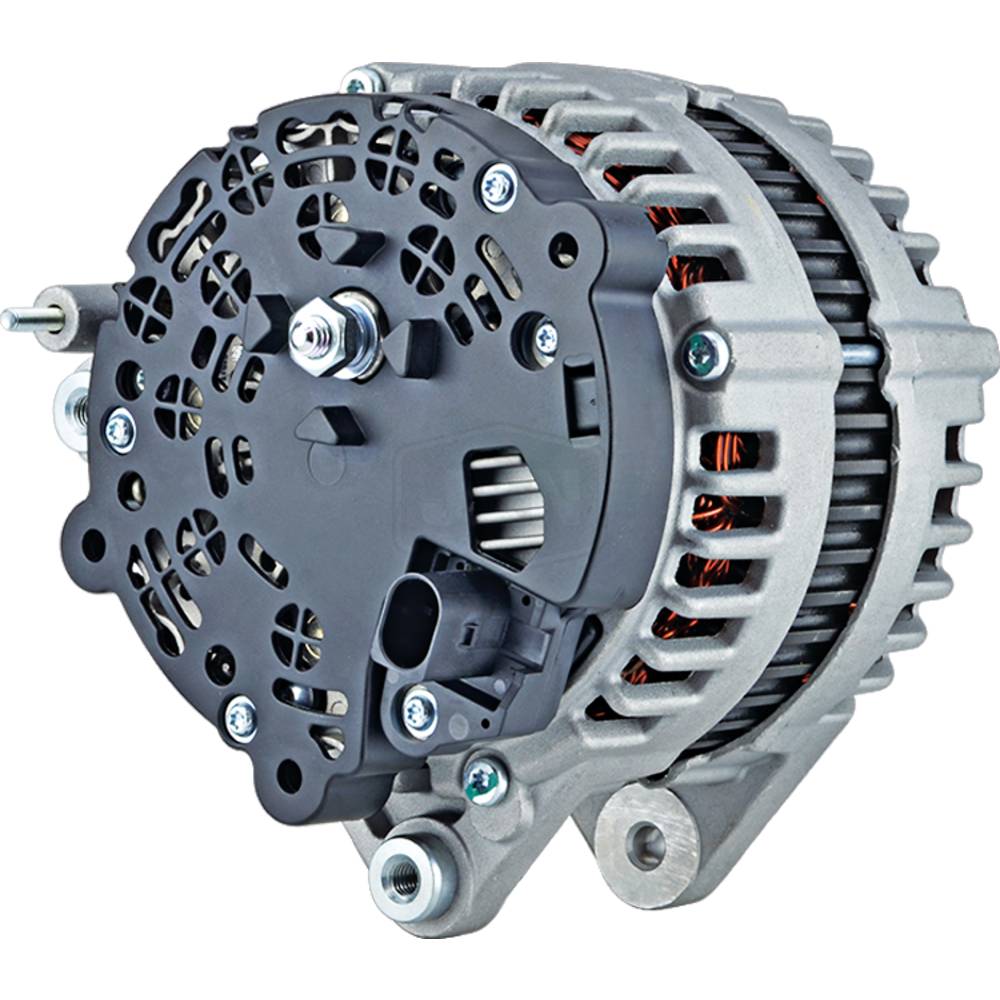

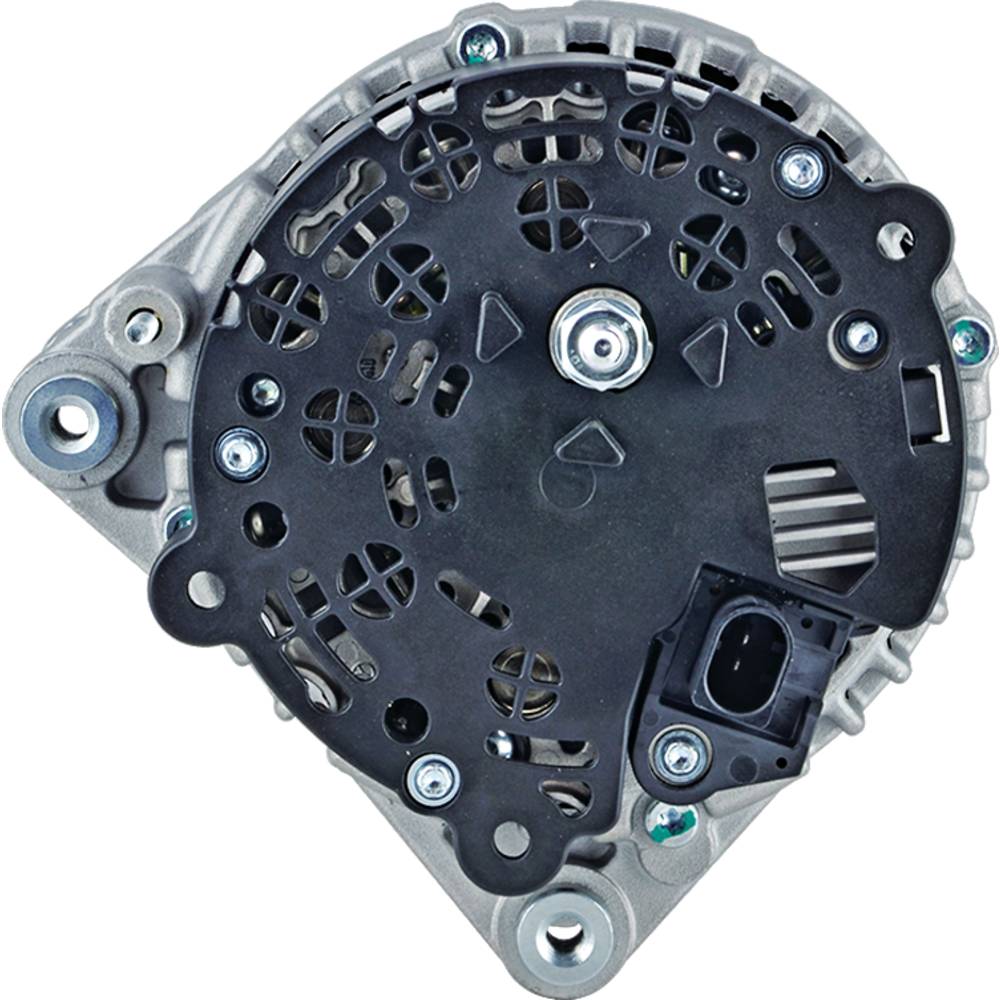

400-24271-JN J&N Electrical Products Alternator

400-24271-JN J&N Electrical Products Alternator

£415.00 GBP
£415.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: 400-24271; Fits Bosch: 0121715077, 0121715177; Lester: 20017; Fits Lucas Electric: LRA03152; Fits Volkswagen: 03G903-016L, 03G903-016LX

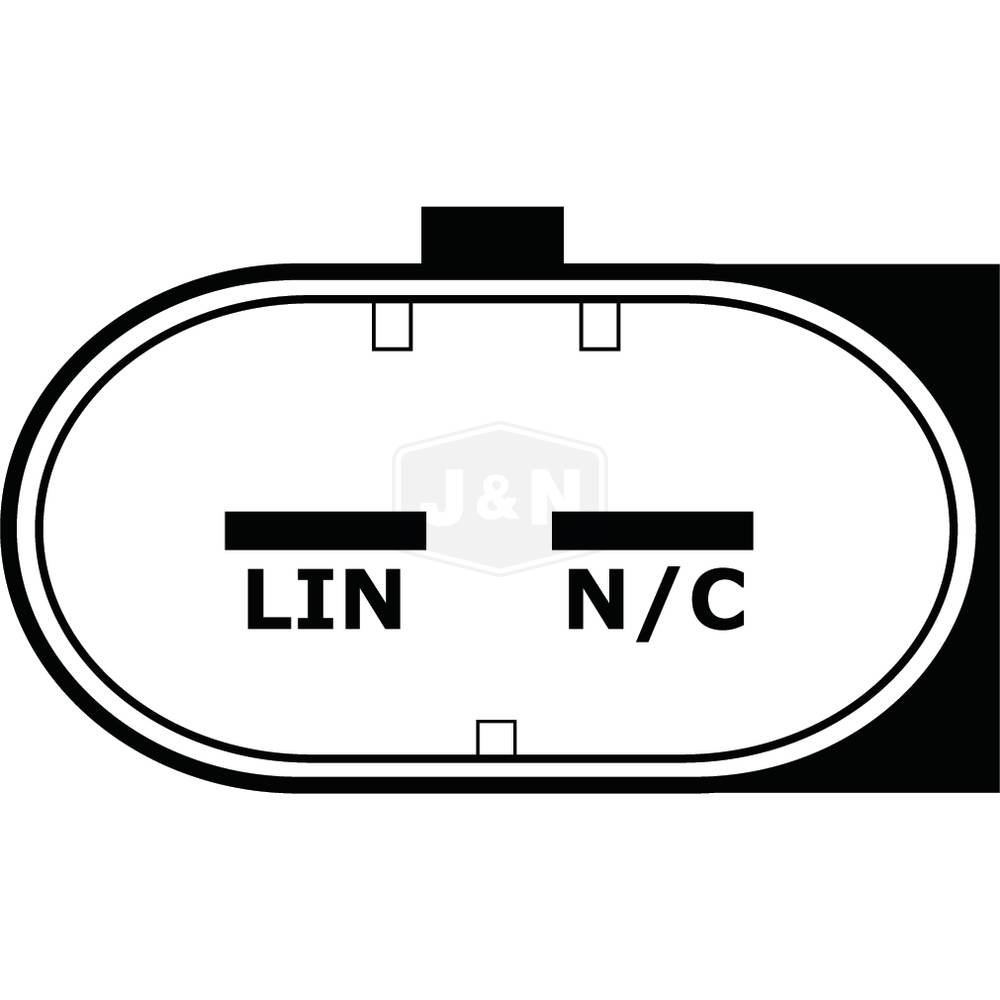

-LESTER: 20017, VOLT: 12, AMPS: 180, CONDITION: New, REGULATOR CLOCK: 2:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 8.500mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M8x1.25, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 8.500mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M8x1.25, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.559", MOUNTING EAR THICKNESS: 14.200mm, MOUNTING EAR 2 THICKNESS: 0.787", MOUNTING EAR 2 THICKNESS: 20mm, MOUNTING EAR 3 THICKNESS: 0.559", MOUNTING EAR 3 THICKNESS: 14.200mm, MOUNTING EAR 4 THICKNESS: 0.787", MOUNTING EAR 4 THICKNESS: 20mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: LIN, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: N/C, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 1.949", GROOVE OD: 49.500mm, PULLEY TYPE: Clutch, PULLEY OUTER DIAMETER: 2.102", PULLEY OUTER DIAMETER: 53.400mm

Replaces Part Number(s): 400-24271

Additional Information:

Arrowhead: 400-24271; Bosch: 0121715077, 0121715177; Lester: 20017; Lucas Electric: LRA03152; Volkswagen: 03G903-016L, 03G903-016LX, LESTER: 20017, VOLT: 12, AMPS: 180, CONDITION: New, REGULATOR CLOCK: 2:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 8.500mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE ID 2: M8x1.25, MOUNT HOLE 2 TYPE: Threaded, MOUNT HOLE ID 3: 8.500mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNT HOLE ID 4: M8x1.25, MOUNT HOLE 4 TYPE: Threaded, MOUNTING EAR THICKNESS: 0.559", MOUNTING EAR THICKNESS: 14.200mm, MOUNTING EAR 2 THICKNESS: 0.787", MOUNTING EAR 2 THICKNESS: 20mm, MOUNTING EAR 3 THICKNESS: 0.559", MOUNTING EAR 3 THICKNESS: 14.200mm, MOUNTING EAR 4 THICKNESS: 0.787", MOUNTING EAR 4 THICKNESS: 20mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: LIN, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: N/C, TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 1.949", GROOVE OD: 49.500mm, P

Reference Numbers:

400-24271
