400-12435-JN J&N Electrical Products Alternator

400-12435-JN J&N Electrical Products Alternator

£236.00 GBP
£236.00 GBP
Sale Sold out
Shipping calculated at checkout.

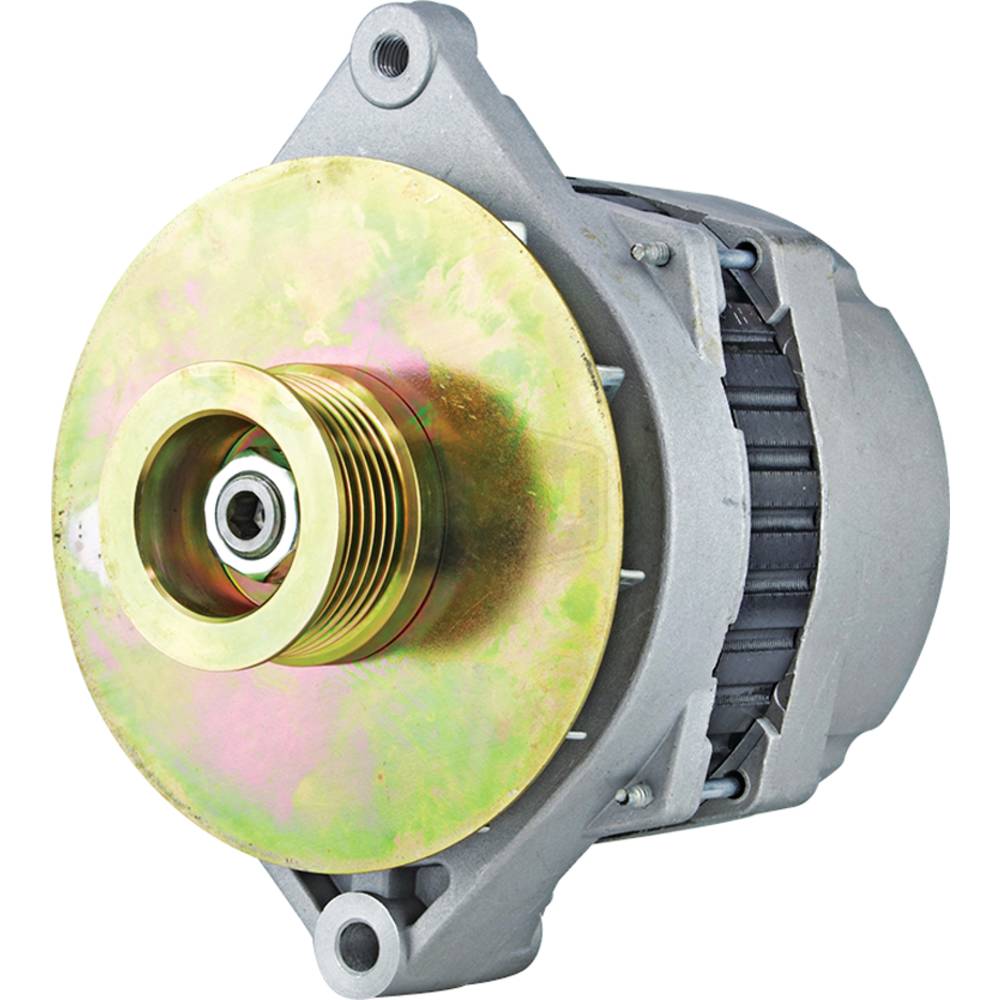

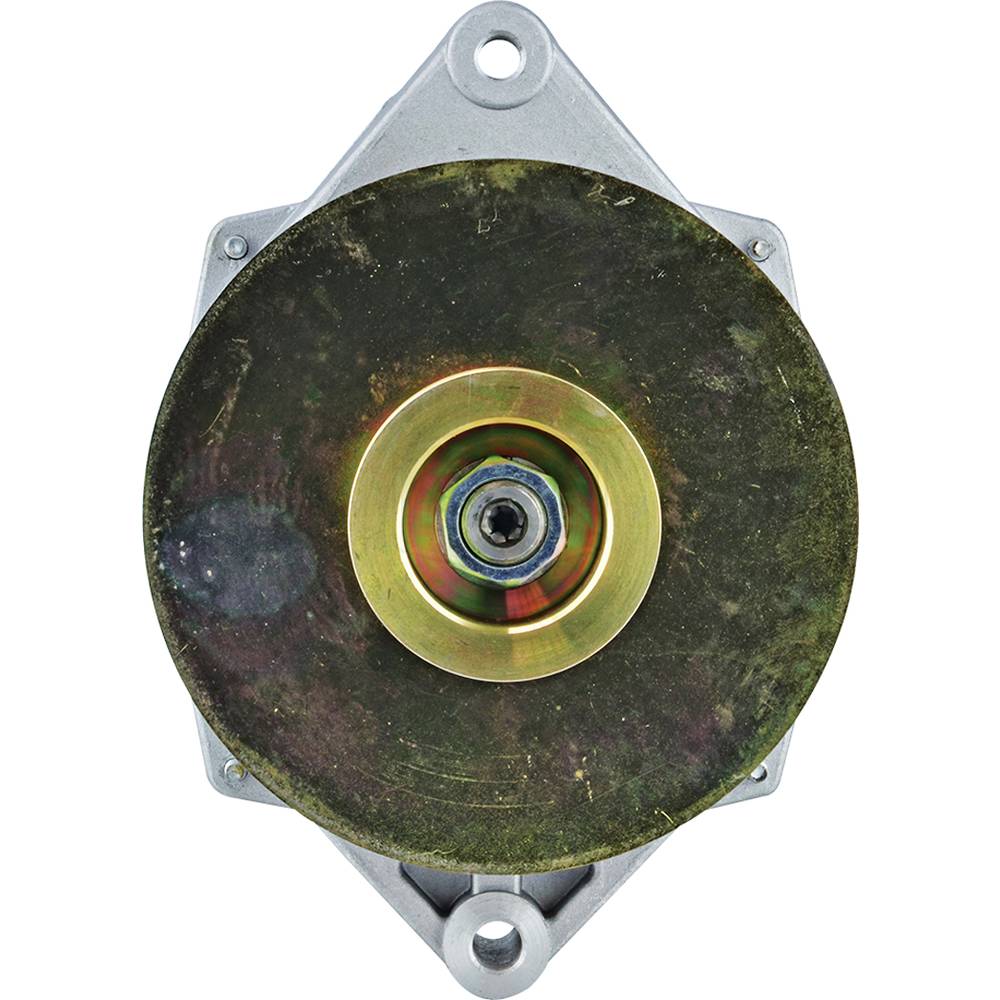

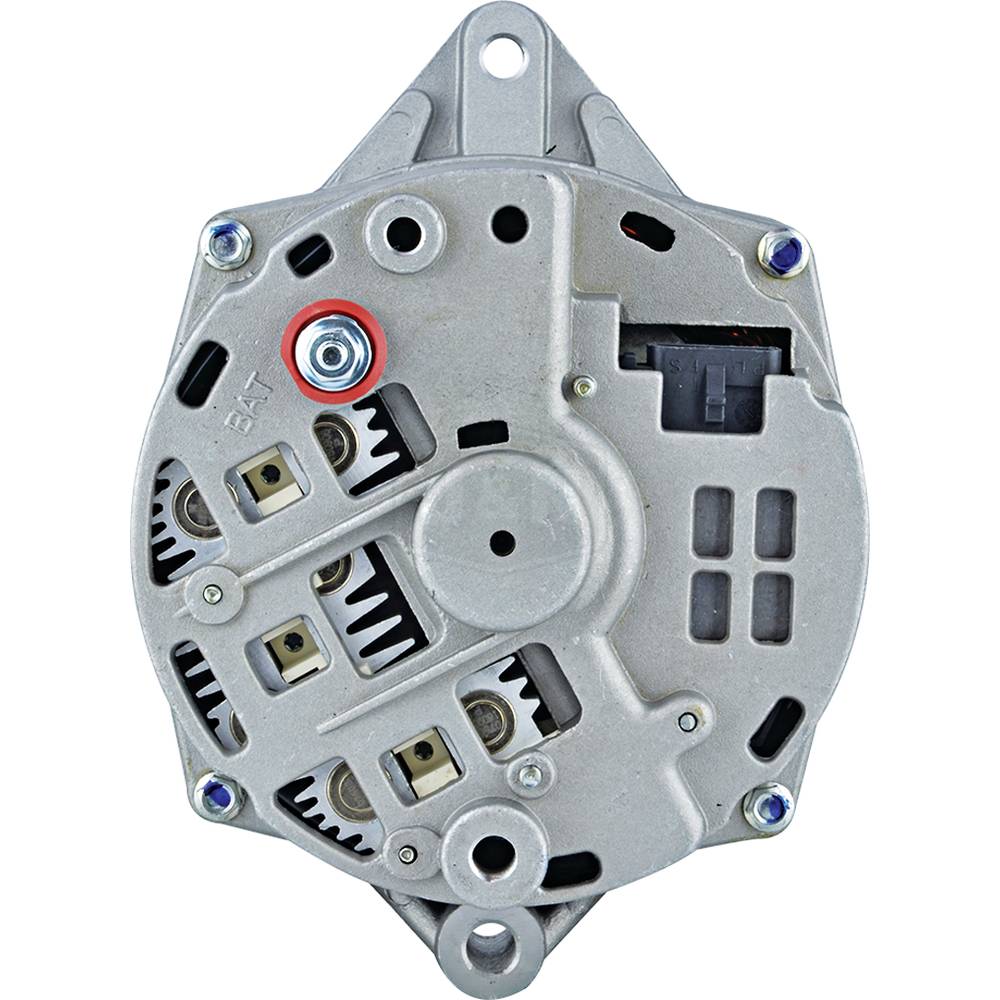

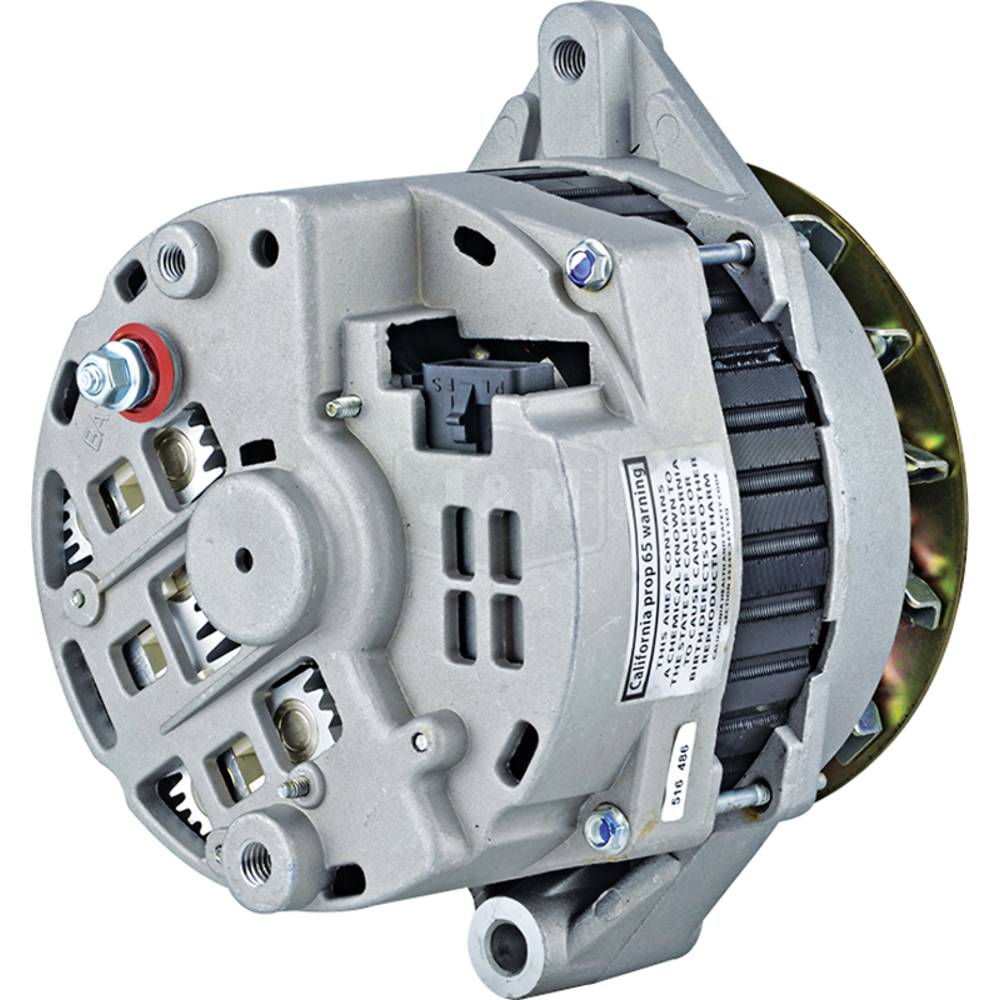

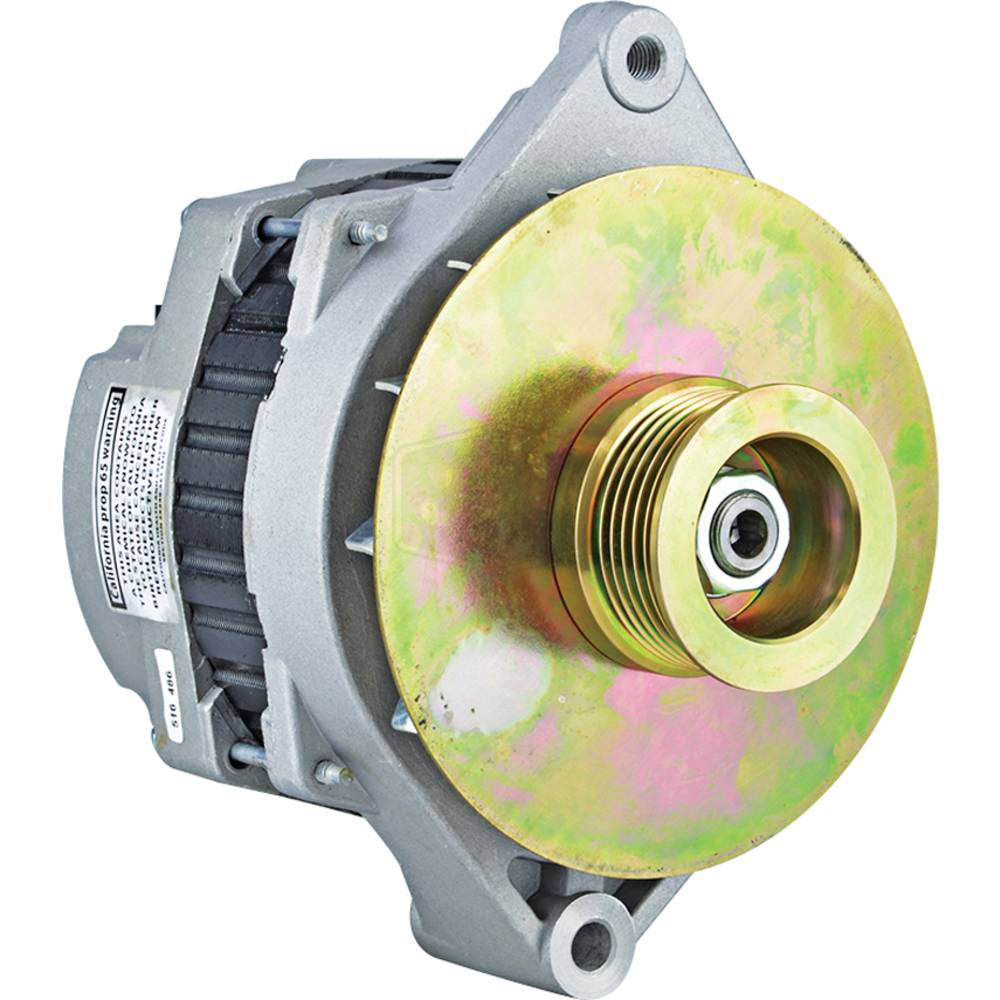

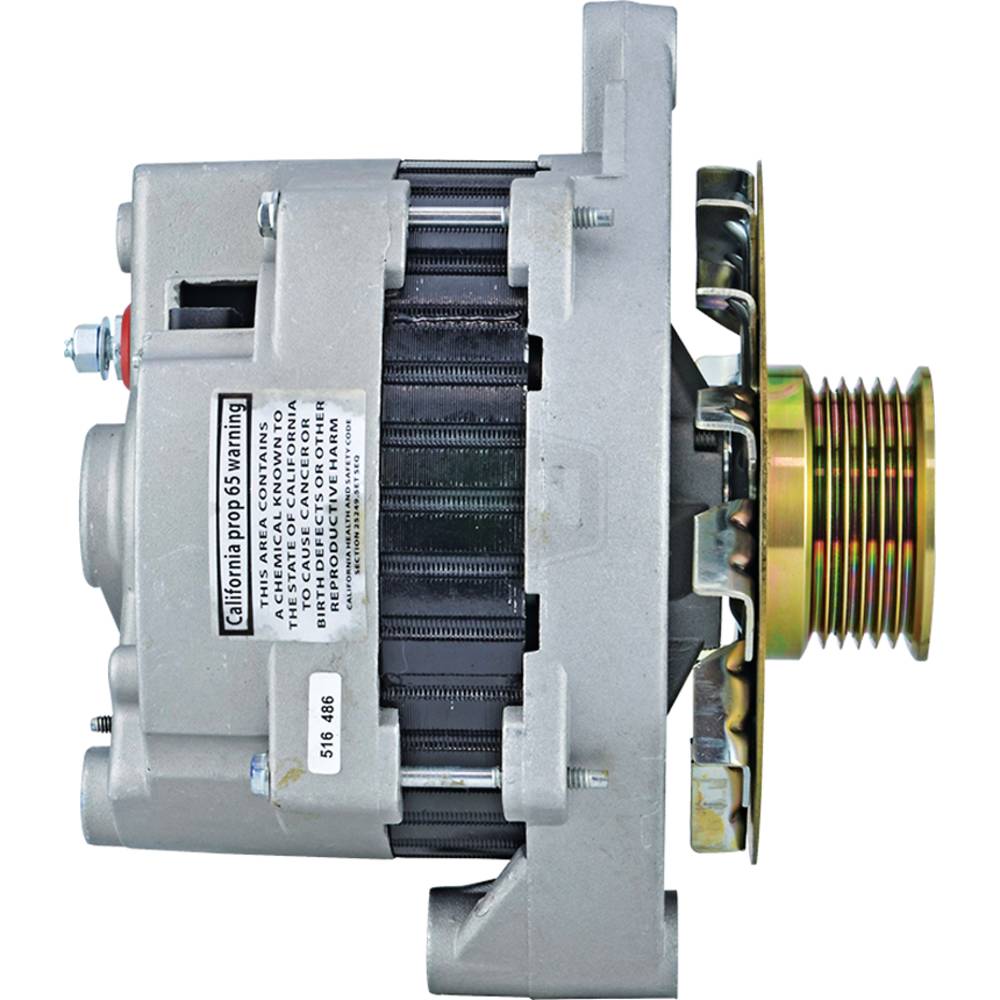

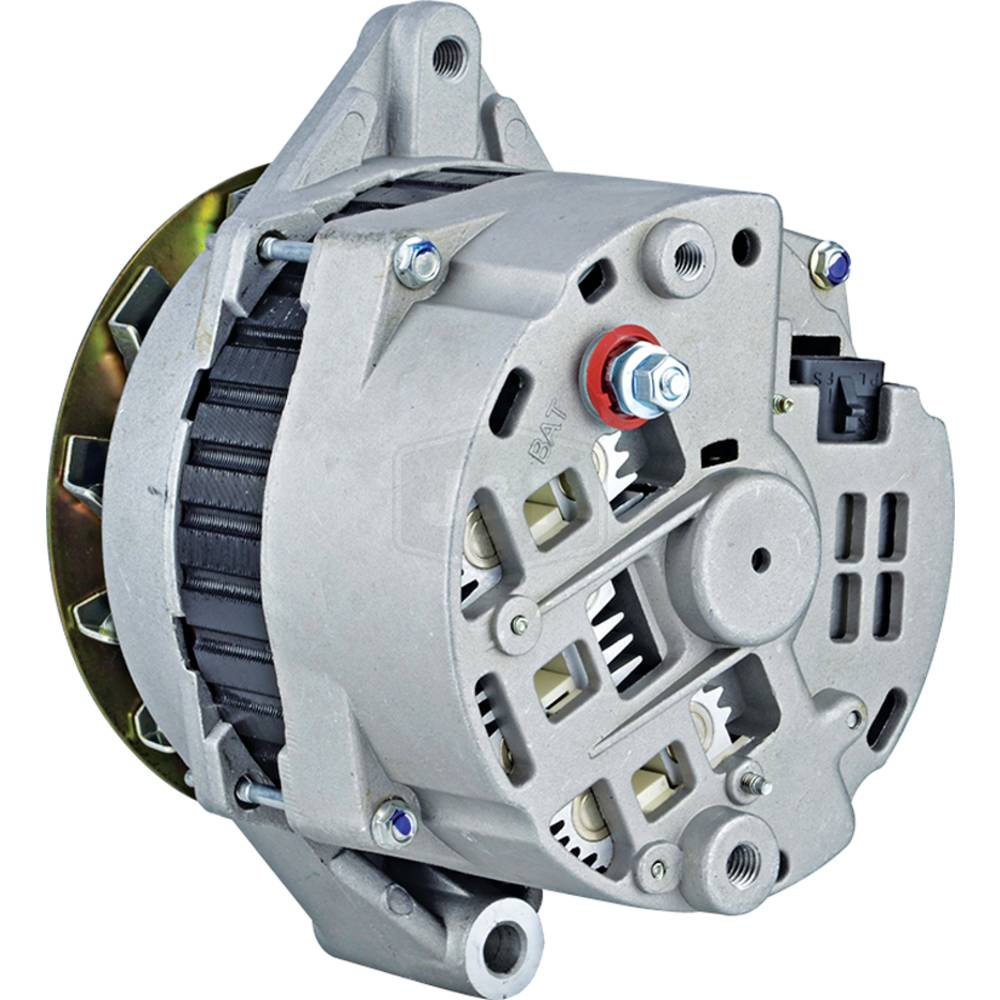

One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-LESTER: 7806-2, 7915, 7916-2, FAMILY: Fits Delco CS144, VOLT: 12, AMPS: 120, CONDITION: New, REGULATOR CLOCK: 2:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M10x1.50, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.776", MOUNTING EAR THICKNESS: 19.700mm, MOUNTING EAR 2 THICKNESS: 2.012", MOUNTING EAR 2 THICKNESS: 51.100mm, FAN LOCATION: External, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: P, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: FR, TERMINAL 5 SIZE: Spade, TERMINAL ID 6: S, TERMINAL 6 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.224", GROOVE OD: 56.500mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.402", PULLEY OUTER DIAMETER: 61mm
-AC Fits Delco Tools: 321-275, 321-367, 321-387, 321-399, 334-2297, 334-2356, RM1302; Arrowhead: ADR0070; Fits Bosch: AL620X, AL623X; Fits Delco: 10463069, 10463096, 10463108, 10463330, 10497111, 1101239, 1101296, 1101329, 1101518, 1105657, 321-275, 321-367, 321-387, 321-399, 334-2297, 334-2356, RM1302; J&N Electrical Products: 400-12435; Lester: 7806-2, 7915, 7916-2

Replaces Part Number(s): 400-12435

Additional Information:

LESTER: 7806-2, 7915, 7916-2, FAMILY: Delco CS144, VOLT: 12, AMPS: 120, CONDITION: New, REGULATOR CLOCK: 2:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: M10x1.50, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.776", MOUNTING EAR THICKNESS: 19.700mm, MOUNTING EAR 2 THICKNESS: 2.012", MOUNTING EAR 2 THICKNESS: 51.100mm, FAN LOCATION: External, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M6x1.00, TERMINAL ID 3: P, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: FR, TERMINAL 5 SIZE: Spade, TERMINAL ID 6: S, TERMINAL 6 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.224", GROOVE OD: 56.500mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.402", PULLEY OUTER DIAMETER: 61mm, AC Delco Tools: 321-275, 321-367, 321-387, 321-399, 334-2297, 334-2356, RM1302; Arrowhead: ADR0070; Bosch: AL620X, AL623X; Delco: 10463069, 10463096, 10463108, 10463330, 10497111, 1101239, 1101296, 1101329,

Reference Numbers:

400-12435
