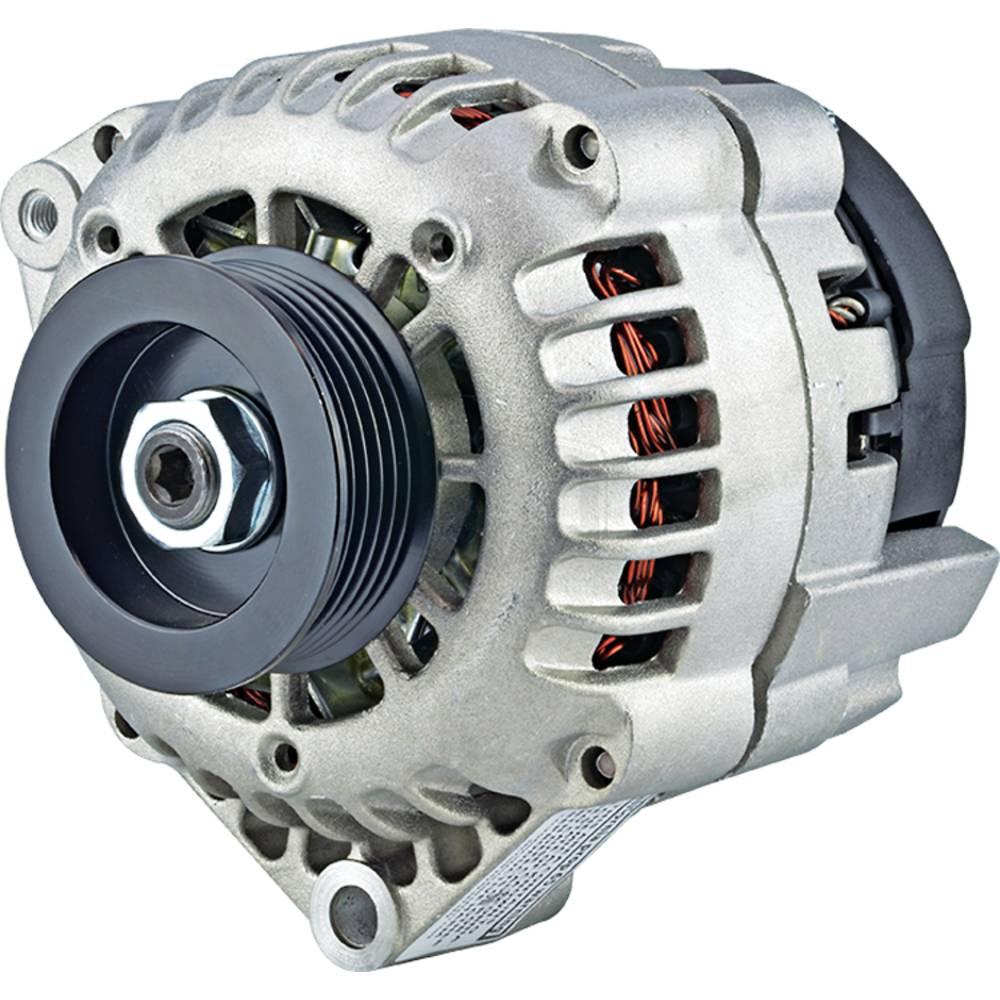

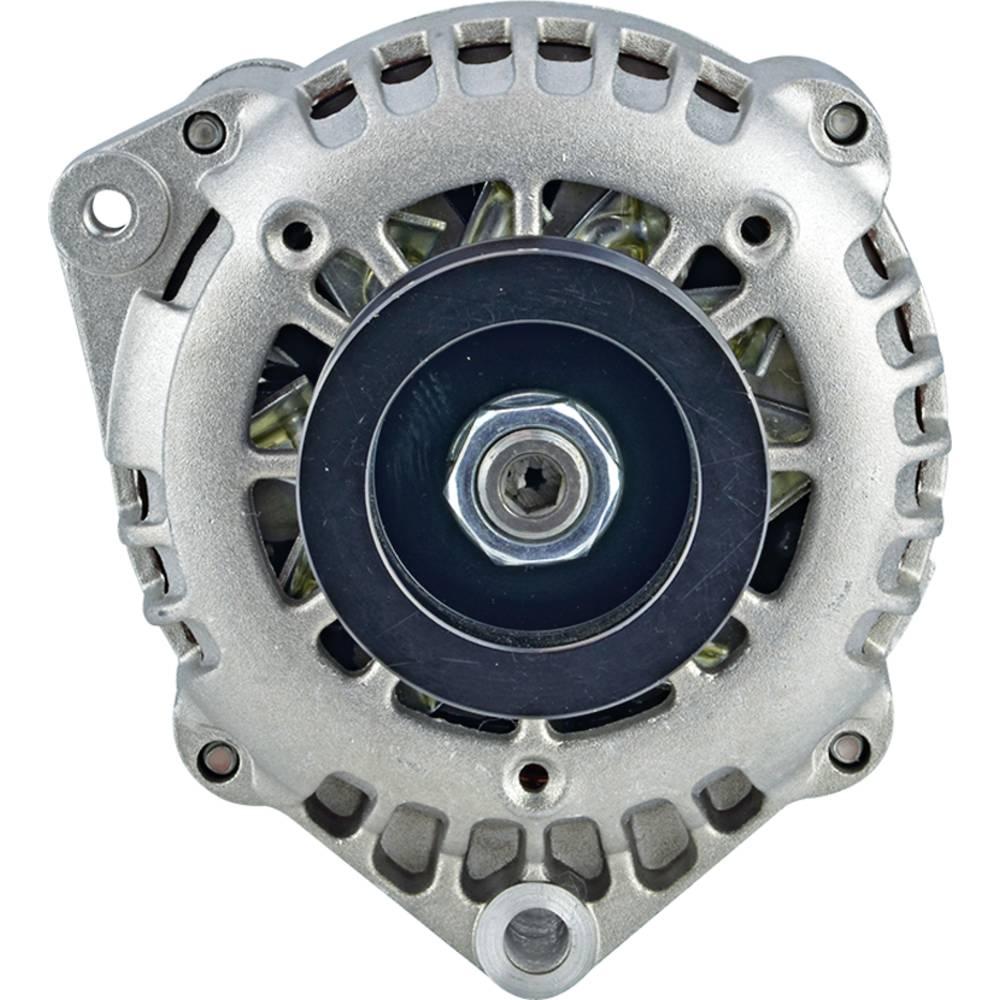

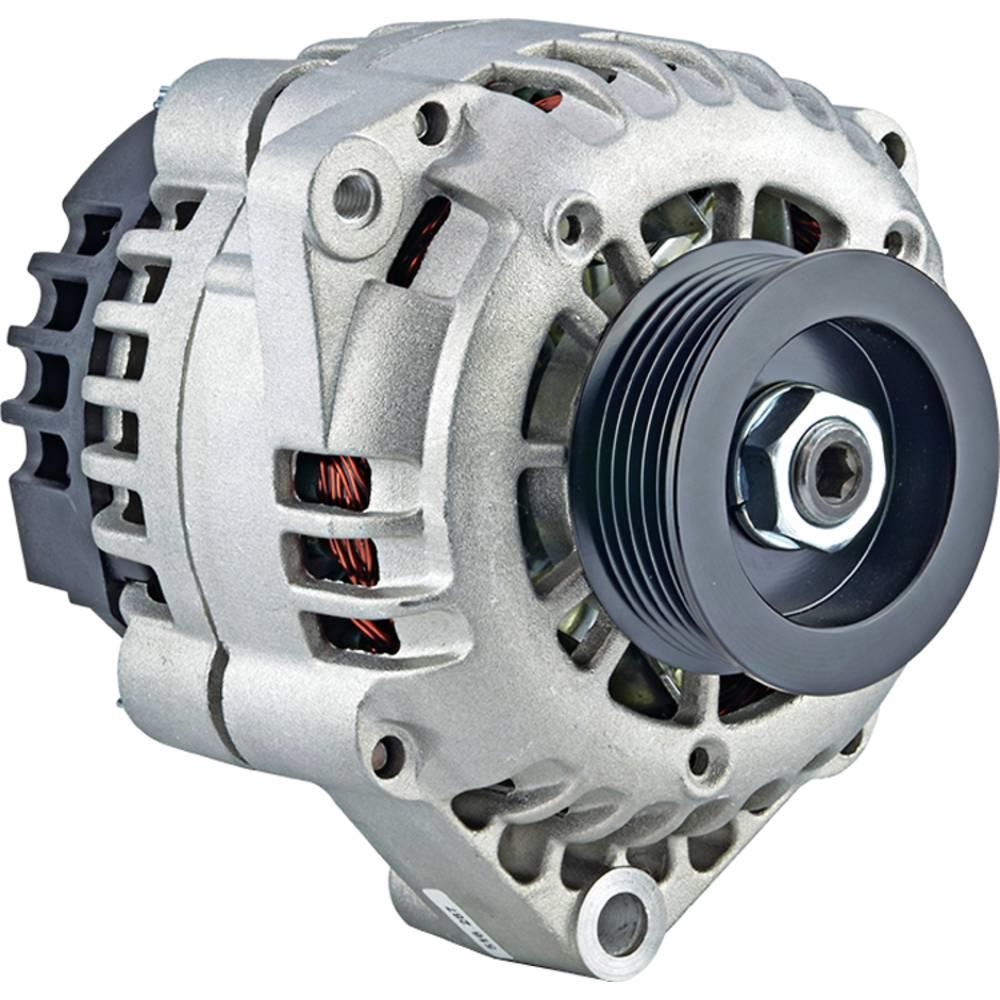

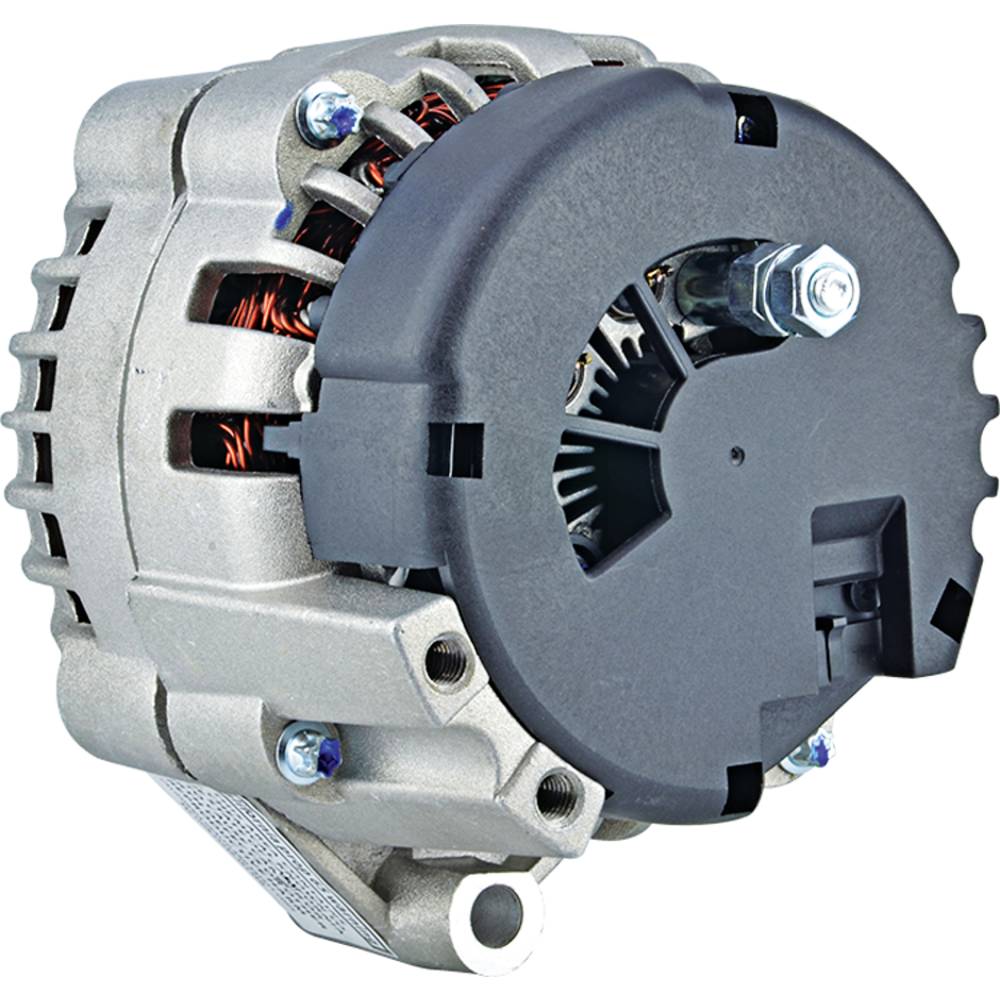

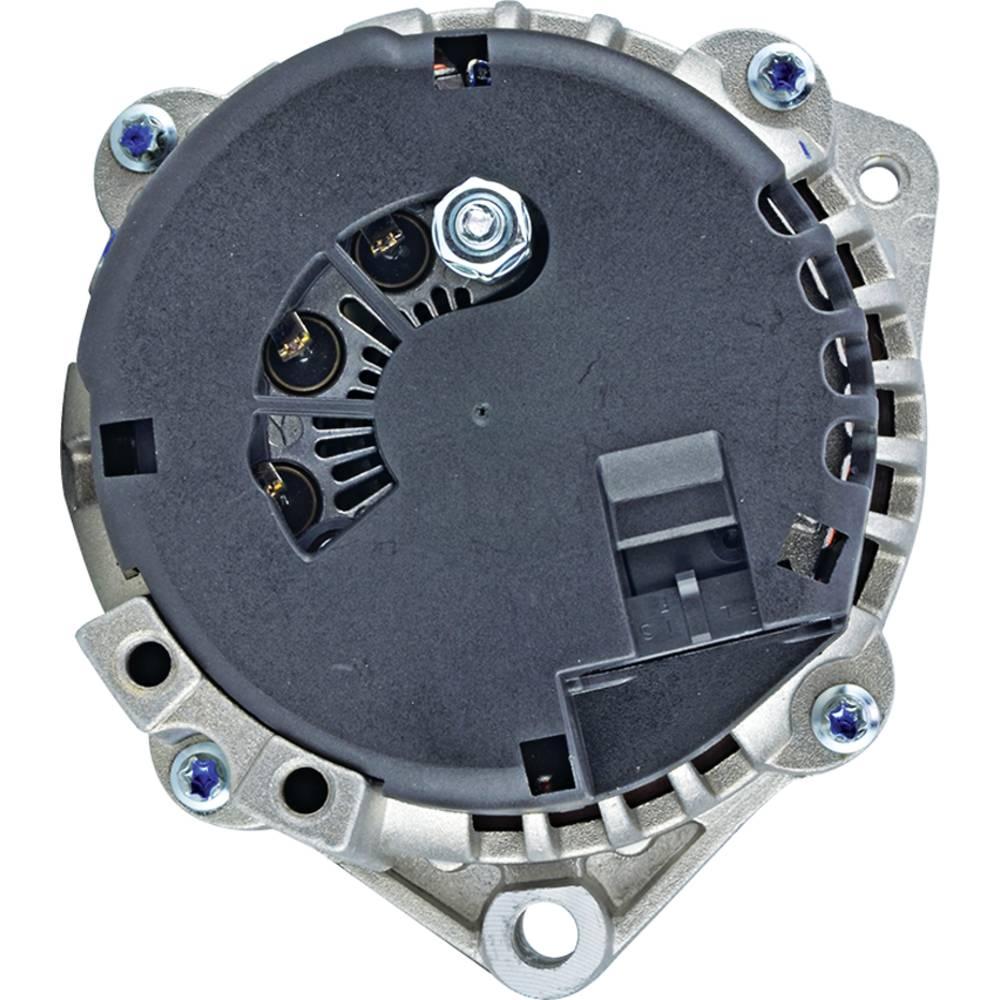

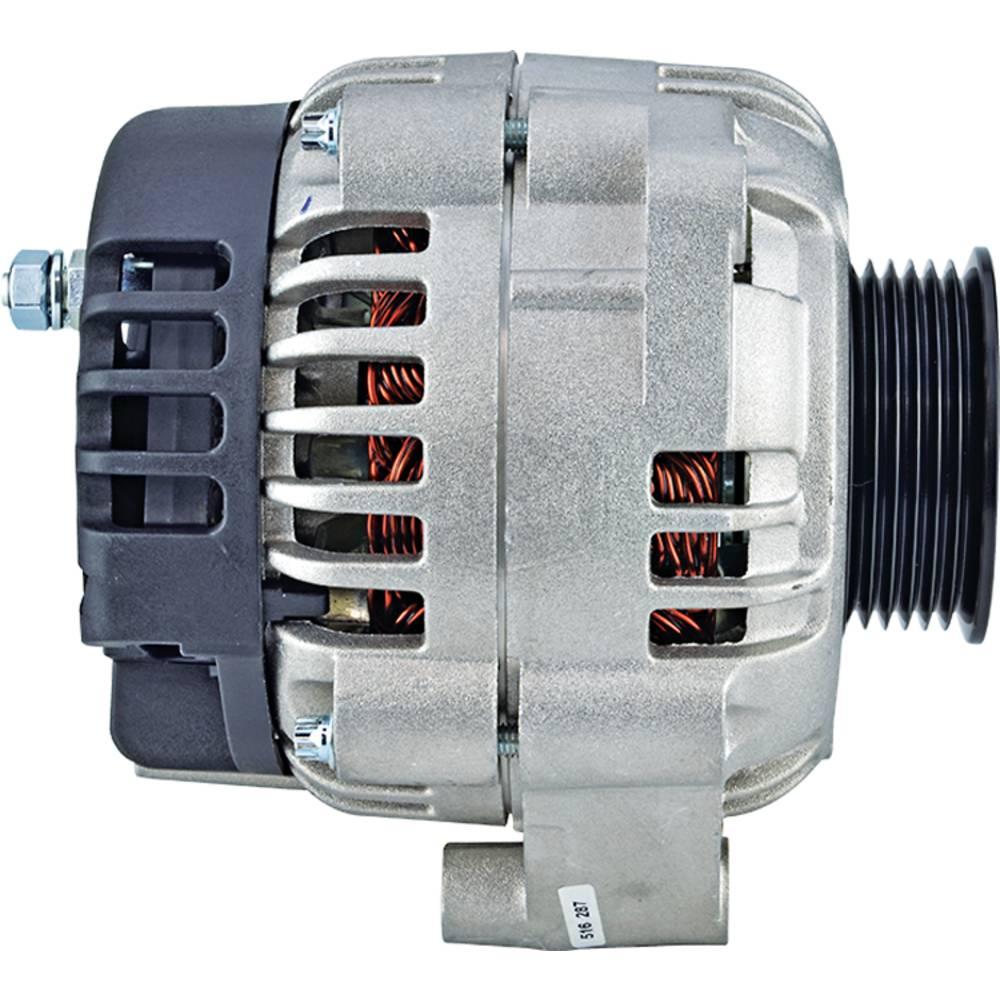

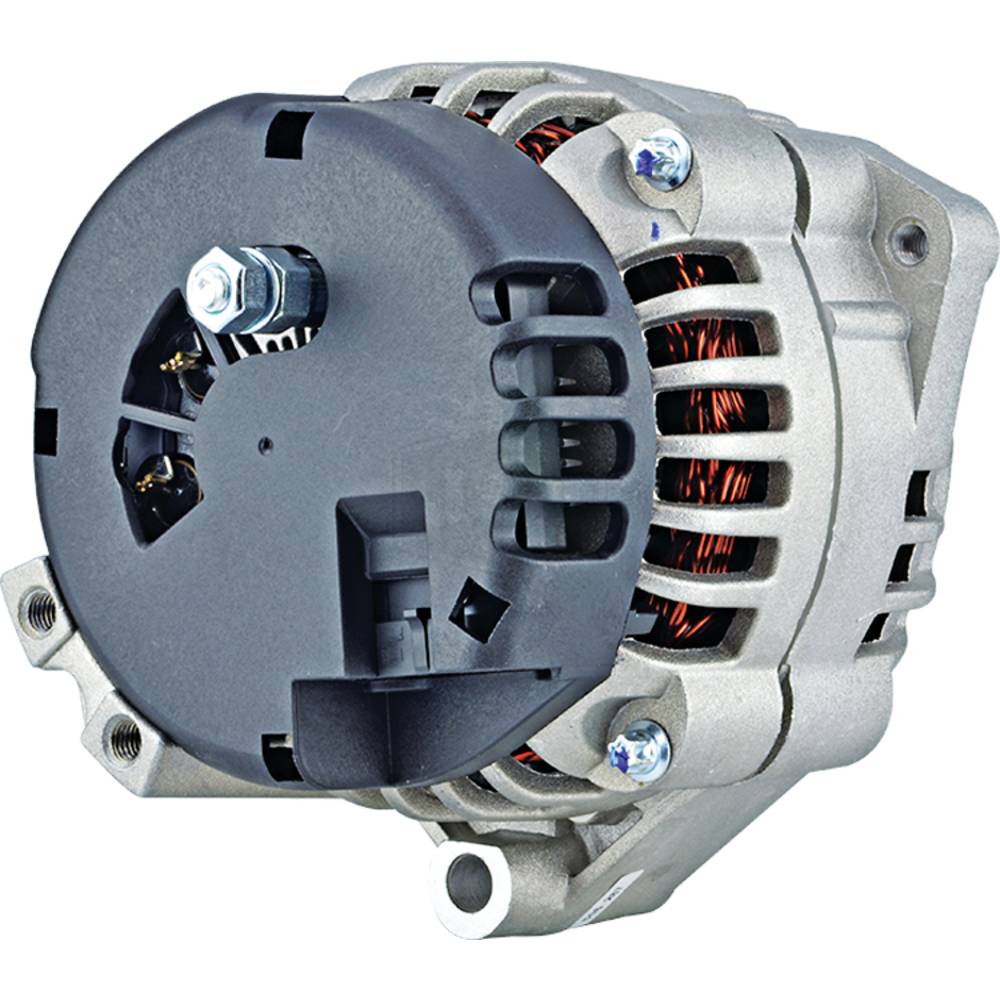

400-12433-JN J&N Electrical Products Alternator

Additional Information:

LESTER: 8160-5-160, CRITICAL NOTE: Any High Amp Upgrade Needs to Be Professionally Installed, With Special Attention Paid to the Size of the Load Carrying Cables, Battery Condition, and Clean Connections, FAMILY: Delco CS130D, VOLT: 12, AMPS: 180, CONDITION: New, REGULATOR CLOCK: 5:00, QUALITY TYPE: High Output Standard, MOUNT HOLE ID 1: M8x1.25, MOUNT HOLE 1 TYPE: Threaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 0.630", MOUNTING EAR THICKNESS: 16mm, MOUNTING EAR 2 THICKNESS: 2.004", MOUNTING EAR 2 THICKNESS: 50.900mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: IGN, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, TERMINAL ID 6: STA, TERMINAL 6 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 2.618", GROOVE OD: 66.500mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.795", PULLEY OUTER DIAMETER: 71mm, WARRANTY: 1 Year, Arrowhead

Reference Numbers:

400-12433
