3920 Tractor Tapered Cup

Name: 3920 Tractor Tapered Cup
SKU: 3920
Price: 30.0 USD
Availability: InStock

3920 Tractor Tapered Cup

£30.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Tapered Cup Bearing Fits Massey Ferguson, Fits Ford, Fits Case IH, Fits John Deere, and More

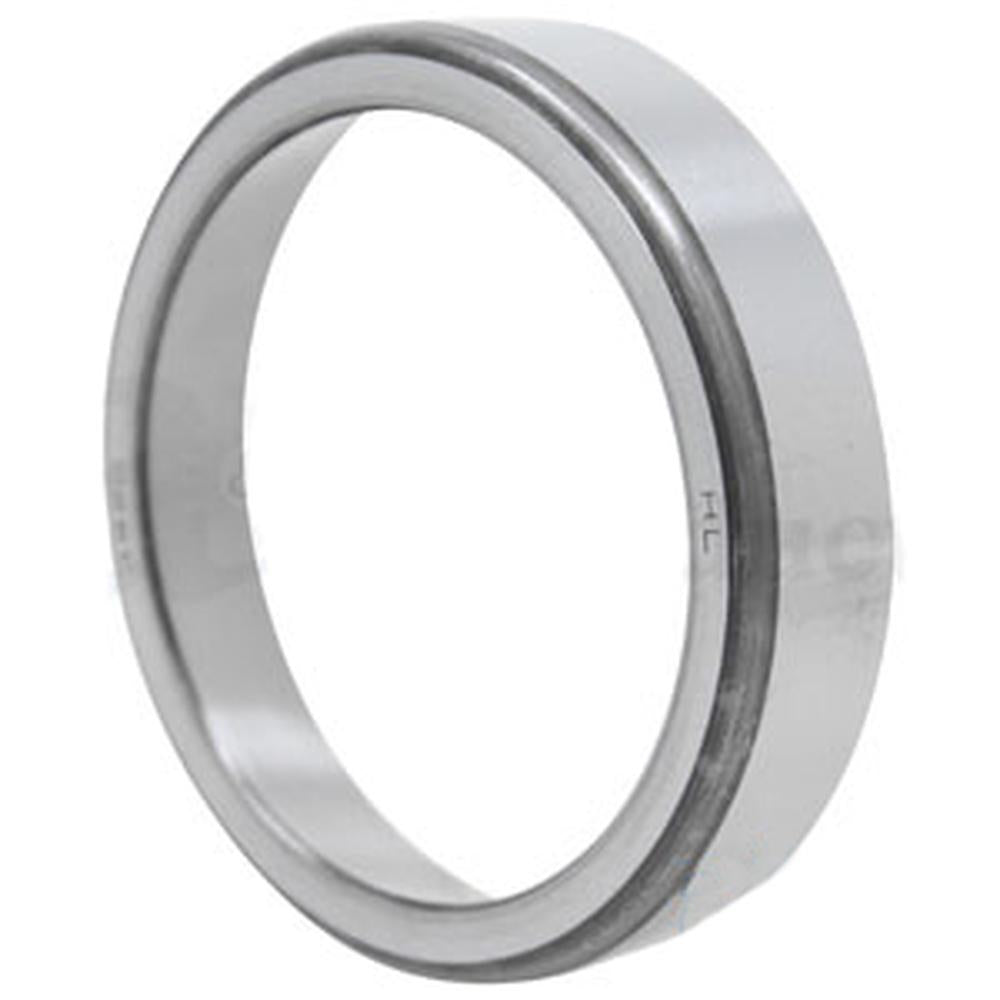

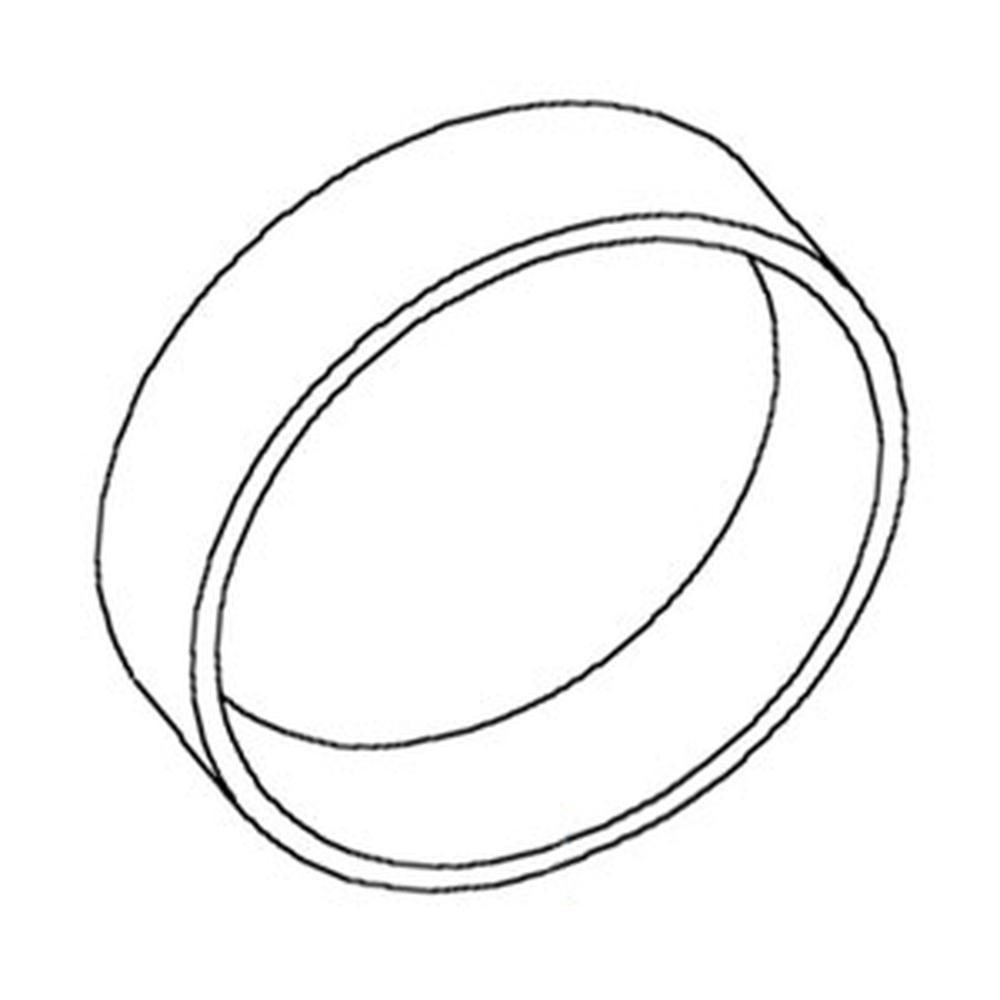

This tapered roller bearing cup (outer ring) is a precision-fit replacement used in wheel hubs, rear axles, differentials, transmissions, and PTO assemblies across a wide range of agricultural tractors, combines, and construction equipment. The cup pairs with compatible cones including Timken 390, 390A, 392, 395, 395A, 3977, 3978, 3979, 3980, 3981, 3982, 3984, 3992, 3994, and 399A series. Both cup and cone should be replaced together for maximum bearing life.

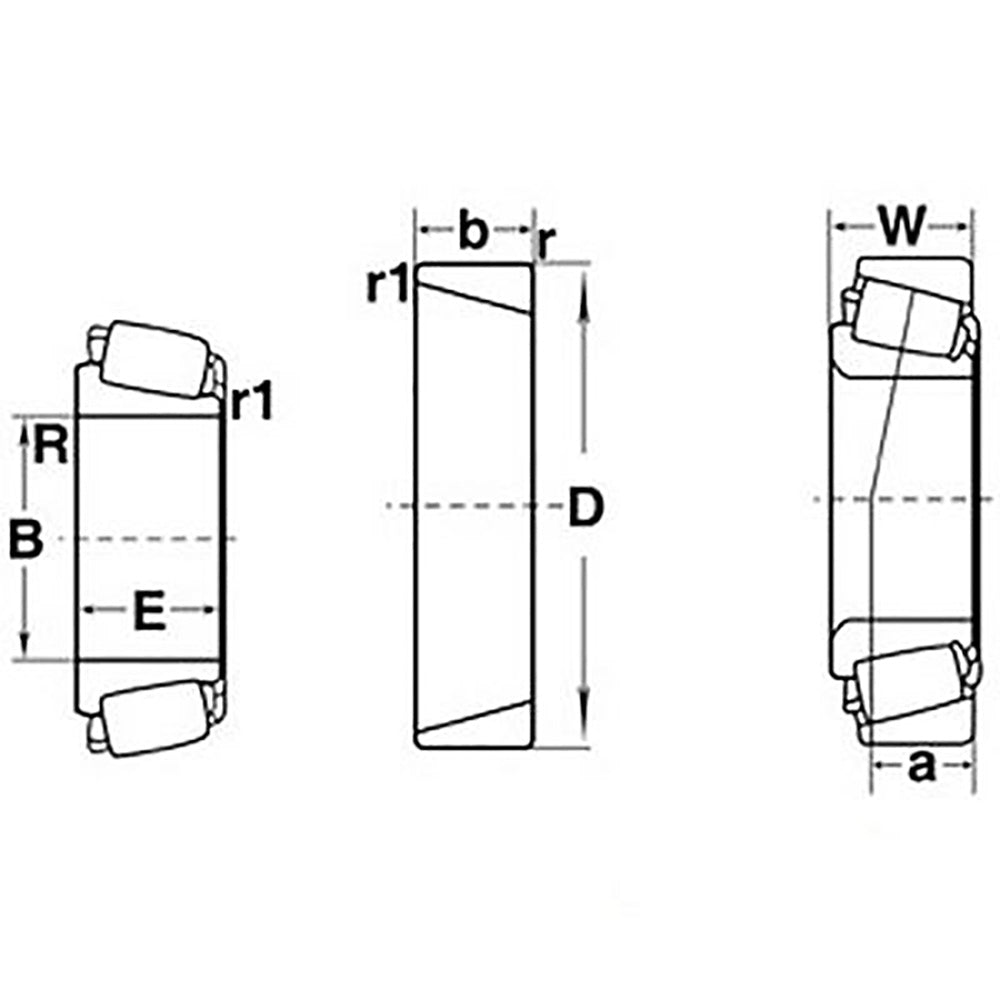

Specifications

Outside Diameter: 4.4375 in (112.712 mm)
Width: 0.9375 in (23.812 mm)
Radius: 0.13 in (3.3 mm)
Type: Single, Non-Flanged Cup
Material: Chrome Steel

Compatible Models

Fits Massey Ferguson Tractors: TE20, TO20, TO35 (s/n 169467 and later), 35 (Early Models), 65, 135, 165, 175, 180, 235, 255, 265, 275, 285, 290, 298, 431

Fits Ford/New Holland Tractors: 2N, 8N, 9N, NAA, Dexta, 600, 620, 630, 640, 650, 660, 2000 (1965 and later), 2100, 2110, 2120 (s/n 54166 and later), 2300, 2310, 2600, 2600N, 2600R, 2600V, 2810, 2910, 3000 (1965 and later), 3230, 3500, 3550, 3600, 3600N, 3600R, 3600V, 3610, 3610NO, 3610V, 3900, 3910, 3910H, 3910N, 3910R, 3910V, 3930, 3930N, 3930NO, 4000, 4030, 4100, 4110, 4110N, 4110NO, 4110O, 4110TR, 4110V, 4120, 4121, 4130, 4130NO, 4140, 4190, 4200, 4330, 4340, 4410, 4500, 4600, 4600NO, 4600O, 4600SU, 4610N, 4610NO, 4610O, 4630, 4630N, 4630NO, 4630O, 4830, 4830N, 5030, 5030O, 5110, 5610, 5610S, 5640, 5900, 6000, 6500, 6610O, 6610S, 6640, 6710, 6810, 6810S, 7410, 7610, 7610O, 7610S, 7700, 7710, 7740O, 7810, 7810O, 7810S, 7840, 7840O, 7910, 8010, 8210, 8340, 501, 531, 541, 601, 611, 621, 631, 641, 651

Fits Case/International Harvester Combines: 1440, 1460, 1470, 1480, 1482, 1640, 1644, 1660, 1666, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366

Fits Massey Ferguson / Hesston Swathers: 8680

Fits John Deere: See cross-reference JD7292

Fits Allis Chalmers: See cross-reference 70202584

GEHL: See cross-reference 520019

Hesston: See cross-reference 713040

Steiger / Challenger / Fits Caterpillar: See cross-reference 2A4576

Fits Woods: See cross-reference 14105WD

Also fits: Implement Hubs, Rear and Front Axle Wheel Bearings, Differential Pinions, Steering Knuckles, Final Drive / Drive Axle Supports (per catalog)

Replaces Part Number(s):

3920, 195160M1, BB4222, BB4222B, JD7292, 13363D, 713040, 70202584, 73007247, 14105WD, 520019, 40008, 510892, 2A4576, 6V956

Aftermarket Interchange Numbers

Timken 3920, SKF BR3920, NTN 3920-TRB, Koyo 3920, National 3920, Meritor 3920MAF / 3920MTOR, Dana Spicer HA102

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Implement Hubs, 7910, 8210, 3910R, PTA280, 7010, 2300, 7610O, 304, 2120, 65, 4030, 2910, 180, 240, 335, 205, KP1325, 7410, 3900, 641, 50D, Final Drive / Drive Axle Supports, 30D, 2344, 50E, Steering Knuckles, PANTHER 1000 POWERSHIFT, 203, 2610, SP80, 2135, 2110, 2366, 5900, CM360, 4830N, 265, CM SERIES IV, 2500, 6500, 9690, 4830, 3910H, 20, 2031, 3230, CP1360, 7610S, 501, 4000, 298, 3600N, 202, 2N, 40, 302, 8340, 6000, 4630, 4031, 4630O, 4340, 7710, DEXTA, 1666, 204, BEARCAT IV, 1080, LION 1000 POWERSHIFT, COUGAR III, PANTHER IV, 3930NO, 6610S, 235, 6810S, KM325, PT270, COUGAR 1000 POWER SHIFT, 670B, 1085, 270, CM325, 5640, 4330, 35, 2000, 1640, 4600, KM SERIES IV, KS280, 541, 9695, 30E, SM SERIES IV, 7840, 4120, 20C, 660B, 4110V, 4130NO, 3550, 230, 290, 8010, COUGAR IV, 1644, 31, 2310, 4600O, 5610, 4110TR, 7740O, 9N, 2610V, 3600R, 4610NO, 3610V, 1460, 531, SUPER 90, 9795, 660, 431, 4600NO, 4040, 2188, 3600, 255, 175, 650, 4140, 2600, 7700, PANTHER III, 4600SU, 4200, 3910V, 611, 651, 1682, 4110O, 9790, 1482, 4100, TE20, TO35, 20D, 275, 334, 620, 233, 1480, 690, ST270, 282, KR1280, 4110N, 7610, KS SERIES IV, CS360, 88, 285, PTA270, 3930, 7810S, 50A, 6710, 4410, 640, 3610NO, 630, 4610N, 3165, 7840O, CR1225, 3500, 1470, 1440, 3055, 50, 84, 600, 2600R, 3610, 261, 30, 3910N, 4630NO, 621, 150, 3910, CR1280, 4110, ST251, 2600V, 250, 2131, 2150, NAA, 4630N, 631, 698, 699, TO20, 1660, 4500, 4190, 7810, KM280, 50C, 245, 234, 3600V, 8N, 5610S, 601, 333, 2166, 7810O, 5030O, T7 SUPER, PTA251, 8680, 3930N, COUGAR I, 40B, 2130, 85, BEARCAT 1000 SERIES, 6810, 6610O, 1688, 165, 5030, 4131, 240P, 2100, 2144, 4610O, BEARCAT III, 2111, 135, 2200, 4110NO, CS SERIES IV, Rear & Front Axle Wheel Bearings, 4121, Differential Pinions, 2600N, 4130, 6640, 231, 670, TO30, 2810, 5110, 1680, 30B
