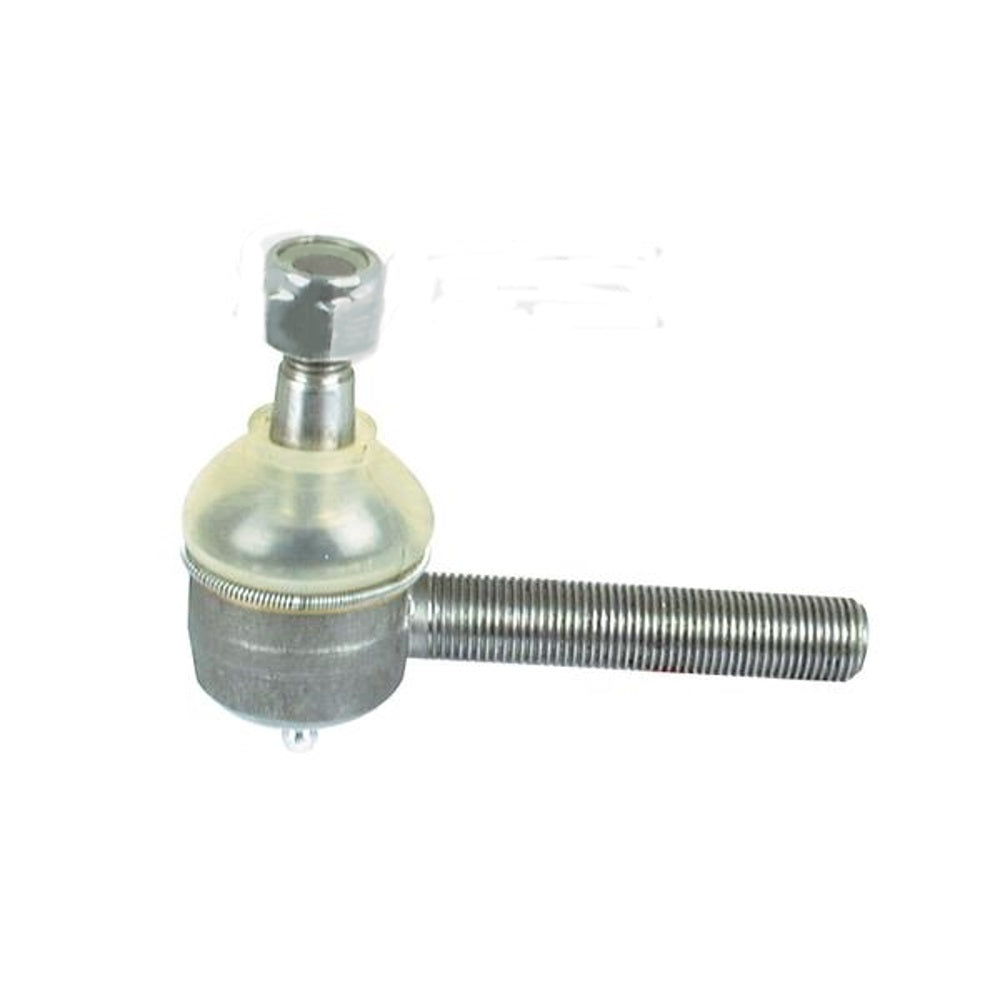

34208-12410 New RH Tie Rod End 2WD Fits Kubota Tractor Models L185 L2600
34208-12410 New RH Tie Rod End 2WD Fits Kubota Tractor Models L185 L2600
Couldn't load pickup availability
One New Aftermarket Replacement Right Hand Tie Rod End 2WD Fits Kubota L-Series Compact Tractors
This right-hand (RH) tie rod end is a direct aftermarket replacement for the front axle steering assembly on 2WD Fits Kubota L-Series compact tractors. It connects the steering linkage to the front wheel hub, maintaining precise steering alignment and control. This part is for 2WD models only -- verify your drivetrain before ordering.
Specifications
- Thread A (tie rod tube end): M16 x 1.5
- Thread B (stud): M12 x 1.5
- Ball stud diameter: 0.55" - 0.51" (14 - 13mm)
- Housing diameter: 0.85" (21.5mm)
- Overall length: 3.23" (82mm)
- Side: Right Hand (RH)
- Drivetrain: 2WD only
Compatible Models
Fits Kubota L-Series 2WD: L185, L185F, L2050, L210, L2250, L2350, L2350F, L245, L245F, L245H, L2500, L2550, L2600, L2650, L2650DT, L285, L2850, L2850F, L2900, L2900F, L295, L2950, L295F, L3000, L3010, L3010F, L3130, L3130F, L3250, L3250F, L3300, L3300F, L3450, L3650, L3650F, L3830, L3830F, L4200, L4200F, L4300, L4300F, L4310, L4310F, MX5000F
Replaces Part Number(s):
34208-12410, 34208-12412, 34220-12410, 34220-12412
New aftermarket replacement part - not remanufactured, not used.
