3383540 Element AS Hydraulic Fits Caterpillar 120M 12M 140M 14M 160M 16M 24M
3383540 Element AS Hydraulic Fits Caterpillar 120M 12M 140M 14M 160M 16M 24M
Couldn't load pickup availability

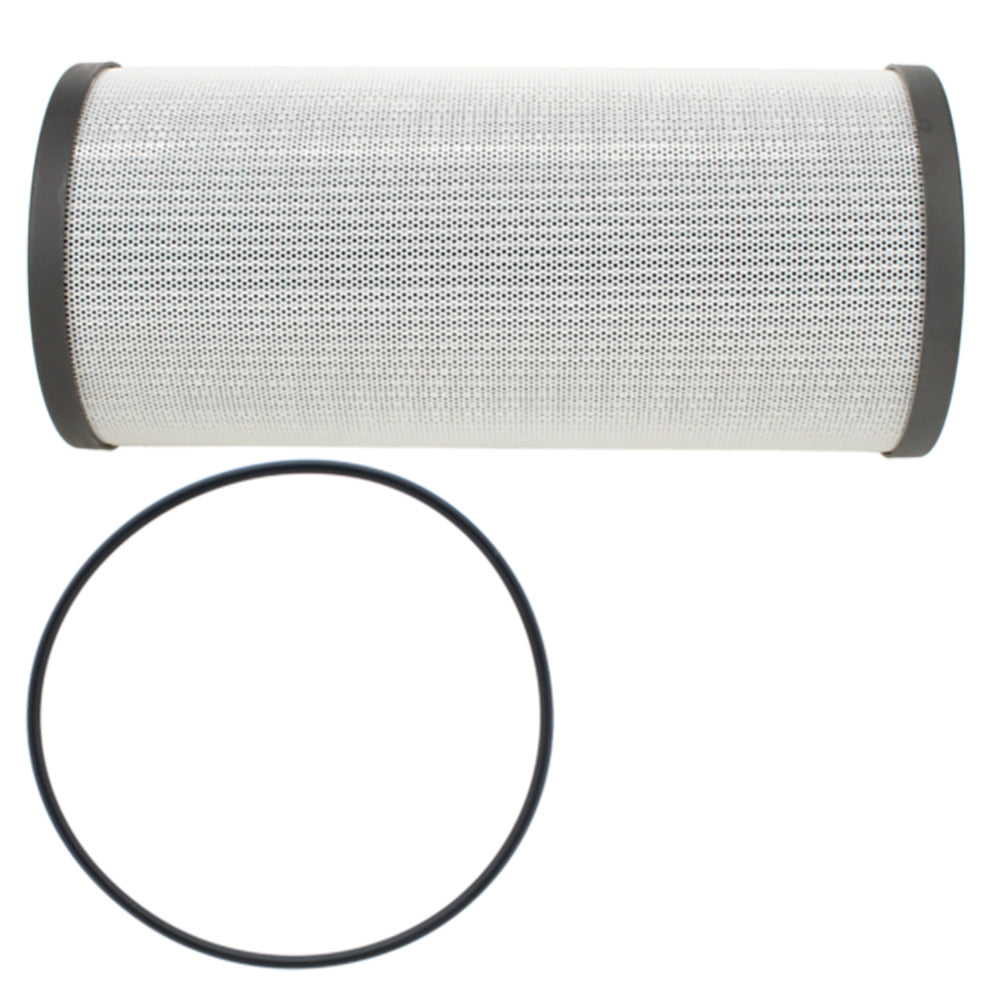

One New Aftermarket Replacement Hydraulic Filter Element for Caterpillar (Cat) Motor Graders, Track-Type Tractors, Off-Highway Trucks, and More
This aftermarket replacement hydraulic filter element (replaces OEM part number 338-3540 / 3383540) services the high-pressure hydraulic system on a wide range of Caterpillar (Cat) construction equipment. Rated at ultra-high efficiency, it uses synthetic filter media to remove fine particulate contamination and protect tight-tolerance hydraulic components from wear and abrasive damage.
Specifications
- Efficiency Rating: Ultra High Efficiency (UHE) synthetic media
- Length: 265.68 mm
- Maximum Outer Diameter: 124.46 mm
- Type: Hydraulic filter element (not for transmission applications)
Compatible Models
Caterpillar Motor Graders: 120H, 120M, 120M 2, 12H, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 14, 14L, 14M, 14M-3, 14M3, 140, 140H, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 150, 160, 160H, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 16, 16M, 16M3, 18, 18M3, 24, 24M, 404F-22
Caterpillar Track-Type Tractors: D6N, D6R III, D6T, D7R II
Caterpillar Pipelayers: 572R II, 587R, 587T
Caterpillar Off-Highway Trucks: 773F, 775F, 777F, 785D
Caterpillar Petroleum / OEM Solutions: TH48-E70, TH48-E80, TH55-E70
Caterpillar Industrial Engines / Telehandlers: C4.4, SPF343C
Replaces Part Number(s):
338-3540, 3383540, 1R-1809, 1R1809, 328-3655, 3283655, 2440121
Aftermarket Interchange Numbers
Donaldson P569614, Fleetguard HF35480, Carquest 84809, Hastings HF1014, Hifi-Filter SH66221V, WIX/NAPA EH-55010
New aftermarket replacement part - not remanufactured, not used.
