336187A1 Lift Cylinder Fits Case 75XT s/n 318923-, 85XT s/n 352235-, 90XT s/n 32
336187A1 Lift Cylinder Fits Case 75XT s/n 318923-, 85XT s/n 352235-, 90XT s/n 32
Regular price
£757.00 GBP
Regular price
Sale price
£757.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

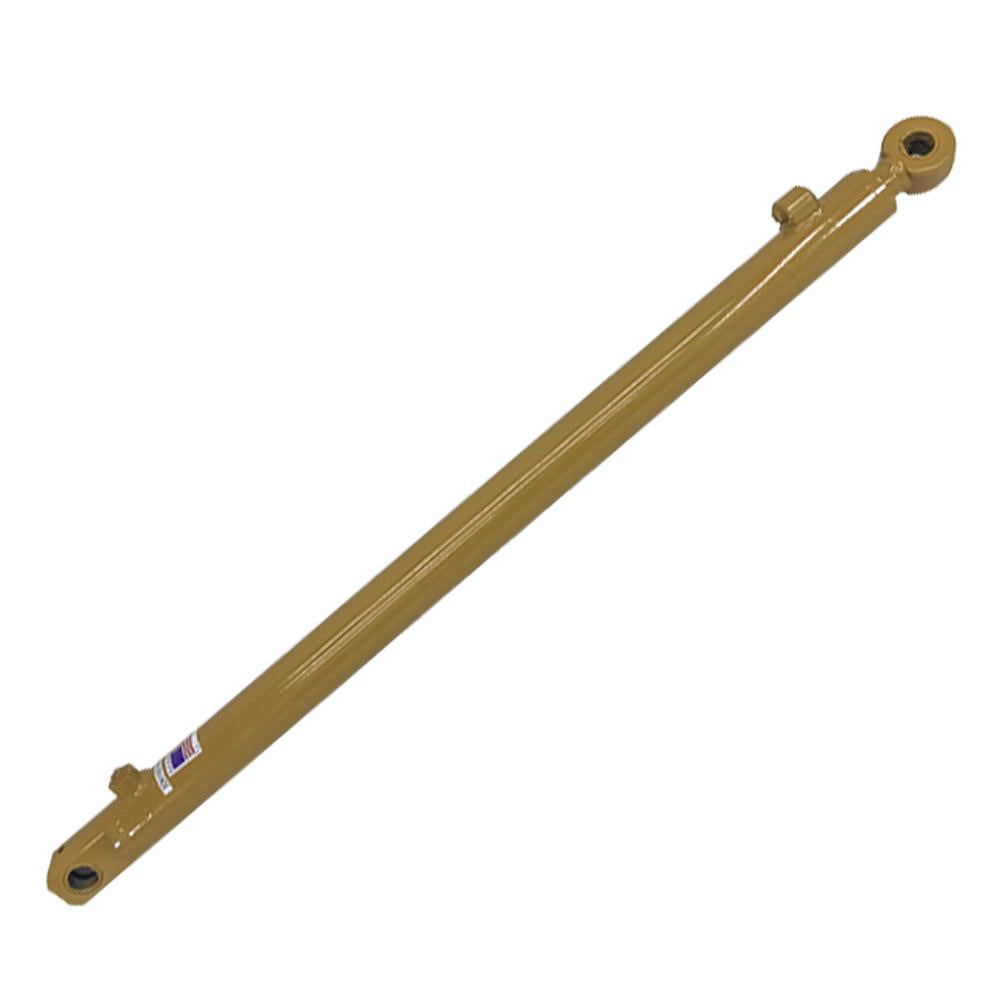

One New Aftermarket Replacement Hydraulic Lift Cylinder Fits Case Skid Steer Loaders
This double-acting hydraulic lift cylinder controls boom/loader arm lift on Fits Case XT-series and 400-series skid steer loaders. It is a direct-fit replacement for OEM part number 336187A1 and restores full hydraulic lift function to the loader arm assembly.
SERIAL NUMBER RESTRICTIONS - Verify before ordering:
- Fits Case 75XT: Fits s/n 318923 and above only. For units below s/n 318923, both cylinders must be replaced as a pair.
- Fits Case 85XT: Fits s/n 352235 and above only.
- Fits Case 90XT: Fits s/n 320051 and above only.
- Fits Case 435: All serial numbers.
- Fits Case 445: Fits s/n 454786 and below only.
- Fits Case 445CT: Fits s/n 458846 and below only.
Specifications
- Type: Double-Acting Hydraulic Lift Cylinder
- Rod Diameter: 1-3/4 in. (44.4mm)
- Bore: 2-1/2 in.
- Stroke: 41-1/4 in. (1049mm)
- Weight: 86 lbs.
- Includes bushings
Compatible Models
Fits Case Skid Steer Loaders: 75XT (s/n 318923-up), 85XT (s/n 352235-up), 90XT (s/n 320051-up), 435, 445 (s/n up to 454786), 445CT (s/n up to 458846)
Replaces Part Number(s):
336187A1
New aftermarket replacement part - not remanufactured, not used.
