3139594R91 New STD Ring Set Fits Case-IH Tractor Models 268 454 474 574

Name: 3139594R91 New STD Ring Set Fits Case-IH Tractor Models 268 454 474 574
SKU: 3139594R91
Price: 29.0 USD
Availability: InStock

3139594R91 New STD Ring Set Fits Case-IH Tractor Models 268 454 474 574

£29.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Standard Piston Ring Set Fits Case IH Tractors

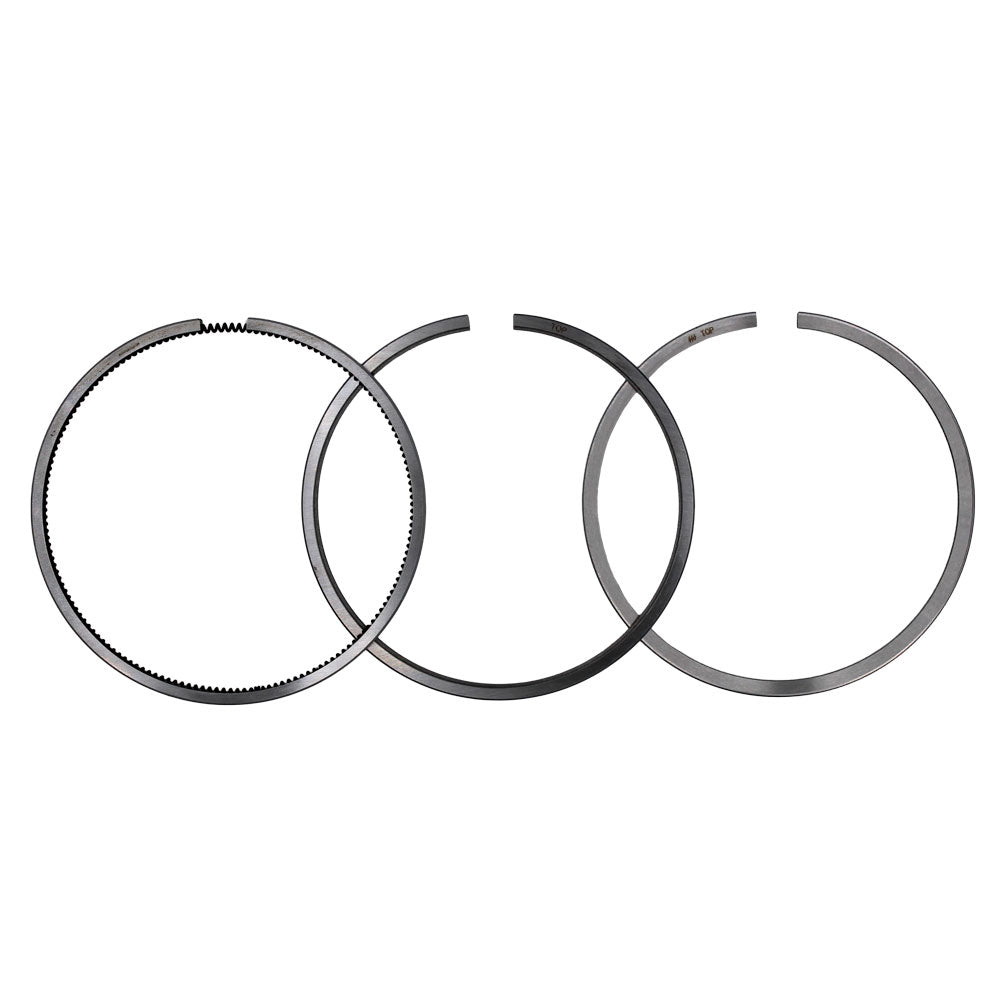

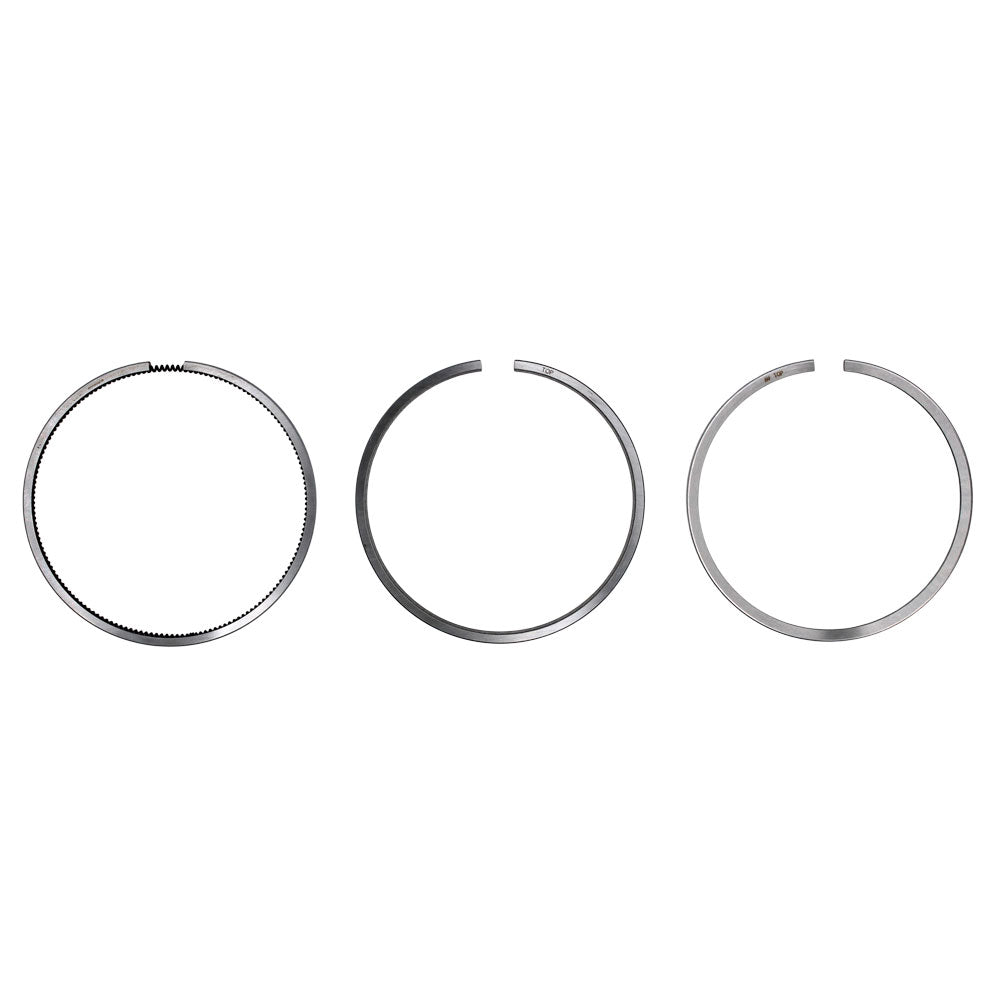

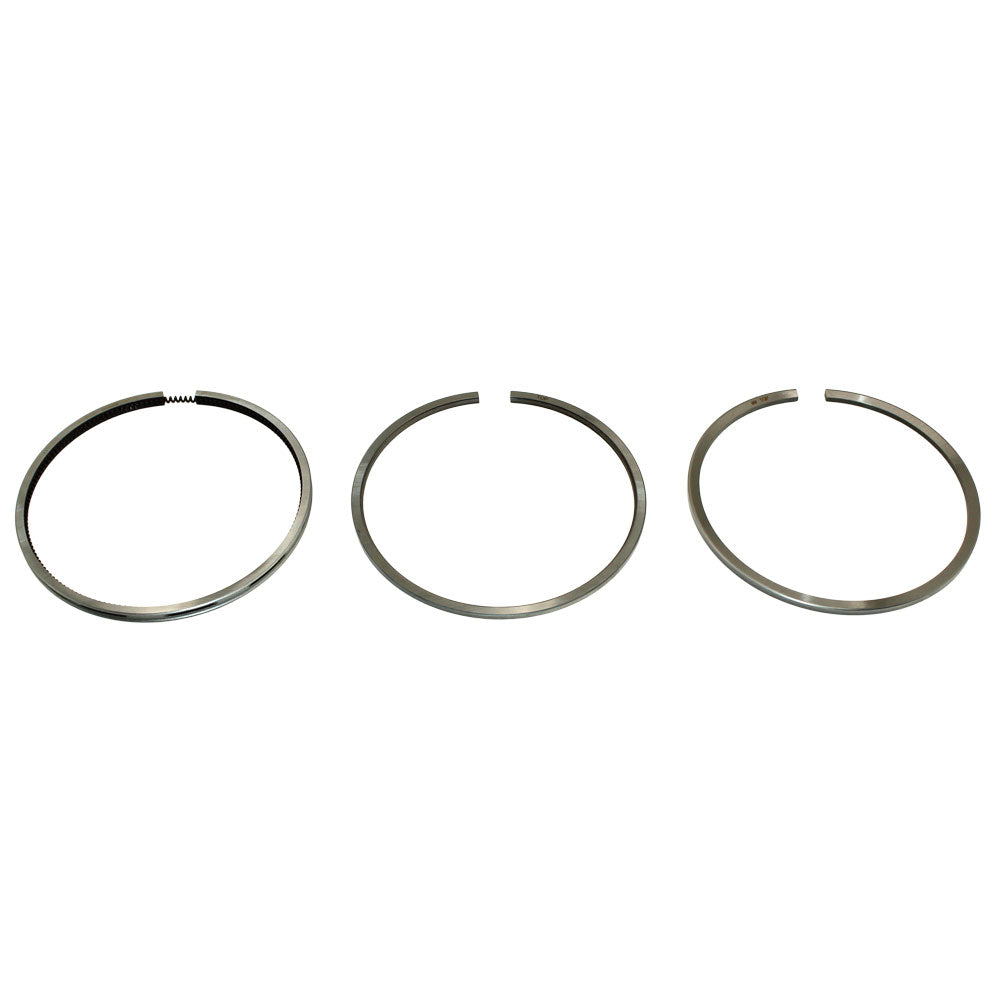

This standard bore piston ring set replaces OEM part number 3139594R91 and is designed Fits Case IH (Fits Case/International Harvester) diesel engines including the D155, D179, D206, D239, D310, D358, and TD239 engine families. The set includes three rings per cylinder -- a chrome plated keystone top compression ring, a chrome plated taper faced internally stepped second ring, and a chrome plated bevelled edge oil control ring with helical coil spring -- providing a complete solution for engine rebuild and overhaul work.

Specifications

Bore: 3.875 in (98.425 mm) -- Standard
Rings per cylinder: 3
Top Ring: Chrome Plated Keystone (CK1) -- 3.00 mm
2nd Ring: Chrome Plated Taper Faced Internally Stepped Top (CT2) -- 2.38 mm
3rd Ring: Chrome Plated Bevelled Edge with Helical Coil Spring (CBEH) -- 4.76 mm
Sold per cylinder

Compatible Models

Fits Case IH Tractors: 268, 288, 433, 454, 474, 533, 574, 633, 644, 674, 684, 685, 685XL, 695, 695XL, 733, 740, 743, 743XL, 744, 745, 745S, 745XL, 785, 785XL, 795, 795XL, 833, 840, 844, 844S, 844XL, 845, 845XL, 885, 885XL, 895, 895XL, 940, 955, 955XL, 956, 956XL, 995XL, 1046, 1055, 1055XL, 1056, 1056XL, 2400, 2500, 4210, 4220, 4230, 4240, Hydro 84, Hydro 86

Replaces Part Number(s):

3139594R91, 671510C91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

433, 1055XL, 695, 744, 845XL, 733, 743, 4220, 782, 745S, 2500, 684, 533, 844, 940, 1055, 4210, 795XL, 745XL, 824, 685, 1046, 474, HYDRO 86, 955XL, 956XL, 633, 785XL, 674, 740, 574, 1056, 885XL, 995XL, 288, 833, 955, HYDRO 84, 785, 1056XL, 956, 2400, 695XL, 4230, 844XL, 895, 795, 745, 685XL, 845, 268, 844S, 644, 895XL, 454, 885, 840, 724, 4240, 743XL

Additional Information:

Comes with 3 Rings Top Ring: CK1 - Chrome Plated Keystone (3.00mm) 2nd Ring: CT2 - Chrome Plated Taper Faced Internally Stepped Top (2.38mm) 3rd Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (4.76mm)
