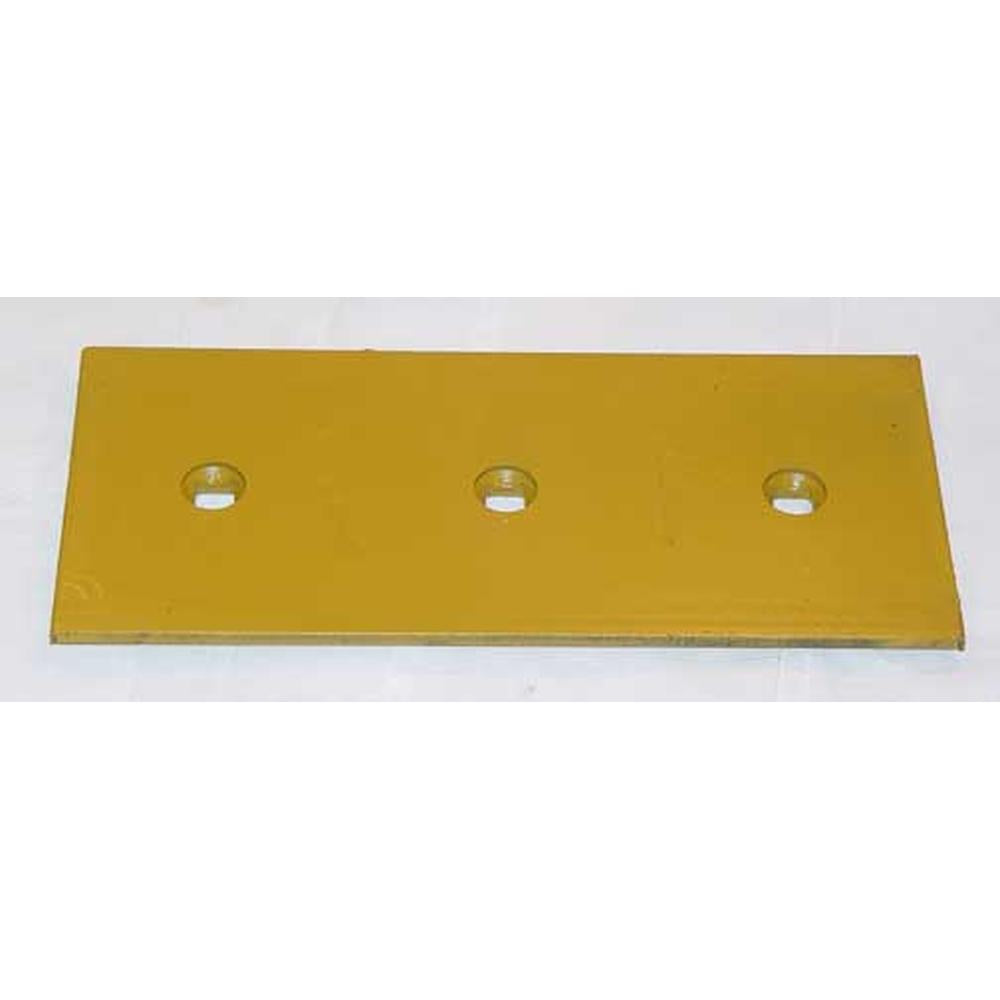

305440A1 Cutting Edge, End Bit Fits Case

One New Aftermarket Replacement 305440A1 Cutting Edge End Bit for Case Crawler Dozers

This aftermarket replacement dozer blade end bit mounts to the outer ends of the cutting edge on the blade of Case (Case IH) crawler dozers. The end bit protects the blade corners from wear during grading, land clearing, and earthmoving work. This is a level cut, left or right hand reversible end bit for the DBII-style blade.

Specifications

• Blade Type: DBII Level Cut End Bit (LH/RH)
• Thickness: 0.625 in. (5/8 in.)
• Width: 8 in.
• Length: 18 in.
• Holes: 3 bolt holes
• Bolt Hole Diameter: 3/4 in.
• Weight: approx. 22.7 lbs. (10.3 kg)

Compatible Models

Case Crawler Dozers: 450G, 450H, 450J, 450K, 550G, 550H, 550H LGP, 550J, 550K, 650G, 650H, 650J, 650K, 700H (before SN 937546)

Replaces Part Number(s):

305440A1

New aftermarket replacement part - not remanufactured, not used.
