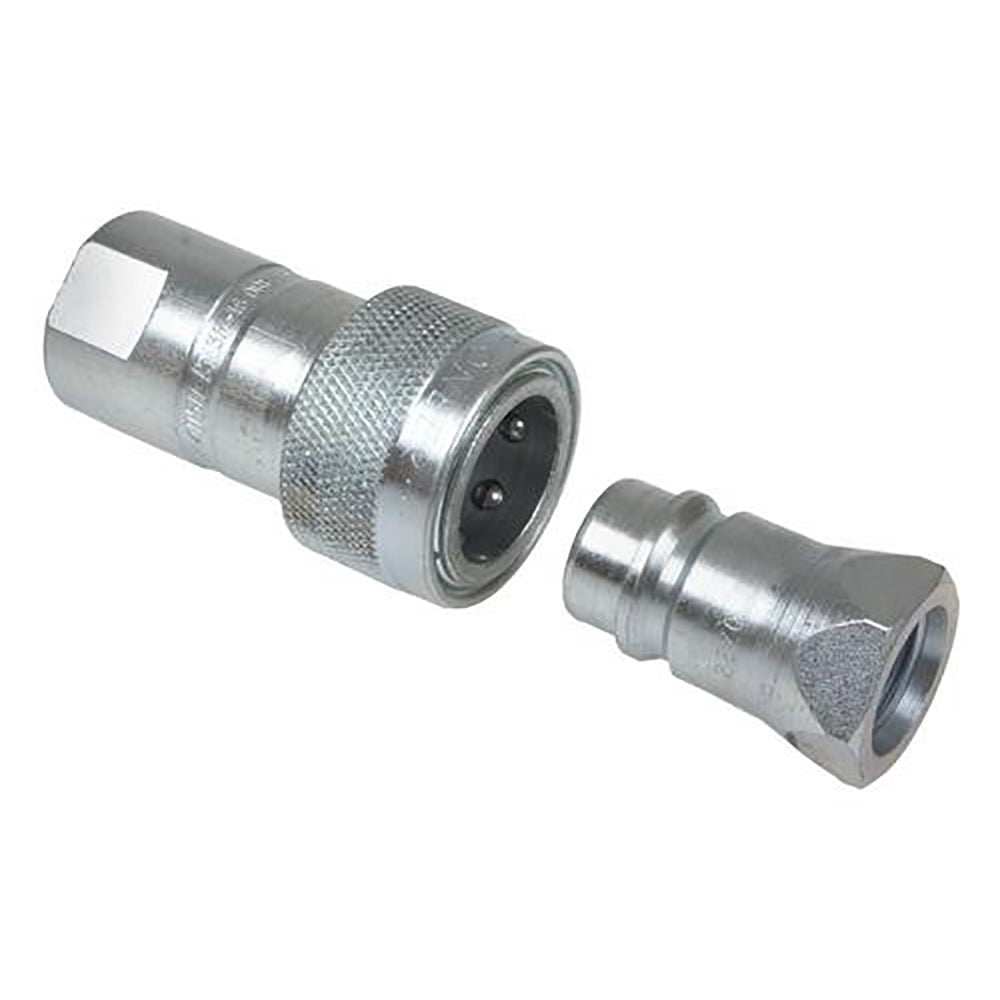

3/4" - 16 ORB Complete Coupler Body Set Male/Female Pioneer 4000-15 Farmer Bob's

One New Aftermarket Replacement Pioneer 4000 Series Complete Hydraulic Quick Coupler Set - 3/4"-16 ORB

This complete coupler body set includes both the male nipple (8010-15) and female coupler body (4050-15), ready to install on tractors, loaders, construction equipment, snow plow attachments, and other hydraulic-powered machinery. The 4000 Series is a general-purpose, double shut-off design with a manual sleeve, built for demanding agricultural and industrial hydraulic applications. Thread connection is 3/4"-16 O-Ring Fits Boss (ORB) - not NPT pipe thread. Verify your port style before ordering.

Specifications

• Thread Size: 3/4"-16 ORB (SAE O-Ring Fits Boss, #8)
• Body Size: 1/2"
• Valve Type: Ball
• Maximum Operating Pressure: 3,000 PSI
• Body Material: Steel
• Seal Material: Nitrile
• Conforms to ISO 5675
• Set Includes: One (1) male nipple (8010-15) and one (1) female coupler body (4050-15)

Compatible Applications

This Pioneer-style 1/2" ISO 5675 coupler set is a universal agricultural quick coupler interchange. Compatible with Pioneer 4000, 4200, 5000, 8200, and 9200 Series couplers. Fits hydraulic systems on tractors and agricultural equipment from Fits John Deere, Fits Case IH, Fits Kubota, Fits New Holland, and other manufacturers using standard Pioneer-style ISO 5675 connections. Also suited for hydraulic loaders, add-on hydraulic circuits, hydraulic tools, and snow plow attachments.

Replaces Part Number(s):

4000-15, 4000-15-A

Aftermarket Interchange Numbers

Male Nipple: 8010-15 | Female Coupler Body: 4050-15

New aftermarket replacement part - not remanufactured, not used.
