Two New Aftermarket Replacement Spindle Assemblies for Murray / MTD Riding Mowers
This listing includes two (2) aftermarket replacement spindle assemblies for Murray and MTD riding lawn mowers. The spindle assembly mounts to the cutting deck and holds the blade shaft in place, transmitting rotation from the deck belt and pulley to the mower blade. These assemblies fit Murray 38", 40", 42", and 46" decks from 1997 and newer and are sold as a pair -- ideal for a full deck rebuild or replacing worn spindles across a multi-blade deck.

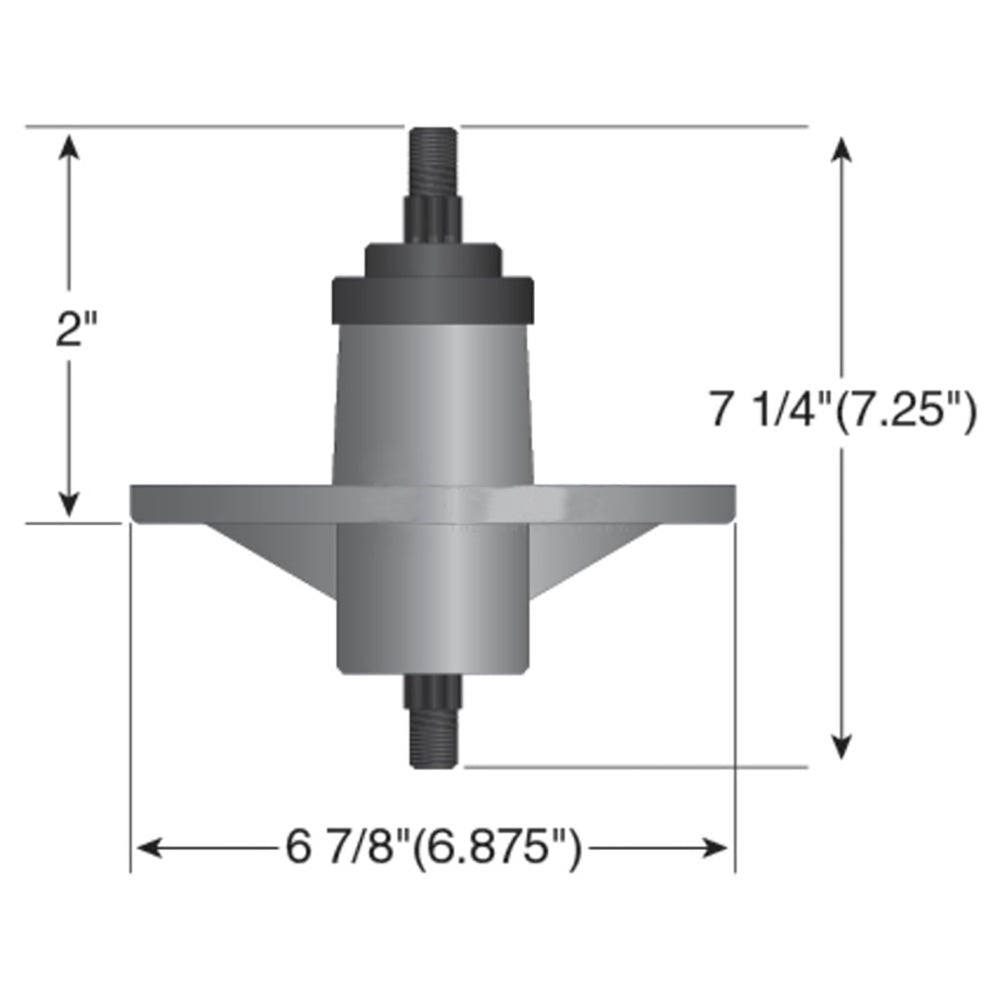

Specifications
- Housing OD: 6-7/8"
- Overall Height: 7-1/4"
- Shaft OD: 5/8"
- Thread: 9/16"-18 UNF at each end of shaft

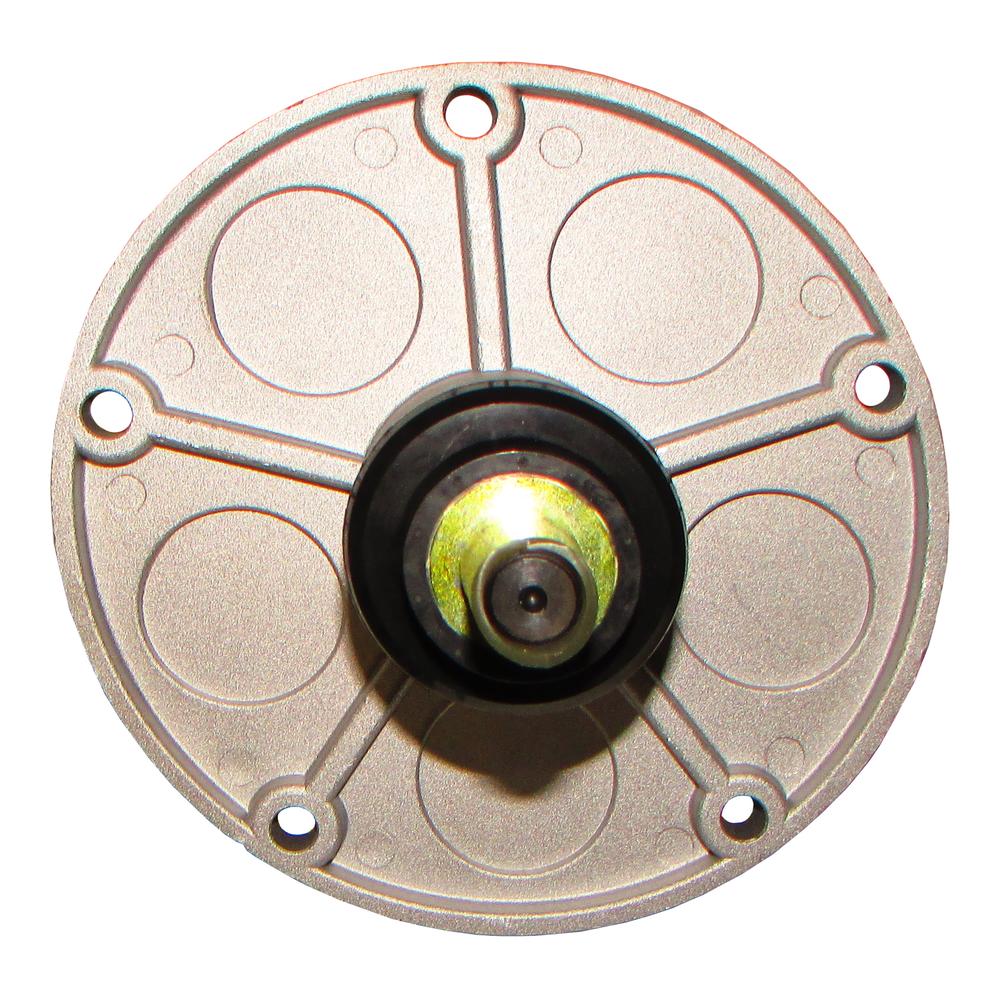

- Mounting: 5-hole spline shaft design; housing holes are not pre-threaded (use self-tapping screws, not included)

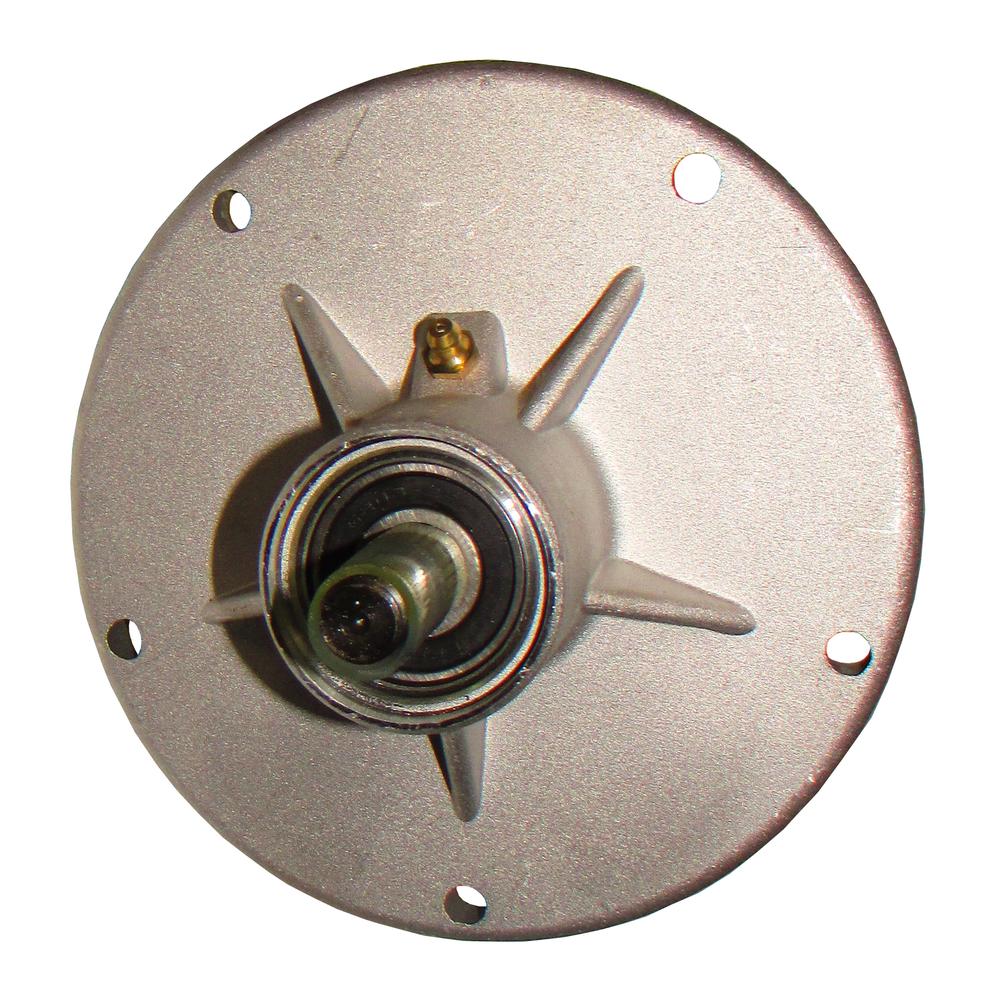

- Includes: housing, shaft, bearings, grease fitting, and dust cover over one bearing
Compatible Models
Murray / MTD Riding Mowers: 38", 40", 42", and 46" decks (2001 and newer) -- including Murray 1001200 HD and all rail-frame tractor models using spindle part number 1001200, 1001200MA, or 1001046
Also compatible with: Fits Briggs & Fits Stratton-branded Murray equipment using OEM number 1001200MA or 10001709MA
Replaces Part Number(s):
1001046, 1001200, 1001200MA, 10001709MA, 10189, 492574MA
Aftermarket Interchange Numbers
Fits Stens 285-174, Oregon 82-245
New aftermarket replacement part - not remanufactured, not used.
