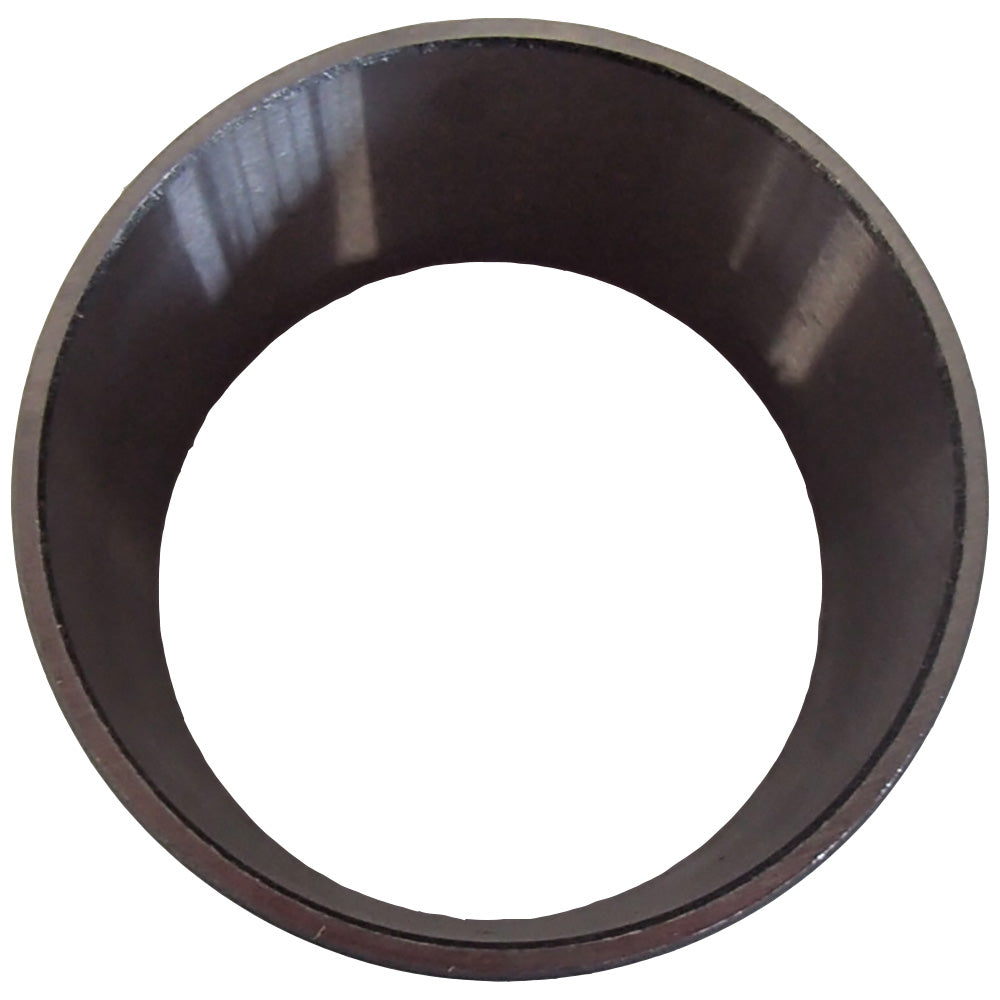

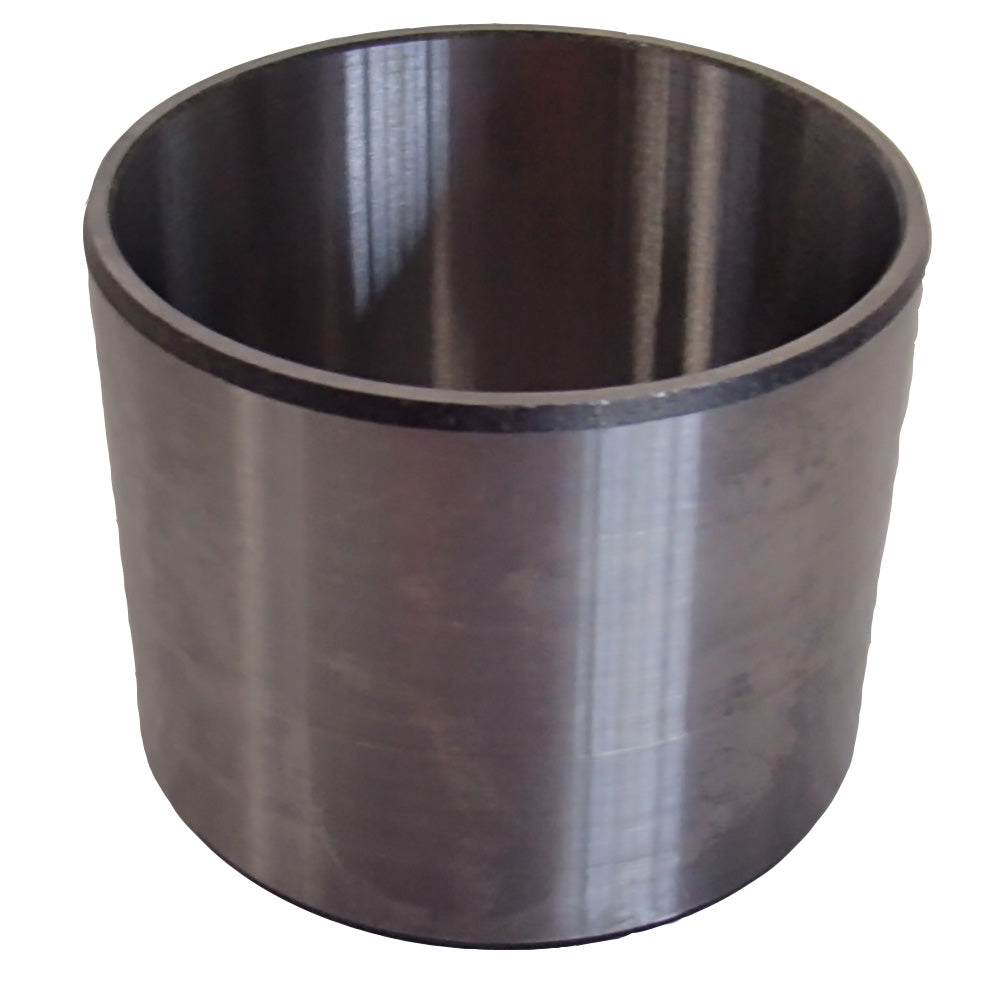

2N3039 Front Axle Support Pin Bushing Fits Ford Tractors 2N 8N 9N NAA 501
2N3039 Front Axle Support Pin Bushing Fits Ford Tractors 2N 8N 9N NAA 501
Couldn't load pickup availability
One New Aftermarket Replacement Front Axle Center Pivot Bushing Fits Ford and Fits Massey Ferguson Tractors
This front axle center pivot pin bushing supports the front axle pivot point on Fits Ford N-Series, hundred-series, and thousand-series tractors as well as Fits Massey Ferguson TE20/TO-series tractors. It fits the standard (non-heavy-duty) front axle on 4-cylinder models built from 1939 to 1964. Note: Bushing must be reamed or honed to final size after installation to fit the pin.
Specifications
- Inside Diameter: 1.770"
- Outside Diameter: 1-15/16"
- Length: 1-1/2"
- Must be reamed / honed to size to fit the pin
Compatible Models
Fits Ford / Fits Ford New Holland Tractors (4-cylinder, 1939-1964, standard front axle): 2N, 8N, 9N, NAA (Jubilee), 501, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700 Series, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900 Series, 2000 (4-cylinder), 4000 (4-cylinder)
Fits Ford / Fits Ford New Holland Industrial Tractors (4-cylinder, 1939-1964, standard front axle): 2030, 2031, 2120, 2130, 2131, 4030, 4031, 4120, 4121, 4130, 4131
Fits Massey Ferguson Tractors: TEA20, TE20, TO20, TO30, TO35
Replaces Part Number(s):
2N3039, 87041923, 180344M1, 180344V1
Aftermarket Interchange Numbers
Also cross-references: A-2N3039
New aftermarket replacement part - not remanufactured, not used.
