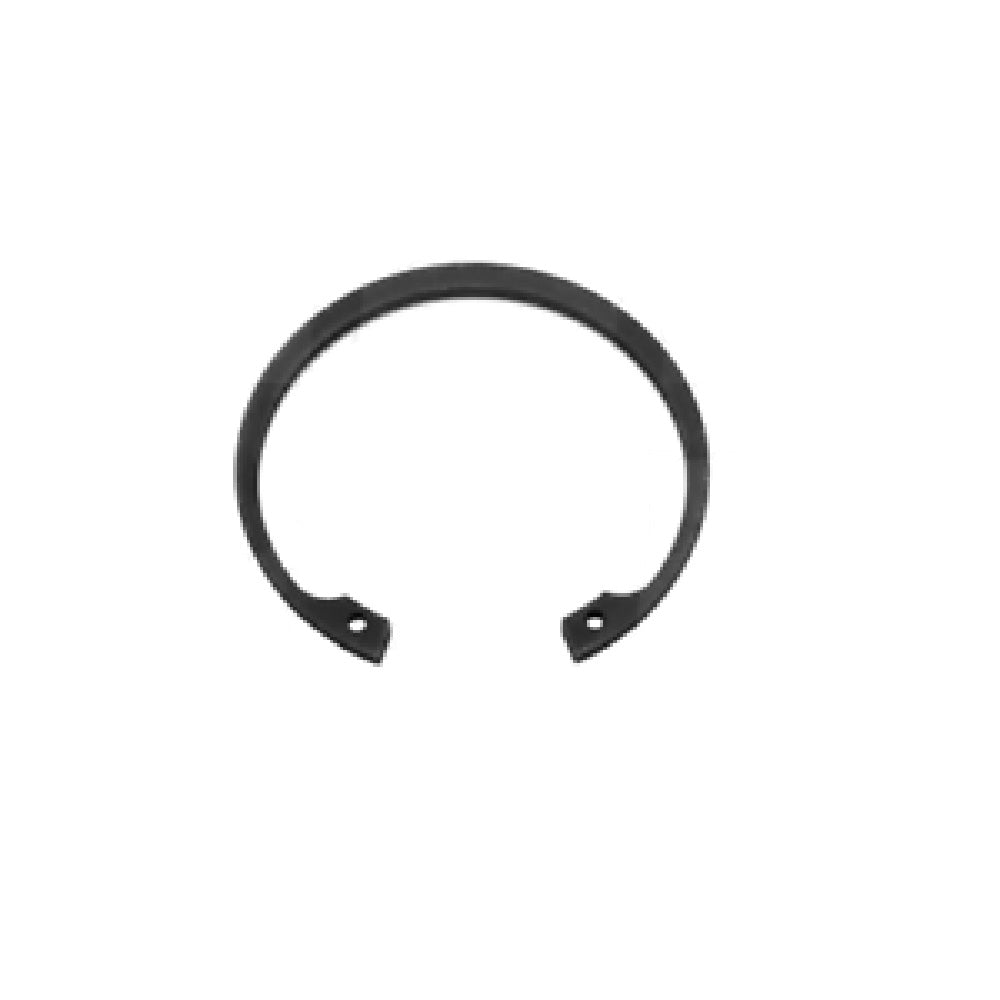

2H5549 Snap Ring Fits CAT D3G, D4G, D5G
2H5549 Snap Ring Fits CAT D3G, D4G, D5G
Regular price
£20.00 GBP
Regular price
Sale price
£20.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Snap Ring Fits Caterpillar (Fits CAT) Crawler Dozers
This internal retaining snap ring secures dozer cylinder rod-end bushings in place, preventing lateral movement of components within the cylinder housing. It is used in the pitch jack and lift/angle cylinder assemblies on Fits Caterpillar D-series crawler dozers. Each bushing installation requires two (2) of these snap rings.
Specifications
- Type: Internal retaining ring (snap ring)
- Material: Tempered steel
- Free Diameter: 3.12 in (79.27 mm)
- Groove Diameter: 76.35 mm
- Housing Diameter: 72 mm
- Groove Width: 2.61 mm
- Radial Wall: 5.84 mm
- Lug Height: 7.62 mm
- Quantity needed per bushing: 2
Compatible Models
Fits Caterpillar Crawler Dozers: D3G, D3G XL, D3G LGP, D4G, D5G, D5G XL, D5G LGP
Replaces Part Number(s):
2H5549, 2H5549-A
New aftermarket replacement part - not remanufactured, not used.
