2G8020 Valve Fits Caterpillar Models

2G8020 Valve Fits Caterpillar Models

£118.00 GBP
£118.00 GBP
Sale Sold out
Shipping calculated at checkout.

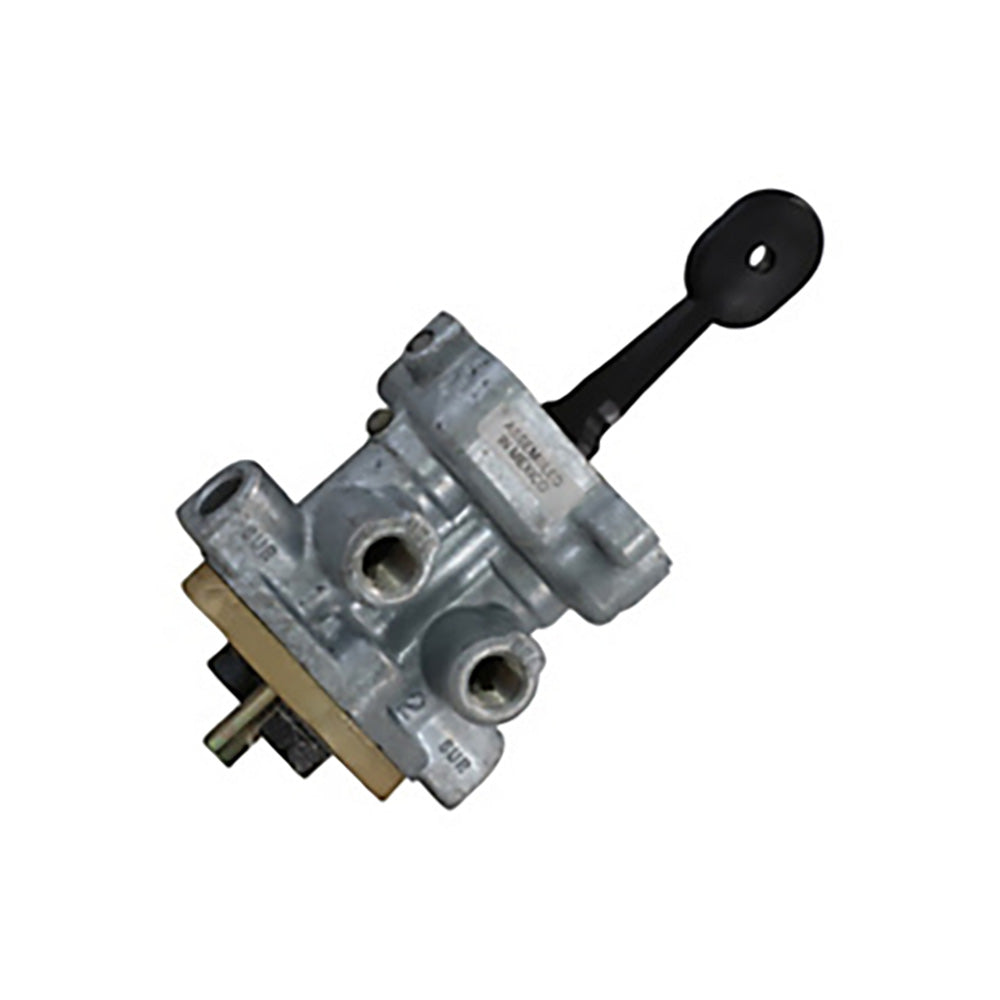

One New Aftermarket Replacement Centershift Control Valve for Caterpillar (Cat) Motor Graders

This 3-position air control valve serves as the centershift control valve in the air system and brakes circuit on Caterpillar G-Series motor graders. The valve features a nylon plastic body, a normally closed configuration, and mounts in a standard 12.7 mm (0.50 in) diameter panel hole for easy cab installation. Supply and delivery ports accept standard 1/8-27 NPTF threaded fittings.

Specifications

  • Valve Type: 3-position, normally closed
  • Body Material: Nylon plastic
  • Maximum Operating Pressure: 1035 kPa (150 PSI)
  • Supply Port (x2): 1/8-27 NPTF thread
  • Delivery Port (x2): 1/8-27 NPTF thread
  • Panel Mounting Hole Diameter: 12.7 mm (0.50 in)

Compatible Models

Caterpillar Motor Graders: 12G, 120G, 130G, 140G, 14G, 16G, 160G

Replaces Part Number(s):

2G8020

New aftermarket replacement part - not remanufactured, not used.

Additional Information:

1035 Kpa Max. Operating Pressure • 3-position valve • Nylon plastic body • Maximum Operating Pressure: 1035 kPa (150 PSI) • Valve normally closed • Supply Port (2): 1/8-27 NPTF Thread • Delivery Ports (2): 1/8-27 NPTF Thread • Fits in 12.7 mm (0.50 in) diameter panel mounting hole
