291-2682 Stabilizer Cylinder R/H (side specific) R/H - In Seat Facing Front Load
291-2682 Stabilizer Cylinder R/H (side specific) R/H - In Seat Facing Front Load
Regular price
£1,438.00 GBP
Regular price
Sale price
£1,438.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

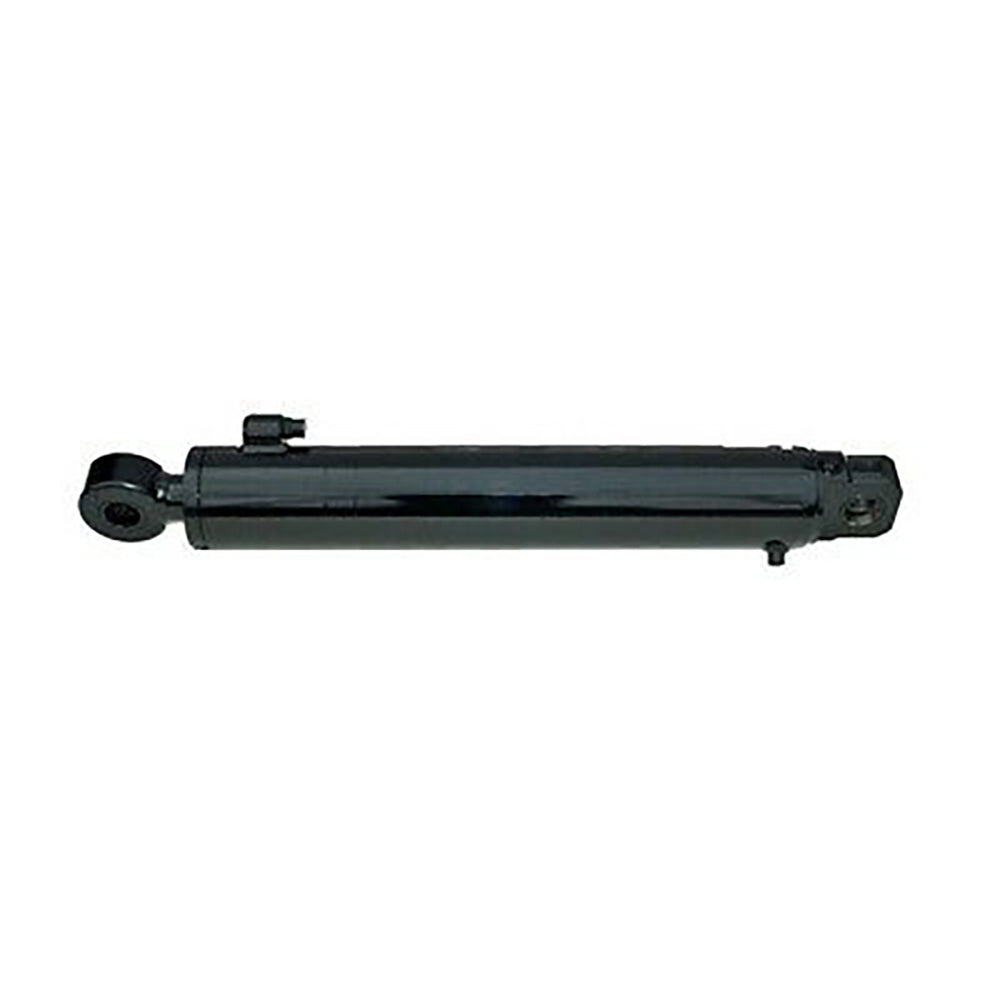

One New Aftermarket Replacement Right-Hand Stabilizer Cylinder for Caterpillar (Cat) Backhoe Loaders
This right-hand hydraulic stabilizer cylinder (outrigger jackleg cylinder) is part of the rear stabilizer system on Caterpillar (Cat) E- and F-series backhoe loaders. It extends and retracts the right-hand stabilizer leg to level and stabilize the machine during backhoe operation. Side-specific: Right-Hand (passenger/starboard side) only -- verify side before ordering. The matching left-hand cylinder is 291-2681.
Specifications
- Bore: 100 mm
- Rod Diameter: 55 mm
- Stroke: 541 mm
- Weight: approx. 99-103 lbs
- Type: Welded hydraulic cylinder
Compatible Models
Caterpillar Backhoe Loaders: 416E, 416F, 420E, 420F, 420F2, 430E, 430F, 430F2
Also fits select 415 series variants. Verify model serial number prefix compatibility before ordering.
Replaces Part Number(s):
291-2682, 262-7050
New aftermarket replacement part - not remanufactured, not used.
