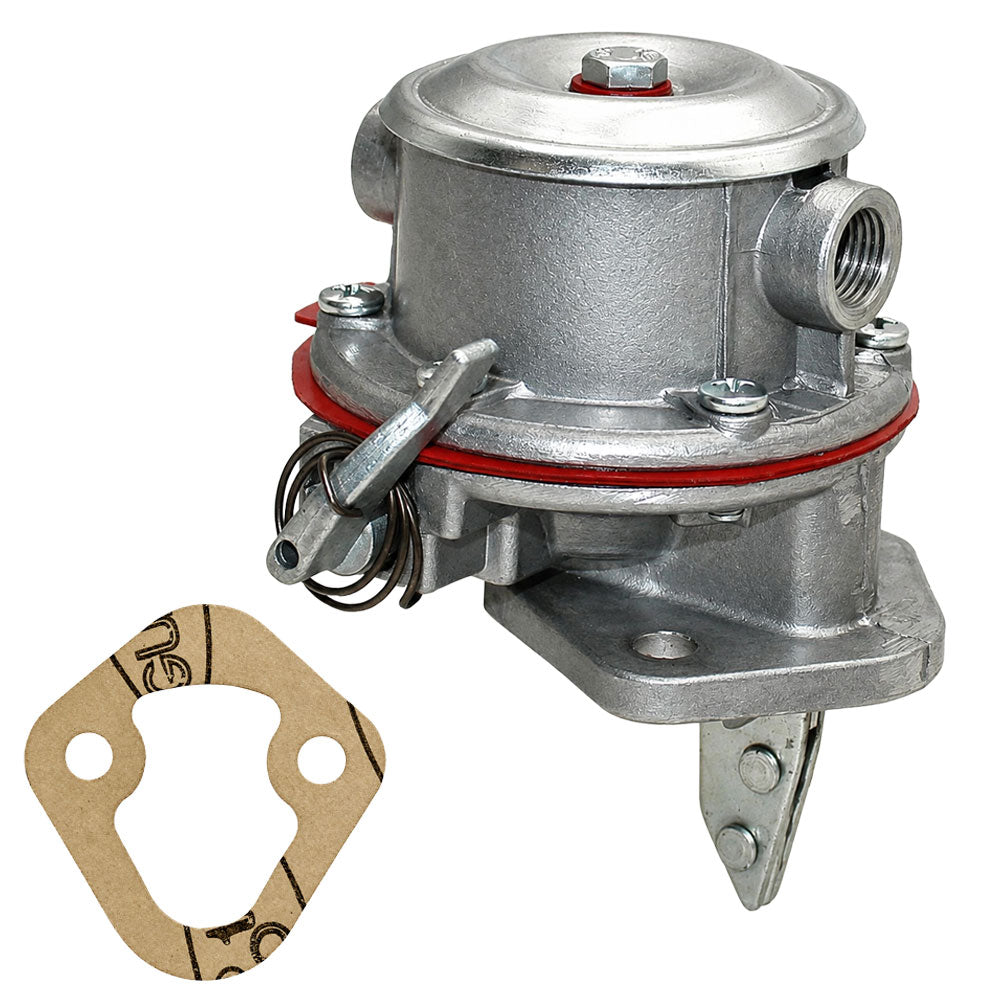

2641462 Fuel Transfer Pump

2641462 Fuel Transfer Pump

£45.00 GBP
£45.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Fuel Lift Transfer Pump Fits Ford, Fits Massey Ferguson, Perkins, Fits Allis Chalmers, and More

This mechanical diesel fuel lift transfer pump mounts directly to the side of the inline Simms-type injection pump and draws fuel from the tank to the injection system. It is a direct aftermarket replacement for the Fits Ford OEM number D8NN9350AA and covers a wide range of tractors, combines, backhoes, and industrial machines fitted with Perkins 4.212, 4.236, and 4.248 four-cylinder diesel engines (1965 through approximately 1993). Important: This pump uses a 2-bolt mount. It does NOT fit later-style 4-bolt mount applications. Verify your mount style before ordering. Fits Massey Ferguson fitment is also serial-number-restricted -- see notes below.

Specifications

  • Port threads: 1/2"-20 UNF
  • Mount: 2-bolt
  • Type: Mechanical diesel fuel lift pump
  • Mounts to inline Simms-type injection pump

Compatible Models

Fits Ford / Fits Ford-Fits New Holland Tractors (Simms inline injection pump, 1965-1993): 2000 Series (3-cyl, 1965-1974), 2100, 2120, 2150, 2300, 2310, 2600, 2810, 2910, 3000, 3000 Series (3-cyl, 1965-1974), 3050, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3400, 3430, 3500, 3550, 3600, 3610, 3900, 3910, 4000, 4100, 4110, 4120, 4130, 4140, 4330, 4340, 4410, 4600, 4610, 4630, 4830, 5000, 5030, 5100, 5110, 5190, 5200, 5340, 5500, 5550, 5600, 5610, 5700, 5900, 6410, 6500, 6600, 6610, 6700, 6710, 6810, 7000, 7100, 7200, 7410, 7500, 7600, 7610, 7700, 7710, 7810, 7910, 8000, 8200, 8210, 8400, 8530, 8600, 8630, 8700, 8730, 8830, 9000, 9200, 9600, 9700, Super Major, TW5, TW10, TW15, TW20, TW25, TW30, TW35

Fits Ford / Fits Ford-Fits New Holland Backhoes and Industrial: 335, 340, 340A, 340B, 345C, 345D, 360, 362, 420, 445, 445A, 445C, 445D, 455, 455C, 455D, 500, 506, 515, 532, 535, 540, 540A, 540B, 545, 545A, 545C, 545D, 550, 555, 555A, 555B, 555C, 555D, 575D, 650, 655, 655A, 655C, 655D, 700, 702, 703, 750, 755, 755A, 755B, 802, 803, 900, 903

Fits Massey Ferguson Tractors (2-bolt mount, serial number restrictions apply): 165 (up to engine SN 236UA57083), 175, 175 UK, 178 UK, 180 (up to engine SN 236UA57265), 185, 186, 187, 188, 220, 253, 255, 256, 265, 274-4, 275, 282, 300, 374S, 384S, MF470, MF6500

Fits Massey Ferguson Combines: 31, 165 UK, 175 UK, 178 UK, 184-4, 174-4S

Fits Massey Ferguson Industrial: MF31

Fits Allis Chalmers Tractors (2-bolt mount, serial number restrictions apply): 170 (up to engine SN 236U93188), 175 (up to engine SN 248U8332)

Perkins Engines: 4.212 (LA), 4.236 (LD), 4.248 (LF)

Landini: 11, 30, 50, 50B, 50C, 50E, 50H, 99, A62, A64, A66, 1100, 1102, 1103, 1203, 1844

Valtra-Valmet: 502, 504, 506

Fits New Holland Skid Steer: L783

Replaces Part Number(s):

881303M91, 881303M92, 3637287M91, 3637287M92, 3637287M1, 3637 287M91, 4222104M91, 4222104M1, 4222104V91, 422104V91, 1447381M91, D3NN9350A, D8NN9350AA, D8NN9350AB, D8NN-9350AB, DDN9355, HFD8NN9350AB, 3912071, 83912071, 500651, 502213, 510E-9350, 81846098, 83991467, 86525137, 17400800, 17400900, 251278, 276831, 70251278, 70276831, 2641338, 2641388, 2641462, 2641465, 2641467, 2641477, 2641478, 12641338, 12641478, ULPK0011, 836012114

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

604, 5000, 165, 3000, 2120, 2910, 3300V, 184-4, 282, 4200, 333, 256, 5110, 4, 2B, 7600, 3DII, 655, 500, 2CX, 755A, 375, 755, 180, 175S, 1550B, 4410, 4830, 8210, 4C, 3500, 5610S, 8400, 5640, MF470, 2310, 670, 802, 1103, 3430, 334, 31, 506, 6000, 702, 545A, FA 700, 2100, 5340, 555B, 540, TW30, 340B, 3110, 900, MF31, 650, A4.236, 99, 3400, 532, 345D, 5610, 2110, 8600, 4CN, DR140, MF50, 555C, 1203, 3D, 186, 175UK, 9600, 30, 2600, 168, A4.212, 2D, 260C, 1844, 185, 445A, 4500, 3330, 3610, 3CII, 234, 6600, 7700, 7100, 4610SU, 4140, 8200, 300, 125-RO-1 Pneumatic Compressor, 3050, TW20, 359, 3550, 9200, 4.248, 5190, 178UK, 345C, 550, TW10, 555E, 50C, 565, 4D, 178, 8830, 5900, 545, 3310, 3600, TW5, 803, 3910, 7200, F82, 540A, 3120, 3330NO, 4190, F83, 6810, 275, 3900, 455C, 445D, 4600, MF6500, MF50H, 3CX, 3150, 445, 1400B, DR125, 3, 3DIII, 4100, 170, 9000, MF50C, 175, 3930, 5600, 340, A62, 7810, 755B, 700, 231, 2810, 11, 3CIII, 3055, 7000, 8630, 384S, 5500, 2610, 9700, 3000 Series 3-Cylinder, 3310N, 255, 188, 3DX, 455, 4110, 540B, 655C, 7910, 545D, L783, 6710, 455D, FA 500, 703, 1550, 3100, TW25, 487, DR150, 8530, 4630, 4.236, O4 Mobile Crane, 655D, 2, 274-4, 6410, 2000 Series 3-Cylinder, 7500, 602, 1102, 2150, 3230, MF50E, 233, 5550, 655A, 6700, 2000, 5200, 4330, 7410, 1700B, 4120, 515, 6610, 8000, 8700, A64, 3DS, 4610, 4130, 555A, 7710, 174-4S, TW35, 50, 5030, DC70, 374S, 5700, Super Major, 250C, 504, A66, 4000, 575D, 1100, 4.212, 340A, 545C, 8730, 220, 5100, 675D, A4.248, 4340, 555, 6500, 445C, 7610, 750, 187, 362, 903, TW15, 3C, 3190, 535, 335, 2300, 3300, 420, 265, 555D

Additional Information:

1/2"-20 UNF port threads 2 bolt mount

Reference Numbers:

D8NN9350AB, 3912071, D8NN9350AA, DDN9355, 510E-9350, D3NN9350A, 83991467, 86525137, 174/00800, 174/00900, 17400800, 17400900, D3NN9350A, D8NN9350AA, D8NN9350AB, D8NN-9350AB, DDN9355, HFD8NN9350AB, 3637287M91, 3912071, 4222104M1, 422104V91, 4222104M91, 500651, 502213, 510E-9350, 81846098, 881303M91, 881303M92, 83912071, 83991467, 86525137, D8NN9350A, 2641338, 2641477, 2641478, ULPK0011, D3NN9350A, D8NN9350AA, D8NN9350AB, D8NN-9350AB, DDN9355, HFD8NN9350AB, 3637287M91, 3912071, 4222104M1, 422104V91, 4222104M91, 500651, 502213, 510E-9350, 81846098, 881303M91, 881303M92, 83912071, 83991467, 86525137, 1447381M91, 3637287M91, 4222104M91, 4222104V91, 2641465, 2641478, 3637 287M91, 3637287M1, 4222104M1, 881303M91, 881303M92, 1882931M91, 3637287M92, 3726067, 910574, 836012114, 881303M91, 881303M92, 3637287M92, 4222104M91, 3637287M91, ULPK0011, 2641338, 2641388, 2641462, 2641465, 2641467, 2641477, 2641478, 276831, 251278, 70276831, 70251278, 3637287M91, 4222104M91, 7480325, 2641338, 2641388, 2641462, 2641465, 2641467, 2641477, 2641478, ULPK0011, 461-283, 461-284, 2641465, 12641338, 4222104M91, 2641478, ULPK0011, 12641478, 2641338, 3637287M91, 2641477, 2641478, ULPK0011, 2641338, 2641388, 2641462, 2641465, 2641467
