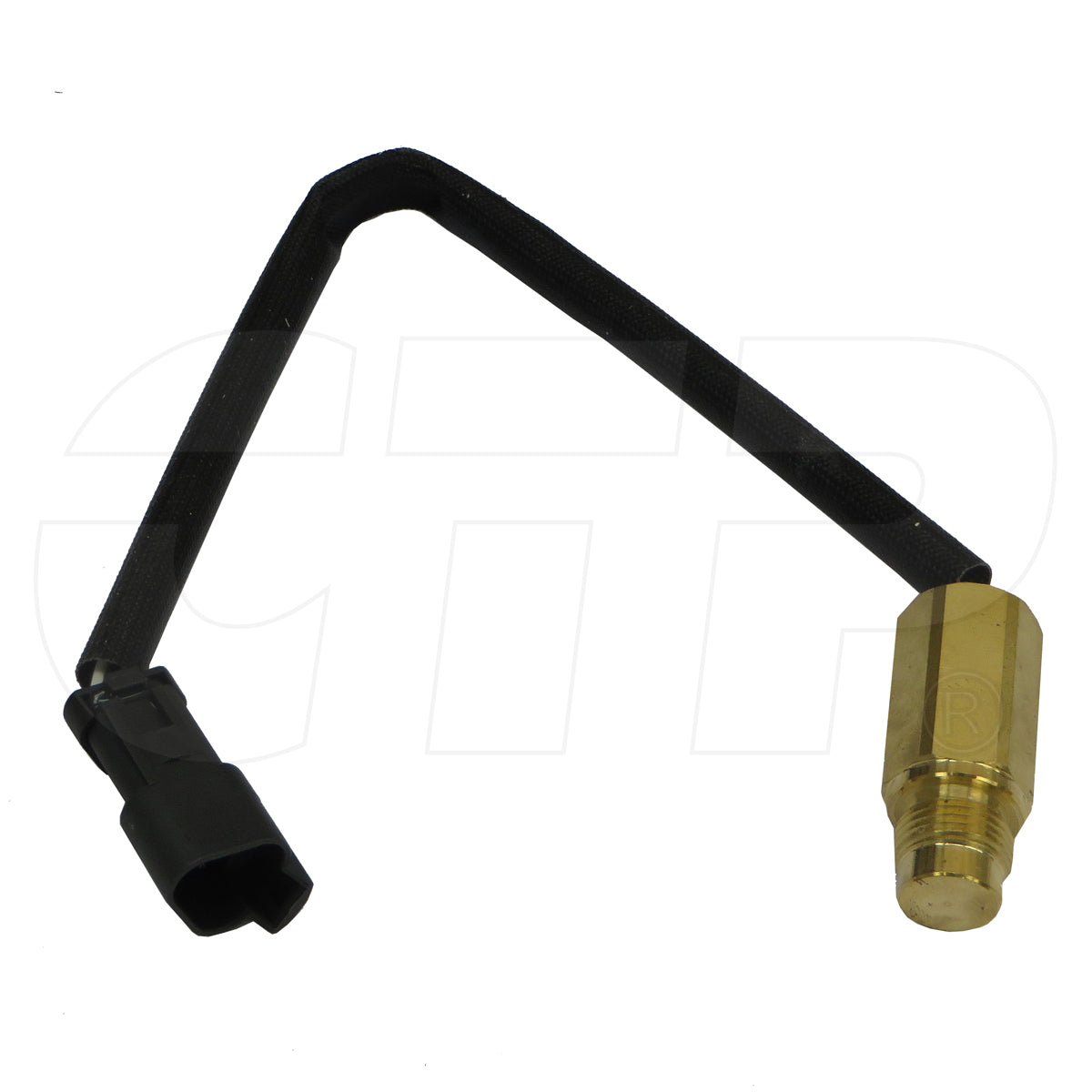

One New Aftermarket Replacement Transmission Speed Sensor (Sensor Gp-Speed) for Caterpillar (Cat) Off-Highway Trucks and Wheel Tractor-Scrapers
This aftermarket replacement GP-Speed Sensor (258-4521 / 2584521) monitors transmission output speed in Caterpillar heavy off-highway trucks and wheel tractor-scrapers. It is an active Hall effect sensor that produces a square wave output signal with frequency proportional to target gear surface speed, and is capable of detecting down to zero speed. The sensor threads directly into the transmission housing via a 3/4-16 external thread.
Specifications
- Sensor Type: Active Hall Effect Speed Sensor
- Overall Length: 2.20 in.
- Wire Length: 11.42 in.
- Connector: 3-pin
- External Thread Size: 3/4-16
- Thread Length: 0.67 in.
- Weight: 0.32 lbs.
- Output: Square wave; frequency proportional to target gear speed
Compatible Models
Caterpillar Off-Highway Trucks: 769D, 771D, 773D, 773E, 775E, 777D, 784B, 784C, 785B, 785C, 785D, 789B, 789C, 793B, 793C
Caterpillar Wheel Tractor-Scrapers: 651E
Compatible Caterpillar Engines: 3408E, 3412E, 3508B, 3512, 3512B, 3512C, 3516, 3516B
Replaces Part Number(s):
2584521, 258-4521, 1440178, 3E6955, 7T6337, 9X7000
New aftermarket replacement part - not remanufactured, not used.
