Ignition Kit Fits Case/International Harvester Replaces 251539R91

Name: Ignition Kit Fits Case/International Harvester Replaces 251539R91
SKU: 407018R91-IgnitionKit_01
Price: 38.0 USD
Availability: InStock

Ignition Kit Fits Case/International Harvester Replaces 251539R91

£38.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Ignition Kit

Tech Info:

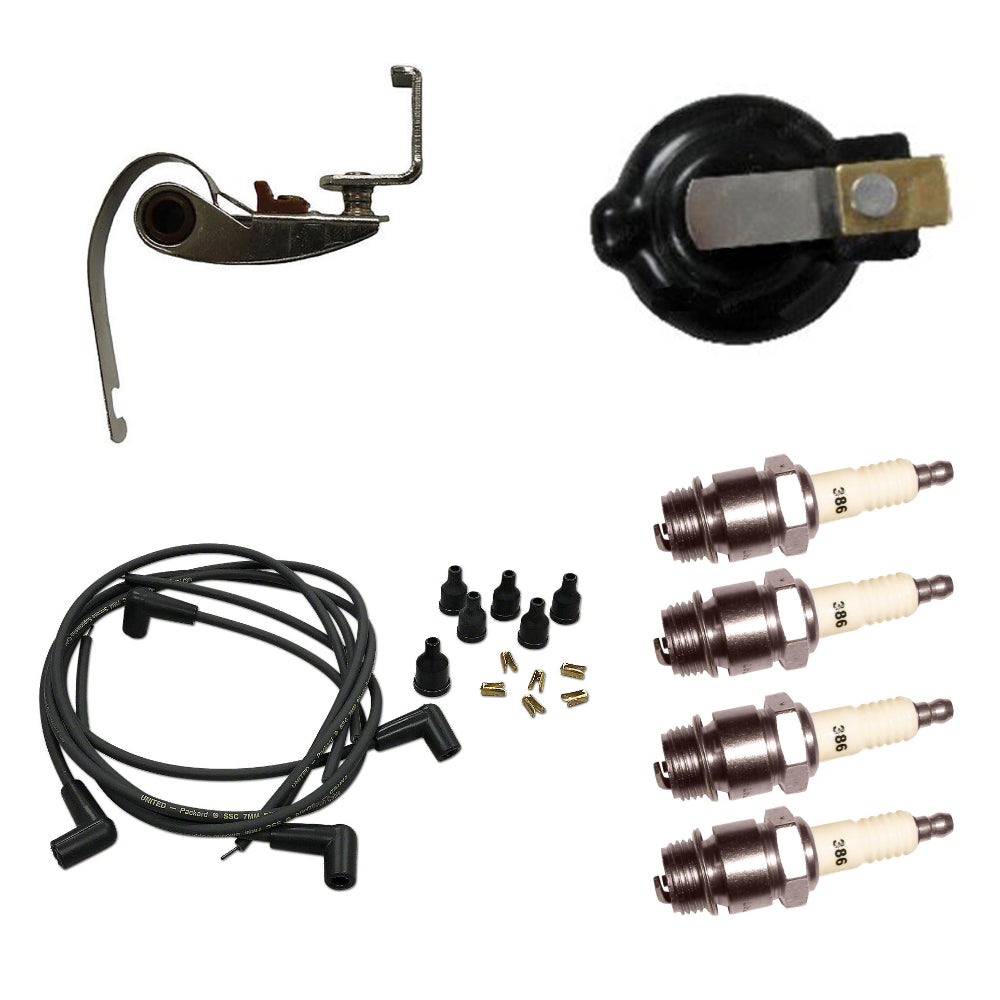

-Kit Contains:
-(1) Spark Plug Wire Set
-ALL 4-CYL (1939-1964)
-Wire Dimensions:
-Wire Diameter: 1/4''
-With Cap: 5/8''
-Lenght: 30''
-Cap Dimensions:
-Length: 1 3/8''
-Diameter: 3/4
-Metal Pieces:
-Length: 3/4''
-Width: 1/4''
-Height: 1/2''
-Replaces Part Number: CPN12259
-
-(4) Spark Plug
-Standard Info
-Thread Size: 18mm
-7/8" Hex Shoulder
-Hex Size: 13/16" (20.6mm)
-Reach: 12mm (.472")
-Seat Type: Gasket
-Gap: .028" (0.7mm)
-Heat Range: 2
-Terminal Type: Removable Nut
-Resistor: No
-Thread Pitch: 1.5mm
-Center Electrode
-Type: Standard
-Material: Nickel
-Size: 2.5mm
-Projection: Non-Projected
-Ground Electrode
-Type: Standard
-Material: Nickel
-Replaces Part Number(s): G44840, 4012405C
-
-(1) Rotor
-Replaces Part Number: 353896R91
-
-(1) Ignition Points Set
-0.020" Point Gap
-Replaces Part Number: 353172R1
-
-(1) Ignition Condenser
-Fits 1951-62 Distributors.
-Also Fits J4 Magneto
-For Serial Numbers 81411 & Up
-Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92

Made to Fits Case/International Harvester:
Tractor Models: A, B, C, Fits Cub, H, HV, M, Super A, Super H, Super M, Super MTA, 200, 230, 240, 300, 330, 340, 350, 400, 404, 424, 450, 460, 560
Replaces Part Number(s): G44840, 4012405C, 353896R91, 353172R1, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, CPN12259

Models This Part Fits:

404, 340, Super MTA, 350, C, M, 240, Super H, 330, Super A, Cub, 300, B, 560, HV, 400, 460, 230, Super M, 450, H, 424, 200, A

Additional Information:

Kit Contains: (1) Spark Plug Wire Set ALL 4-CYL (1939-1964) Wire Dimensions: Wire Diameter: 1/4'' With Cap: 5/8'' Lenght: 30'' Cap Dimensions: Length: 1 3/8'' Diameter: 3/4 Metal Pieces: Length: 3/4'' Width: 1/4'' Height: 1/2'' Replaces Part Number: CPN12259 (4) Spark Plug Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Rotor Replaces Part Number: 353896R91 (1) Ignition Points Set 0.020" Point Gap Replaces Part Number: 353172R1 (1) Ignition Condenser Fits 1951-62 Distributors. Also Fits J4 Magneto For Serial Numbers 81411 & Up Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92
