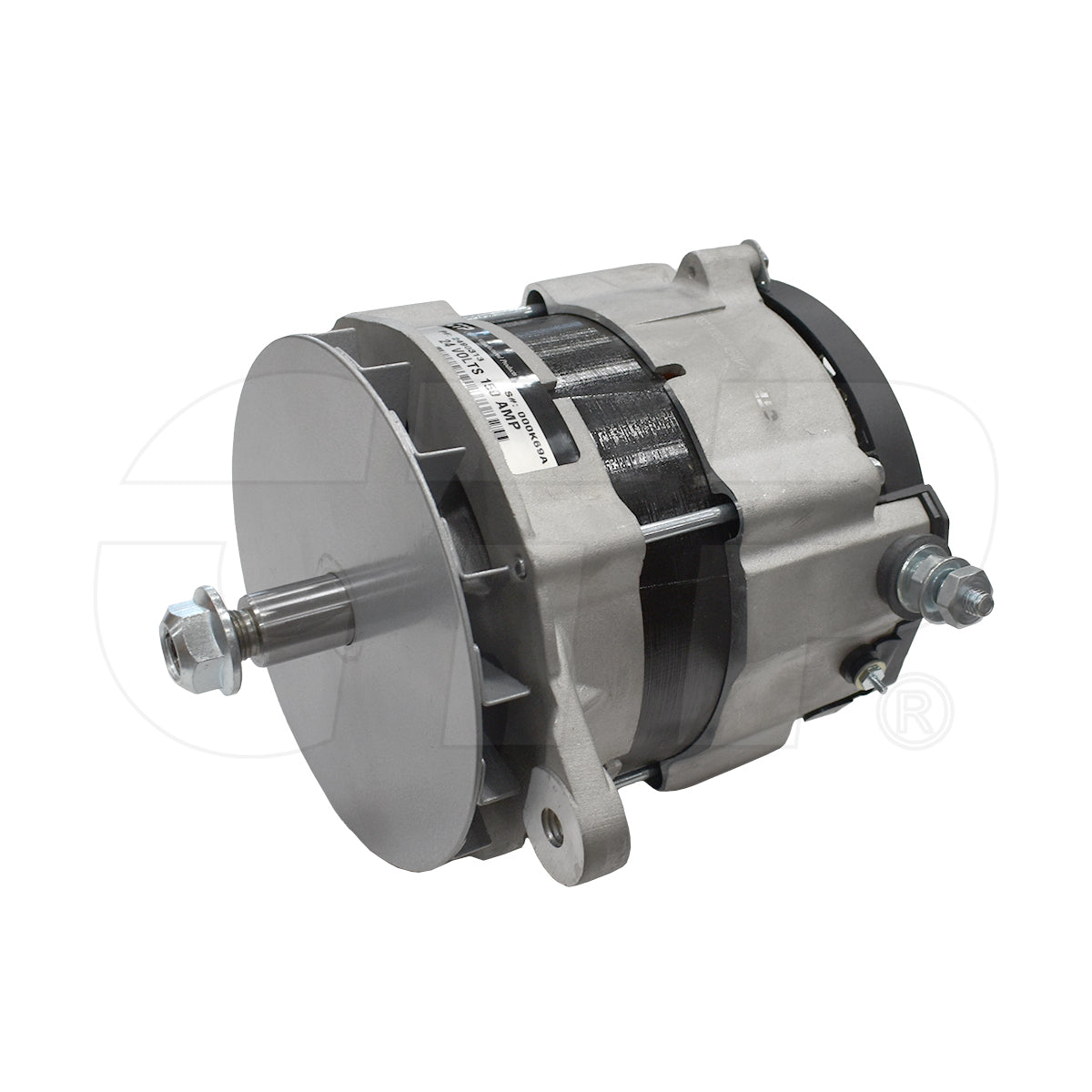

2490313 Alternator Gp-Charging Fits Caterpillar Models

One New Aftermarket Replacement Alternator Gp-Charging for Caterpillar (Cat) Equipment

This 24-volt, 150-amp brushless charging alternator is a direct aftermarket replacement for the Caterpillar (Cat) OEM Alternator Gp-Charging assembly. Denso-design unit featuring an SAE J180 mount, 16-pole brushless construction, and IR/EF regulation -- engineered to restore reliable electrical output on a wide range of Cat engines and machines including track-type tractors, motor graders, wheel loaders, pipelayers, and petroleum/industrial engine applications.

Specifications

• Voltage: 24V
• Rated Output: 150 Amps
• Number of Poles: 16
• Design: Brushless (IR/EF)
• Mount Type: SAE J180
• Marine Approved: No

Compatible Models

Caterpillar Track-Type Tractors: D6R, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D6T XL, D6T XW, D7R, D7R II, D7R LGP, D7R XR, D8R, D8T

Caterpillar Motor Graders: 12M, 14M, 16M, 140M, 140M AWD, 160M, 160M AWD, 24M

Caterpillar Wheel Loaders: 924H, 924HZ, 928HZ, 930H

Caterpillar Pipelayers: PL83, PL87, 583T, 587T

Caterpillar Articulated Underground Trucks: AD22

Caterpillar Petroleum / Industrial Products: TH31-C9I, TH48, CX31-C9I, CX31-P600, SPF343C, SPF743, MD6290

Caterpillar Engines: C9, C27, C32, C4.4, 3512B, 3512C, 3512E, 3516B, 3516C, 3516C HD

Replaces Part Number(s):

249-0313, 2490313, 10R-9097, 306-7402

Aftermarket Interchange Numbers

Denso: 101210-9000, 101210-9001, 101210-9002, 021080-0681; Farcom: 113909; Guttels: 52822; Denso: DAN2001; Rareelectrical: S2490313; Also crosses: 100-50240, 146-50221, A-80418, 90-29-5818

New aftermarket replacement part - not remanufactured, not used.
