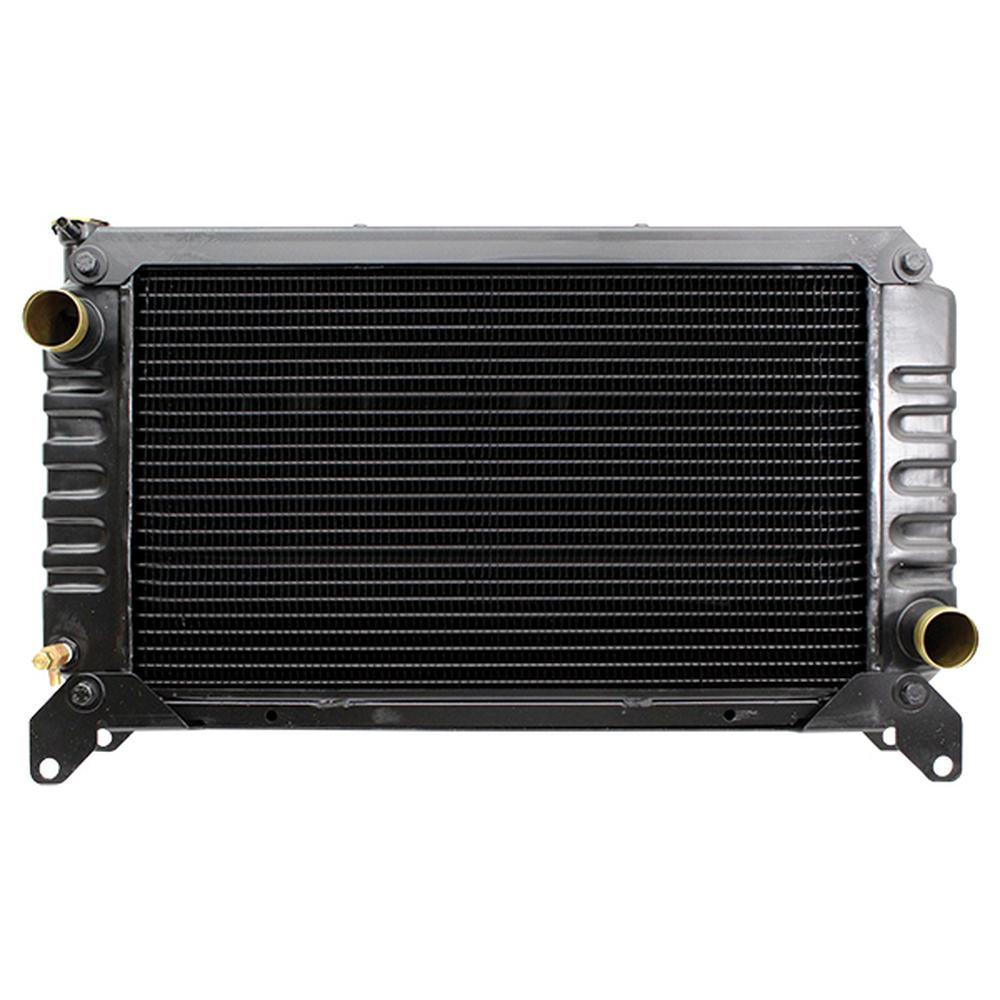

246310 Forklift Radiator - Hyster/Yale - 18 7/8 x 11 13/16 x 4 1/16
246310 Forklift Radiator - Hyster/Yale - 18 7/8 x 11 13/16 x 4 1/16
Regular price
£523.00 GBP
Regular price
Sale price
£523.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Forklift Radiator - Hyster/Yale - 18 7/8 x 11 13/16 x 4 1/16 Models: GDP20, GDP25, GDP30, GDP35VX, GLP20, GLP25, GLP30, GLP35VX, VERACITOR TM, VX SERIES WITH GM 2.4L AND YANMAR 2.6L, 3.3L ENGINES
Tech Info:
-OVERALL HEIGHT: 24
-OVERALL WIDTH: 13
-CORE HEIGHT: 18 7/8
-CORE WIDTH: 11 13/16
-DEPTH: 4 1/16 - CORE, 5 - OVERALL
-INLET: 1 3/8 UPPER LEFT
-OUTLET: 1 3/8 LOWER RIGHT
-OIL COOLER: NO
-FINS PER INCH: 6 FLAT FIN
-FILL NECK: 32mm
-FLAT FINSTYLE CORE
-FOR SQUARE WAVE CORE SEE 246308
-*SEE PDF ATTACHMENT BELOW FOR CORE DESIGN INFORMATION*
Replaces Part Number(s): 3089240, 32592971108924, 8528255, 580057500
