246-06101 Starter Fits John Deere Z510A Ztrak Z510A Ztrak Z520A Ztrak

246-06101 Starter Fits John Deere Z510A Ztrak Z510A Ztrak Z520A Ztrak

£76.00 GBP
£76.00 GBP
Sale Sold out
Shipping calculated at checkout.

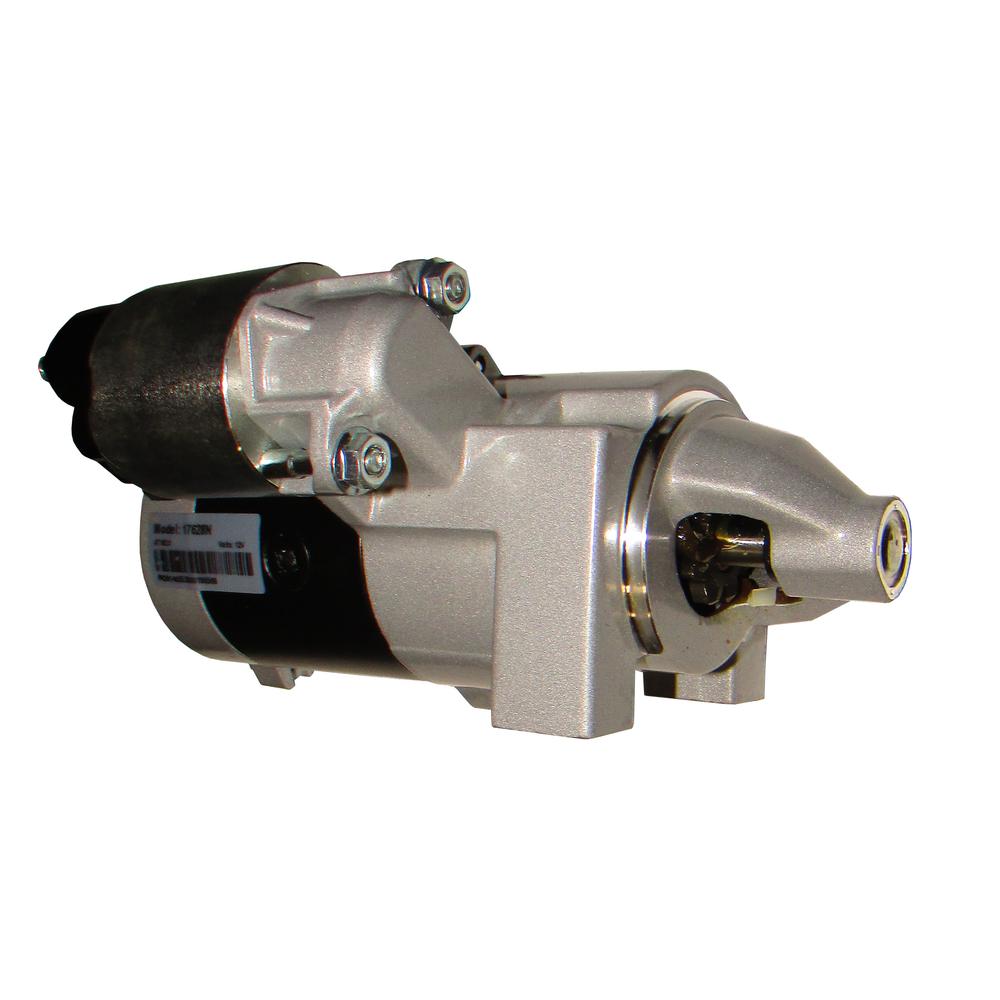

One New Aftermarket Replacement Starter for John Deere (and Toro, Cub Cadet, Kohler-Powered) Zero-Turn and Riding Mowers

This 12-volt direct-drive (DD) starter motor is a direct-fit aftermarket replacement for Kohler-engined John Deere, Toro, Cub Cadet, and Ford/New Holland zero-turn mowers, riding mowers, and lawn/garden tractors. It mounts using two 8.5mm unthreaded ears, spins counter-clockwise, and engages via a 9-tooth drive gear - matching the Denso-style original unit exactly.

Specifications

  • Voltage: 12V
  • Power: 0.6kW / 0.8HP
  • Rotation: CCW (Counter-Clockwise)
  • Starter Type: DD (Direct Drive)
  • Number of Teeth: 9
  • Gear OD: 1.134 in / 28.8mm
  • Mounting Ear 1 Hole: 8.5mm Unthreaded
  • Mounting Ear 2 Hole: 8.5mm Unthreaded
  • Condition: New

Compatible Models

John Deere ZTrak Zero-Turn Mowers: Z510A ZTrak, Z520A ZTrak, Z710A ZTrak, Z720A ZTrak, Z915B ZTrak, Z925M EFI ZTrak, Z925M EFI Flex Fuel, Z930M EFI ZTrak, Z945M EFI ZTrak, Z955M EFI ZTrak, Z955R EFI ZTrak

John Deere Riding and Lawn/Garden Tractors: STX30, STX38, LX173, LX255, LX266, L120, L130, LS120, GT18, GT20, GT20A, GT22, GT22A, GT225, G100, G110, F620, F680, F687, M653, M655, M665

John Deere Front Mount and Commercial Mowers: 1863, 1864, 1948GV, 1948HV, 2084, 2130, 2135, 2148HV, 2150, 2155, 2166, 2176, 2185, 2186, 2206, 2284, 2354HV, 2400 PrecisionCut, 2554HV, 2700 E-Cut Hybrid, 2700 PrecisionCut, 3184, 3186, 3206, 3225, 3235, 3654, 3660, 652R, 661R, 800, 9.6 MCS DFS Hopper, F520 Multi Pro 1200

John Deere Z-Series (Consumer/Mid): Z118Z, Z150Z, Z153Z, Z222Z, Z252Z, Z253Z, Z255, Z255Z, Z256, Z286E, Z320, Z320Z, Z325, Z325Z, Z350, Z355 Z Master, Z48, Z54

Toro: Dingo 222, Dingo 322, Dingo TX-420, Groundsmaster 120, Multi Pro 1200, 365, 550, 1250, 518xi, 520xi, 522xi

Cub Cadet: 2148HV, 2354HV, 2554HV, 1948HV, 1948GV (verify model-year compatibility)

Kohler Engines: K161, K181, CH12.5, CH14, CH18, CH20, CH22, CV12.5, 14 HP series

Replaces Part Number(s):

AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S, 12 098 01, 12 098 03-S, 12 435 03-S, 24 098 01, 24 098 01-S, 25 098 08, 25 098 08-S, 25 098 09, 25 098 09-S, 25 098 11, 25 098 11-S, 25 098 20-S, 25 098 21-S, 25 098 24, 25 098 24-S, KH-25 098 09, KH-25 098 09-S, KH-25 098 21-S, KH-25 098 24-S, KH2509809, KH-25-098-09, KH2509809S, KH-25-098-09-S, KH2509821S, KH-25-098-21-S, KH2509824S, KH-25-098-24-S

Aftermarket Interchange Numbers

246-06101-A, 435-331, 435-331-A, 128000-7480, 228000-2640, 228000-7990, 12-098-03, 24-098-01, STENS 435-331, ROTARY 10262, LESTER 17628, J&N 410-52050, PIC 190-541, PIC 190-541A, NSA/UNIPOINT STR-8276, WAI 2-2022-ND, WILSON 91-29-5239, MINNPAR 57-2856, ELS60-0099, New Holland K0H2409801

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

2354HV, 1863, L120, 518xi, Z955M EFI ZTRAK, Z355 Z Master, Z710A ZTRAK, LX173, 14 HP, 2284, STX38, Z252Z, LX266, 2186, 2700 PRECISIONCUT, Z930M EFI ZTRAK, 2084, 2176, 3184, Groundsmaster 120, M665, Z253, 2135, 2700 E-CUT HYBRID, 1250, F680, Z320Z, L130, Z925M EFI ZTRAK, Z320, 3654, Z150Z, Z325, Dingo 322, GT18, GT20A, G110, Z350, CH12.5, LS120, 550, 1948HV, 365, Z255Z, Z520A ZTRAK, CH14, 3225, Dingo TX-420, STX30, 1864, Z118Z, 2155, Z222Z, Z253Z, 2185, K181, M655, Z153Z, Z945M EFI ZTRAK, 522xi, 2148HV, 3186, Z256, CH20, Z915B ZTRAK, LX255, CV12.5, GT225, Z510A ZTRAK, G100, M653, 2206, GT22, 3235, 3660, Dingo 222, CH18, 520xi, K161, Z925M EFI FLEX FUEL, CH22, 2150, Z720A ZTRAK, 3206, GT22A, Z54, GT20, F620, Z255, Z286E, 1948GV, F687, 2166, Z955R EFI ZTRAK, Multi Pro 1200, 2130, Z325Z, Z48, 2554HV

Additional Information:

Voltage: 12 Power: 0.6kW / 0.8HP Condition: New Rotation: CCW Starter Type: DD Number of Teeth: 9 Gear OD: 1.134in / 28.8mm Mtg Ear 1 Hole: 8.5mm Unthreaded Mtg Ear 2 Hole: 8.5mm Unthreaded

Reference Numbers:

AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, UC16212, 12 098 01, 12 098 03-S, 12 435 03-S, 24 098 01, 24 098 01-S, 25 098 08, 25 098 08-S, 25 098 09, 25 098 09-S, 25 098 11, 25 098 11-S, 25 098 20-S, 25 098 21-S, 25 098 24, 25 098 24-S, KH-25 098 09, KH-25 098 09-S, KH-25 098 21-S, KH-25 098 24-S, KH2509809, KH-25-098-09, KH2509809S, KH-25-098-09-S, KH2509821S, KH-25-098-21-S, KH2509824S, KH-25-098-24-S, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S
