One New Aftermarket Replacement Variable Speed Multi-Speed Belt - Universal Fit

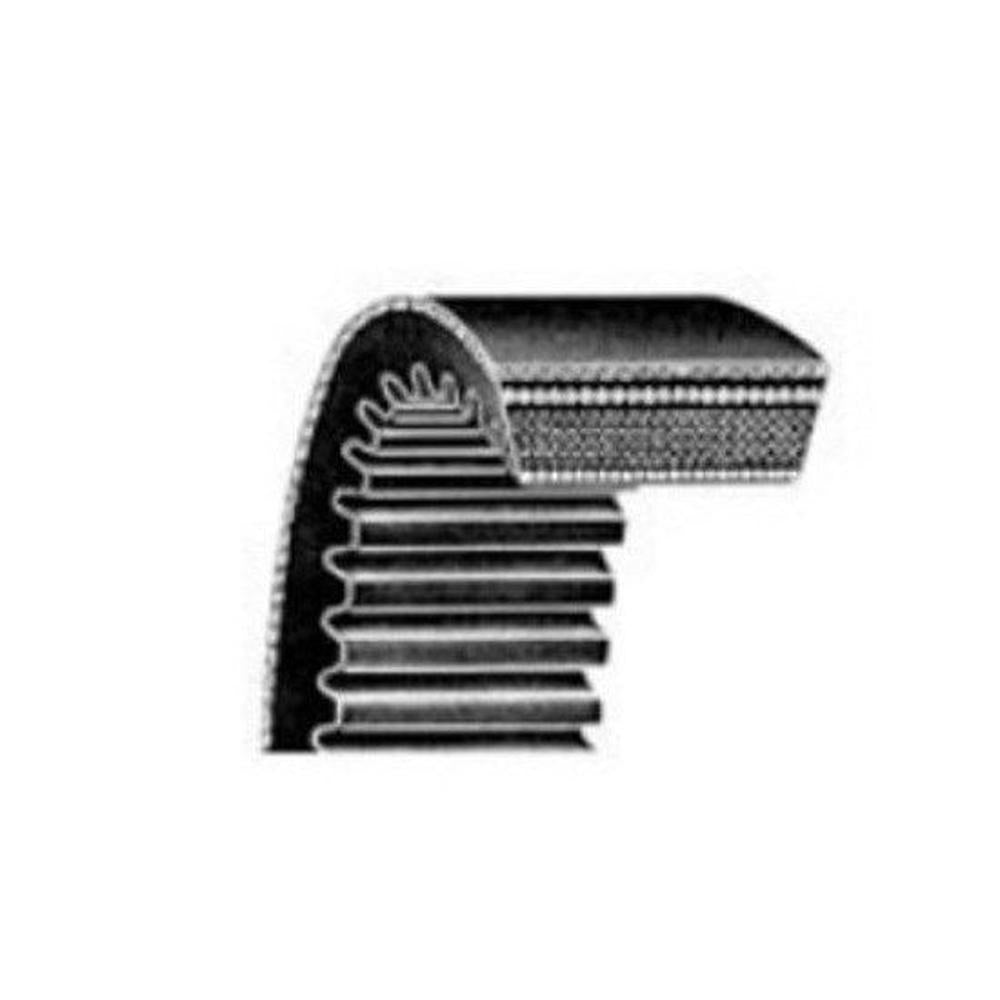

This 2430V345 variable speed (multi-speed) V-belt is a cogged, bandless power transmission belt designed for use on variable speed sheave drives. Its transversely reinforced construction provides the crosswise rigidity needed to prevent dishing, while the notched cog design allows flexibility around smaller sheave diameters without excess strain. Suitable for agricultural, lawn and garden, and industrial multi-speed drive applications including combine harvesters, walk-behind mowers, tillers, and general industrial machinery.
Specifications
- Belt Type: Variable Speed / Multi-Speed (VS Section)
- Outside Circumference (OC Length): 35.2 in.
- Top Width: 1-1/2 in. (1.5 in.)
- Pitch Length: 34.5 in.
- Thickness: 0.433 in.
- Sheave Angle: 30 degrees
- Tensile Cord Material: Polyester
- Construction: Cogged / Notched, Bandless
- Meets RMA oil, heat resistance, and static conductivity standards
Compatible Applications
Universal Fit: Industrial multi-speed drives, combine harvesters, lawn and garden equipment (walk-behind mowers, tillers), and a wide range of agricultural and industrial variable speed drive systems requiring a 2430V345 replacement belt.
Compatible with equipment from MTD Products, Carter Bros., Fits Ferris Industries, Scag Power Equipment, and other manufacturers using the 2430V series variable speed sheave drives.
Replaces Part Number(s):
2430V345, A-2430V345
Aftermarket Interchange Numbers
Gates 2430V345 (Gates Product ID 9804-0847); Bando 2430V345; Jason Industrial 2430V345; D&D 2430V345; VBG VBL11697 (Gates equivalent); VBG VBL11709 (Jason equivalent)
New aftermarket replacement part - not remanufactured, not used.
