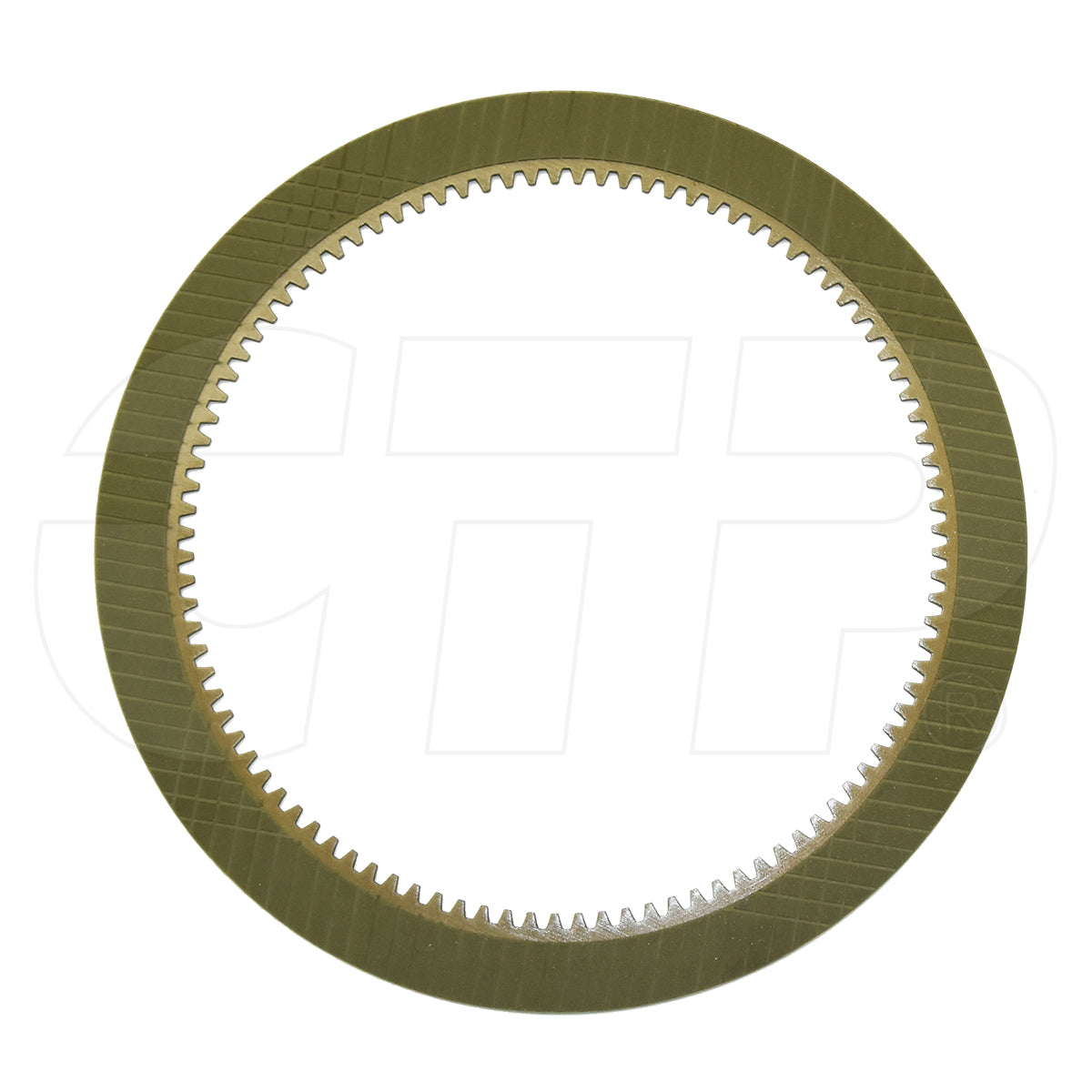

23S-15-12740 Disc Fits Komatsu Models

One New Aftermarket Replacement Friction Disc for Komatsu Motor Graders

This aftermarket replacement friction disc (part number 23S-15-12740) fits a wide range of Komatsu motor graders and the LW250L crane. It is a clutch/brake friction disc used in the transmission drivetrain system, providing the frictional surface necessary for smooth engagement and reliable power transfer.

Specifications

• Inner Diameter: 197 mm
• Outer Diameter: 250 mm
• Thickness: 3 mm
• Weight: approx. 0.57 lbs

Compatible Models

Komatsu Motor Graders: GD305A, GD305A-1 (S/N 6001-UP), GD305A-1A (S/N 6734-UP), GD355A, GD355A-1 (S/N 5001-UP), GD355A-1S (S/N 5901-UP), GD405A, GD405A-2 (S/N 1001-UP), GD405A-2S (S/N 4001-UP), GD505A, GD505A-3 (S/N 1001-UP), GD505A-3A (S/N 2001-UP), GD511A, GD511A-1 (S/N 10001-UP), GD521A, GD521A-1 (S/N 10001-UP), GD521A-1E (S/N 12001-UP), GD525A, GD525A-1 (S/N 60001-UP), GD605A, GD605A-5 (S/N 1001-UP), GD605A-5S (S/N 4001-UP), GD611A, GD611A-1 (S/N 10001-UP), GD621A, GD621A-1 (S/N 10001-UP), GD621R, GD621R-1 (S/N 10001-UP), GD623A, GD623A-1 (S/N 30001-UP), GD625A, GD625A-1 (S/N 50001-UP, and S/N 60001-UP for North America), GD661A, GD661A-1 (S/N 10001-UP), GD663A, GD663A-2 (S/N 1001-UP)

Komatsu Cranes: LW250L, LW250L-1H (S/N 1001-UP), LW250L-1NH (S/N 5001-UP)

Replaces Part Number(s):

23S-15-12740

New aftermarket replacement part - not remanufactured, not used.
