23995DA Vented Gas Cap Triple Baffle Fits Farmall A B C H M Super Cub

23995DA Vented Gas Cap Triple Baffle Fits Farmall A B C H M Super Cub

£14.00 GBP
£14.00 GBP
Sale Sold out
Shipping calculated at checkout.

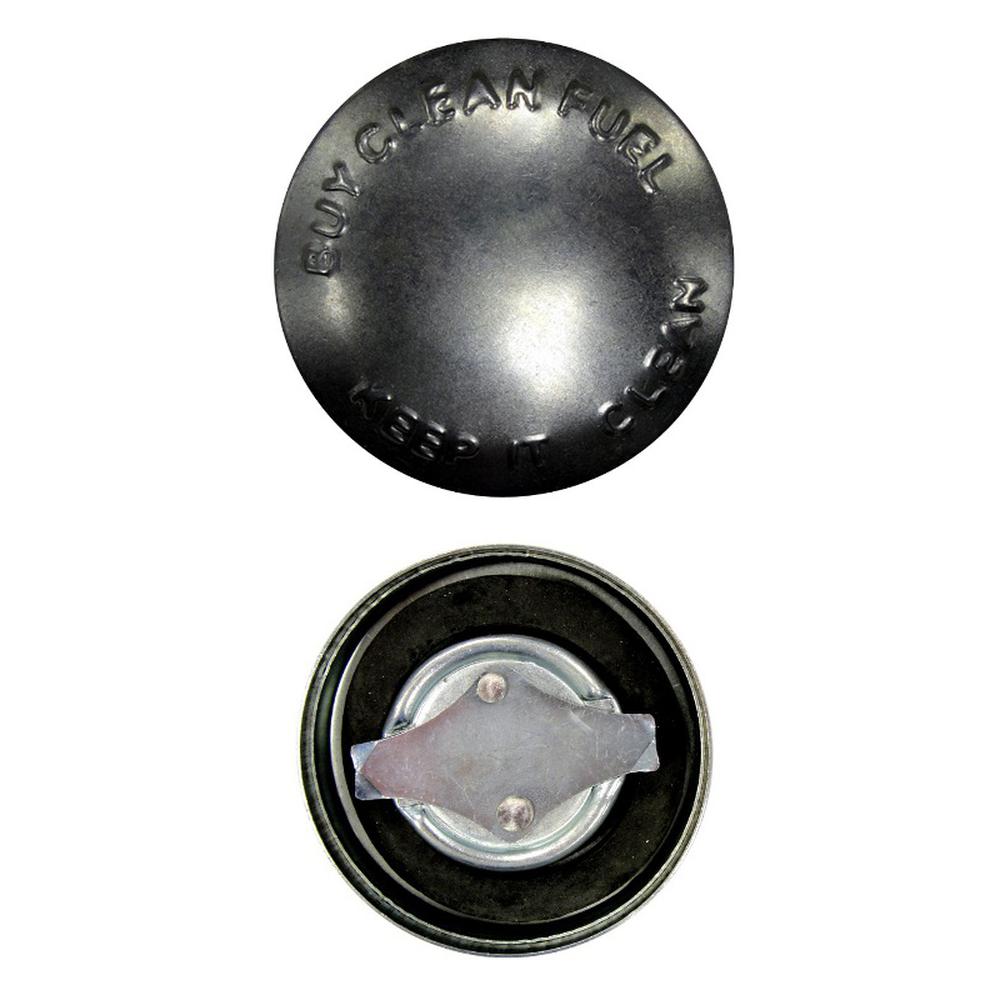

A vented fuel cap with a triple baffle. The baffles do two jobs at once: they let air into the tank as fuel is drawn out, and they keep fuel from slopping back through the vent on rough ground.

Vented is not optional on this tank. A sealed cap pulls a vacuum as the fuel level drops and starves the carburetor, which shows up as a tractor that runs fine for twenty minutes and then dies for no obvious reason.

Dimensions: 2.725 inches inside diameter, 2.886 inches outside, 5/8 inch tall, with an inside center diameter of 1.825 inches.

Fits Farmall: A, Super A, B, BN, C, Super C, H, Super H, M, Super M, MD, MTA, W4, W6, W9, Cub, and 100, 130, 200, 230, 300, 350, 400, 450

Does not fit: 154, 184, 185

Replaces: 23995DA, 23995DC, B824, 7A824, 161945A, 30-3049558

Models This Part Fits:

990, O12, 33, Mustang (23), 4-210, W400, 2-85, 4-270, I6, Fits Cub, Super 66, 4-180, 2-44, H, F30, Super WD9, Super H, A-I, 4-150, G1050, 1865, 2-155, 15-30, Super A, BN, 30, ID9, 1568, W9, Super 77, 102 Jr, 1566, Super 55, M, 70, I14, 406, Super 88, 90, 160, Super C, 880, Challenger, I9, G1350, W6TA, Super MVTA, 23, A, 203, 95, 555, 2-110, AI, Super W6, 1750, 300, Super MV, 2150, T5, O6, OS6, 2-88, 2-105, 1850, 400, 4-175, 1555, 5460, 1600, 660, 2-78, Super MDV-TA, F20, 22, I12, 2-180, 995, Super MDTA, 1900, ODS6, 101 Jr, B, W450, 2155, MV, 1655, Super MTA, Colt (21), 81, TD15, 60, BO, 550, Super MDV, 66, 200, BR, 1800, OS4, 130, 181, UC, 44, 2050, 77, F12, 50, WD9, 201, 4-78, G, G1355, 1650, Fits Cub Loboy, MDV, 1855, AR, D17, 770, WF, WD6, 2255, 1955, R, 230, 20, TD9, 100, 55, 10-20, MDTA, WC, 99, 650, WR9S, 830 2 cylinder, WR9, Fits Cub Lo-Boy, AV, MDV-TA, W30, Mustang, 140, 4400, O4, 88, 600, ID6, 44-6, TD18A, 2055, 830 2-Cylinder, G955, W6, 120, Super A-1, C, W4, 7700, TD18, 333, I20, 125, I30, 101 Sr, TD6, 5440, 900, TD5, 444, Super W4, 82, 40, 1950, 80, 151, AO, 5820, D, G950, Super MD, 101, 350, 820 2 cylinder, GP, 215A, 185, 450, 5720, Super AV-1, F14, 2-70, MTA, Super WDR9, 44 Special, Super M, 5200, 215, O14, Super HV, 202, U, MD, 102 Sr, 2-135, TD20, 1755, Super 99, 6600, Colt, OC-6, WDR9, 145, T4, 820 2-Cylinder, Super AV, 5400, HV, 45, 950, 1550, Regular, I4, 3300

Additional Information:

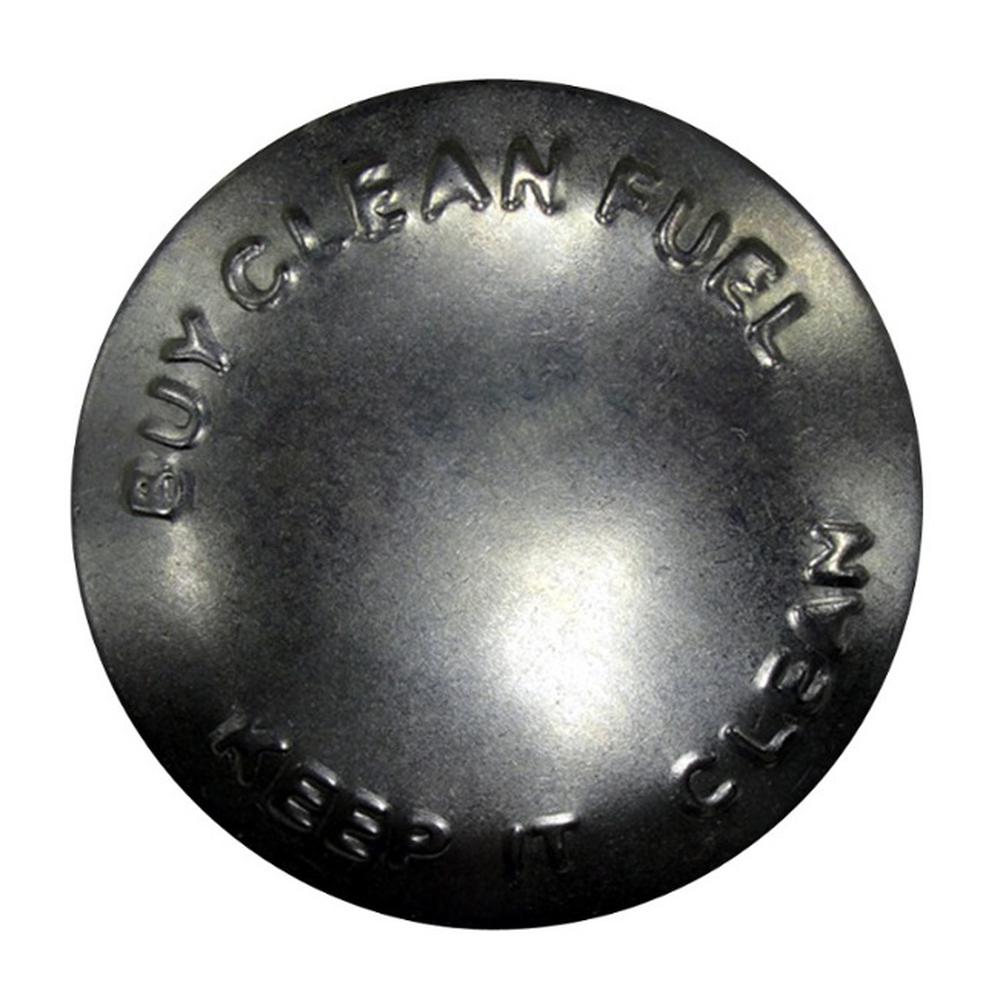

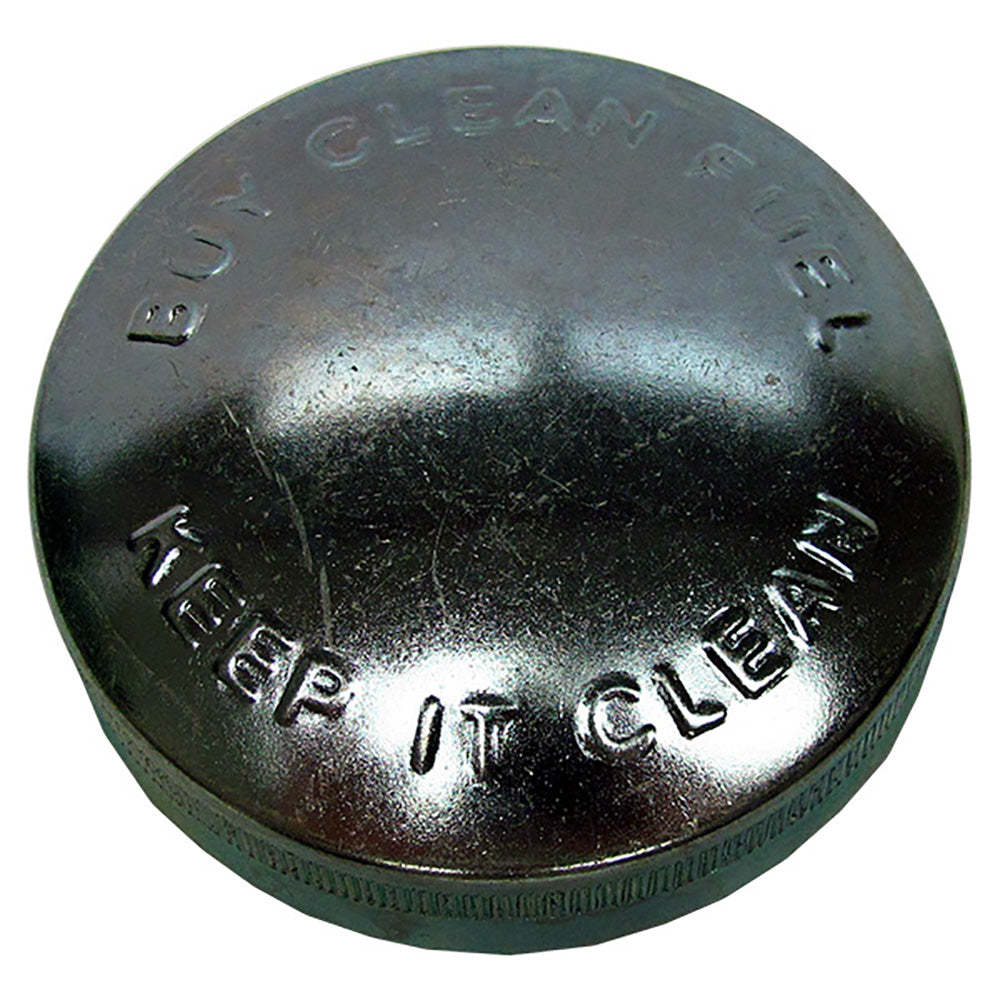

Inside Diameter: 2.725" Outer Diameter: 2.886" Height: 5/8" Inside Center Diameter: 1.825" It Is Vented for Safety The Top of the Cap Is Stamped with the Following Text: "Buy Clean Fuel - Keep It Clean" Tang to Tang Length: 2.103" Tang Width: 0.398"

Reference Numbers:

30-3049558, 161945A, 30-3049558, 7A824, B824, 206622, 70206622, 70228498, 65024D, 23995DA, 161945A, B824, 12770D, 23995DA, 23995DC, 9701704, AD709R, AH83351, AH93182, AR369R, AR369R, AH83351, AD709R, AH93182, 23995DA, 65024D, 765927M1, 761337M91, 761337M1, B824, 7A824, 161945A, 30-3049558, 7A824, 161945A, 30-3049558, B824, 761337M1, 761337M91, 765927M1
