2369839 Bolt-Socket Head Fits Caterpillar Models

One New Aftermarket Replacement Hex Socket Head Bolt for Caterpillar (Cat) Equipment

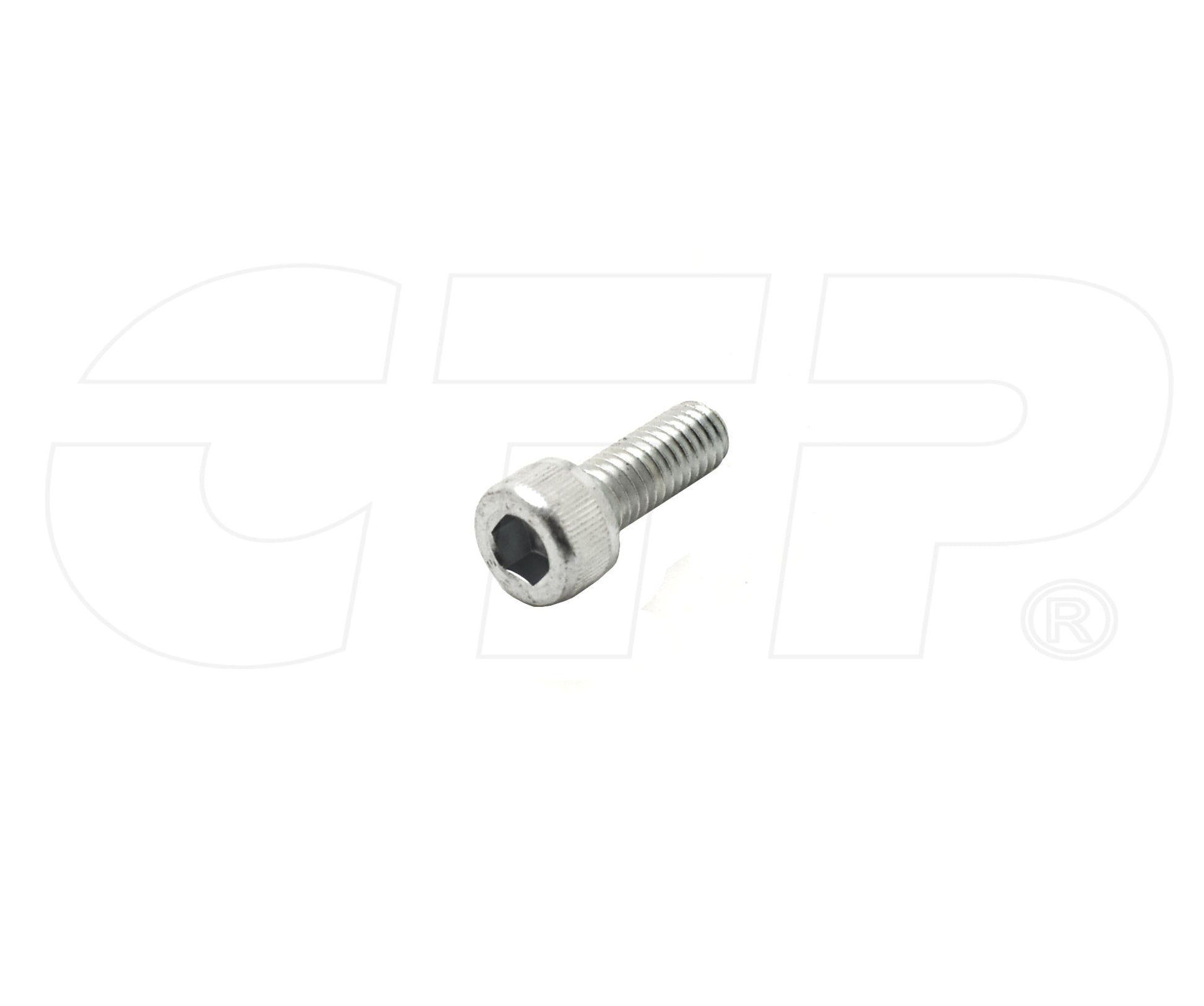

This M6x1 x 15mm hex socket head bolt is a high-strength metric fastener used across a wide range of Caterpillar construction, forestry, and compaction equipment. Driven by an internal hex (Allen) key, the socket head design allows installation in tight or recessed spaces where a standard hex head wrench cannot reach. Built to ISO 898-1 Class 12.9 specification from alloy steel with a zinc coating for corrosion resistance.

Specifications

• Thread Size: M6 x 1 (metric, right-hand thread)
• Bolt Length: 15mm (0.591 in)
• Grip Length: 3mm (0.118 in)
• Bolt Type: Hex Socket Head (Allen drive)
• Material: Alloy Steel
• Coating: Zinc (Alloy Zinc)
• Class / Grade: ISO 898-1 Class 12.9

Compatible Models

Caterpillar Site Prep Tractors: 586C, 2864C

Caterpillar Track-Type Tractors: D3G, D4G, D5G, D7E, D7E LGP

Caterpillar Mini Hydraulic Excavators: 301.6C, 301.8C, 302.5C, 303.5E2, 303.5E2 CR, 304E2, 304E2 CR, 304.5E2, 305E2, 305E2 CR, 305.5, 305.5E, 305.5E2, 305.5E2 CR, 306E2, 307, 307E, 307E2, 308E, 308E2, 308E2 CR, 308E2 SR, 308E2SR

Caterpillar Compact Track Loaders: 255, 265, 275, 275XE, 279D, 279D3, 285, 289D, 289D3, 299D, 299D2, 299D2 XHP, 299D XHP, 299D3, 299D3 XE

Caterpillar Multi Terrain Loaders: 277D, 287D, 297D, 297D2, 297D2 XHP, 297D XHP

Caterpillar Skid Steer Loaders (see also Compact Track Loader): see compatible models list

Caterpillar Asphalt / Vibratory Compactors: CB7, CB10, CB13, CB15, CB16, CB-44B, CB46B, CB-54B, CB-64B, CB-66B, CB-68B, CD-44B, CD-54B

Caterpillar Wheel Skidders: 525C, 525D, 535C, 535D, 545C, 545D, 555D

Caterpillar Track Skidder: 527

Caterpillar Rotary Drills: MD6200, MD6250, MD6310

Caterpillar Load Haul Dump: R1700 XE

Caterpillar Material Handlers: MH3037, MH3049, MH3059

Caterpillar Work Tool: GB120

Replaces Part Number(s):

2369839, 236-9839

New aftermarket replacement part - not remanufactured, not used.
