2309116 Bearing-Sl Fits Caterpillar Models
2309116 Bearing-Sl Fits Caterpillar Models
Regular price
£26.00 GBP
Regular price
Sale price
£26.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

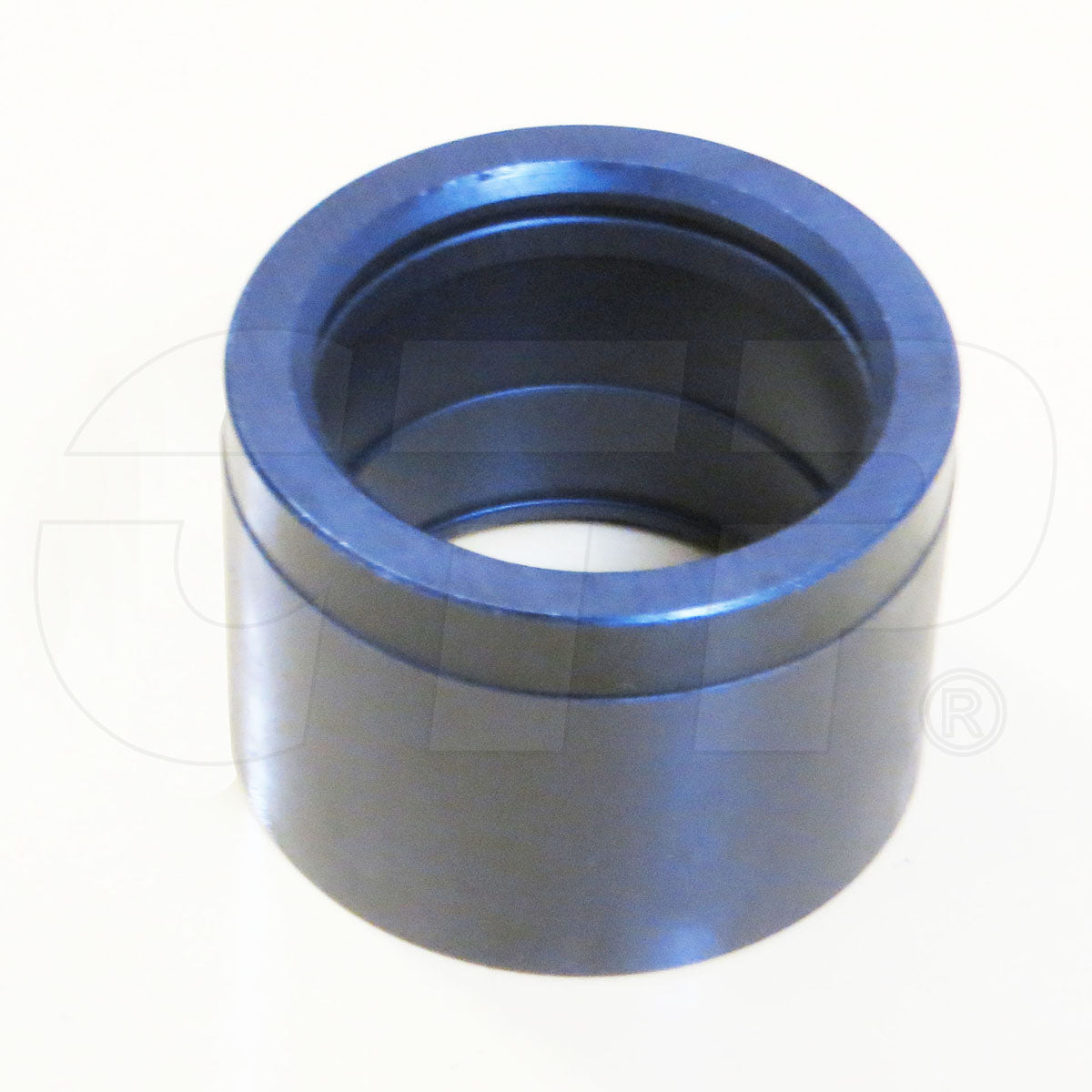

One New Aftermarket Replacement Sleeve Bearing for Caterpillar (Cat) Mini Excavators
This sleeve bearing (bushing) is used in the bucket idler group on Caterpillar mini excavators, supporting the pivot pin connection in the bucket linkage assembly. Two of these bearings are installed per bucket idler group. It is a straight sleeve design with no external groove, no cross-hole, and no internal lubrication hole.
Specifications
- Type: Straight Sleeve Bearing (Bushing)
- Inside Diameter: 30mm
- Outside Diameter: 40mm
- Length: 28mm
- External Groove: None
- Cross-Hole: None
- Lubrication Hole: None
- Quantity per bucket idler group: 2
Compatible Models
Caterpillar Mini Excavators: 301.5 (serial prefix 3YW), 301.6 (serial prefix BDH), 301.6C (serial prefix JBB), 301.8 (serial prefix BFA), 301.8C (serial prefix JSB)
Replaces Part Number(s):
2309116, 230-9116
New aftermarket replacement part - not remanufactured, not used.
