Spindle, Blade and Pulley Fits Ariens Replaces 21546095

Spindle, Blade and Pulley Fits Ariens Replaces 21546095

£33.00 GBP
£33.00 GBP
Sale Sold out
Shipping calculated at checkout.

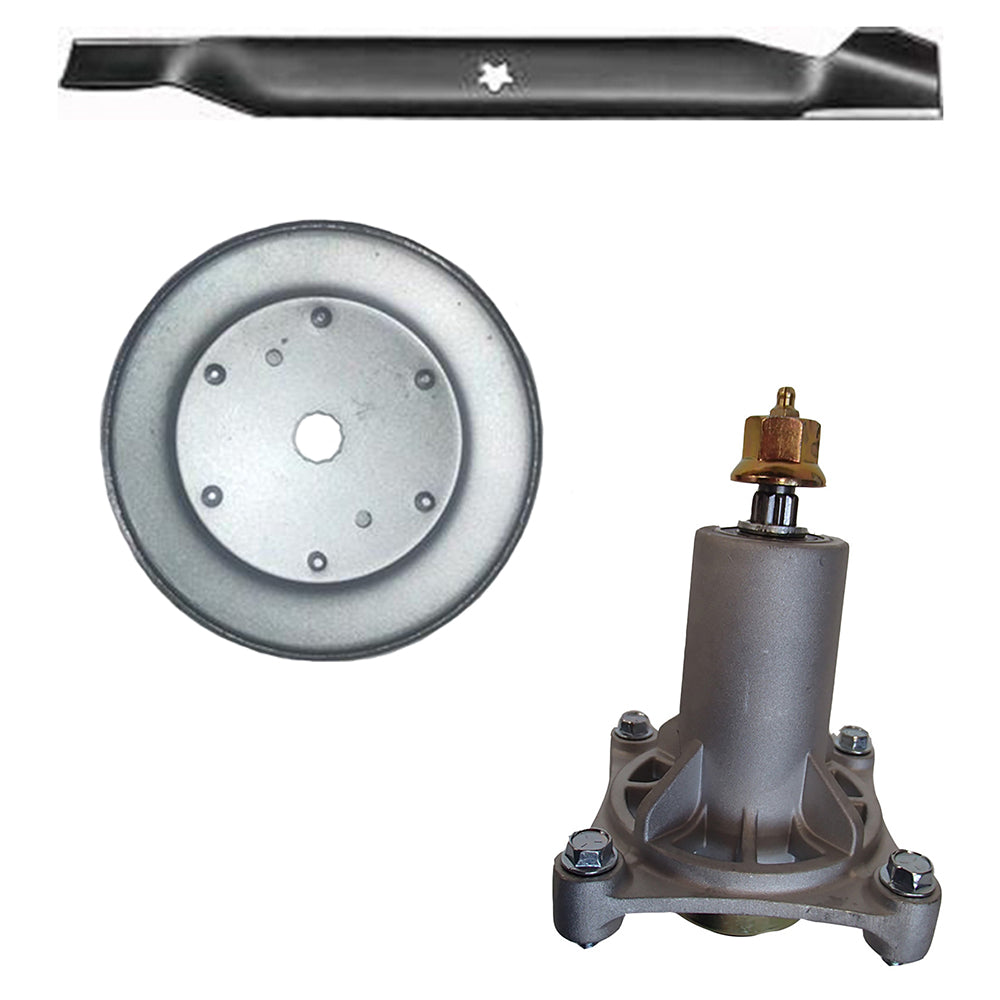

One New Aftermarket Spindle, Blade and Pulley

Tech Info:

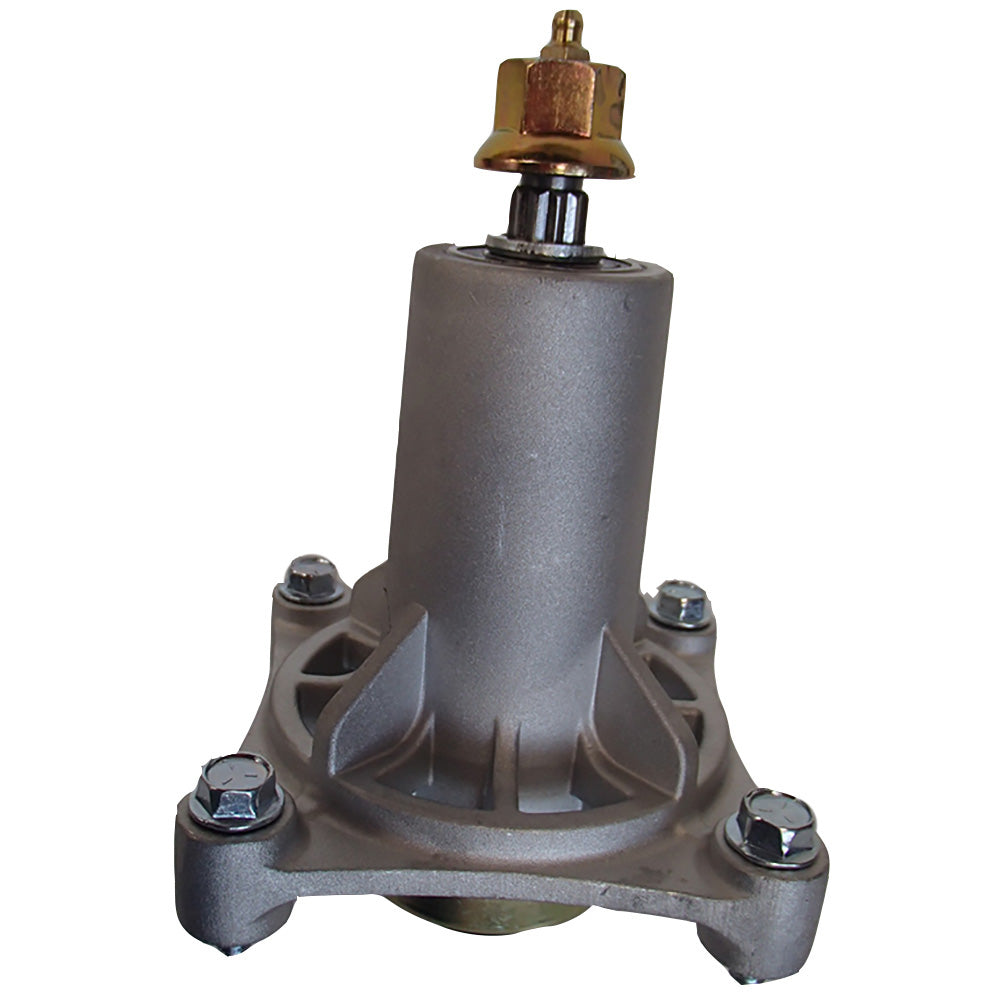

 -(1) Spindle Assembly
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -Replaces Part Number: 192870, 532187281, 532187292, 532192870
 -

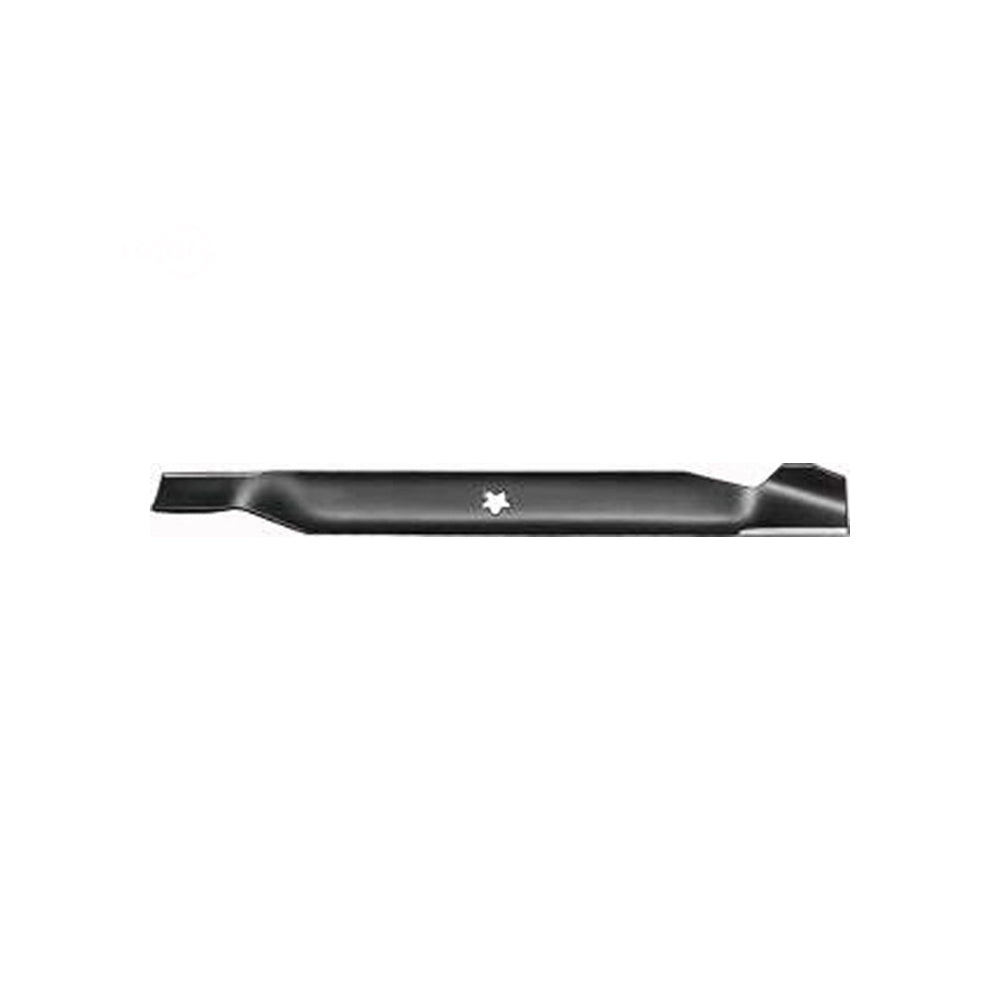

 -(1) Lawn Mower Blade
 -Type: Notched Fits Hi-Lift Blade
 -Length: 21"
 -Center Hole: 5 Point Star
 -Width: 2-1/4"
 -Thickness: 0.149"
 -Replaces Part Numbers: 532138971, 138971X431, 594892701, 917139775P, 917532139775, 954636867, 917777134149, 917539110460, 917532424752
 -

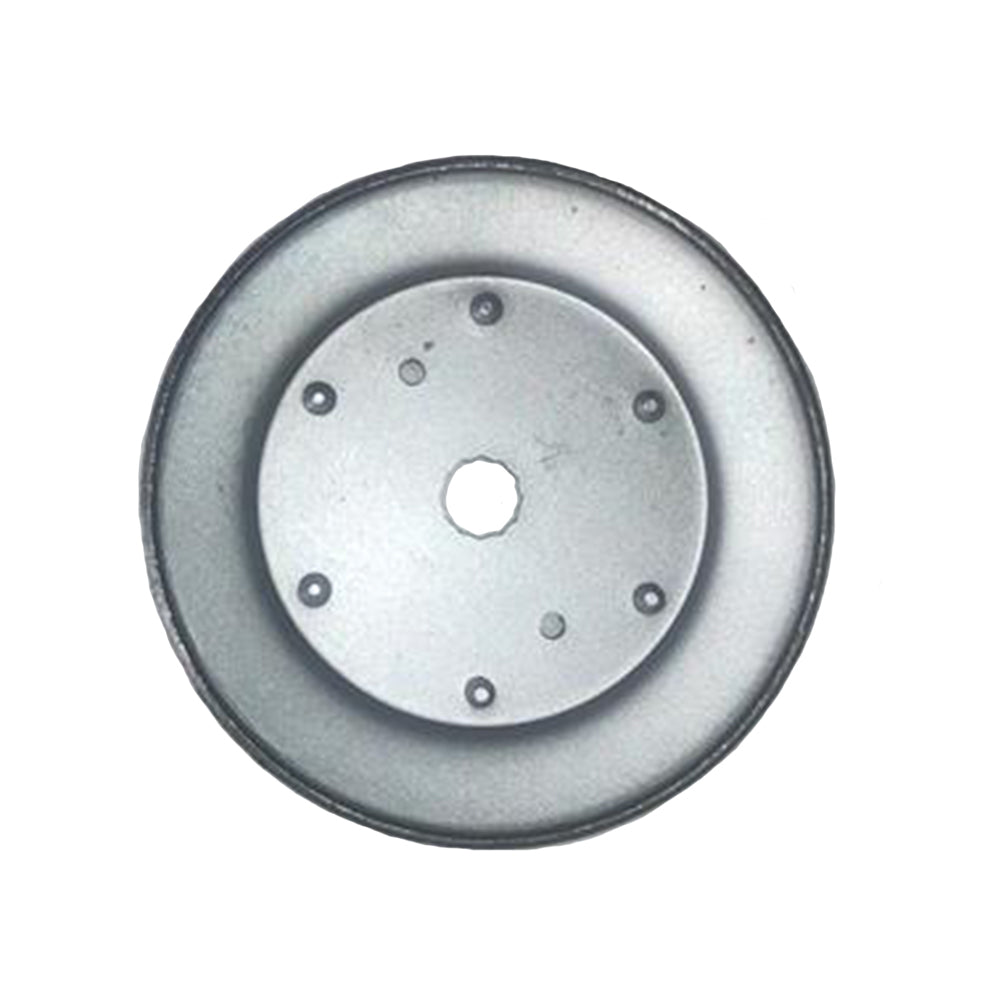

 -(1) Drive Pulley
 -Outer Diameter: 5-1/6"
 -Inner Diameter: 9/16"
 -Steel
 -Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535

Fits Ariens:
 Lawn/Garden Tractor Models: 42" Mower Decks
 Replaces Part Number(s): 21546238, 21546299, 21549012, 532192870, 587819701, 21546095, 532138971, 21546127, 532173436

Models This Part Fits:

42" Mower Decks

Additional Information:

(1) Spindle Assembly 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number: 192870, 532187281, 532187292, 532192870 (1) Lawn Mower Blade Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Numbers: 532138971, 138971X431, 594892701, 917139775P, 917532139775, 954636867, 917777134149, 917539110460, 917532424752 (1) Drive Pulley Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535

Reference Numbers:

21546238, 21546299, 21549012, 532192870, 587819701, 21546095, 532138971, 21546127, 532173436

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
