1" Steel Ball Fits Case/International Harvester
1" Steel Ball Fits Case/International Harvester
Couldn't load pickup availability

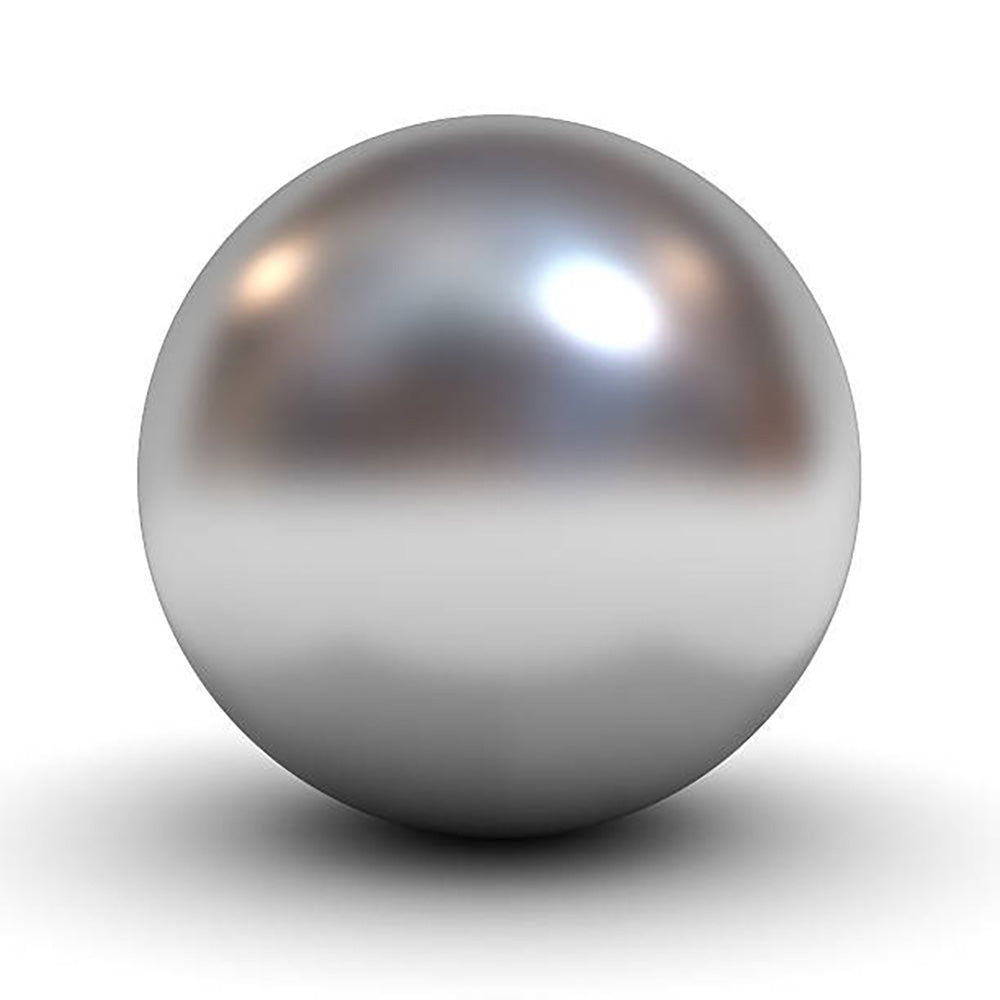

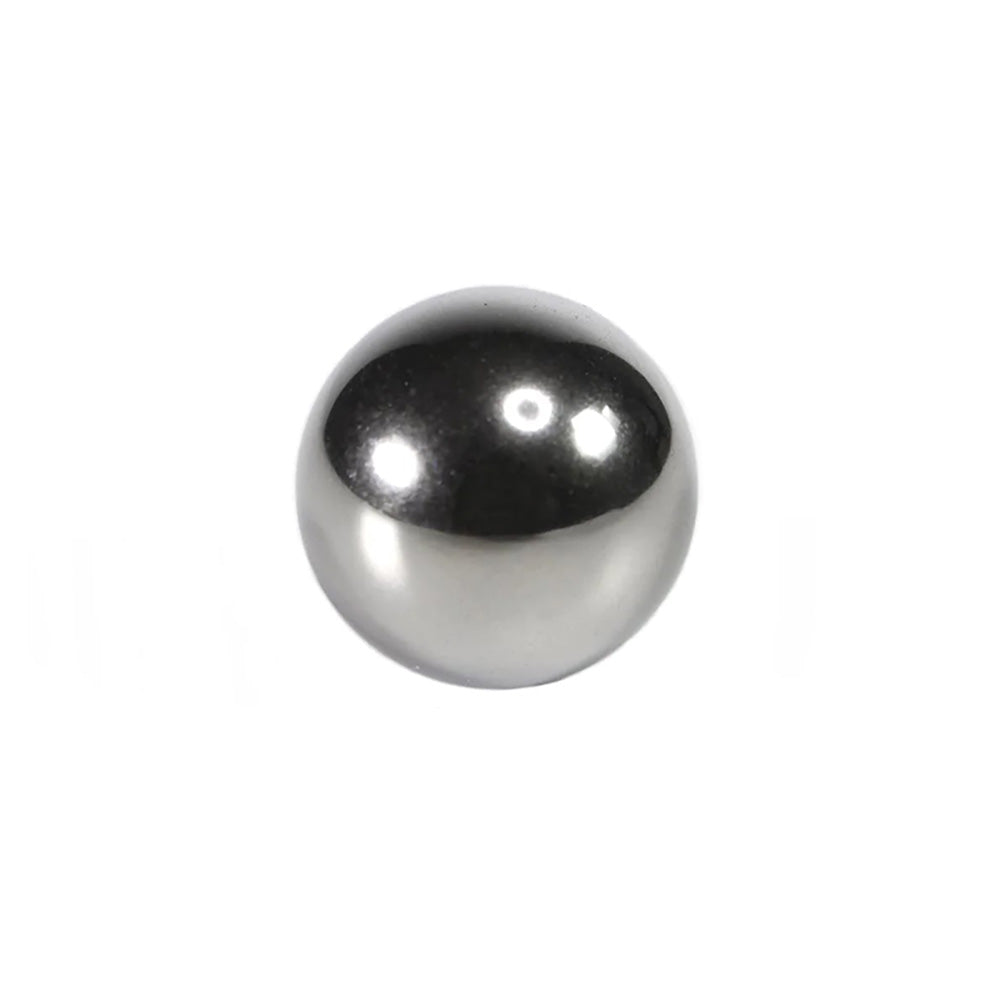

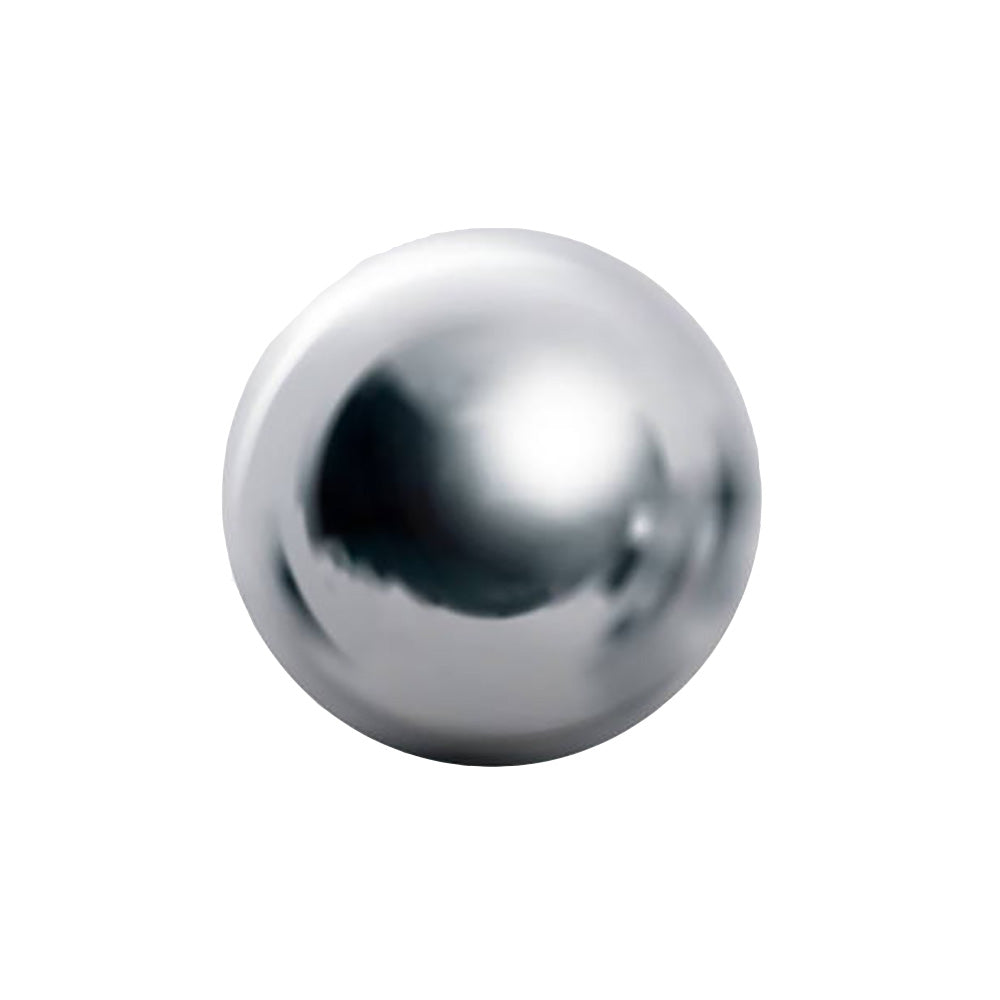

One New Aftermarket Replacement 1" Steel Disc Brake Ball Fits Case and Fits International Harvester Tractors
This 1" diameter steel disc brake actuator ball is a precision component in the disc brake assemblies of Fits Case and Fits International Harvester (IH) tractors. Multiple balls seat between the brake disc actuating plates and convert rotational force into clamping pressure -- proper fit and size are essential for responsive, reliable braking. Sold individually; quantity required per machine varies by model (typically 4 or 5 per side).
Specifications
- Diameter: 1" (25.4mm)
- Material: Steel
- Sold individually
Compatible Models
Fits Case Tractors: 430, 431, 435, 441, 445 (SN: 6165269 and up; 4 per side), 470, 570 (4 per side), 480, 530, 531, 540, 541, 545, 580, 580B (4 per side), 630, 631, 632, 634, 640, 642, 644 (SN: 6165137 and up; 4 per side), 770 (SN: 8682416 and up; 5 per side), 870, 970, 1070, 1175 (5 per side)
Fits Case Skid Steer Loader: 430
Fits International Harvester (IH) Tractors: Super WD9, WDR9, WR9S, 600, 650 (5 per side)
Replaces Part Number(s):
16100R1, 17100R1, 211-1032, 211-1032-A, 211-21, 211-223, A42043
New aftermarket replacement part - not remanufactured, not used.
