20Y-27-13220 Gear Fits Komatsu Models
20Y-27-13220 Gear Fits Komatsu Models
Couldn't load pickup availability

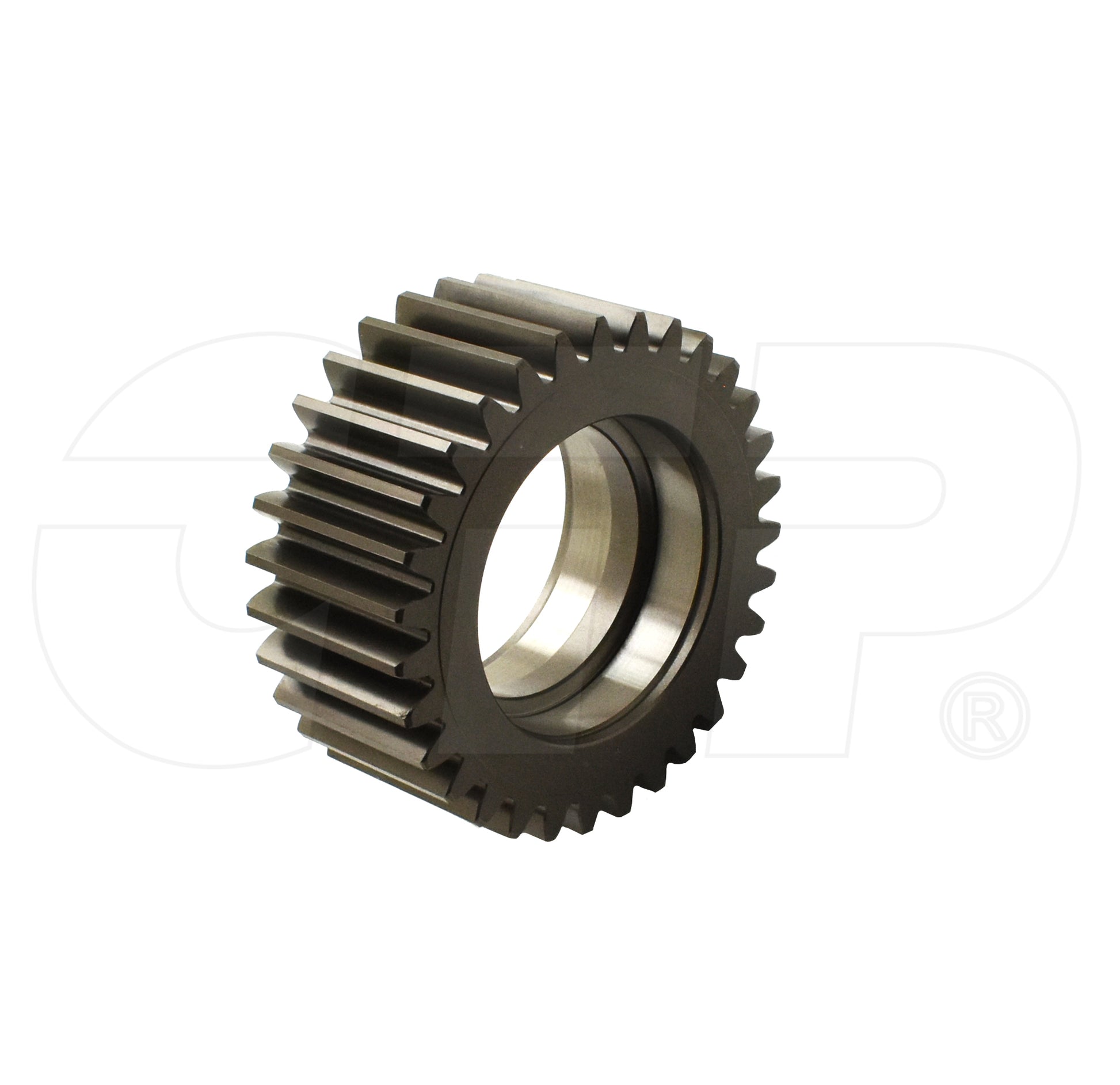

One New Aftermarket Replacement Travel Motor Planetary Gear for Komatsu Excavators
This aftermarket replacement travel motor planetary gear fits Komatsu PC-5 series excavators. Part number 20Y-27-13220 (also referenced as 20Y2713220) is a precision-machined planetary gear used in the final drive / travel motor assembly, which transfers hydraulic power to the tracks for forward and reverse propulsion.
Specifications
- Type: Travel Motor Planetary Gear
- Outer Diameter: 148.3 mm
- Inner Diameter: 80 mm
- Height: 64 mm
- Teeth: 31T
Compatible Models
Komatsu Excavators (PC-5 / PC-5K Series): CS360-2, CS360SD-2, HD325-6W, PC150HD-5K, PC150NHD-5K, PC180LC-5K, PC180LLC-5K, PC180NLC-5K, PC200-5, PC200-5/LC-5, PC200-5S, PC200-5T, PC200-5X, PC200LC-5, PC200LC-5S, PC200LC-5T, PC200LC-5X, PC210-5K, PC210LC-5K, PC220-5, PC220LC-5, PC240-5K, PC240LC-5K, PC240NLC-5K
Serial Number Restrictions
- PC200-5 / PC200-5S / PC200-5T / PC200-5X / PC200LC-5 / PC200LC-5S / PC200LC-5X: S/N 45001-UP
- PC200LC-5T: S/N 58019-UP (Mighty Spec.)
- PC210-5K / PC210LC-5K: S/N K20001-UP
- PC220-5 / PC220LC-5: S/N 35001-UP or A70001-UP
- PC240-5K / PC240LC-5K / PC240NLC-5K: S/N K20001-UP
Replaces Part Number(s):
20Y-27-13220, 20Y2713220
New aftermarket replacement part - not remanufactured, not used.
