20Y-26-22340 Bearing Fits Komatsu Models

One New Aftermarket Replacement Swing Machinery Bearing for Komatsu Excavators

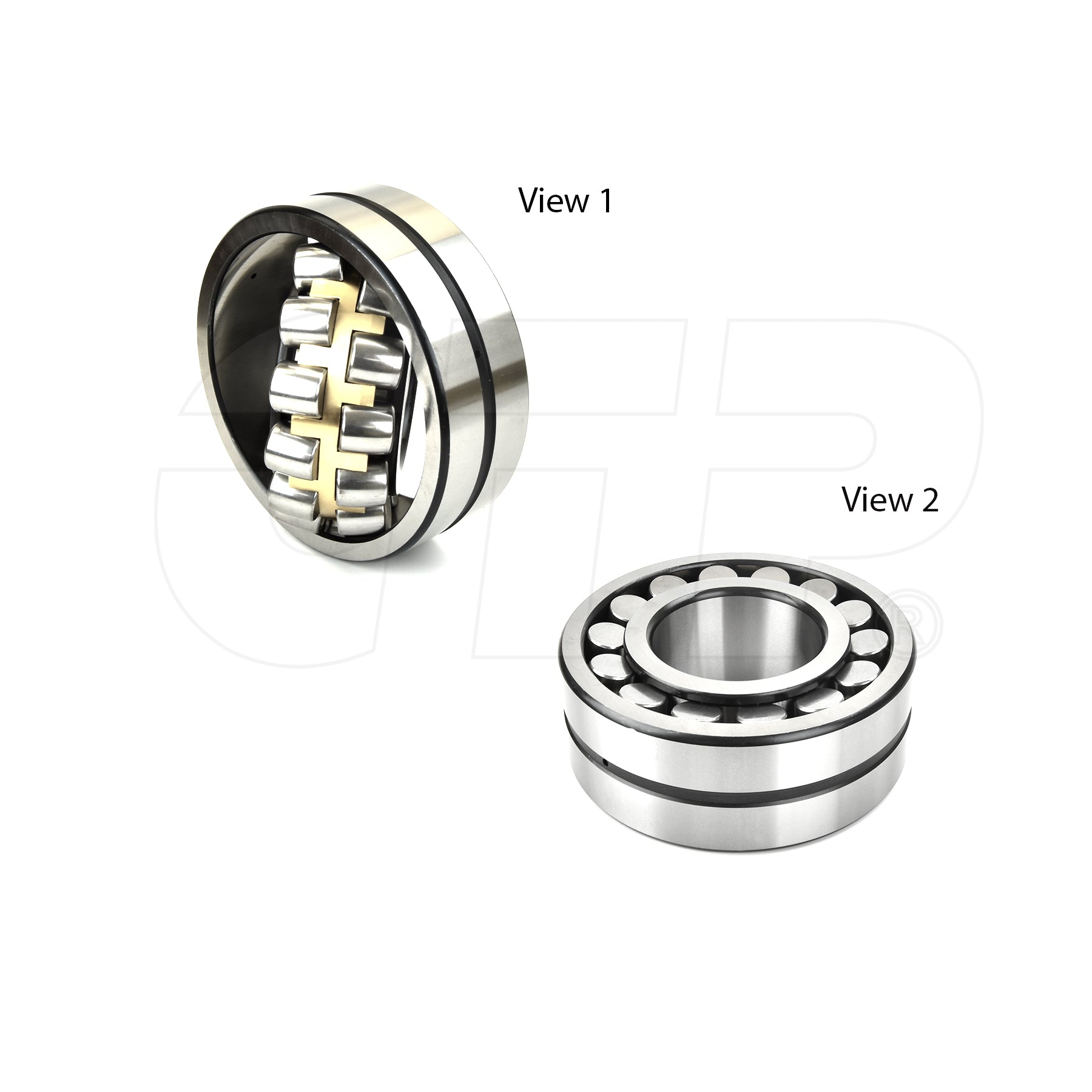

This bearing is a key component of the swing machinery assembly on Komatsu hydraulic excavators, supporting the swing shaft within the swing drive unit. It is a spherical roller bearing (equivalent to bearing 22319) used in the swing motor mounting assembly on a wide range of Komatsu PC-series and PW-series machines.

Specifications

• Type: Spherical Roller Bearing
• Equivalent Bearing No.: 22319
• Dimensions: 95mm x 200mm x 67mm (ID x OD x Width)
• Weight: Approx. 10 kg

Compatible Models

Komatsu Excavators: HB205-1 (S/N 1001-UP), HB215LC-1 (S/N 1001-UP), PC200-6 (S/N 60001-UP / 80001-UP), PC200LC-6 (S/N 70001-UP), PC200-6H (S/N 80001-UP), PC200-6J (S/N 80001-UP), PC200-6S (S/N 80001-UP), PC200LC-6S (S/N C10781-UP), PC200-6Z (S/N 80001-UP), PC200-7 (S/N 200001-UP), PC200-8 (S/N 315646-UP), PC200LC-8 (S/N 315646-UP), PC200-8E0 (S/N 1118-UP), PC200LC-8E0 (S/N 1118-UP), PC200CA, PC200SC, PC210, PC220, PC228, PC228US, PC228USLC-8 (S/N 50001-UP), PC228UU, PC230, PC230NHD, PC240, PC250, PC250HD, PC270, PC290, PW200, PW220

Komatsu Other: BP500-7-M1 (S/N 20002-UP)

Replaces Part Number(s):

20Y-26-22340, 20Y2622340

Aftermarket Interchange Numbers

20Y-26-22342, 20Y2622342, 20Y-26-22440, 20Y2622440

New aftermarket replacement part - not remanufactured, not used.
