Oil Pressure Temp Amp Gauges Fits Allis Chalmers WD45 Dsl D15 Dsl D17 Gas Dsl

Name: Oil Pressure Temp Amp Gauges Fits Allis Chalmers WD45 Dsl D15 Dsl D17 Gas Dsl
SKU: 208302-GAUGES
Price: 85.0 USD
Availability: InStock

Oil Pressure Temp Amp Gauges Fits Allis Chalmers WD45 Dsl D15 Dsl D17 Gas Dsl

£85.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

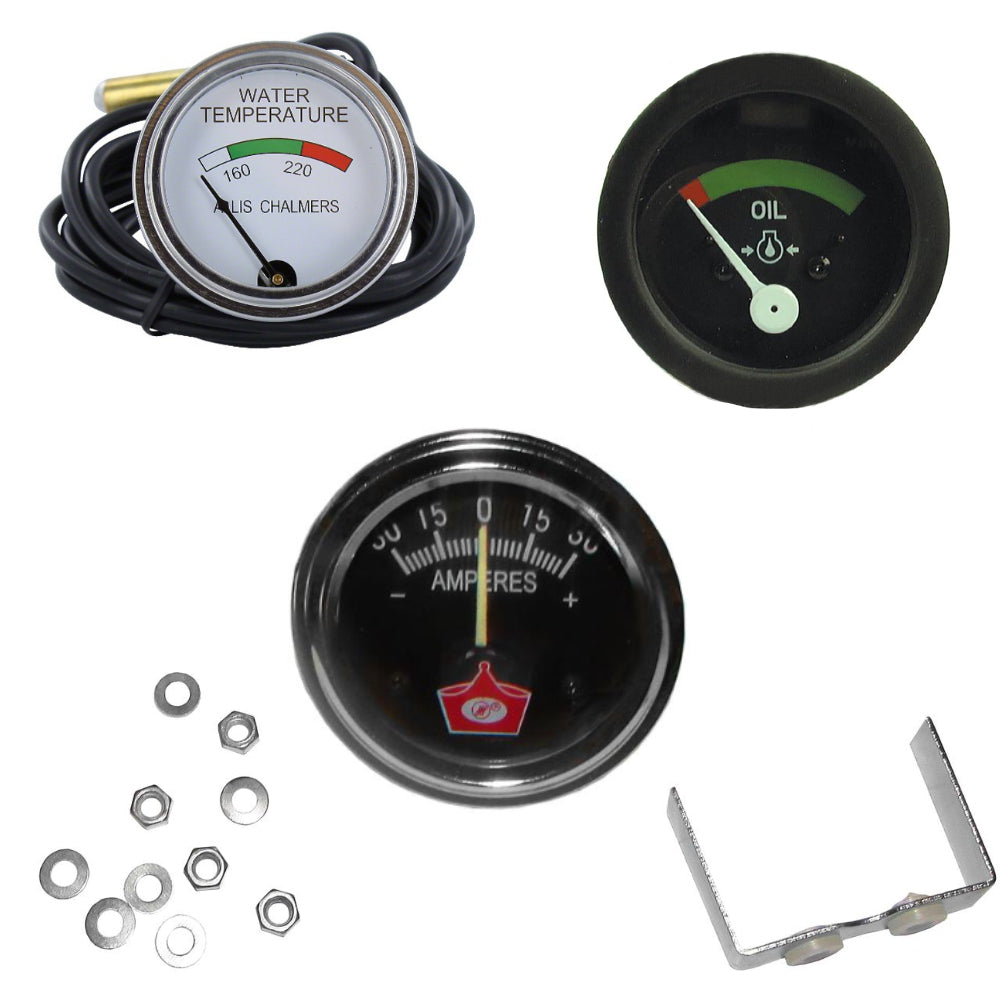

One New Aftermarket Replacement Oil Pressure Temp & Amp Gauge Kit

Fits Allis Chalmers Diesel Tractor Models: WD45 Diesel, D15 Dsl, D17 Dsl, D19

Kit Contains:
(1) Water Temperature Gauge
White Face with Chrome Bezel and Black Needle.
Dash Mounted.
Gauge with 70" Lead 5/8"-18 U.F. end with 1/2" NPT Pipe Bushing.
Fits 2" Diameter Hole.

Replaces Part Number: 70235724

(1) Oil Pressure Gauge
2" Black Bezel Gauge

Replaces Part Number: 70228718, 70228719

(1) Chrome Amp Meter (30-0-30)
Black Face with Chrome Bezel.

Replaces Part Number: 70254407

Models This Part Fits:

TO35, 170, 630, 50, 700, D19, 248125, 140 TO S/N 57724, B, 574, 960, WD45, 650, 85, 640, 660, NAA, 820, 2500A, D14, 8N, 800, 9N, 600, 190, D21, 674, D10, WF, D12, 454, 620, Cub 184, 900, Super 90, 2400A, D15, 2N, C, 464, 65, 740, WC, D17, WD45 Diesel, 165, 850, 35, 840, 950, 860, Jubilee

Additional Information:

Oil Pressure Gauge 0 to 40 pound gauge 1/8" NPT fitting No tubing included Backlight: Not Included Outer Diameter: 2" Range: Red to Green Type: Black bezel Replaces: 506902M92, 1853097M91 Chrome Amp Meter (30-0-30) Face range: 30-15-0-15-30 Black face with chrome bezel Terminal type Amp meter provides precise readings of your tractor's electrical current. Designed for straightforward installation Replaces: 1073455M1, A0NN10670V Water Temperature Gauge White Face with Chrome Bezel and Black Needle Dash Mounted Gauge with 70" Lead 5/8"-18 U.F. end with 1/2" NPT Pipe Bushing. Fits 2" Diameter Hole Replaces: 229870, ACS260
