208-01003-JN J&N Electrical Products Pulley

208-01003-JN J&N Electrical Products Pulley

£48.00 GBP
£48.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-Arrowhead: ADR5084; Cummins: 3918275, 3925852; J&N Electrical Products: 208-01003

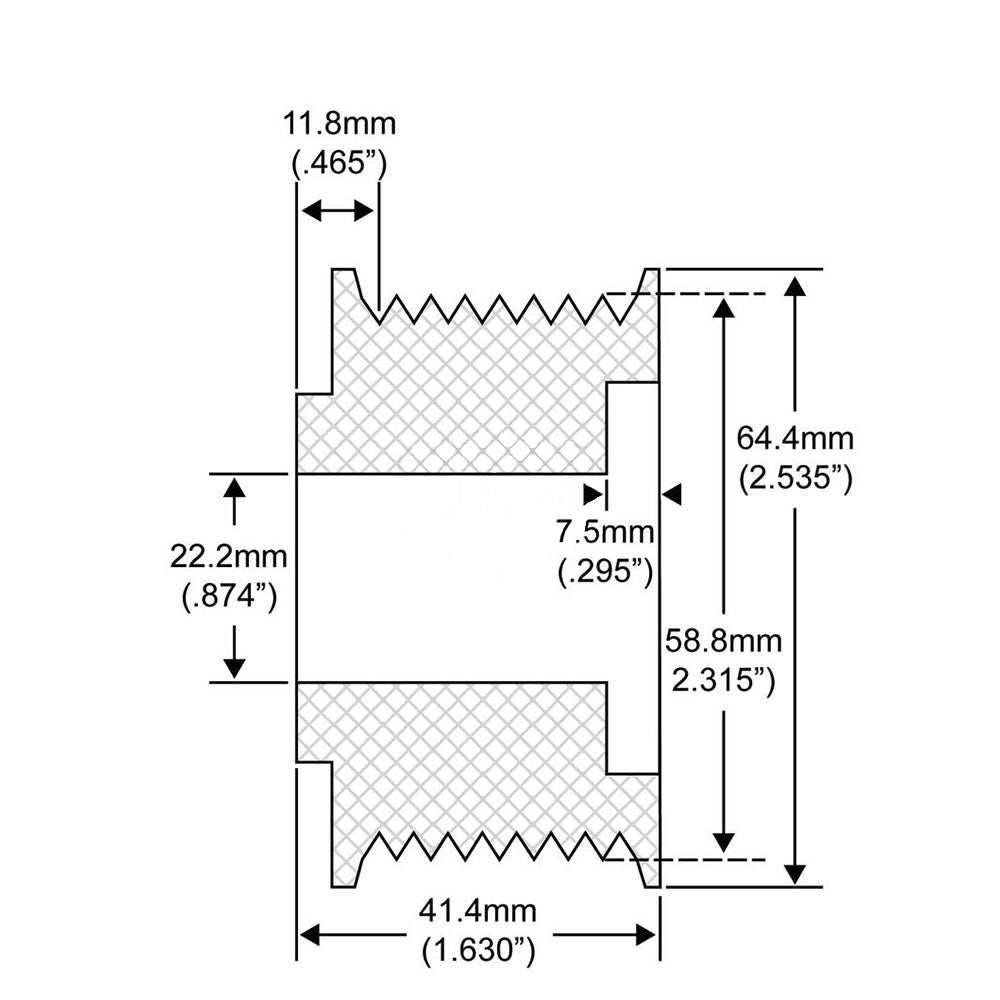

-CENTER OF GROOVE TO REAR: 0.465", CENTER OF GROOVE TO REAR: 11.800mm, GROOVE OD: 2.315", GROOVE OD: 58.800mm, GROOVE TYPE: Serpentine, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 8, NUT RECESS: 0.295", NUT RECESS: 7.500mm, OD: 2.535", OD: 64.400 mm, PULLEY TYPE: Solid, THICKNESS: 41.400 mm

Replaces Part Number(s): 208-01003

Additional Information:

Arrowhead: ADR5084; Cummins: 3918275, 3925852; J&N Electrical Products: 208-01003, CENTER OF GROOVE TO REAR: 0.465", CENTER OF GROOVE TO REAR: 11.800mm, GROOVE OD: 2.315", GROOVE OD: 58.800mm, GROOVE TYPE: Serpentine, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 8, NUT RECESS: 0.295", NUT RECESS: 7.500mm, OD: 2.535", OD: 64.400 mm, PULLEY TYPE: Solid, THICKNESS: 41.400 mm

Reference Numbers:

208-01003
