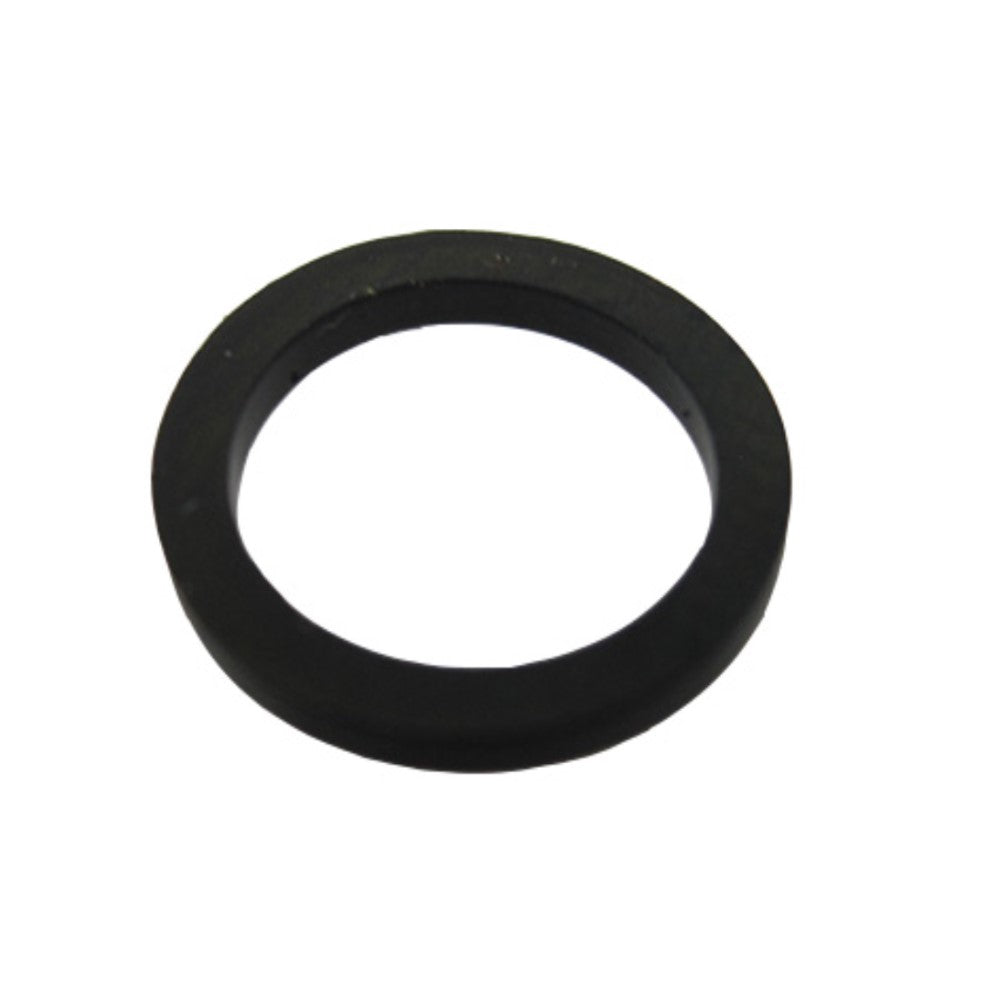

STANDARD BACK-UP RING Fits Universal Products Replaces 20572602

Name: STANDARD BACK-UP RING Fits Universal Products Replaces 20572602
SKU: 574-011-HER_01
Price: 5.0 USD
Availability: InStock

STANDARD BACK-UP RING Fits Universal Products Replaces 20572602

£5.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket STANDARD BACK-UP RING

Tech Info:
-Material: 90A Buna-N Rubber
-Weight: 0.0001 lb.
-ID: 5/16
-OD: 7/16
-Height: .049
-Thickness: .045
-Nom Cross Section: 1/16
-Temperature Range: -40° TO +240°F
-Hardness: 90
-Scale: A
-Profile: 574

Fits Universal Products:
Replaces Part Number(s): 8-011 N90, 8-011/C, BU-011BN90, 8-011N90, 37011, 7Q10P011, BUN-011, 20572602, 574-011

Models This Part Fits:

Engines, Industrial Machines, Valves, Pumps, Supports O-Rings in Various High Pressure Hydraulic Systems Including Cylinders, Motors, Pneumatic Systems

Additional Information:

Dished Cross Section Back-Up Ring Nom. Inner Diameter: 5/16" Nom. Outer Diameter: 7/16" Nom. Height: .049" Thickness: .045" Material: Buna-N Nom. Cross Section: 1/16" Temperature Range: -40 Deg. F to +240 Deg. F Hardness: 90 Scale: A Profile: 574 Pressure Range: Varies by Diametrical Clearance
