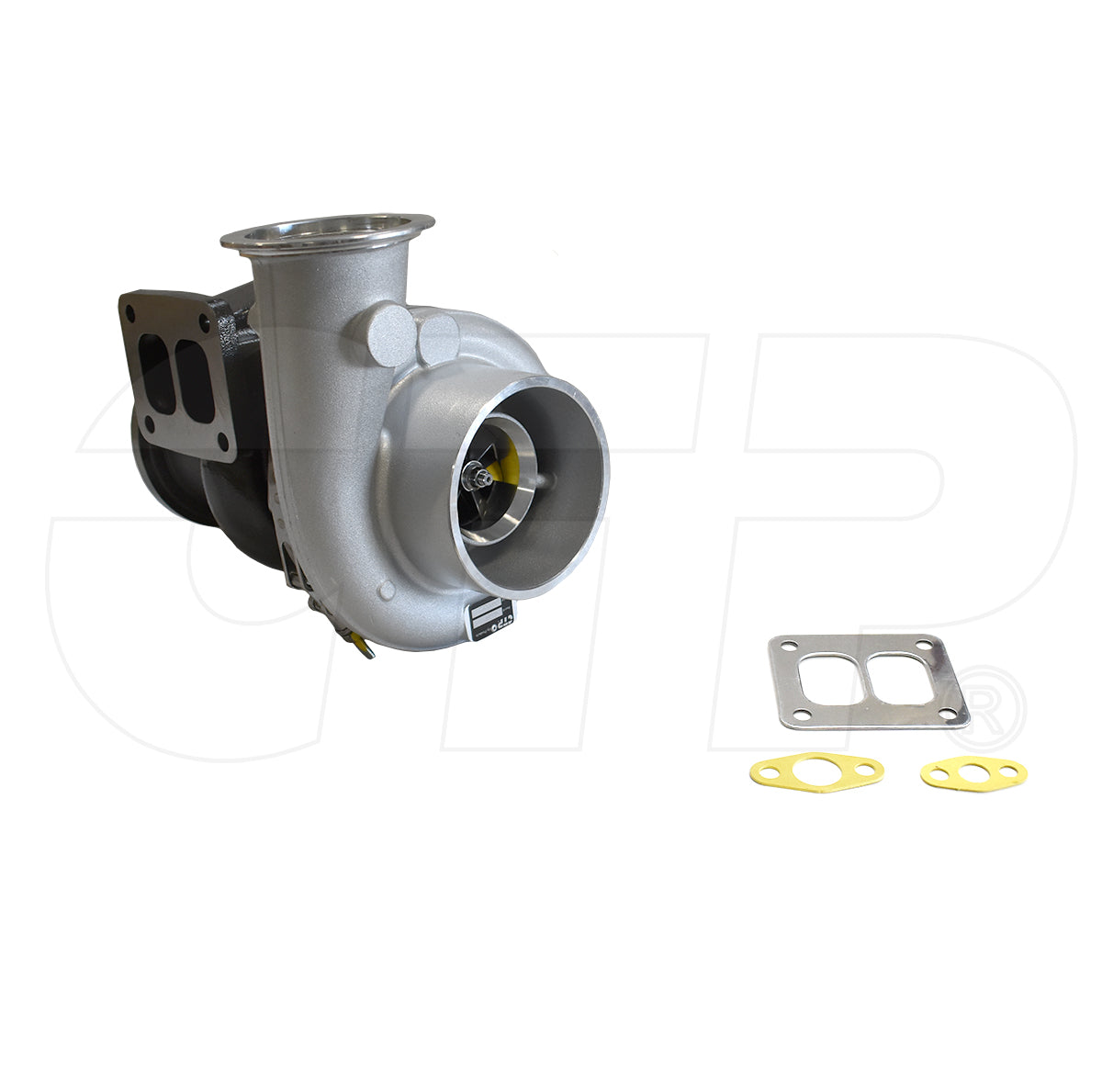

2046489 Turbocharger Fits Caterpillar Models

One New Aftermarket Replacement Turbocharger for Caterpillar (Cat) C-10 Engine

This aftermarket replacement turbocharger fits Caterpillar C-10 diesel truck engines (1996-2006) and the 966G Series II wheel loader. It is a BorgWarner S310S-series unit supplying forced induction to the C-10 engine, rated at 246 kW (335 hp) at 1800 RPM on a 10.0L displacement. Serial number applicability: C-10 engine prefixes 3CS (S/N 3CS23768-UP) and 8YS (S/N 8YS7760-UP); also prefixes MBJ, 4CR, BFT, 8AR.

Specifications

• Turbo Model: BorgWarner S310S (S310S026)
• Engine: Caterpillar C-10, 10.0L Diesel
• Power: 246 kW / 335 hp @ 1800 RPM
• Length: 15.6 in (396.2 mm)
• Width: 12.6 in (320 mm)
• Height: 17 in (431.8 mm)
• Weight: 38.1 lbs
• Engine Serial Prefixes: 3CS, 8YS, MBJ, 4CR, BFT, 8AR

Compatible Models

Caterpillar Trucks: C-10 Engine (1996-2006) - prefixes 3CS (3CS23768-UP), 8YS (8YS7760-UP), MBJ, 4CR, BFT, 8AR

Caterpillar Wheel Loaders: 966G Series II (2001-2006) with C-10 engine

Caterpillar Industrial/Marine Engines: 3412C, 3412E

Replaces Part Number(s):

2046489, 204-6489, 2046490, 204-6490, 10R0183, 10R-0183, 1440816, 144-0816, 1455183, 145-5183, 0R7216, 134-5910

Aftermarket Interchange Numbers

BorgWarner/Schwitzer: 178477 - Supersedes: 172314, 172347, 169093, 169510, 169568 - CHRA: 169516 (ref. 0R7217, 1440817, 178173)

New aftermarket replacement part - not remanufactured, not used.
