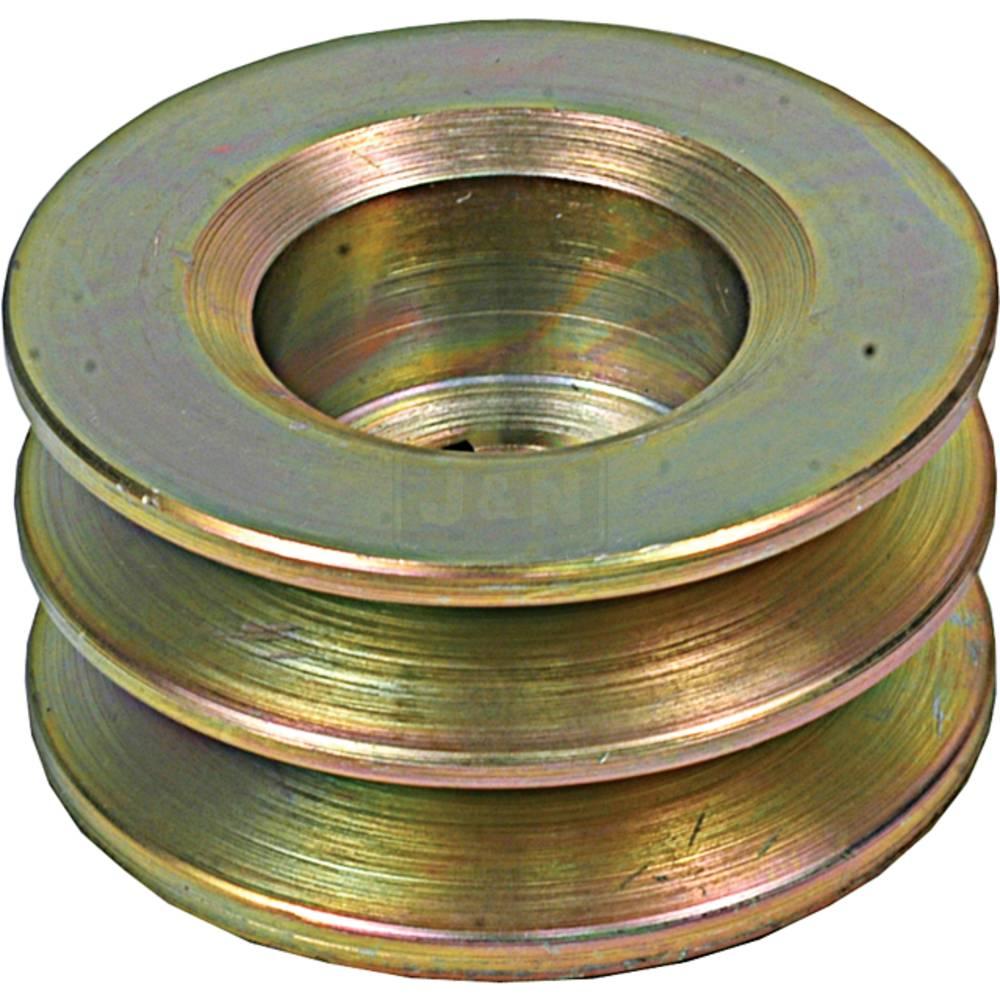

202-12006-JN J&N Electrical Products Pulley

202-12006-JN J&N Electrical Products Pulley

£39.00 GBP
£39.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-BELT WIDTH: 13, Fits Case OD: 0.630", Fits Case OD: 16mm, CENTER OF GROOVE TO REAR: 0.567", CENTER OF GROOVE TO REAR: 14.400mm, CENTER TO CENTER GROOVE: 0.630", CENTER TO CENTER GROOVE: 16mm, GROOVE TYPE: V-Groove, ID: 0.665", ID: 16.900 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.823", NUT RECESS: 20.900mm, OD: 2.811", OD: 71.400 mm, PULLEY TYPE: Solid, THICKNESS: 39.900 mm
-Arrowhead: 202-12006; C.E. Niehoff: A3-203; Fits Delco: 1962505

Replaces Part Number(s): 202-12006

Additional Information:

BELT WIDTH: 13, CASE OD: 0.630", CASE OD: 16mm, CENTER OF GROOVE TO REAR: 0.567", CENTER OF GROOVE TO REAR: 14.400mm, CENTER TO CENTER GROOVE: 0.630", CENTER TO CENTER GROOVE: 16mm, GROOVE TYPE: V-Groove, ID: 0.665", ID: 16.900 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.823", NUT RECESS: 20.900mm, OD: 2.811", OD: 71.400 mm, PULLEY TYPE: Solid, THICKNESS: 39.900 mm, Arrowhead: 202-12006; C.E. Niehoff: A3-203; Delco: 1962505

Reference Numbers:

202-12006
