202-01007-JN J&N Electrical Products Pulley

202-01007-JN J&N Electrical Products Pulley

£45.00 GBP
£45.00 GBP
Sale Sold out
Shipping calculated at checkout.

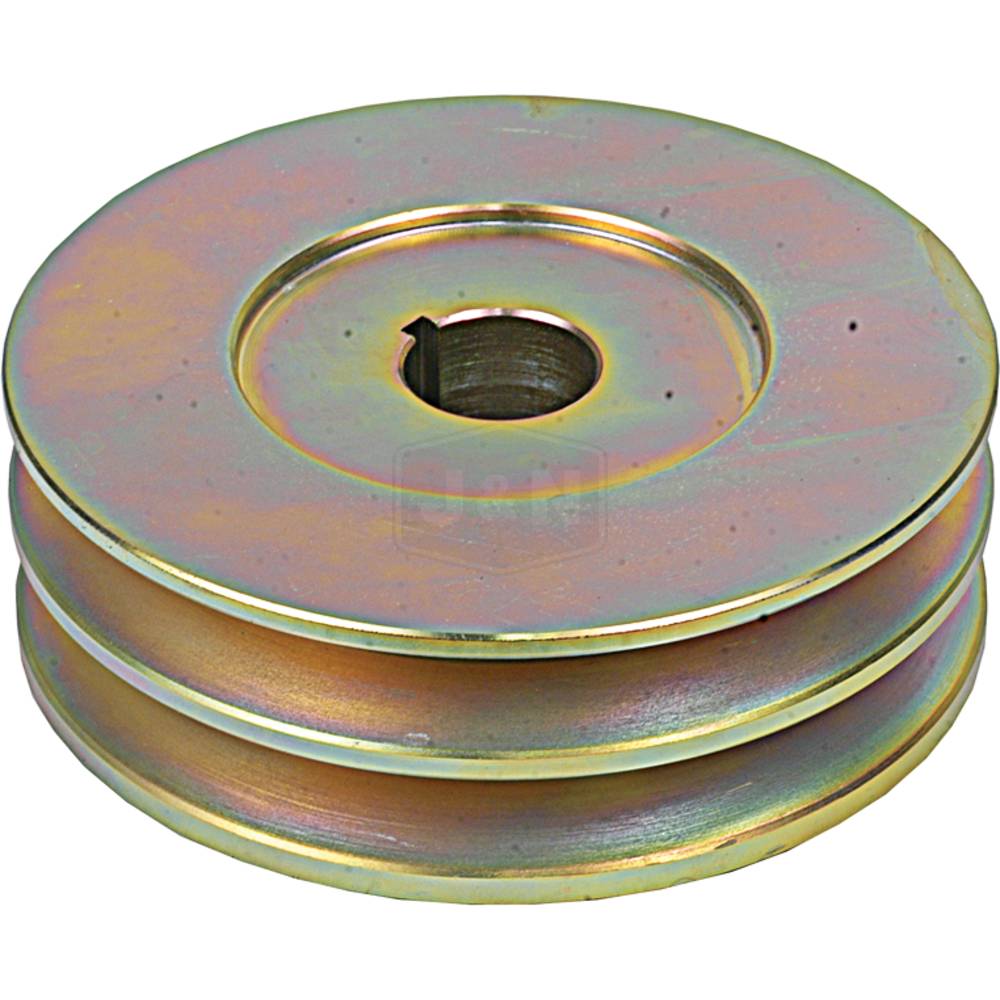

One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-BELT WIDTH: 13, Fits Case OD: 0.598", Fits Case OD: 15.200mm, CENTER OF GROOVE TO REAR: 0.441", CENTER OF GROOVE TO REAR: 11.200mm, CENTER TO CENTER GROOVE: 0.598", CENTER TO CENTER GROOVE: 15.200mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.098", NUT RECESS: 2.500mm, OD: 114.300 mm, OD: 4.500", PULLEY TYPE: Solid, THICKNESS: 36.620 mm
-Arrowhead: 202-01007; Fits Caterpillar: 187-337; Kenworth: 187-332

Replaces Part Number(s): 202-01007

Additional Information:

BELT WIDTH: 13, CASE OD: 0.598", CASE OD: 15.200mm, CENTER OF GROOVE TO REAR: 0.441", CENTER OF GROOVE TO REAR: 11.200mm, CENTER TO CENTER GROOVE: 0.598", CENTER TO CENTER GROOVE: 15.200mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 0.098", NUT RECESS: 2.500mm, OD: 114.300 mm, OD: 4.500", PULLEY TYPE: Solid, THICKNESS: 36.620 mm, Arrowhead: 202-01007; Caterpillar: 187-337; Kenworth: 187-332

Reference Numbers:

202-01007
