2W0417 9H1486 Mechanical Water Temperature Gauge Fits Caterpillar
2W0417 9H1486 Mechanical Water Temperature Gauge Fits Caterpillar
Couldn't load pickup availability

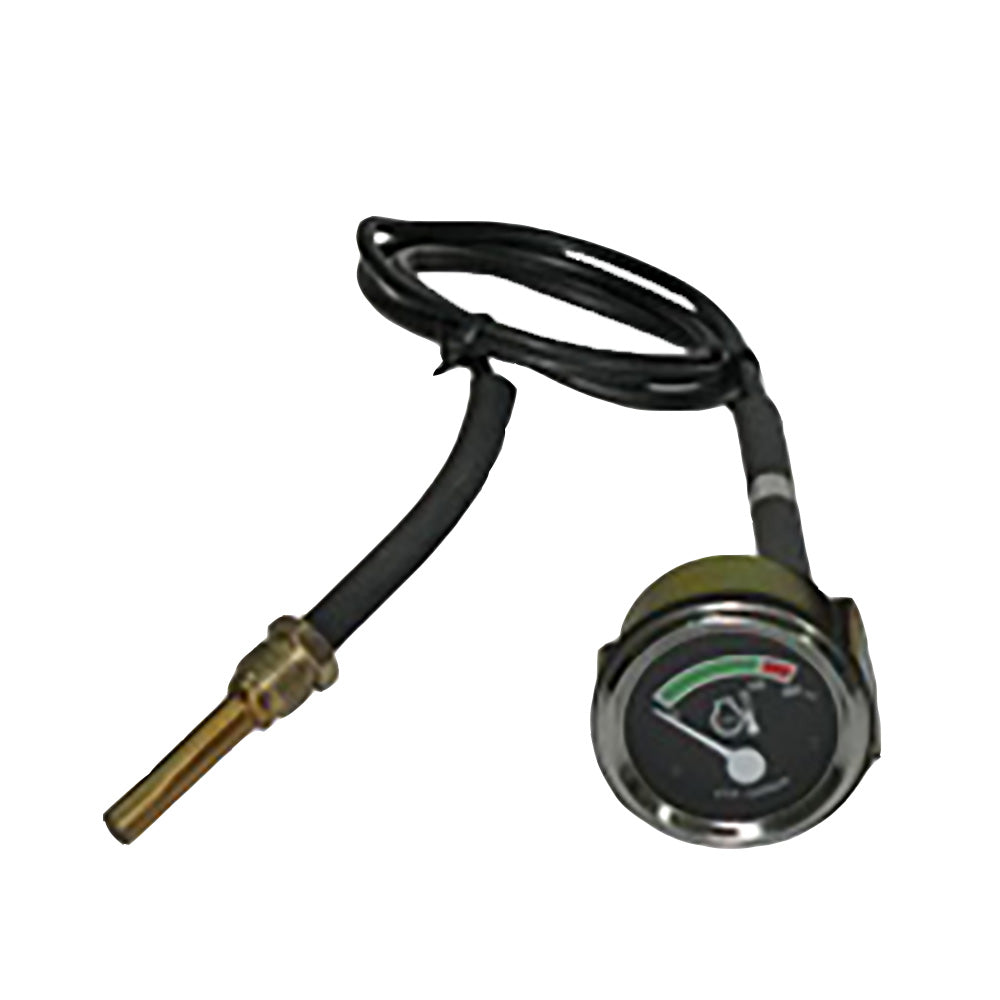

One New Aftermarket Replacement Mechanical Water Temperature Gauge Fits Caterpillar (Fits CAT) Equipment
This mechanical water temperature gauge (coolant temperature indicator) is a direct aftermarket replacement Fits Caterpillar (Fits CAT) construction and heavy equipment. The gauge mounts in a 2-inch hole on the instrument panel and operates without electricity, making it compatible with both 12-volt and 24-volt systems. It comes pre-attached to a 101-inch capillary lead tube and sensor. The sensor end mounts to any 3/4-inch pipe plug or port and requires approximately 1-1/2 inches of internal clearance.
Specifications
- Gauge Hole Size: 2 inches
- Capillary Lead Tube Length: 101 inches
- Sensor Port Fitting: 3/4-inch pipe plug or port
- Voltage Requirement: None - mechanical operation; compatible with 12V and 24V systems
- Backlight: No provisions for backlighting
- Includes: Mounting bracket, pre-attached capillary tube and sensor
Compatible Models
Fits Caterpillar Engines: 3176C, 3196, 3406B, 3406C, C-10, C-12, C10, C12, C15, C18, CX35-P800
Fits Caterpillar Motor Graders: 14G, 16G, 120G, 140G
Fits Caterpillar Articulated Dump Trucks: A20, A20C, A25, A25B, A25C, A25D, A25E, A30C
Additional Fits Caterpillar Applications: D8H and other models - verify by part number cross-reference
Replaces Part Number(s):
2W0417, 9H1486, 2005231, 200-5231, V2W0417, V2005231
Aftermarket Interchange Numbers
8M3289
New aftermarket replacement part - not remanufactured, not used.
