2 Brush Generator Kit Fits Delco Fits FARMALL 130 140 200 230 240 300 350 400

Name: 2 Brush Generator Kit Fits Delco Fits FARMALL 130 140 200 230 240 300 350 400
SKU: GDR7100-GENREPAIRKIT
Price: 29.0 USD
Availability: InStock

2 Brush Generator Kit Fits Delco Fits FARMALL 130 140 200 230 240 300 350 400

£29.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement 2 Brush Generator Kit

Fits Delco / Fits FARMALL Tractor Models:
100, 130, 140, 200, 230, 240, 300, 350, 400, 450, 660

6 or 12-volt 2 brush generators Fits FARMALL and other tractors, used with a voltage regulators beginning in the late 50's.

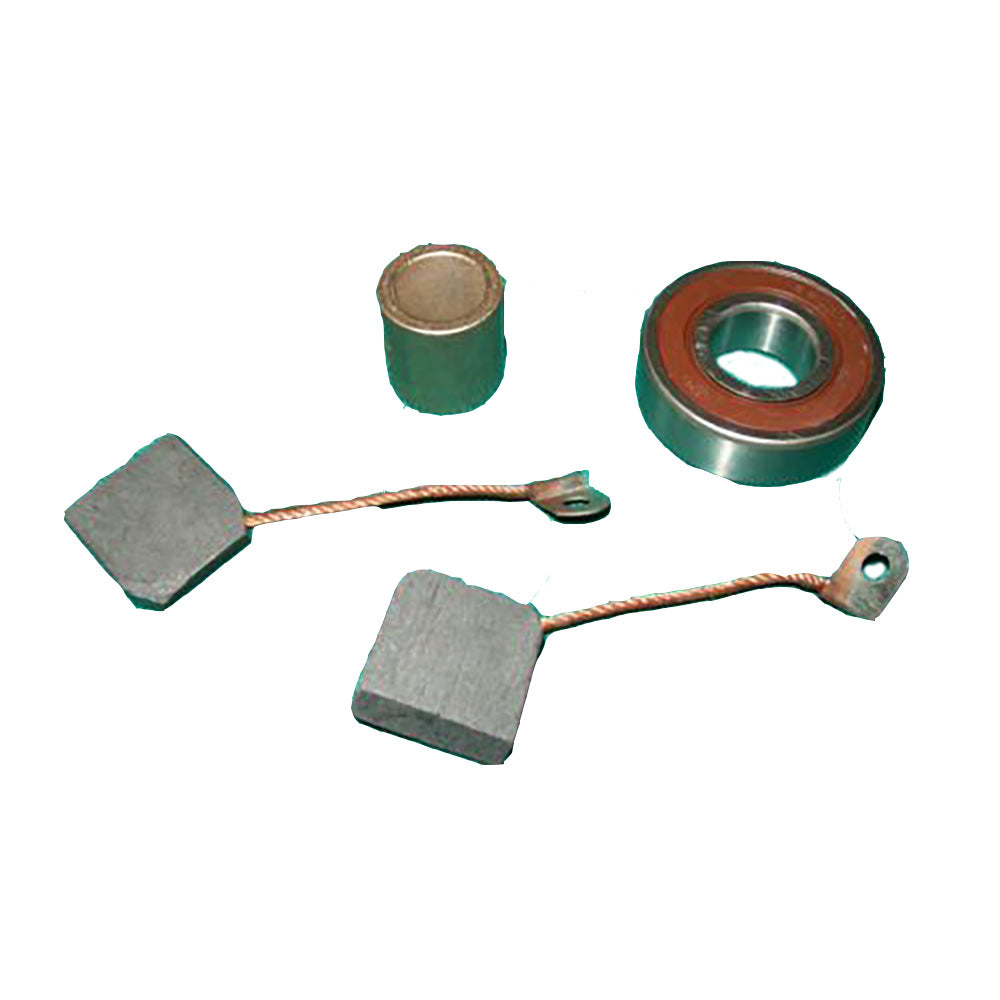

Kit Contains:
(2) Brushes
(1) 6203-2RS Drive End Bearing
(1) Commutator End Bushing

Works with These Fits Delco Generators #:
1100042, 1100305, 1100355, 1100394, 1100409, 1105018, 1105102, 1105109, 1105990, & many others

Models This Part Fits:

1102754, 1102713, 1102721, 1102670, 1102819, 1102665, 1102672, 1102736, 1102738, 1102680, 1102799, 1102996, 1102692, 1102726, 1102677, 1102722, 1102751, 2004 and newer, 1102757, 1102730, 1101866, 5400D, 1102987, 1102697, 1102674, 1105854, 1102691, 1102716, 5610, 1102739, 1102752, 1102776, 4500D, 1102693, 1102718, 1102701, S-620 CCR2000 223D, 1102688, 074, 5100D, 1102669, 1102663, 1100323, 1102709, 084, 1102746, 1102712, 1102777, 1102694, 4700D, 1105851, 1102981, 6500D and 6700D; 3500D, 1102664, 5410, S-200, 1105855, 1102662, 1102673, 1102748, 1102668, 1102708, 1102761, 1102661, 1102976, 1102723, 1102113, 1102714, 1102731, 1102743, 5200D, 114 314, 1102678, 1102985, 1102667, 1102724, 5210, 1102679, 1102671, 1100021, 1102732, 3505D, 1102741, 5300D, 1103000, 1102774, 5510

Additional Information:

(1) Generator Bushing: Bushing Size: Standard Inner Diameter: 0.563" (14.300 mm) Location Used: CE Housing Outer Diameter: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Replaces Part Numbers: 1850786, 812823, D1634, GDR7100 (1) Sealed Ball Bearing (Econ Version): Inner Diameter: 0.669" (17mm) Outer Diameter: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C (2) Generator Brush: Height: 0.256" (6.500 mm) Lead Length: 1.720" (43.700mm) Length: 0.925" (23.500 mm) Width: 0.866" (22 mm) Replaces Part Numbers: 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705, 100RX58S, 1509760M1, 1509790M1, 1509870M1, 1754877M91, 231313, 231998, 70231998, GDR7501, GDR7512, 1458SM, R51, R58

Reference Numbers:

100-1048, 109966, 112-0423, 38-7820, 702581, 01000340, 095406, 137760, 706-085336, 741-0124, 741-0124A, 941-0124, 941-0600, 1850786, 812823, D1634, GDR7100, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1878209, 1878249, 1906917, 1906937, 1906946, 1906956, 1906965, 1906970, 1923295, 1932506, D704, D705
