One New Aftermarket Replacement J300 Long Tip Bucket Tooth Fits Caterpillar (Fits CAT) Excavators, Wheel Loaders, and Scrapers

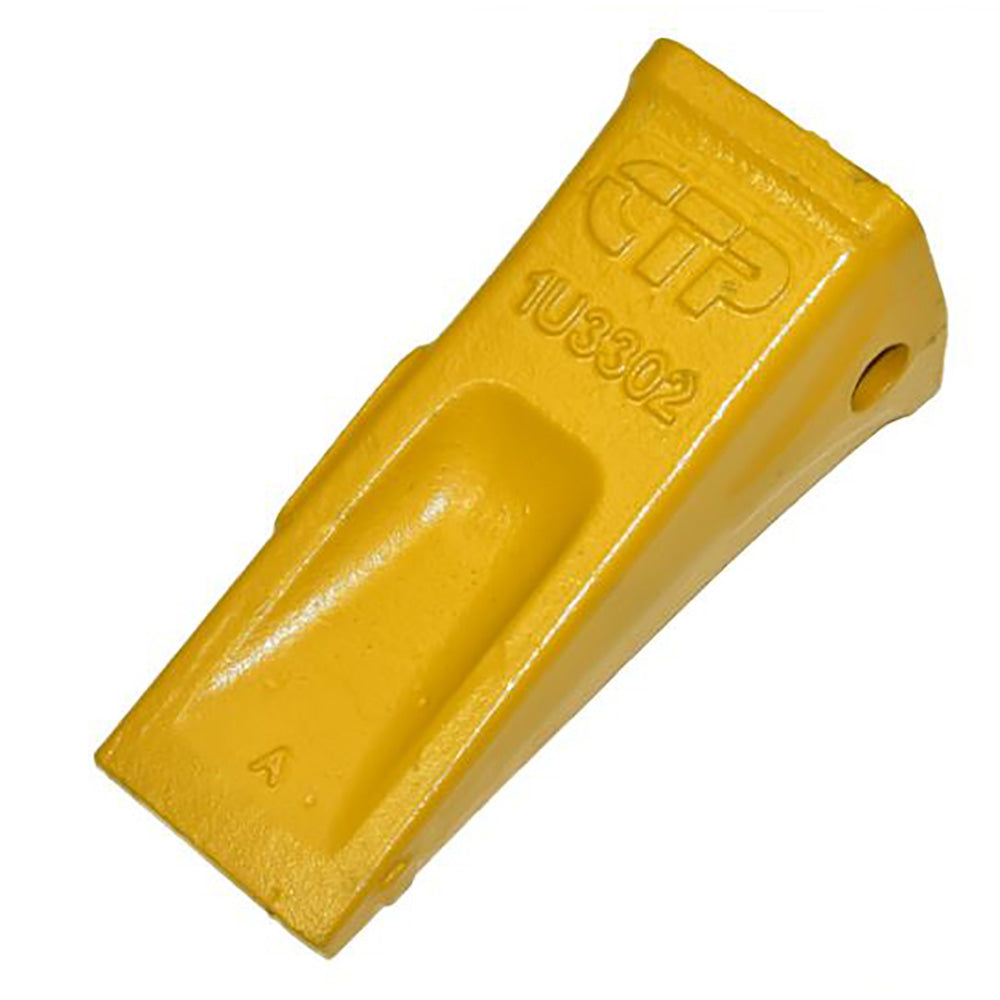

This aftermarket replacement 1U3302 is a long-style, general-purpose dirt bucket tooth designed for the Fits Caterpillar J300 (J-Series) tooth system. It mounts to J300-compatible adapters using a 9J2308 side pin and an 8E6259 sleeved retainer (sold separately). Suitable for both loader and excavator buckets, the 1U3302 long tip is a multi-purpose ground engaging tool (G.E.T.) built for average penetration and wear life in general digging applications.

Specifications

Series: J300 / J-Series (also fits E180 buckets)
Style: Long Tip
Width: 3.54" (approx. 3.5" - 3.6")
Depth/Height: 3.93" (approx. 3.75" - 4")
Length: approx. 8.75"
Weight: approx. 9.5 lb
Inside pocket: 2.5" horizontal x 3" vertical
Compatible Pin: 9J2308 (HD alternate: 1324766)
Compatible Lock/Retainer: 8E6259 (HD spiral lock alternate: 1495733)

Compatible Models

Fits Caterpillar Excavators: 205, 205B, 206, 206B, 211B, 212, 212B, 213B, 214B, 214B FT, 215, 215B, 215C, 215D, 219, 219D, 224B, 235, 235B, 235C, 235D, 245D, 311C, 311F LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312F, 312F GC, 313D2, 313F LGC, 314E CR, 314E LCR, 314F CR, 315-A, 315-A L, 315B, 315B FM L, 315B L, 315C, 315D L, 315F LCR, 316E L, 316F L, 317-A, 317-A N, 317B L, 317B LN, 317 N, 318B, 318B N, 318C, 318D L, 318D2 L, 320, 320-A, 320-A L, 320-A N, 320-A S, 320B, 320B FM LL, 320B L, 320B LL, 320B N, 320B S, 320C, 320D LRR, 320D RR, 320E, 320E L, 320E LRR, 320E RR, 320 GC, 320 L, 321B, 321D LCR, 322-A, 322-A L, 322-A LN, 322-A N, 322 L, 322 LN, 322B L, 322B LN, 322C, 322N, 323, 323F L, 323GC, 324E, 324E L, 325-A, 325-A L, 325-A LN, 325B L, 325B LN, 325 L, 325 LN, 325F, 325F LCR, 330-A, 330-A L, 330B L, 330B LN, 330 L

Fits Caterpillar Wheel Excavators: M312, M313C, M315, M315C, M316C, M317, M317D2, M318, M318C MH, M318D, M318D MH, M320, M320D2, M322C

Fits Caterpillar Wheel Loaders: 936F, 938F, 938G, 938G II, 950, 950B, 950B/950E, 950E, 950F, 950F II, 950G, 950G II, 950H, 950M, 955K, 955L, 960F, 962G, 962G II, 962H, 963, 963B, 963C, 966C

Fits Caterpillar Track Loaders: 953B, 953C

Fits Caterpillar Wheel Tractors / Scrapers: 615, 615C, 623B, 623E, 623F, 623G

Fits Caterpillar Front Shovels / Other: E140, E180, E200B, EL180, EL200B

Replaces Part Number(s):

1U3302, 1U-3302, 1U3302HX, 1U3302SYL, 1U3301, 9N4302, 8J5302, 9J4302, 964752

Aftermarket Interchange Numbers

Alternate pin: 9J2308 (standard), 1324766 (heavy duty). Alternate retainer: 8E6259 (standard), 1495733 (heavy-duty spiral lock).

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

325 LN, 320B S, 320C, 322N, 955L, 314E CR, 938G, 245D, 205, 317 N, 323GC, 950G, 325F LCR, 320-A L, 315-A, 312F GC, 950M, 315B L, 321D LCR, 950, 312D L, M318D, 938F, 615C, 316F L, 324E L, 318B, E180, 330B LN, 211B, 212B, 950F, 215C, M316C, 963C, M317D2, 317B L, 963, 315B, 330B L, 950F II, 320B, 320 L, 322-A LN, 324E, 235, 215B, 312D2 L, 623F, 322 LN, 325-A, 623E, 960F, 950E, M318C MH, 318D L, EL200B, 320D RR, 950H, 321B, 320B L, 318B N, 615, 317-A N, 316E L, M315C, M320D2, 205B, 311C, 322-A L, 215D, 318D2 L, 966C, M317, 320-A, 320 GC, M320, 322C, 953B, 320B N, 938G II, 235B, 320D LRR, 320B FM LL, M318C, 325-A L, 224B, 623B, 320E L, 314E LCR, 325-A LN, 322-A N, 950B/950E, 206B, 330 L, 219D, 955K, 311F LRR, 950B, 962G II, 235C, 212, 214B FT, 325B L, 320E LRR, 315F LCR, 322-A, 325B LN, 962G, 950G II, 312F, 213B, 962H, 322 L, 322B L, M322C, 315D L, 318C, 623G, 325 L, 315C, 320, 320-A N, 315B FM L, 214B, 314F CR, 320E RR, 320-A S, 325F, 215, 313F LGC, 312D, 320B LL, 320E, 312E, M315, 963B, 317B LN, 953C, 322B LN, M318, 330-A, M318D MH, 312D2, M312, 235D, M313C, 317-A, 219, 206, 312D2 GC, E200B, E140, 315-A L, 323F L, 313D2, 936F, 330-A L, 323, EL180
