1U3301 Tip-Short J300 Fits Caterpillar Models

Name: 1U3301 Tip-Short J300 Fits Caterpillar Models
SKU: 1U3301
Price: 32.0 USD
Availability: InStock

1U3301 Tip-Short J300 Fits Caterpillar Models

£32.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Short Bucket Tip for Caterpillar (Cat) J300 Series Excavators and Loaders

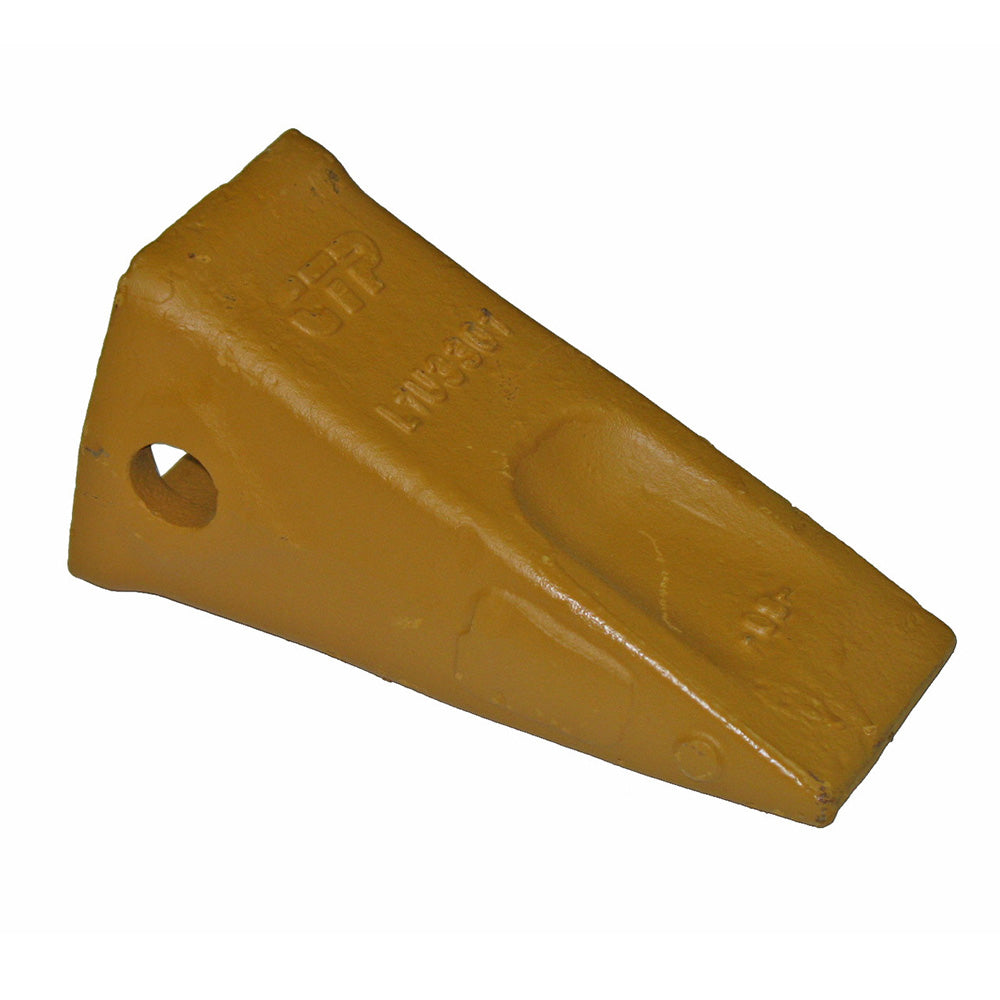

The 1U3301 is a J300 series short bucket tip (bucket tooth point) used on Caterpillar excavators, wheel loaders, track loaders, and wheel excavators. This side-pin style tip mounts to a J300 adapter on the bucket cutting edge and is a direct replacement for the Caterpillar (Cat) OEM part. Uses a 9J2308 pin and 8E6259 sleeved retainer (sold separately).

Specifications

Tip Series: J300 Short
Tip Length: 6.73 in (171 mm)
Weight: approx. 4.2 kg (9.3 lbs)
Lock Pin Diameter: 14 mm
Lock Pin Length: 90 mm
Mounting: Side pin

Compatible Models

Caterpillar Excavators: 205, 206, 212, 215, 215B, 215C, 215D, 219, 219D, 235, 235B, 235C, 235D, 245D, 312D, 312D L, 314C, 315-A, 315-A L, 315B, 315B FM L, 315B L, 315C, 317-A, 317-A N, 317B L, 317B LN, 318B, 318B N, 318C, 320-A L, 320-A N, 320-A S, 320B, 320B FM LL, 320B L, 320B LL, 320B N, 320B S, 320C, 320 L, 321B, 321D LCR, 322-A, 322-A L, 322-A LN, 322-A N, 322 L, 322 LN, 322B L, 322B LN, 322C, 322N, 325-A, 325-A FM L, 325-A L, 325-A LN, 325B L, 325B LN, 325 L, 325 LN, 330-A, 330-A L, 330B L, 330B LN, 330 L, E140, E180, E200B, EL180, EL200B

Caterpillar Wheel Loaders: 938G II, 950, 950B, 950B/950E, 950E, 950F, 950F II, 950G, 950G II, 950H, 953B, 953C, 955K, 955L, 960F, 962G, 962G II, 962H, 963, 963B, 963C, 966C

Caterpillar Wheel Excavators: M312, M313C, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C

Replaces Part Number(s):

1U3301, 1U-3301

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

E200B, 315B L, 950G, 322-A L, 325-A, 219, E180, 314C, 953C, M315, 950E, 215C, 320C, 322N, 322 L, 960F, 320B, 320-A L, 322B LN, 325-A L, 206, 950B/950E, 318B N, 962G II, M318, 315B FM L, 963B, 938G II, 325B L, 235D, M315C, 950H, M313C, 317B LN, 219D, 330-A, 315-A, 963, 318C, 953B, 950, 955K, 320B FM LL, 215, 205, 315C, 322-A, EL180, 245D, 950G II, 322 LN, 312D L, 320B L, 315-A L, 330-A L, 320-A, 950F, 325 L, 235C, 320B S, M322C, 317-A, E140, M320, M318C MH, M316C, 320-A N, 320B LL, 321B, 950F II, 325-A FM L, 963C, M318C, 318B, 321D LCR, 950B, 235, 317-A N, 962G, 322-A N, 330B LN, 325B LN, 320-A S, 215B, 312D, 320B N, 325-A LN, 330 L, 966C, 322B L, 212, 330B L, 317 N, 235B, 315B, EL200B, 955L, 322C, 320 L, 325 LN, 962H, 317B L, 215D, 322-A LN, M312
