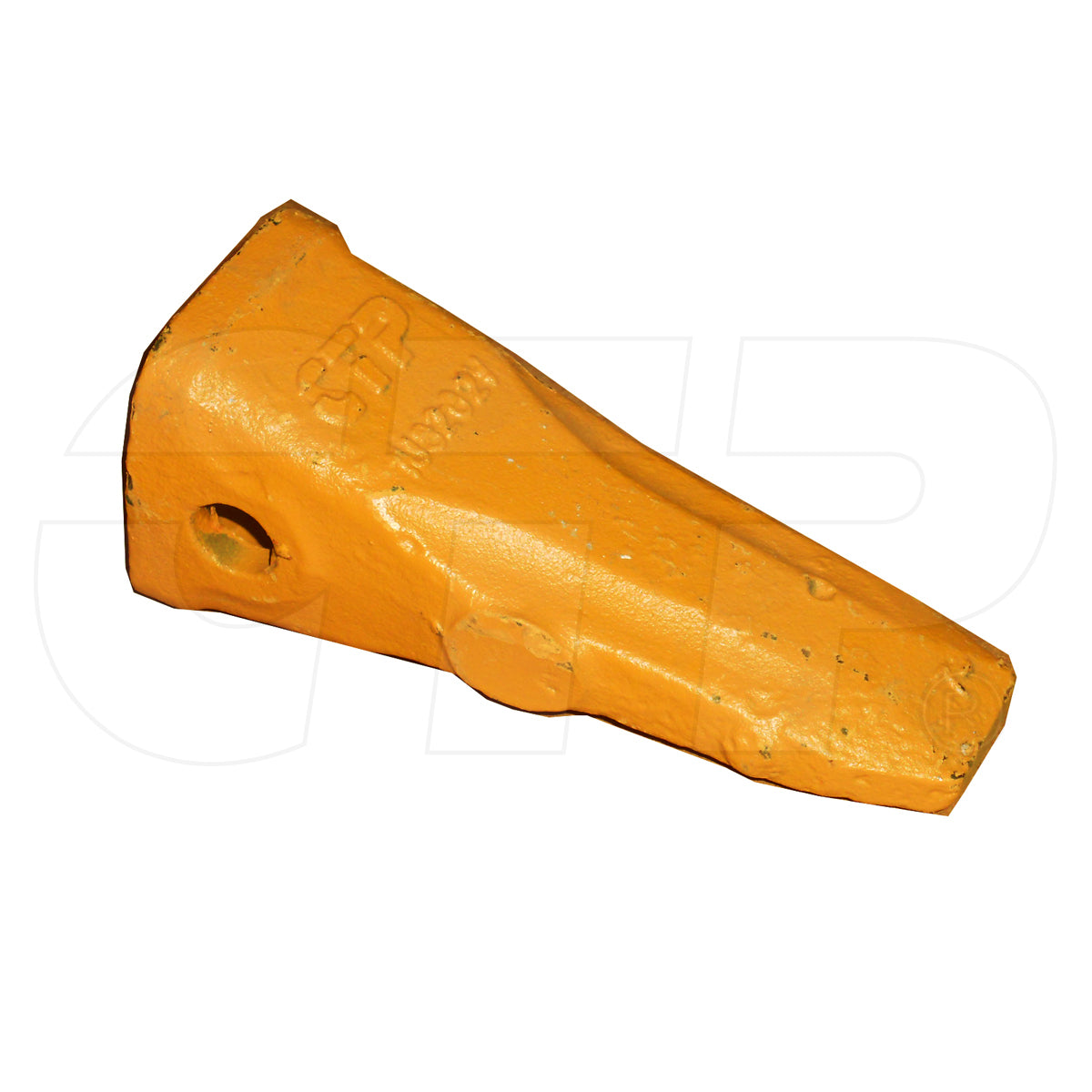

1U3202V Tip-V Series Fits Caterpillar Models

One New Aftermarket Replacement J200 V-Series Bucket Tip for Caterpillar (Cat) Excavators, Loaders, and Backhoes

This aftermarket replacement 1U3202V is a J200 V-Series self-sharpening bucket tip for Caterpillar (Cat) excavators, loaders, backhoe loaders, and motor graders. The V-Series tip features long, symmetric top and bottom self-sharpening cavities for maximum penetration and sustained wear life. It mounts to J200-series adapters using a side-pin retention system (pin 8E6208 / 9W7112, retainer 8E6209 -- sold separately). Made from alloy steel for high hardness and long service life in general-purpose digging and dirt applications.

Specifications

• Part Number: 1U3202V / 1U-3202V
• Weight: 2.64 kg (approx. 5.8 lbs)
• Material: Alloy steel
• Tooth system: Caterpillar J200 series
• Pin system: Side-pin (8E6208 / 9W7112 pin, 8E6209 retainer)
• Style: V-Series self-sharpening tip

Compatible Models

Caterpillar Excavators: 205, 206, 212, 303.5, 303.5C, 303.5D, 303.5E, 303.5E2, 303C CR, 303E CR, 304, 304.5, 304C CR, 304D CR, 304E, 304E2, 305, 305.5D, 305.5E, 305.5E2, 305C CR, E110B, E120B, E200B, E240B, E240C, EL200B, EL240B, EL240C, 312-A, 312B, 312B L, 312C, 312C L, 312D, 312D L, 320B, 320B L, 320B N, 320B S

Caterpillar Backhoe Loaders: 416, 416B, 416C, 416D, 420D, 422E, 424D, 426, 426B, 426C, 428, 428B, 428C, 428D, 428E, 432D, 432E, 434E, 436, 436B, 436C, 438, 438B, 438C, 438D, 442D, 442E, 444E

Caterpillar Wheel-Type Loaders: 910, 910E, 910F, 910K, 910M, 914G, 914G2, 914K, 914M, 918M, 920K, G910

Caterpillar Motor Graders: 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 135H, 135H NA, 140K, 140M

Caterpillar Track-Type Loaders: 931, 931B, 931C, 933, 933C, 935B, 935C, 939, 939C

Caterpillar Integrated Toolcarriers: IT12, IT12B, IT14B, IT14F, IT14G, IT14G2

Caterpillar Skid Steer / Track Loaders: 279D

Caterpillar Work Tools: BH150

Replaces Part Number(s):

1U3202V, 1U-3202V

New aftermarket replacement part - not remanufactured, not used.
