1S9543 Retainer Fits Caterpillar Models

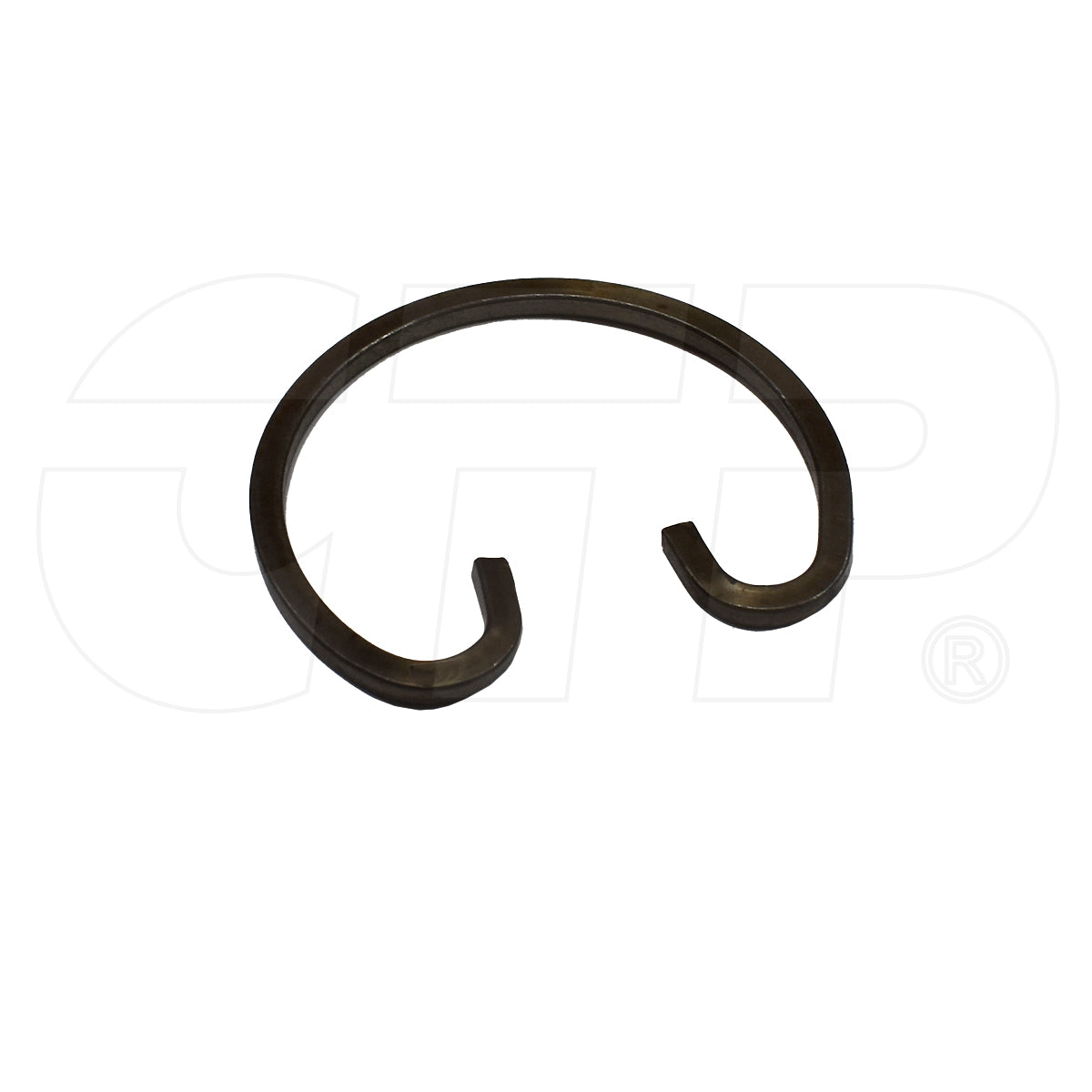

One New Aftermarket Replacement Piston Pin Retainer for Caterpillar (Cat) Engines

This piston pin retainer (also called a wrist pin retainer or snap ring) secures the piston pin within the piston bore in Caterpillar 3300-series diesel engines. It locks the 1.700-inch diameter piston pin in place, maintaining precise piston-to-connecting-rod alignment under high heat and vibration during engine operation. Sold individually -- verify quantity needed per engine build.

Compatible Models

Caterpillar Engines: 3304, 3306, 3306C, D330C, D333C

Caterpillar Excavators: 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, 229D, 235, 235B, 235C, 235D, 330, 330A, 330A L, 330A LN, 330B, 330B L, 330B LN, 330 L, 330 LN, 350, 350 L, 350A, E240, E300, E300B, EL300, EL300B

Caterpillar Wheel Tractors / Scrapers: 611, 615, 615C, 615C II, 621, 621R, 621S, 623, 627, 627B, 627E, 627F

Caterpillar Motor Graders: 140, 141, 143, 153, 163

Caterpillar Wheel Dozers: 814, 814B, 814F

Caterpillar Track-Type Tractors: D6R, D8L, D9N

Caterpillar Wheel Loaders: 966F, 966F II, 980F, 980F II, 980G, 980G II

Caterpillar Off-Highway Trucks: 769C, 769D, 771D

Caterpillar Compactors: 631G, 657E

Specifications

• Part Type: Piston Pin Retainer (Snap Ring / Wrist Pin Retainer)
• Compatible Piston Pin Diameter: 1.700 in.
• Engine Family: Caterpillar 3300 Series
• Interchange / Alternate Number: 1S-9543

Replaces Part Number(s):

1S9543, 1S-9543, 1S9543-A

Aftermarket Interchange Numbers

M-1S9543 (Interstate-McBee), FP-1S9543 (Federal-Mogul / Federal-Mogul Diesel)

New aftermarket replacement part - not remanufactured, not used.
