1L3162 Ring Fits Caterpillar Models

One New Aftermarket Replacement Internal Retaining Ring for Caterpillar (Cat) Equipment

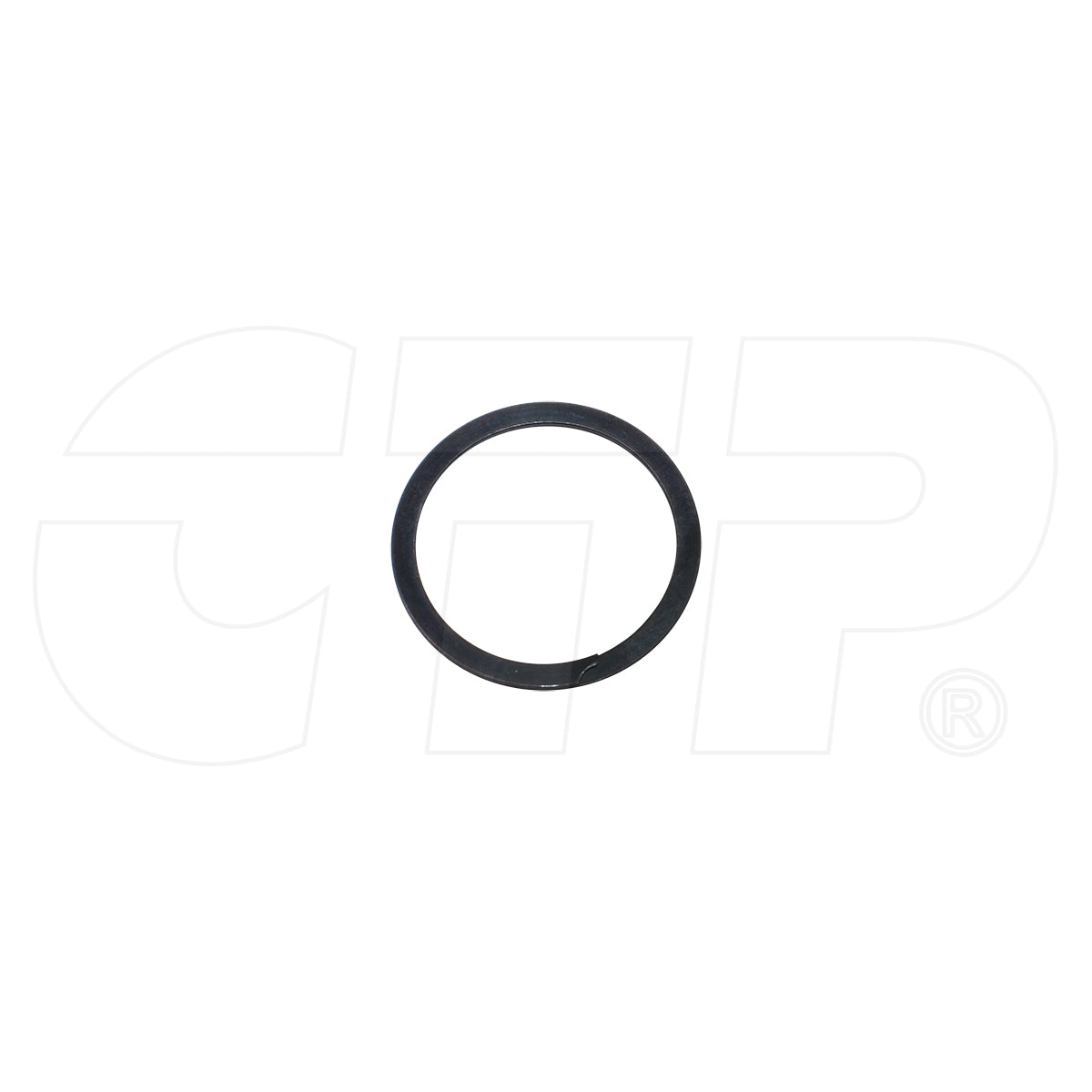

This aftermarket replacement internal axial spiral retaining ring (Cat part 1L-3162 / 1L3162) seats into a 20mm housing bore to secure components in place across a wide range of Caterpillar (Cat) construction, mining, and earthmoving equipment. Manufactured from carbon steel, it is a direct replacement for the OEM retaining ring used in numerous Cat machine families.

Specifications

• Type: Internal Axial Spiral Retaining Ring
• Free Diameter: 20.07 mm
• Housing Diameter: 19.05 mm
• Groove Diameter: 19.86 mm
• Groove Width: 0.91 mm
• Radial Wall: 1.65 mm
• Thickness: 0.79 mm
• Material: Carbon Steel
• Cross Holes: No

Compatible Models

Caterpillar Track-Type Tractors: D6C, D6R, D6R II, D7R, D7R II, D8H, D8K, D8L, D8R II, D9G, D9L, D9N, D9T, D10, D10N, D10R, D10T, D11, D11N, D11R, D11T

Caterpillar Motor Graders: 12F, 12G, 14E, 14G, 14H, 14H NA, 16, 16G, 16H, 16H NA, 24H, 24M, 120G, 130G, 140G, 160G

Caterpillar Off Highway Trucks: 773, 775, 777, 777E, 777G, 785, 785D, 789, 789D, 789G, 793, 793D, 793F

Caterpillar Load Haul Dump: R1700, R1700 II, R1700G, R2900, R2900G, R3000H

Caterpillar Underground Articulated Trucks: AD30, AD40, AD45, AD45B, AD55, AD55B, AD60, AD63, AE40, AE40 II

Caterpillar Winches: 58, 58L, 59, 59L, 59N

Caterpillar Power Modules: TR43, TR43-C18L, TR43-E44

Caterpillar OEM Solutions: 3412C

Caterpillar Pumper: SPF343C

Caterpillar Rotary Cutter: RC20

Replaces Part Number(s):

1L3162, 1L-3162

New aftermarket replacement part - not remanufactured, not used.
